NSN 5935-01-346-4114 M28754/32-23DCM, M287543223DCM, SEMA233
Product Details | ELECTRICAL MODULAR PLUG CONNECTOR
5935-01-346-4114 An electrical fitting with contacts and having one or more cavities into which an INSERT MODULE, ELECTRICAL CONNECTOR can be installed. The insert modules may/may not be included with the item. The item is constructed to be affixed to the end of a cable, conduit, coaxial line, core, wire, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is not designed to be mounted on a bulkhead, chassis, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG, TIP; INSERT, ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); CONNECTOR, PLUG, ELECTRICAL and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M28754/32-23DCM, M287543223DCM, SEMA233, SEM-A-233 , MIL-C-28754/32, MILC2875432, 5935-01-346-4114, 01-346-4114, 5935013464114, 013464114
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 OCT 1991 | 01-346-4114 | 38439 ( CONNECTOR, MODULAR PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-346-4114
Demand History | NSN 5935-01-346-4114
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-346-4114 | 2010-04-105 | 1 | DIBBS |
| 5935-01-346-4114 | 2009-03-80 | 1 | DIBBS |
| 5935-01-346-4114 | 2008-03-70 | 1 | DIBBS |
Cross Reference | NSN 5935-01-346-4114
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M28754/32-23DCM | 07618 | DUCOMMUN LABARGE TECHNOLOGIES, INC. DBA LABARGE INC ELECTRONICS DIV |
| M28754/32-23DCM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M28754/32-23DCM | 96169 | ELECTRIC BOAT CORPORATION |
| MIL-C-28754/32 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SEM-A-233 | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-346-4114
Technical Data | NSN 5935-01-346-4114
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 62A RECTANGULAR SHAPE W/CABLE CLAMP |
| OVERALL LENGTH | 2.610 INCHES MINIMUM AND 2.630 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.680 INCHES MAXIMUM |
| OVERALL WIDTH | 0.290 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | FRICTION |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 1.590 INCHES NOMINAL |
| SHELL TYPE | HOOD, TOP OPENING |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | ANODIZE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| GUIDE DESIGN AND LOCATION | D SHAPE PIN LEFT-HAND AT 5 OCLOCK V GROOVE PIN RIGHT-HAND AT 6 OCLOCK |
| MATING END QUANTITY | 1 |

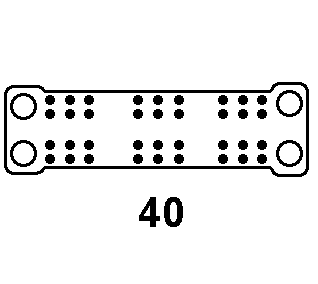

| CONTACT POSITION ARRANGEMENT STYLE | BSAY 40 SINGLE MATING END |
