NSN 5935-01-364-3610 183031, 18303-1, 36579
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-364-3610 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 183031, 18303-1, 36579, 5935-01-364-3610, 01-364-3610, 5935013643610, 013643610
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 SEP 1992 | 01-364-3610 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-364-3610
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-364-3610
Technical Data | NSN 5935-01-364-3610
| Characteristic | Specifications |
|---|---|

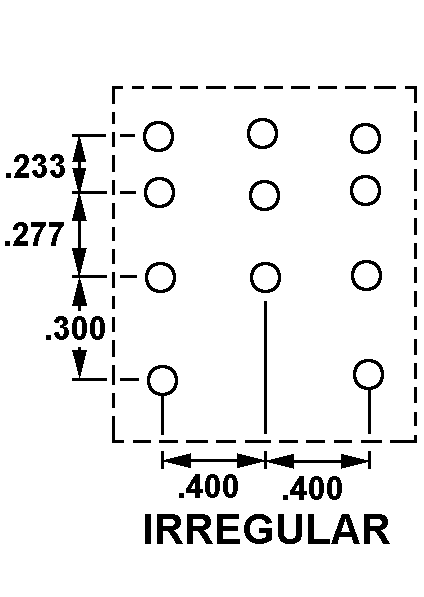

| CONTACT POSITION ARRANGEMENT STYLE | 1115A IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 11 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| BODY STYLE | 52B TOP MOUNT W/TABS |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.438 INCHES NOMINAL |
| OVERALL WIDTH | 1.350 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.297 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 11 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| POLARIZATION TYPE | CONTACT POSITION |
Restrictions/Controls & Freight Information | NSN 5935-01-364-3610
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
