NSN 5935-01-364-5312 S3256R28SS72, 5D006428SK, 5D0064-28SK
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-364-5312 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: S3256R28SS72, 5D006428SK, 5D0064-28SK, 620AA008281K, 620AA008-281K, 901281280061, 901-281-2800-61, 90128128S061, 901-281-28S0-61, 5935-01-364-5312, 01-364-5312, 5935013645312, 013645312
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 SEP 1992 | 01-364-5312 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |

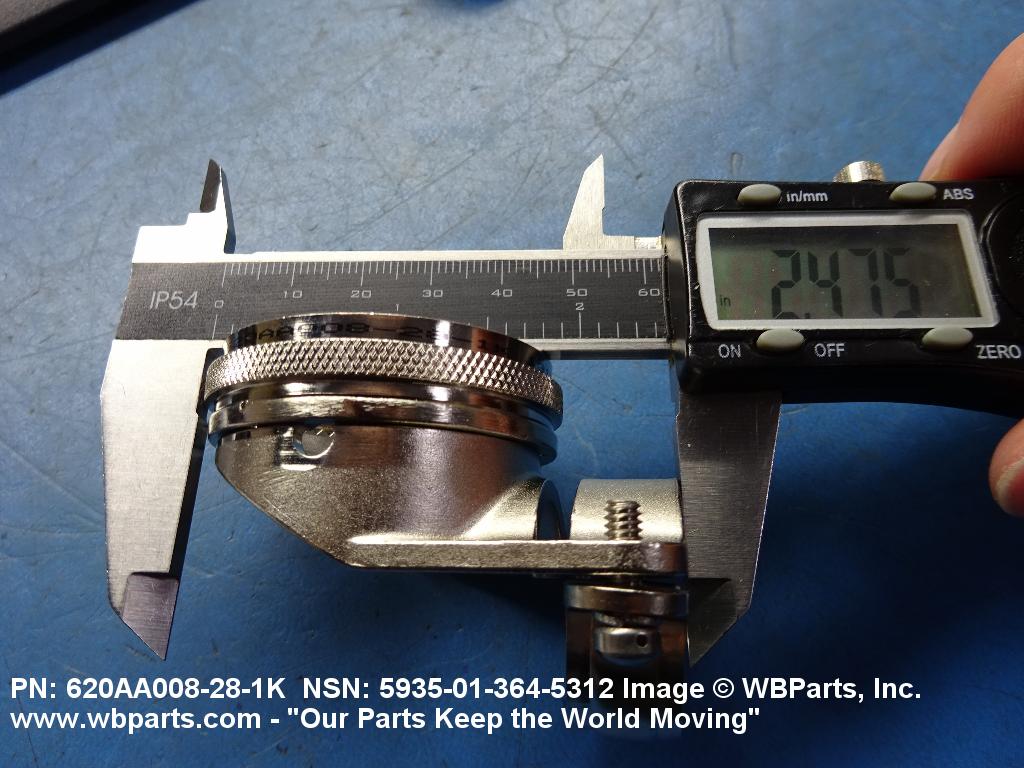

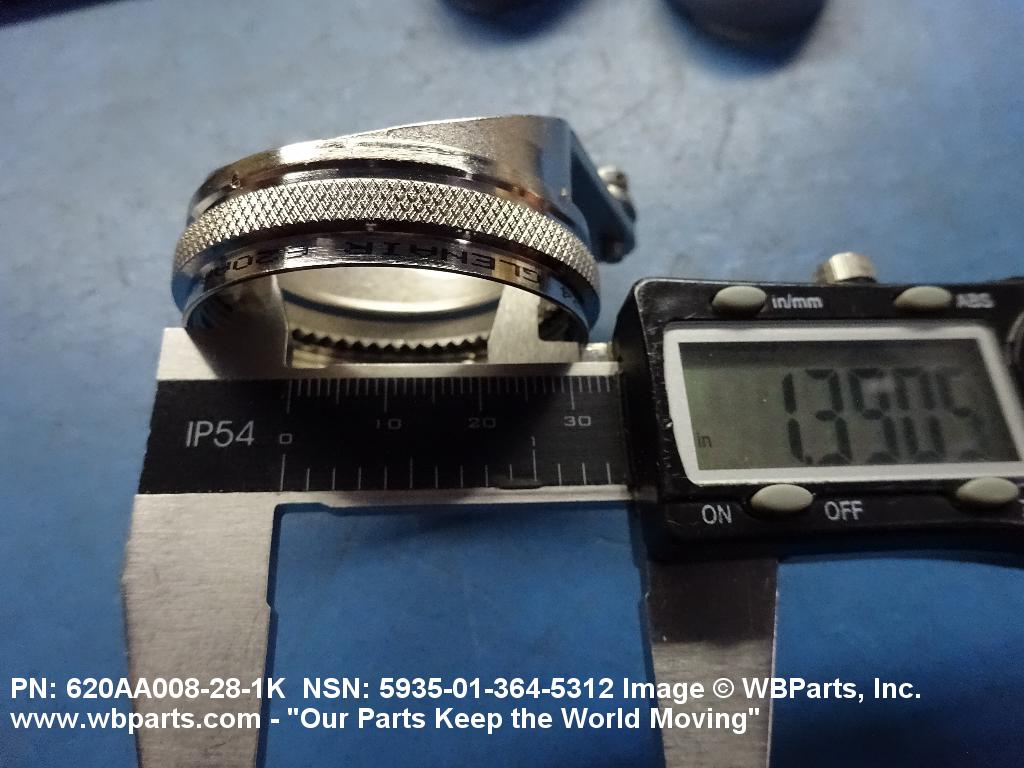

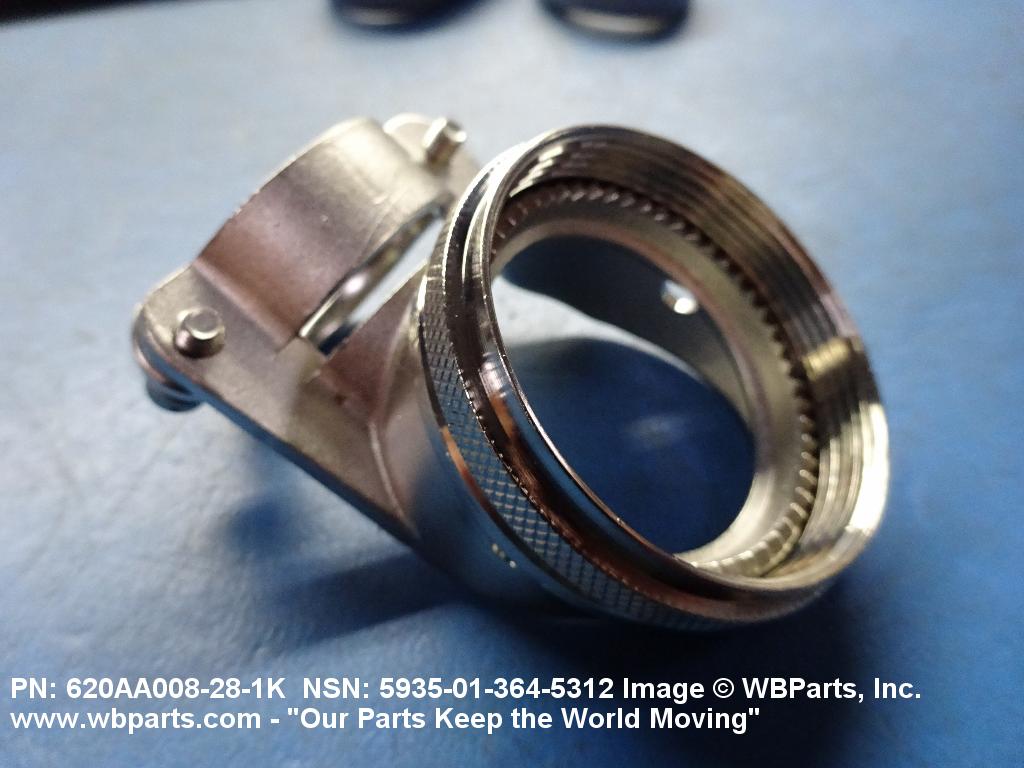

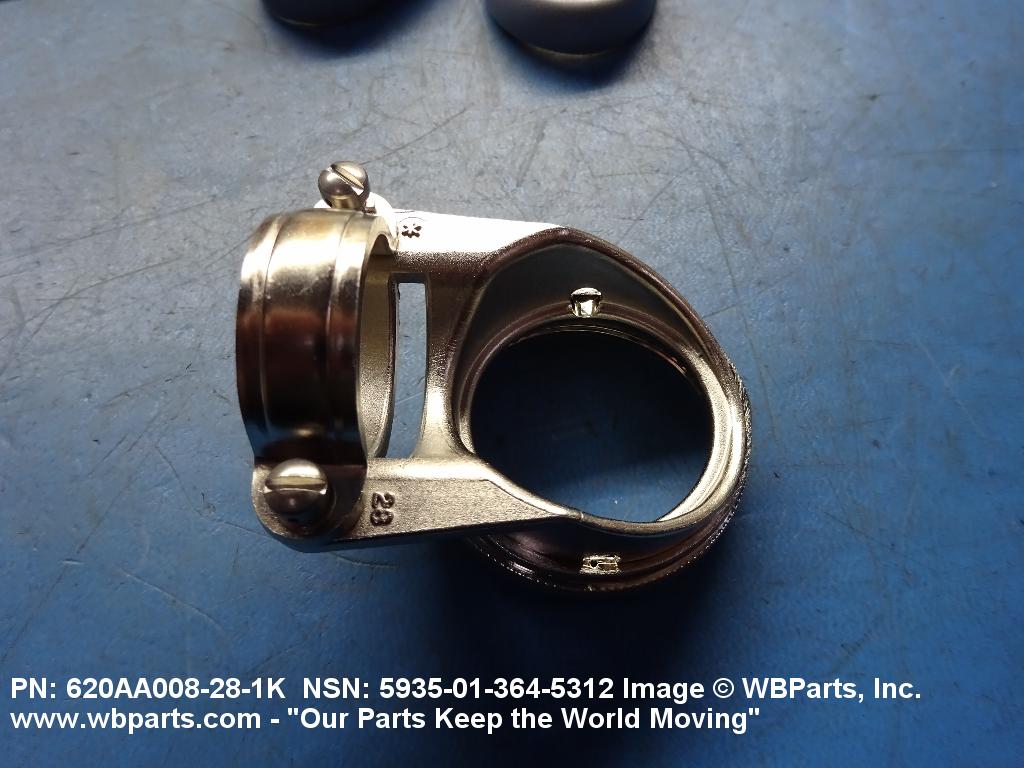

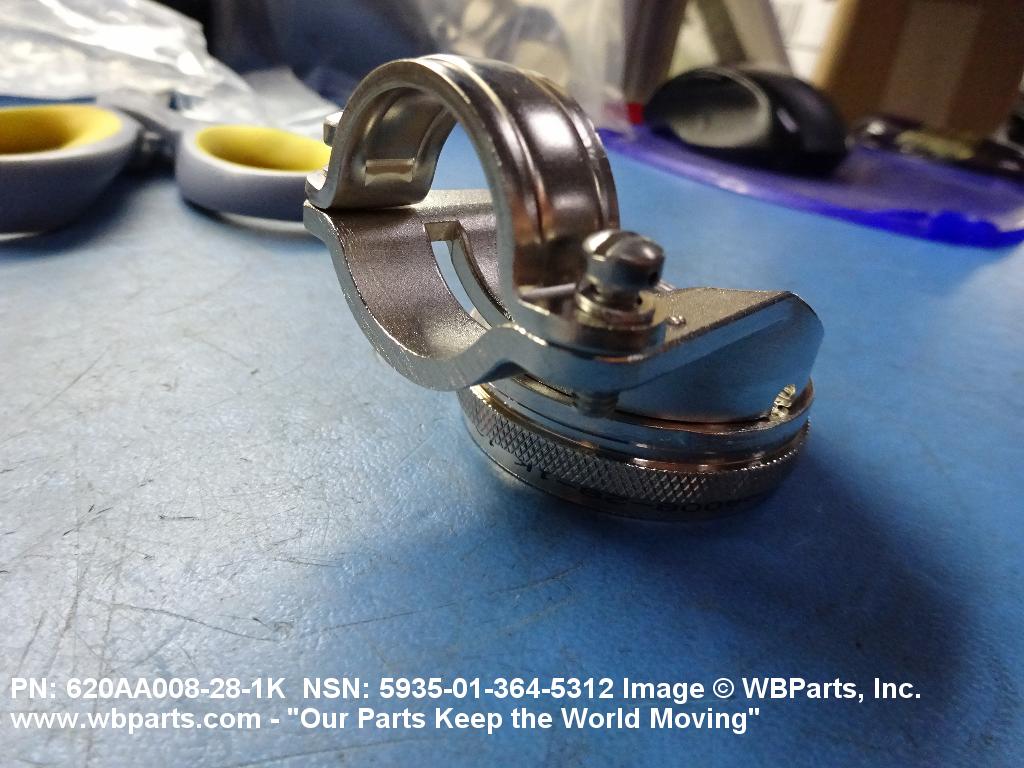

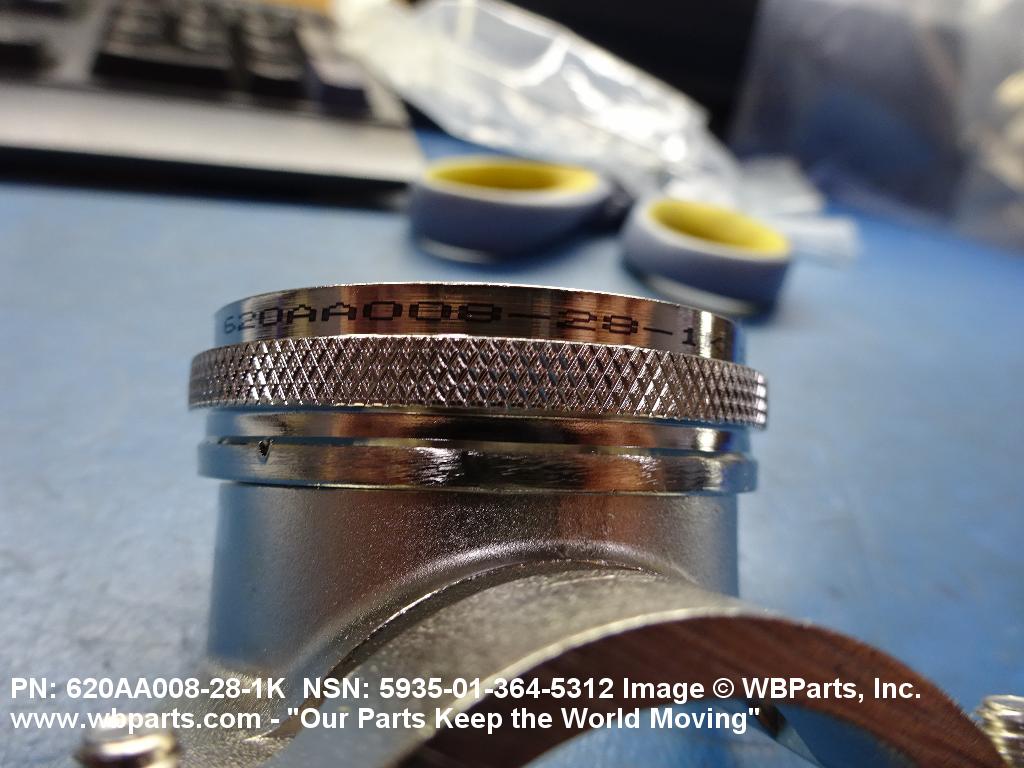

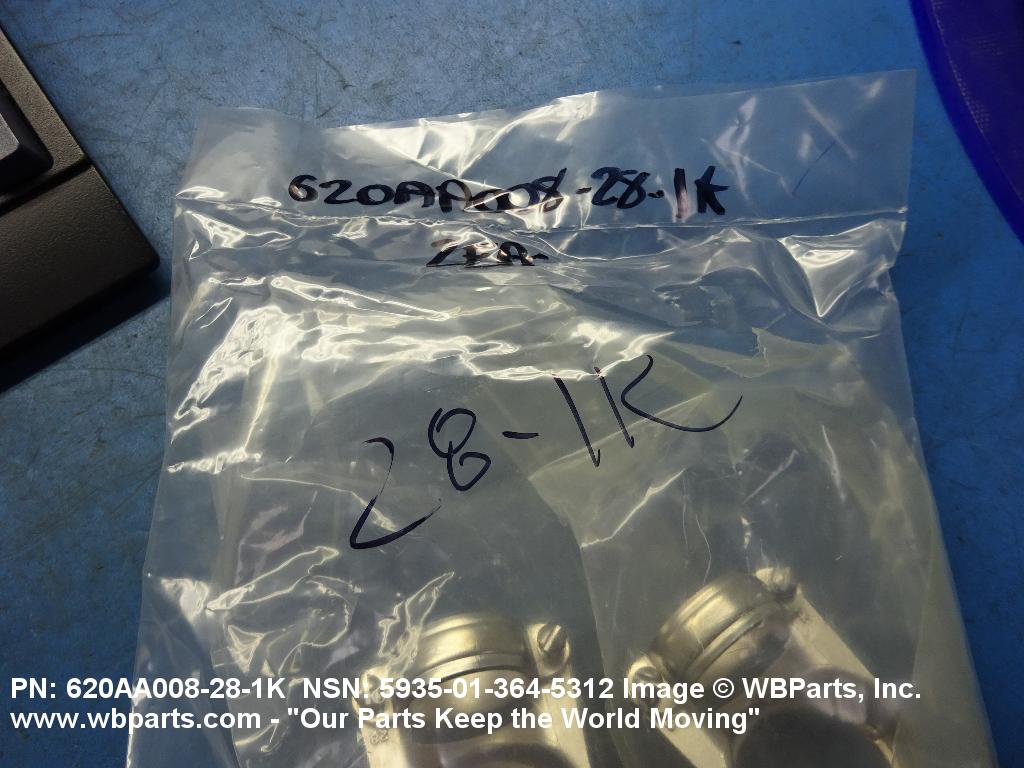

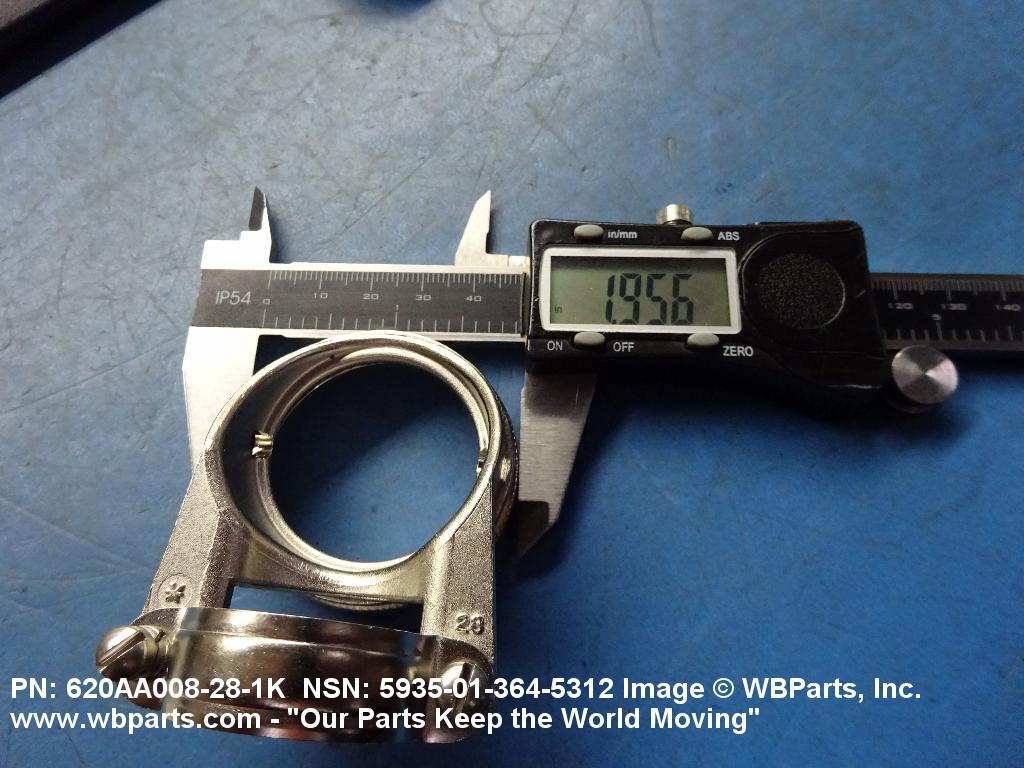

Drawings & Photos | NSN 5935-01-364-5312
Demand History | NSN 5935-01-364-5312
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-364-5312 | 2022-04-101 | 2 | United States |
Cross Reference | NSN 5935-01-364-5312
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-364-5312
Technical Data | NSN 5935-01-364-5312
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 12C ANGLE TYPE W/CLAMP |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| BODY ANGLE IN DEG | 90.0 |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 0.555 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO CABLE END | 1.572 INCHES NOMINAL |
| MATERIAL | STEEL, STAINLESS |
| SURFACE TREATMENT | NICKEL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 1.750 INCHES |
| THREAD CLASS | A2B |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.305 INCHES |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.706 INCHES NOMINAL |
| SPECIAL FEATURES | SHELL SIZE 28S |
Restrictions/Controls & Freight Information | NSN 5935-01-364-5312
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-364-5312
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
