NSN 5935-01-372-9530 MS3102E4056SW, MS3102E40-56SW, MILC5015
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-372-9530 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3102E4056SW, MS3102E40-56SW, MILC5015, MIL-C-5015, 5935-01-372-9530, 01-372-9530, 5935013729530, 013729530
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-372-9530 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-372-9530
Cross Reference | NSN 5935-01-372-9530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CA3102R-40-56SWF | 71468 | ITT CORPORATION DBA I T T CANNON |
| CA3102R-40-56SWF80 | 71468 | ITT CORPORATION DBA I T T CANNON |
| G643427-9 | 01714 | LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS |
| G643427-9 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| MIL-C-5015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-5015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3102E40-56SW | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3102R40-56SW | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3452W40-56SW | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SG3102E-40-56SW(119) | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-372-9530
Technical Data | NSN 5935-01-372-9530
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 1.938 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.750 INCHES NOMINAL |
| OVERALL WIDTH | 2.750 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 2.188 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.188 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.750 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 288.0 |
| MATING END QUANTITY | 1 |

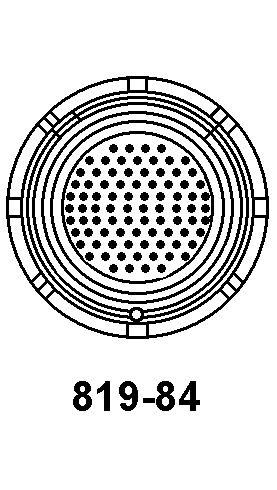

| CONTACT POSITION ARRANGEMENT STYLE | DPAB 819-84 SINGLE MATING END |
| INSERT MATERIAL | RUBBER SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 85 SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| TEST DATA DOCUMENT | 81349-MIL-C-5015 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS3102 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-5015 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS3102E40-56SW |
Restrictions/Controls & Freight Information | NSN 5935-01-372-9530
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
