NSN 5935-01-400-2975 S3256R16S72, 5D006416, 5D0064-16
Product Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-01-400-2975 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Part Alternates: S3256R16S72, 5D006416, 5D0064-16, 5D006416K, 5D0064-16K, 620AA00816K, 620AA008-16K, 901281160061, 901-281-1600-61, 5935-01-400-2975, 01-400-2975, 5935014002975, 014002975
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 DEC 1994 | 01-400-2975 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |

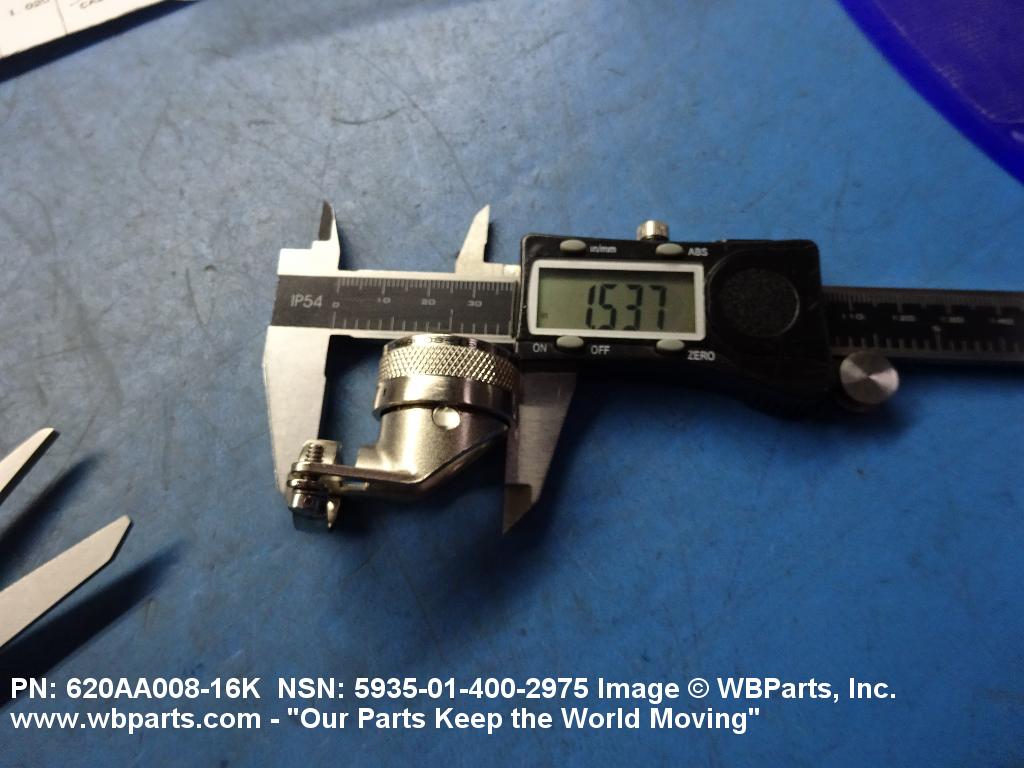

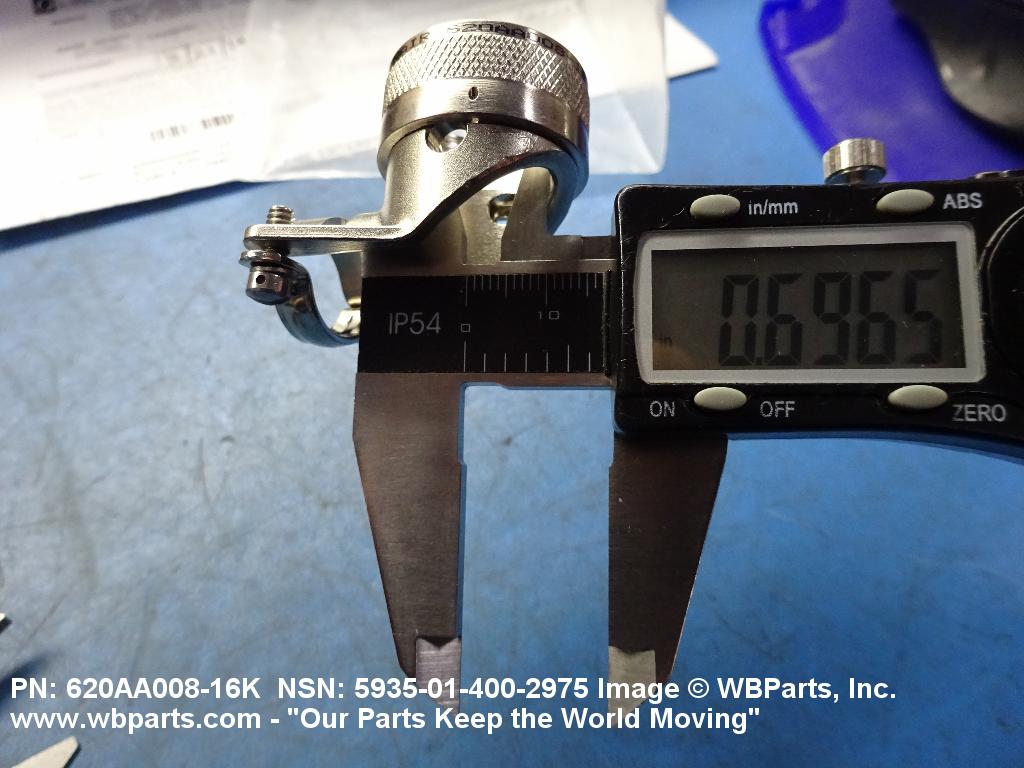

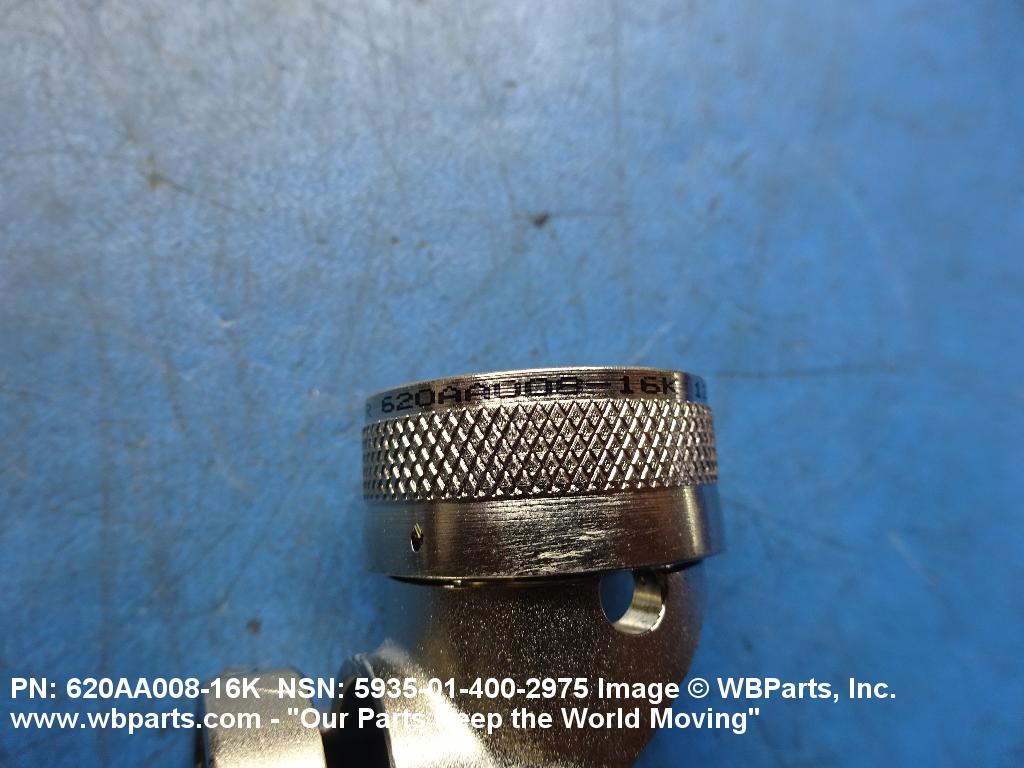

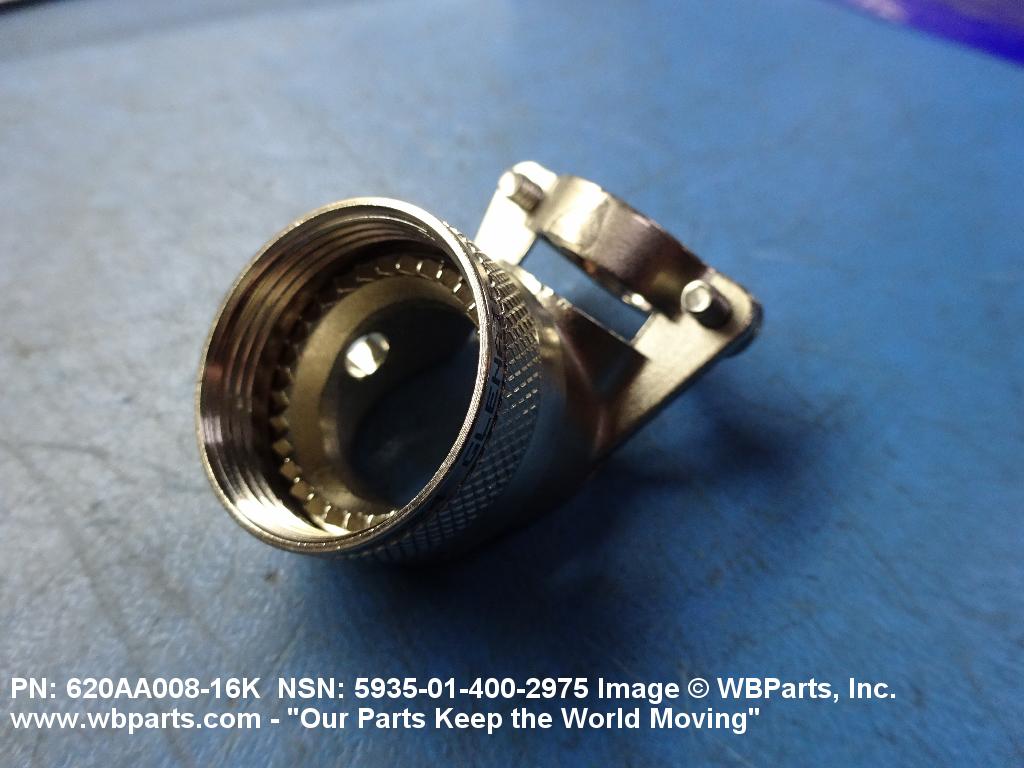

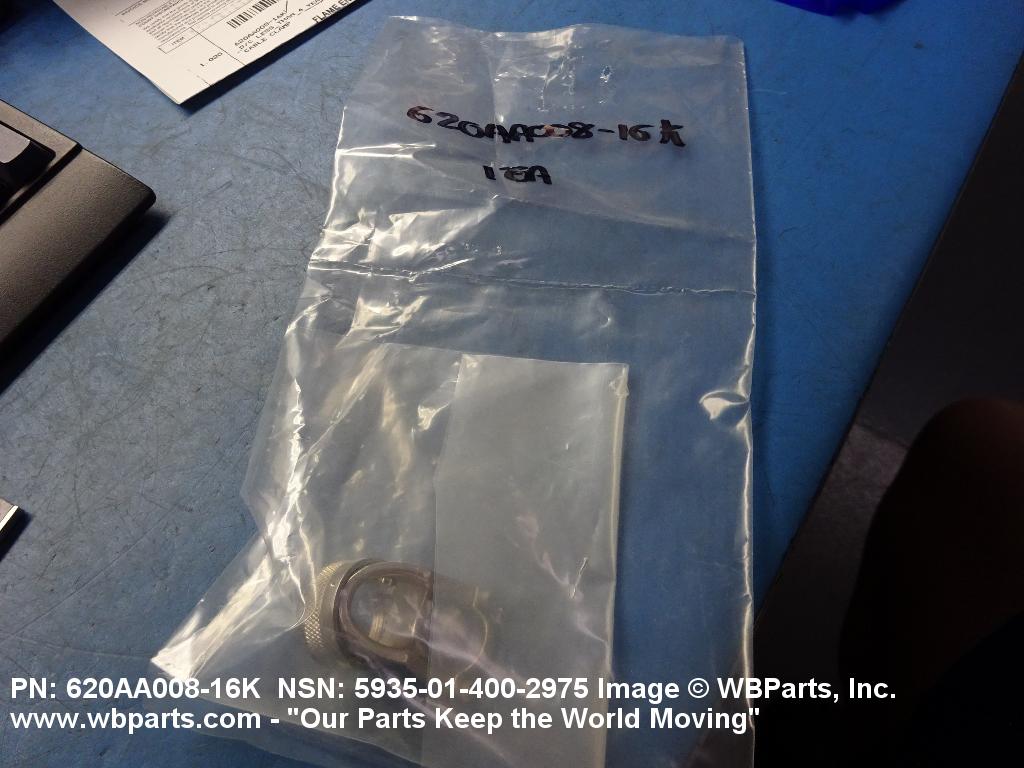

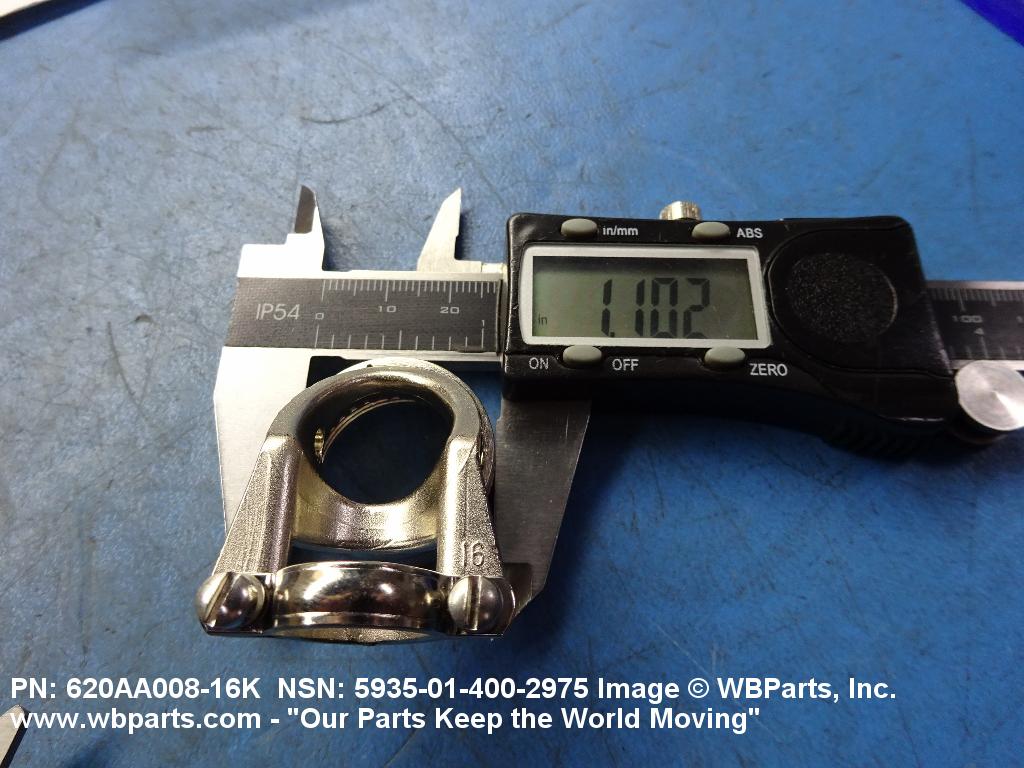

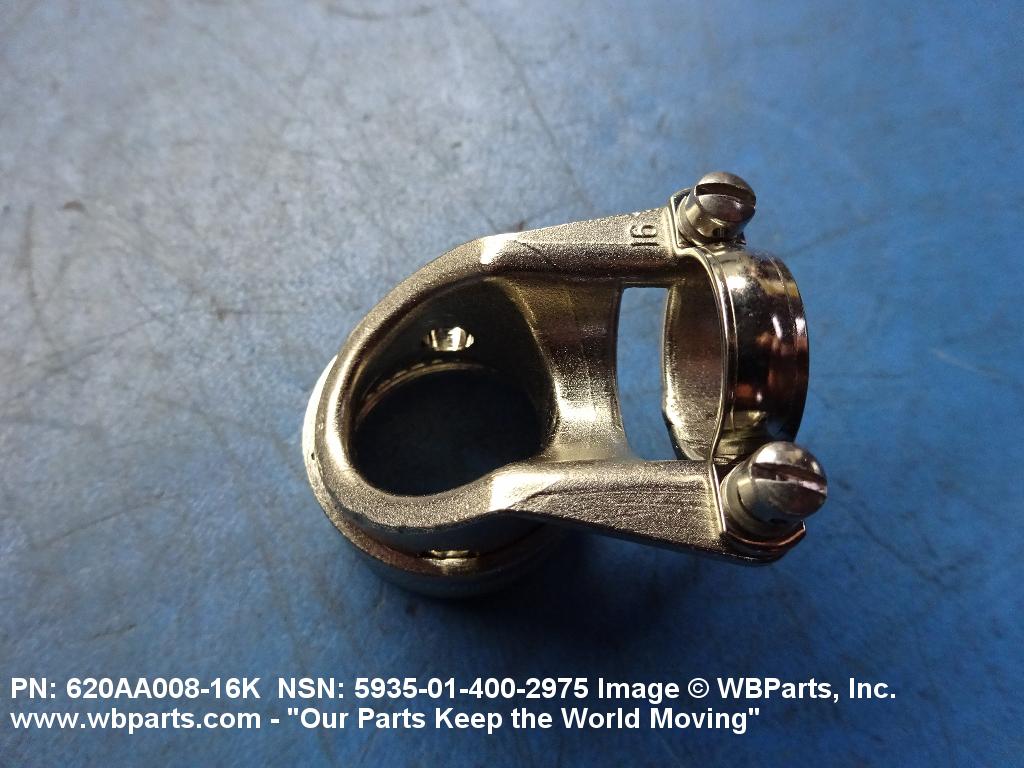

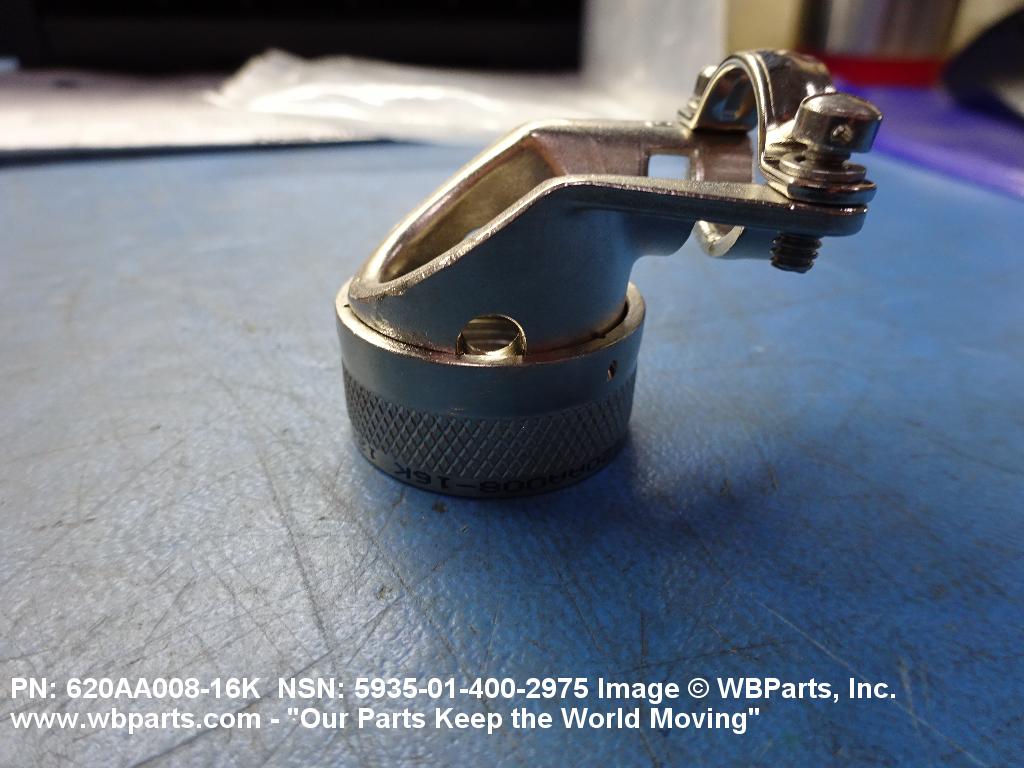

Drawings & Photos | NSN 5935-01-400-2975
Demand History | NSN 5935-01-400-2975
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-400-2975 | 2022-04-101 | 1 | United States |
Cross Reference | NSN 5935-01-400-2975
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-400-2975
Technical Data | NSN 5935-01-400-2975
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 15B CLAMP, ANGLE TIE STRAP TYPE |
| OVERALL WIDTH | 1.299 INCHES NOMINAL |
| BODY ANGLE IN DEG | 90.0 |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 1.365 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.000 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 5935-01-400-2975
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5935-01-400-2975
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
