Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-410-7727 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: A1376000, A1-376-000, A13760000080, A1-376-0000-080 , DADA432678, DADA43267-8, 10138941 , 2046AS10702, 2046AS107-02, 5935-01-410-7727, 01-410-7727, 5935014107727, 014107727
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1995 | 01-410-7727 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-410-7727
Demand History | NSN 5935-01-410-7727
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A1-376-0000-080 | 2022-09-22 | 33 | DIBBS |
| DADA43267-8 | 2022-09-22 | 33 | DIBBS |
| A1-376-0000-080 | 2021-02-25 | 18 | DIBBS |
| DADA43267-8 | 2021-02-25 | 18 | DIBBS |
| A1-376-0000-080 | 2020-07-21 | 16 | DIBBS |
| DADA43267-8 | 2020-07-21 | 16 | DIBBS |
| A1-376-0000-080 | 2020-05-28 | 5 | DIBBS |
| DADA43267-8 | 2020-05-28 | 5 | DIBBS |
| 5935-01-410-7727 | 2016-12-20 | 16 | DIBBS |
| 5935-01-410-7727 | 2014-01-21 | 21 | DIBBS |
| 5935-01-410-7727 | 2014-01-05 | 21 | DIBBS |
| 5935-01-410-7727 | 2013-10-02 | 16 | DIBBS |
| 5935-01-410-7727 | 2013-09-11 | 7 | DIBBS |
| 5935-01-410-7727 | 2013-06-21 | 6 | DIBBS |
| 5935-01-410-7727 | 2013-06-05 | 6 | DIBBS |
| 5935-01-410-7727 | 2011-11-04 | 15 | DIBBS |
| 5935-01-410-7727 | 2011-05-25 | 12 | DIBBS |
| 5935-01-410-7727 | 2011-02-09 | 30 | Canada |
| 5935-01-410-7727 | 2011-02-09 | 17 | DIBBS |
| 5935-01-410-7727 | 2011-02-07 | 9 | DIBBS |
| 5935-01-410-7727 | 2010-12-27 | 17 | DIBBS |
| 5935-01-410-7727 | 2010-09-27 | 17 | DIBBS |
| 5935-01-410-7727 | 2010-04-13 | 13 | DIBBS |
| 5935-01-410-7727 | 2009-10-03 | 13 | DIBBS |
| 5935-01-410-7727 | 2009-09-28 | 16 | DIBBS |
| 5935-01-410-7727 | 2008-04-24 | 28 | DIBBS |
| 5935-01-410-7727 | 2008-02-05 | 33 | DIBBS |
| 5935-01-410-7727 | 2007-05-07 | 21 | DIBBS |
| 5935-01-410-7727 | 2006-05-25 | 8 | DIBBS |
| 5935-01-410-7727 | 2006-05-02 | 8 | DIBBS |
| 5935-01-410-7727 | 2006-02-03 | 10 | DIBBS |
| 5935-01-410-7727 | 2006-01-24 | 5 | DIBBS |
Cross Reference | NSN 5935-01-410-7727
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2046AS107-02 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| A1-376-000 | 25330 | COOPER CROUSE- HINDS, LLC DBA GENERAL CONNECTOR |
| A1-376-0000-080 | 25330 | COOPER CROUSE- HINDS, LLC DBA GENERAL CONNECTOR |
| DADA43267-8 | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5935-01-410-7727
5935-01-410-7728, 5935-01-410-7729, 5935-01-410-7731, 5935-01-410-7742, 5935-01-410-7744
Technical Data | NSN 5935-01-410-7727
| Characteristic | Specifications |
|---|---|

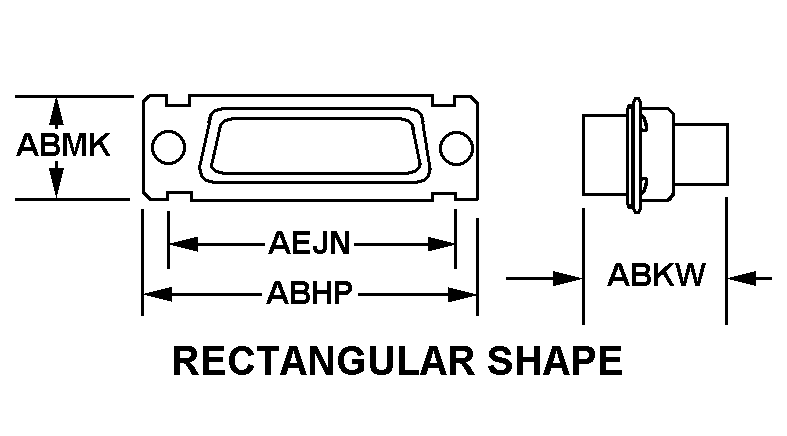

| BODY STYLE | 9H RECTANGULAR SHAPE |
| OVERALL LENGTH | 1.835 INCHES MINIMUM AND 1.855 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.954 INCHES NOMINAL |
| OVERALL WIDTH | 0.604 INCHES MINIMUM AND 0.624 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.542 INCHES MINIMUM AND 1.552 INCHES MAXIMUM |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.162 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |

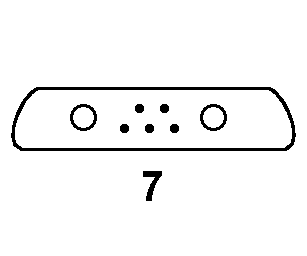

| CONTACT POSITION ARRANGEMENT STYLE | AHGV 7 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END 1ST CONTACT GROUPING 5 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 SINGLE MATING END 1ST CONTACT GROUPING 10.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | CRIMP SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.007 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-410-7727
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-410-7727
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
