NSN 5935-01-426-3646 153161, 15316-1, 01-426-3646
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-426-3646 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 153161, 15316-1, 5935-01-426-3646, 01-426-3646, 5935014263646, 014263646
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09-MAR-96 | 01-426-3646 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-426-3646
Demand History | NSN 5935-01-426-3646
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-426-3646 | 2014-04-98 | 15 | DIBBS |
| 5935-01-426-3646 | 2014-01-20 | 5 | DIBBS |
| 5935-01-426-3646 | 2013-07-209 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-426-3646
Technical Data | NSN 5935-01-426-3646
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 35Q ANGLE SHAPE, PCB TYPE |
| OVERALL LENGTH | 2.850 INCHES NOMINAL |
| MOUNTING METHOD | TAB |
| CONNECTOR LOCKING METHOD | FRICTION AND SNAP LOCK |
| SHELL TYPE | SOLID |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| ROUND GUIDE TYPE AND LOCATION | FEMALE POST LEFT-HAND BOTTOM AND MALE POST RIGHT-HAND BOTTOM |
| MATING END QUANTITY | 1 |

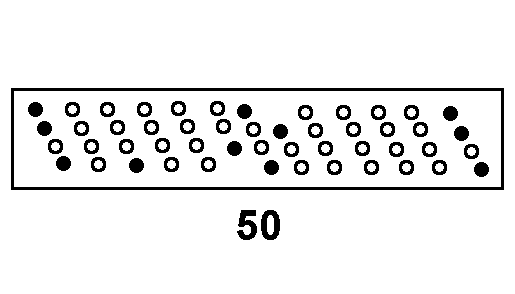

| CONTACT POSITION ARRANGEMENT STYLE | CDAW 50 ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 50 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
Restrictions/Controls & Freight Information | NSN 5935-01-426-3646
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
