NSN 5935-01-452-0075 15.0030-4, 1500304, 01-452-0075
Product Details | ELECTRICAL MODULAR PLUG CONNECTOR BODY
5935-01-452-0075 The main or principal part of a CONNECTOR, MODULAR PLUG, ELECTRICAL which includes insert(s) but does not include removable contact(s) and having one or more cavitites into which an INSERT MODULE, ELECTRICAL CONNECTOR can be installed. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel or the like. Excludes CONNECTOR BODY, PLUG, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 15.0030-4, 1500304, 5935-01-452-0075, 01-452-0075, 5935014520075, 014520075
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 JAN 1998 | 01-452-0075 | 38437 ( CONNECTOR BODY, MODULAR PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-452-0075
Demand History | NSN 5935-01-452-0075
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 15.0030-4 | 2023-05-144 | 1 | DIBBS |
| 5935-01-452-0075 | 2009-03-66 | 60 | DIBBS |
| 5935-01-452-0075 | 2009-01-15 | 150 | DIBBS |
Cross Reference | NSN 5935-01-452-0075
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15.0030-4 | 0N2N5 | MULTI-CONTACT U.S.A., INC. DIV MULTI-CONTACT USA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-452-0075
Technical Data | NSN 5935-01-452-0075
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16A ANGLE SHAPE |
| OVERALL LENGTH | 67.0 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 67.0 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 18.5 MILLIMETERS NOMINAL |
| MATING END QUANTITY | 2 |

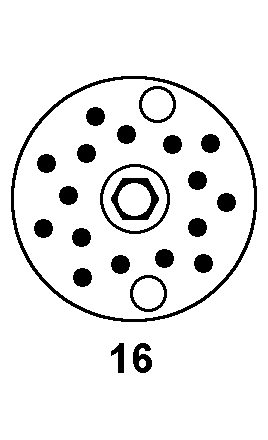

| CONTACT POSITION ARRANGEMENT STYLE | ASCD 16 SINGLE MATING END |
Restrictions/Controls & Freight Information | NSN 5935-01-452-0075
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062020 | FITTINGS ELEC OUTLET BOX I/S |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-452-0075
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
