NSN 5935-01-461-1803 C882012W11, C8820-12W11, 380HD009NF1103F
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-461-1803 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: C882012W11, C8820-12W11, 380HD009NF1103F, 5935-01-461-1803, 01-461-1803, 5935014611803, 014611803
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 DEC 1998 | 01-461-1803 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |

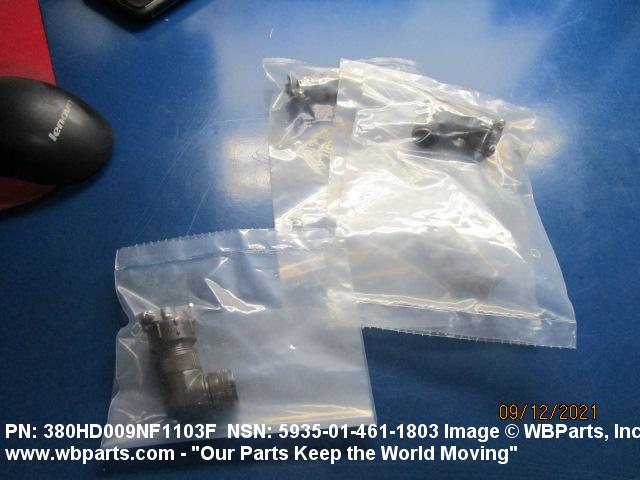

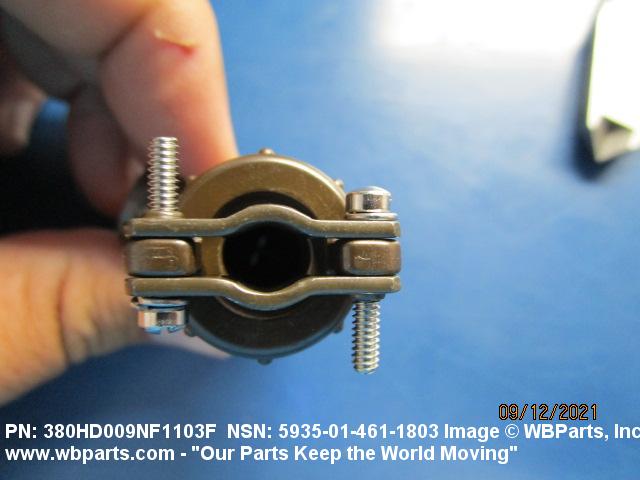

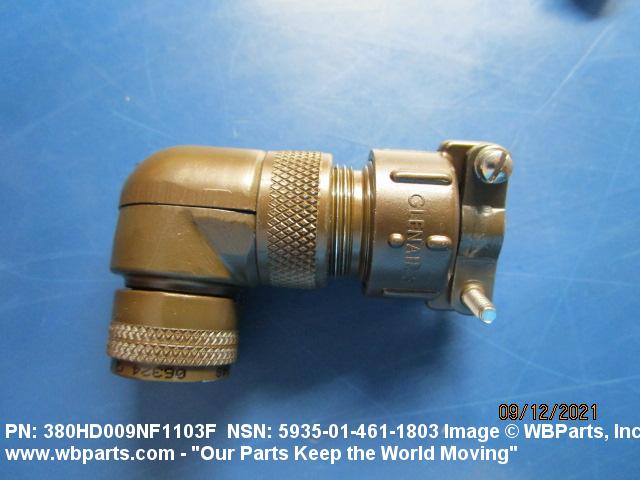

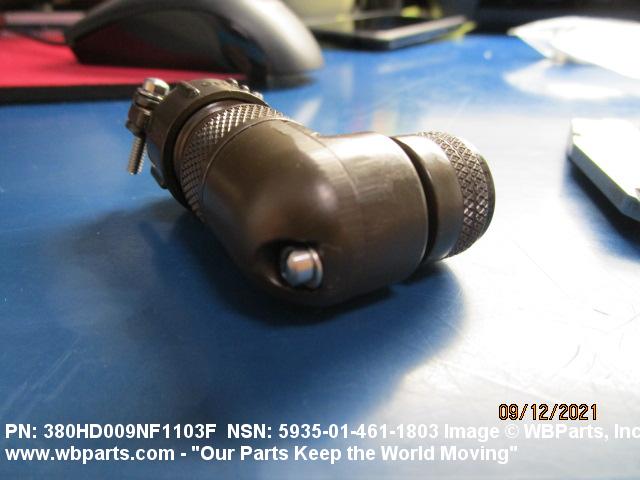

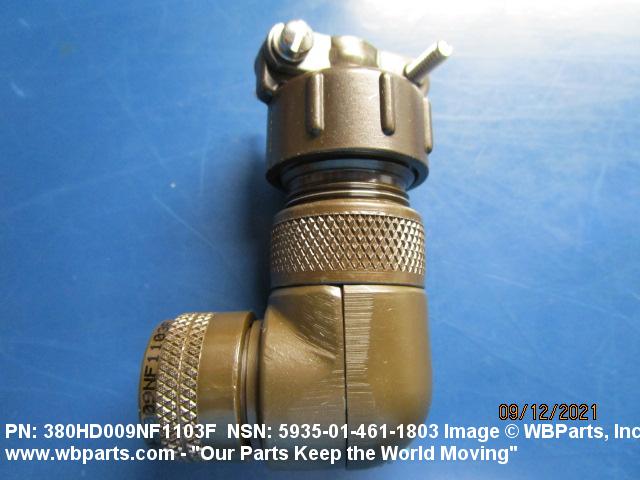

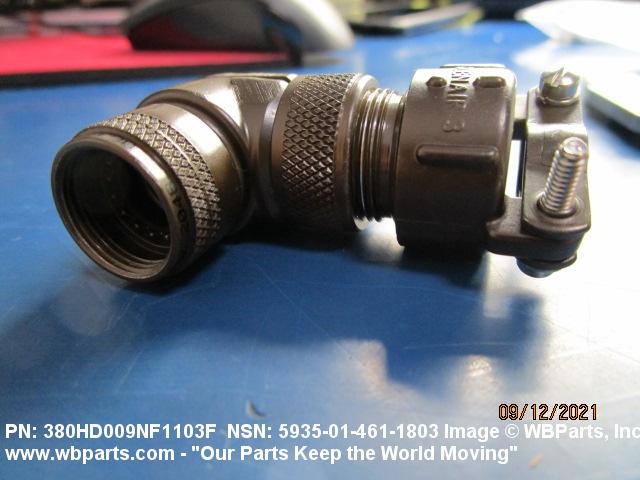

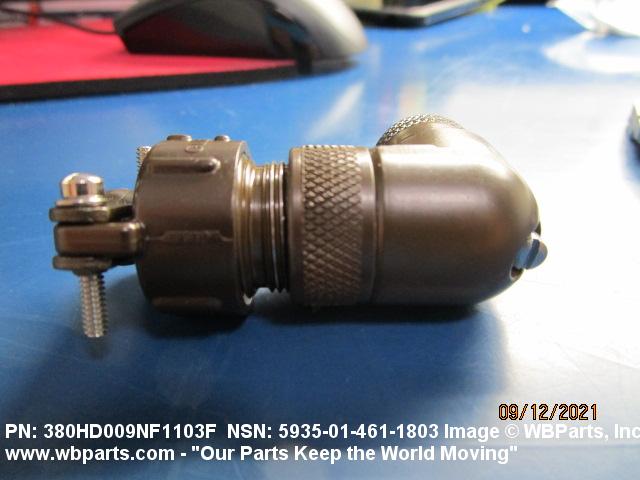

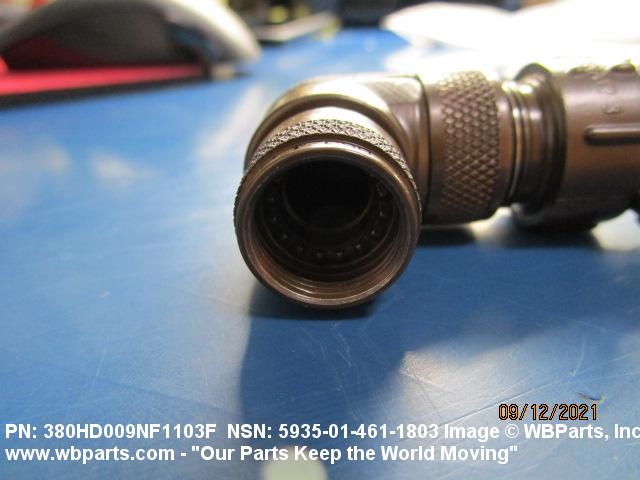

Drawings & Photos | NSN 5935-01-461-1803
Demand History | NSN 5935-01-461-1803
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-461-1803 | 2023-06-160 | 4 | US |
| C882012W11 | 2023-02-32 | 1 | US |
| 5935-01-461-1803 | 2021-08-231 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-461-1803
Technical Data | NSN 5935-01-461-1803
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 12C ANGLE TYPE W/CLAMP |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 0.750 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO CABLE END | 2.141 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP ASSEMBLY |
| III END ITEM IDENTIFICATION | F16 |
Restrictions/Controls & Freight Information | NSN 5935-01-461-1803
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
