NSN 5935-01-465-1970 D38999/26FC4SN, D3899926FC4SN, MIL-C-3899/26
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-465-1970 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D38999/26FC4SN, D3899926FC4SN, MIL-C-3899/26, MILC389926, 5935-01-465-1970, 01-465-1970, 5935014651970, 014651970
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAY 1999 | 01-465-1970 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

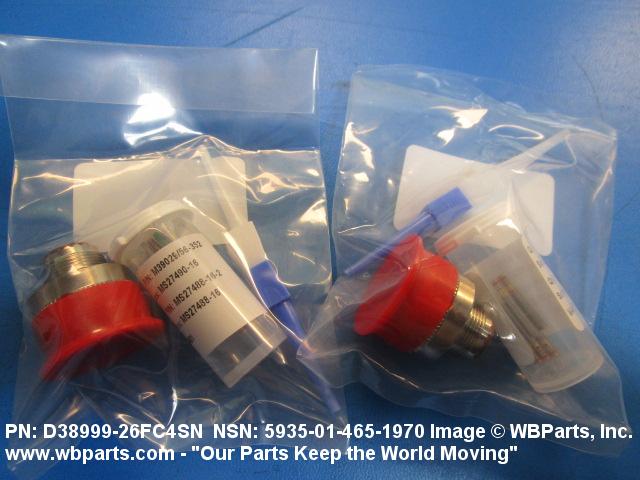

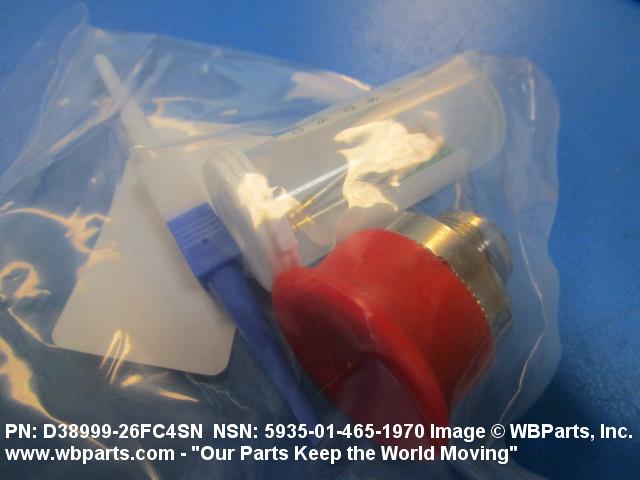

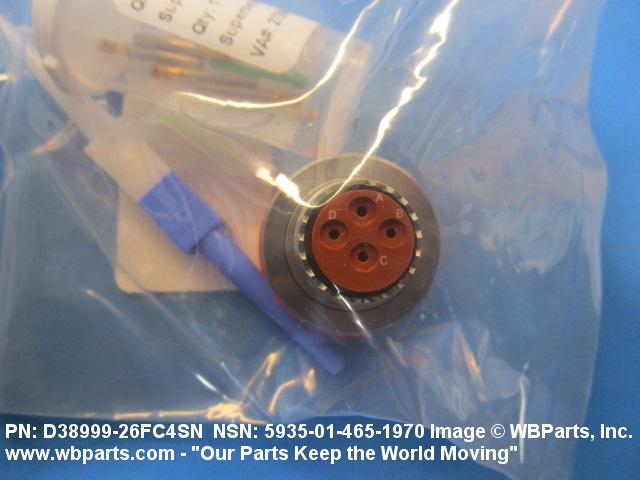

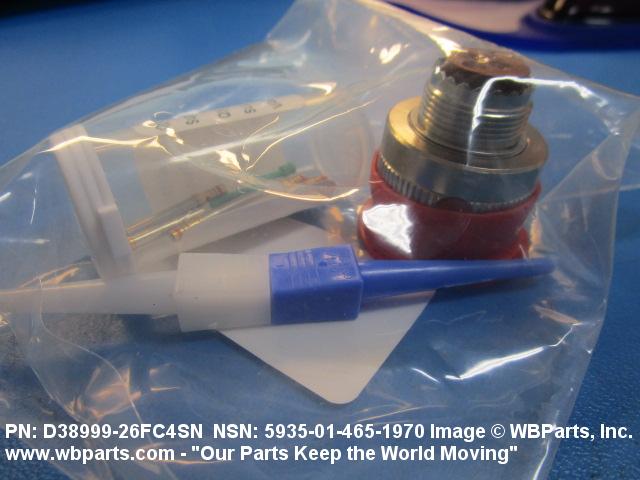

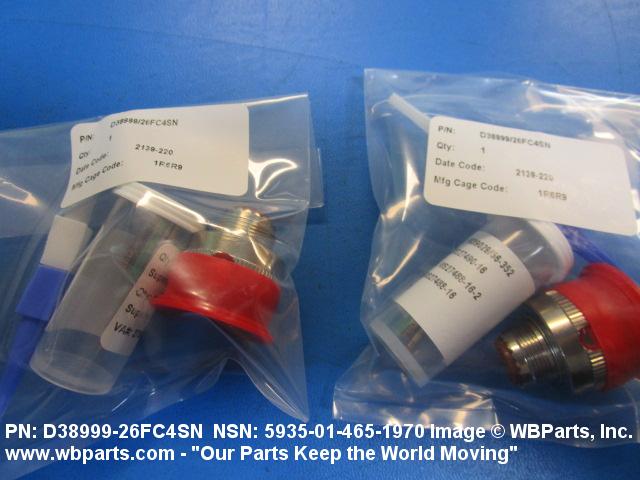

Drawings & Photos | NSN 5935-01-465-1970
Demand History | NSN 5935-01-465-1970
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-465-1970 | 2025-11-310 | 243 | DIBBS |
| 5935-01-465-1970 | 2025-07-188 | 164 | DIBBS |
| 5935-01-465-1970 | 2025-06-162 | 192 | DIBBS |
| 5935-01-465-1970 | 2025-04-114 | 243 | DIBBS |
| 5935-01-465-1970 | 2024-08-235 | 353 | DIBBS |
| 5935-01-465-1970 | 2024-07-191 | 149 | DIBBS |
| 5935-01-465-1970 | 2022-07-188 | 72 | DIBBS |
| 5935-01-465-1970 | 2022-02-41 | 28 | DIBBS |
| 5935-01-465-1970 | 2021-10-280 | 28 | DIBBS |
| 5935-01-465-1970 | 2021-09-263 | 2 | United States |
| 5935-01-465-1970 | 2019-11-330 | 1 | US |
| 5935-01-465-1970 | 2018-06-179 | 33 | DIBBS |
| 5935-01-465-1970 | 2016-02-35 | 24 | DIBBS |
| 5935-01-465-1970 | 2015-05-124 | 2 | DIBBS |
| 5935-01-465-1970 | 2015-02-42 | 3 | DIBBS |
| 5935-01-465-1970 | 2015-01-22 | 5 | DIBBS |
| 5935-01-465-1970 | 2013-11-305 | 2 | DIBBS |
| 5935-01-465-1970 | 2013-04-103 | 1 | DIBBS |
| 5935-01-465-1970 | 2013-03-73 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-465-1970
Related Products | NSN 5935-01-465-1970
Technical Data | NSN 5935-01-465-1970
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 31.0 MILLIMETERS MAXIMUM |
| MATING END QUANTITY | 1 |
| OPERATING TEMP RATING | -65.0 DEG CELSIUS MINIMUM AND 175.0 DEG CELSIUS MAXIMUM |
| TEST DATA DOCUMENT | 81349-MIL-C-38999 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81349-MIL--C-38999/26D GOVERNMENT SPECIFICATION |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT QUANTITY | 4 SINGLE MATING END SINGLE CONTACT GROUPING |
| BODY STYLE | STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL DIAMETER | 38.7 MILLIMETERS MAXIMUM |
| TERMINAL TYPE | PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT POSITION ARRANGEMENT STYLE | 13-4 SINGLE MATING END |
Restrictions/Controls & Freight Information | NSN 5935-01-465-1970
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | 30 | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-465-1970
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
