NSN 5935-01-468-1574 1376321651, 137632165-1, 01-468-1574
Product Details | ELECTRICAL MODULAR RECEPTACLE CONNECTOR BODY
5935-01-468-1574 The main or principal part of a CONNECTOR, MODULAR RECEPTACLE, ELECTRICAL which includes insert(s) but does not include removable contact(s) and having one or more cavities into which an INSERT MODULE, ELECTRICAL CONNECTOR can be installed. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 1376321651, 137632165-1, 5935-01-468-1574, 01-468-1574, 5935014681574, 014681574
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 SEP 1999 | 01-468-1574 | 38438 ( CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-468-1574
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-468-1574
Technical Data | NSN 5935-01-468-1574
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 30G STRAIGHT SHAPE, RECTANGULAR |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.430 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 6.525 INCHES NOMINAL |
| MOUNTING METHOD | THREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.136 INCHES NOMINAL |
| MATING END QUANTITY | 60 |

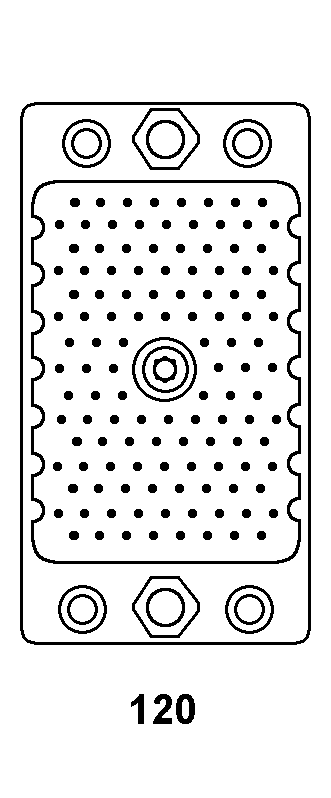

| CONTACT POSITION ARRANGEMENT STYLE | JBAC 120 SINGLE MATING END |
| SPECIAL FEATURES | NEXT HIGHER ASSEMBLY: 137622130-1: USED ON HATS LOT 3; PIN RETAINING |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | PANEL INTERFACE DEV (PCC: P6B340) |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN RETAINER, SRA 24 |
Restrictions/Controls & Freight Information | NSN 5935-01-468-1574
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-468-1574
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | CS | ANTI-SUBMARINEAIRCRAFT(S3) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
