NSN 5935-01-470-0620 SMM12001FD, SMM-120-01-F-D, 01-470-0620
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-470-0620 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: SMM12001FD, SMM-120-01-F-D, 5935-01-470-0620, 01-470-0620, 5935014700620, 014700620
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 DEC 1999 | 01-470-0620 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-470-0620
Cross Reference | NSN 5935-01-470-0620
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SMM-120-01-F-D | 55322 | SAMTEC INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-470-0620
Technical Data | NSN 5935-01-470-0620
| Characteristic | Specifications |
|---|---|

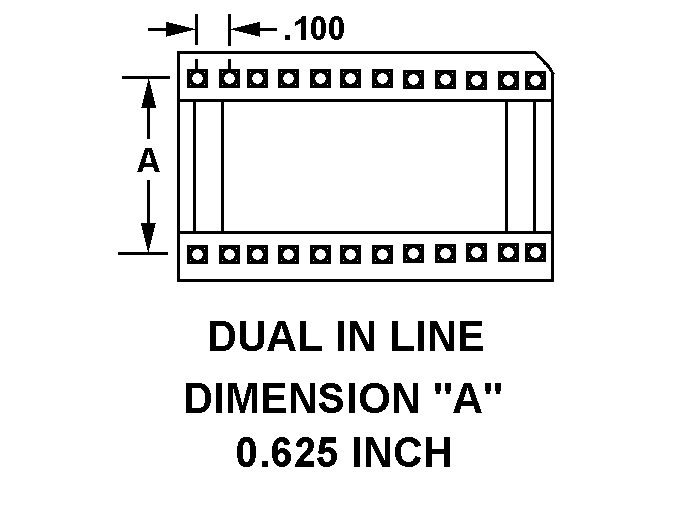

| CONTACT POSITION ARRANGEMENT STYLE | 2405A DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| BODY STYLE | 69B TOP MOUNT |
| OVERALL LENGTH | 1.580 INCHES NOMINAL |
| OVERALL HEIGHT | 0.140 INCHES NOMINAL |
| OVERALL WIDTH | 0.158 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 20 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| SPECIAL FEATURES | INSULATOR MATERIAL BLACK LIQUID CRYSTAL POLYMER |
Restrictions/Controls & Freight Information | NSN 5935-01-470-0620
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
