NSN 5935-01-472-8651 M85049/38-17N, M850493817N, MIL-C-85049/38C
Product Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-01-472-8651 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Part Alternates: M85049/38-17N, M850493817N, MIL-C-85049/38C, MILC8504938C, 5935-01-472-8651, 01-472-8651, 5935014728651, 014728651
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 MAR 2000 | 01-472-8651 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |

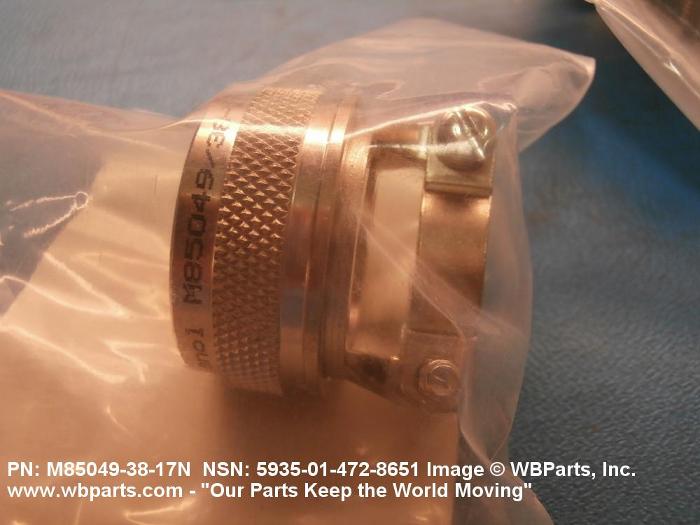

Drawings & Photos | NSN 5935-01-472-8651
Demand History | NSN 5935-01-472-8651
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-472-8651 | 2025-10-282 | 4 | DIBBS |
| 5935-01-472-8651 | 2024-10-296 | 4 | DIBBS |
| 5935-01-472-8651 | 2024-07-205 | 10 | DIBBS |
| 5935-01-472-8651 | 2020-02-50 | 10 | DIBBS |
| M850493817N | 2014-05-121 | 500 | US |
| M850493817N | 2014-05-121 | 1000 | US |
| M850493817N | 2014-05-121 | 2000 | US |
| M850493817N | 2012-12-355 | 3 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-472-8651
Technical Data | NSN 5935-01-472-8651
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10B DOUBLE CLAMPING ACTION OPEN FRAME TYPE |
| OVERALL LENGTH | 1.350 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.300 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | ISO M |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.750 INCHES |
| SPECIAL FEATURES | MATERIAL IS FOR AIR FORCE USE FOR SPACE APPLICATIONS ONLY; NOT FOR NAVY USE; NONSELF-LOCKING |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-85049/38C GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-85049/38C |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M85049/38-17N |
Restrictions/Controls & Freight Information | NSN 5935-01-472-8651
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
