NSN 5935-01-475-9629 M100001362, M100112526, M1001-12526
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-475-9629 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M100001362, M100112526, M1001-12526, 464488, 4644882, 464488-2, 5935-01-475-9629, 01-475-9629, 5935014759629, 014759629
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUN 2000 | 01-475-9629 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-475-9629
Demand History | NSN 5935-01-475-9629
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M100001362 | 2024-05-123 | 7 | DIBBS |
| M100001362 | 2023-09-264 | 3 | DIBBS |
| M100001362 | 2019-09-262 | 9 | DIBBS |
| 464488-2 | 2019-06-171 | 4 | DIBBS |
| M100001362 | 2019-06-171 | 4 | DIBBS |
| 464488-2 | 2019-05-143 | 3 | DIBBS |
| M100001362 | 2019-05-143 | 3 | DIBBS |
| 464488-2 | 2019-05-126 | 3 | DIBBS |
| M100001362 | 2019-05-126 | 3 | DIBBS |
| 464488-2 | 2019-04-115 | 3 | DIBBS |
| M100001362 | 2019-04-115 | 3 | DIBBS |
| 5935-01-475-9629 | 2016-07-193 | 6 | DIBBS |
| 5935-01-475-9629 | 2016-05-130 | 6 | DIBBS |
| 5935-01-475-9629 | 2016-04-119 | 6 | DIBBS |
| 5935-01-475-9629 | 2015-06-163 | 4 | DIBBS |
| 5935-01-475-9629 | 2015-06-152 | 4 | DIBBS |
| 5935-01-475-9629 | 2014-05-131 | 13 | DIBBS |
| 5935-01-475-9629 | 2013-11-316 | 7 | DIBBS |
| 5935-01-475-9629 | 2013-09-252 | 7 | DIBBS |
| 5935-01-475-9629 | 2013-01-08 | 2 | DIBBS |
Cross Reference | NSN 5935-01-475-9629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 464488-2 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| 464488-2 | 31413 | AMPHENOL CORPORATION DBA AMPHENOL TCS |
| M100001362 | 31413 | AMPHENOL CORPORATION DBA AMPHENOL TCS |
| M100001362 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| M1001-12526 | 31413 | AMPHENOL CORPORATION DBA AMPHENOL TCS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-475-9629
Related Products | NSN 5935-01-475-9629
Technical Data | NSN 5935-01-475-9629
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 24A STRAIGHT SHAPE W/SCREW LOCKS |
| OVERALL LENGTH | 2.578 INCHES MINIMUM AND 2.588 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.690 INCHES MINIMUM AND 0.740 INCHES MAXIMUM |
| OVERALL WIDTH | 0.480 INCHES MINIMUM AND 0.490 INCHES MAXIMUM |
| COLOR | BLACK |
| CONNECTOR LOCKING METHOD | JACKSCREW |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 56 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL MATERIAL | ALUMINUM ALLOY 6061 |
| SHELL SURFACE TREATMENT | ANODIZE |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| GUIDE DESIGN AND LOCATION | D SHAPE PIN LEFT-HAND BOTTOM AND V GROOVE PIN RIGHT-HAND BOTTOM AT 12 OCLOCK |
| MATING END QUANTITY | 1 |

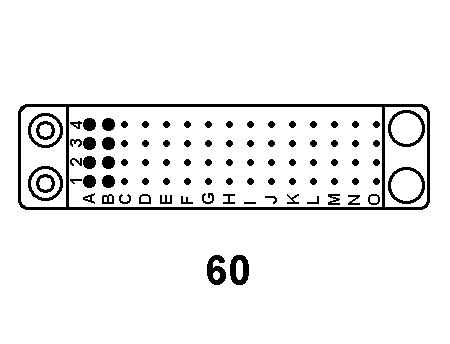

| CONTACT POSITION ARRANGEMENT STYLE | CPAS 60 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 60 SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 1000.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | D SHAPED PIN IS IN THE 3 O'CLOCK POSITION AND THE V GROOVED PIN IS IN THE 1:30 POSITION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT PLATING GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-475-9629
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-475-9629
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
