NSN 5935-01-478-4401 55695322, 5-569532-2, 01-478-4401
Product Details | ELECTRICAL MODULAR PLUG CONNECTOR
5935-01-478-4401 An electrical fitting with contacts and having one or more cavities into which an INSERT MODULE, ELECTRICAL CONNECTOR can be installed. The insert modules may/may not be included with the item. The item is constructed to be affixed to the end of a cable, conduit, coaxial line, core, wire, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is not designed to be mounted on a bulkhead, chassis, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG, TIP; INSERT, ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); CONNECTOR, PLUG, ELECTRICAL and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 55695322, 5-569532-2, 5935-01-478-4401, 01-478-4401, 5935014784401, 014784401
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 SEP 2000 | 01-478-4401 | 38439 ( CONNECTOR, MODULAR PLUG, ELECTRICAL ) |

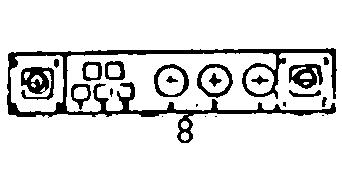

Drawings & Photos | NSN 5935-01-478-4401
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-478-4401
Technical Data | NSN 5935-01-478-4401
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 69A RECTANGULAR SHAPE |
| OVERALL LENGTH | 0.915 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.328 INCHES MAXIMUM |
| OVERALL WIDTH | 0.464 INCHES MAXIMUM |
| SHELL MATERIAL | PLASTIC POLYCARBONATE |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | AJFV 8 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 8 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | MODULAR PLUG ASSEMBLY, 8 POSITION, SHIELDED, ROUND CABLE, STRANDED WIRE; HOUSING MATERIAL POLYCARBONATE; CONTACT MATERIAL PHOSPHOR BRONZE; CONTACT MATING AREA PLATING GOLD (50) OVER NICKEL; CONTACT TERMINATION END PLATING GOLD FLASH OVER NICKEL; SHIELD MATERIAL COPPER ALLOY; SHIELD PLATING TIN-LEAD; CAN BE USED WITH TINSEL WIRE |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT PLATING GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-478-4401
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
