NSN 5935-01-492-4075 MS3102E2851P, MS3102E28-51P, MILC5015
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-492-4075 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3102E2851P, MS3102E28-51P, MILC5015, MIL-C-5015, 5935-01-492-4075, 01-492-4075, 5935014924075, 014924075
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 NOV 2001 | 01-492-4075 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-492-4075
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-492-4075
Technical Data | NSN 5935-01-492-4075
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 59.9 MILLIMETERS MAXIMUM |
| OVERALL HEIGHT | 50.0 MILLIMETERS MINIMUM AND 51.6 MILLIMETERS MAXIMUM |
| OVERALL WIDTH | 50.0 MILLIMETERS MINIMUM AND 51.6 MILLIMETERS MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 39.5 MILLIMETERS MINIMUM AND 39.8 MILLIMETERS MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 39.5 MILLIMETERS MINIMUM AND 39.8 MILLIMETERS MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 20.6 MILLIMETERS MINIMUM AND 21.4 MILLIMETERS MAXIMUM |
| MATING END QUANTITY | 1 |

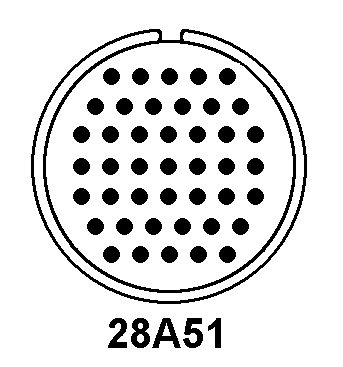

| CONTACT POSITION ARRANGEMENT STYLE | BWAK 28A51 SINGLE MATING END |
