NSN 5935-01-493-9052 MS3454L189S, MS3454L18-9S, MILC5015
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-493-9052 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3454L189S, MS3454L18-9S, MILC5015, MIL-C-5015, 5935-01-493-9052, 01-493-9052, 5935014939052, 014939052
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JAN 2002 | 01-493-9052 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-493-9052
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-493-9052
Technical Data | NSN 5935-01-493-9052
| Characteristic | Specifications |
|---|---|

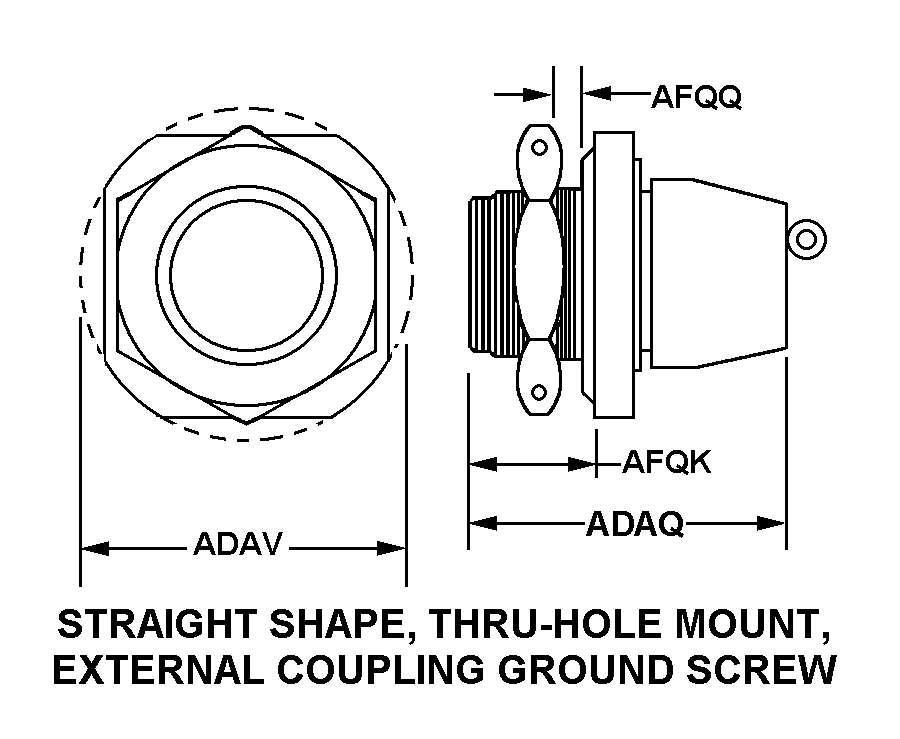

| BODY STYLE | 7H STRAIGHT SHAPE, THRU-HOLE MOUNT, EXTERNAL COUPLING GROUND SCREW |
| BODY LENGTH | 2.125 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.892 INCHES MINIMUM AND 1.902 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.065 INCHES MINIMUM AND 0.075 INCHES MAXIMUM |
| MOUNTING FACILITY THICKNESS | 0.128 INCHES MAXIMUM |
| POLARIZATION METHOD | KEY OR MULTIPLE KEY |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | AJDV 18-9 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 8 SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | CRIMP SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-5015 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS3454L18-9S |
