NSN 5935-01-499-4241 M55116/4, M55116/4-2, M551164
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-499-4241 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M55116/4, M55116/4-2, M551164, M5511642, MIL-DTL-55116/4 , MILDTL551164, 7325597 SH31 FN1, 7325597SH31FN1, 5935-01-499-4241, 01-499-4241, 5935014994241, 014994241
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 JUL 2002 | 01-499-4241 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

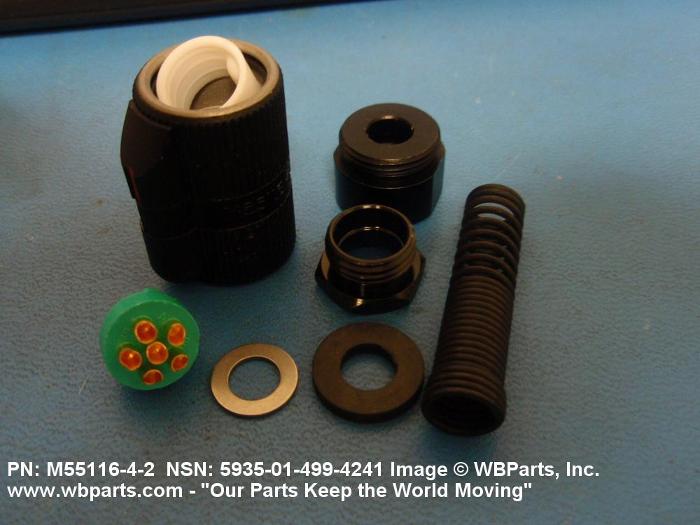

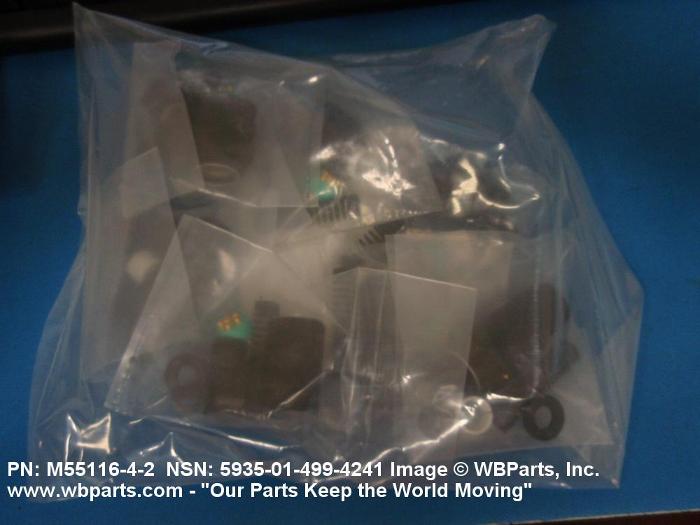

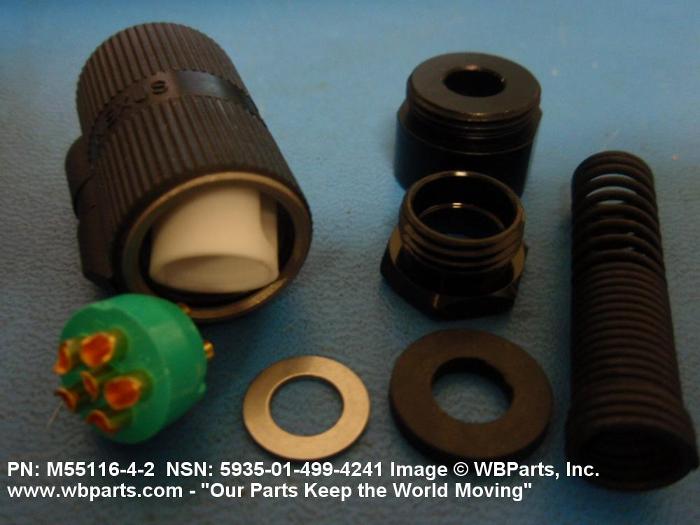

Drawings & Photos | NSN 5935-01-499-4241
Demand History | NSN 5935-01-499-4241
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-499-4241 | 2015-07-211 | 181 | DIBBS |
| M5511642 | 2011-08-214 | 7 | United States |
| 5935-01-499-4241 | 2011-05-126 | 53 | DIBBS |
| M5511642 | 2011-04-105 | 4 | Australia |
| M5511642 | 2011-03-76 | 7 | United States |
| 5935-01-499-4241 | 2010-11-328 | 14 | DIBBS |
| 5935-01-499-4241 | 2009-09-246 | 4 | DIBBS |
| 5935-01-499-4241 | 2009-05-121 | 4 | DIBBS |
| 5935-01-499-4241 | 2009-02-57 | 4 | DIBBS |
| 5935-01-499-4241 | 2008-08-236 | 2 | DIBBS |
| 5935-01-499-4241 | 2008-08-229 | 1 | DIBBS |
| 5935-01-499-4241 | 2008-06-175 | 1 | DIBBS |
| 5935-01-499-4241 | 2007-08-225 | 2 | DIBBS |
| 5935-01-499-4241 | 2007-07-202 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-499-4241
Technical Data | NSN 5935-01-499-4241
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2E STRAIGHT SHAPE |
| OVERALL LENGTH | 1.918 INCHES NOMINAL |
| OVERALL DIAMETER | 0.836 INCHES NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT AND GROMMET |
| CABLE ENTRANCE DIAMETER | 0.218 INCHES MINIMUM AND 0.238 INCHES MAXIMUM |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | AGAB 10-6 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 6 SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | VIBRATION RESISTANT AND SALT SPRAY PROOF AND HUMIDITY RESISTANT AND WATERTIGHT |
| SPECIAL FEATURES | 1.200 INCH LONG SPRING TYPE STRAIN RELIEF INCLUDED |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT PLATING GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M55116/4 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M55116/4-2 |
Restrictions/Controls & Freight Information | NSN 5935-01-499-4241
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-499-4241
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
