NSN 5935-01-502-5008 PC4TX04S350, PC4-TX04-S350, 01-502-5008
Product Details | ELECTRICAL CONNECTOR ASSEMBLY
5935-01-502-5008 Two or more CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; ADAPTER, CONNECTOR; JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG, TIP; DUMMY CONNECTOR, PLUG; or DUMMY CONNECTOR, RECEPTACLE in any combination, having a common mounting or mounted on each other, each one capable of being independently replaced. It may be interconnected by means of wire or solder bridgings. For items furnished as mated pairs or sets, see CONNECTOR SET, ELECTRICAL. Excludes DUMMY CONNECTOR SET, ELECTRICAL; JACK ASSEMBLY, TELEPHONE; JACK ASSEMBLY, TIP; PLUG ASSEMBLY, TIP; and CABLE ASSEMBLY (as modified).
Part Alternates: PC4TX04S350, PC4-TX04-S350, 5935-01-502-5008, 01-502-5008, 5935015025008, 015025008
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 NOV 2002 | 01-502-5008 | 22400 ( CONNECTOR ASSEMBLY, ELECTRICAL ) |

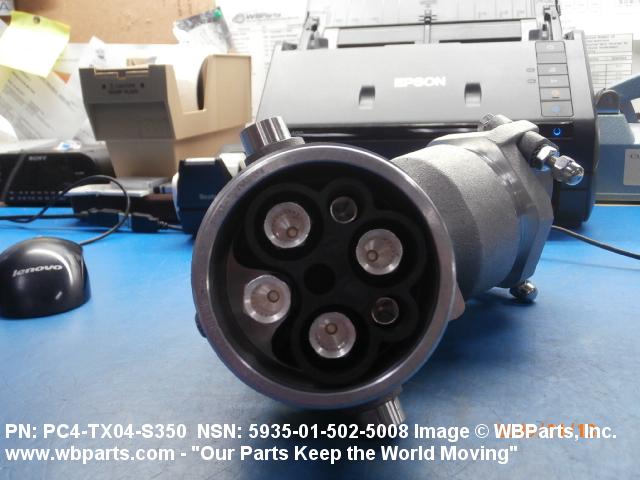

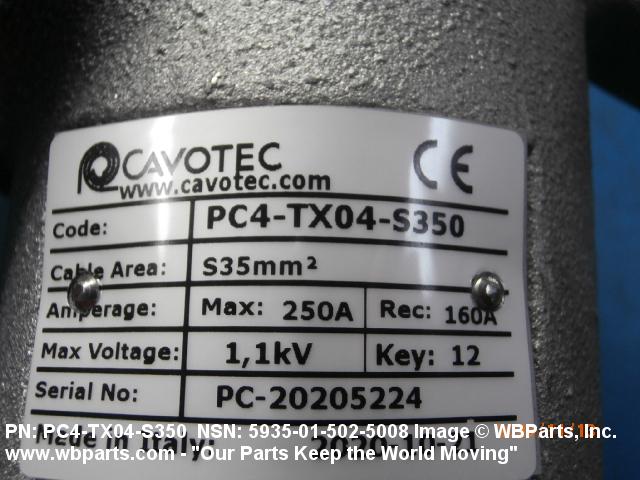

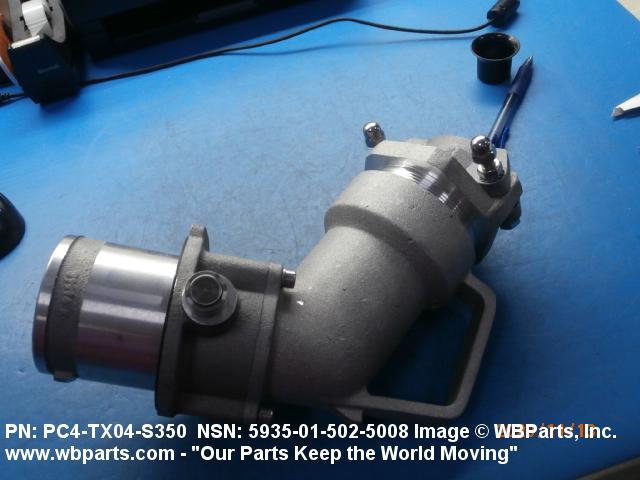

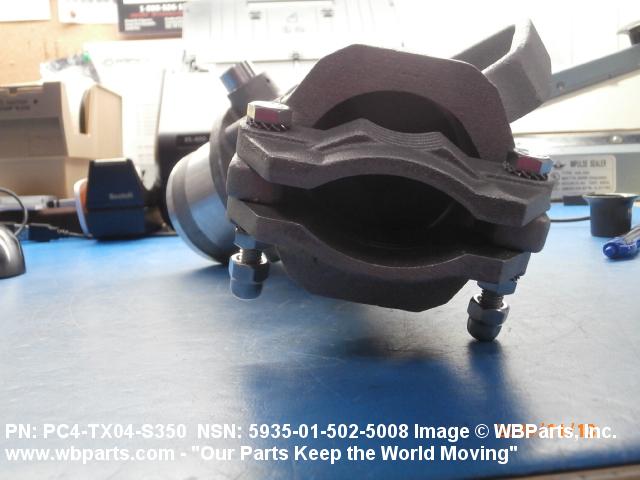

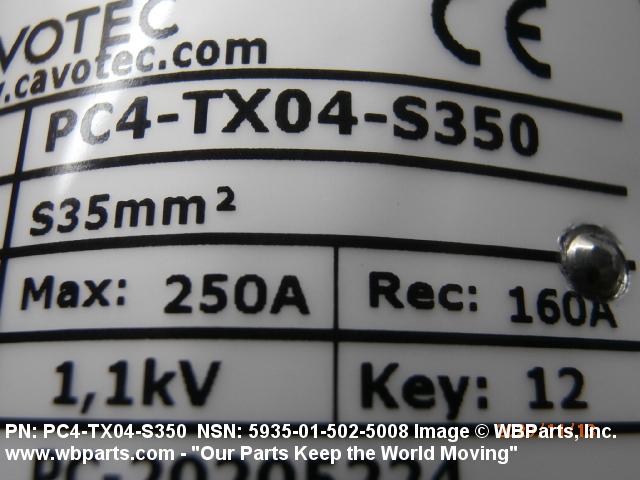

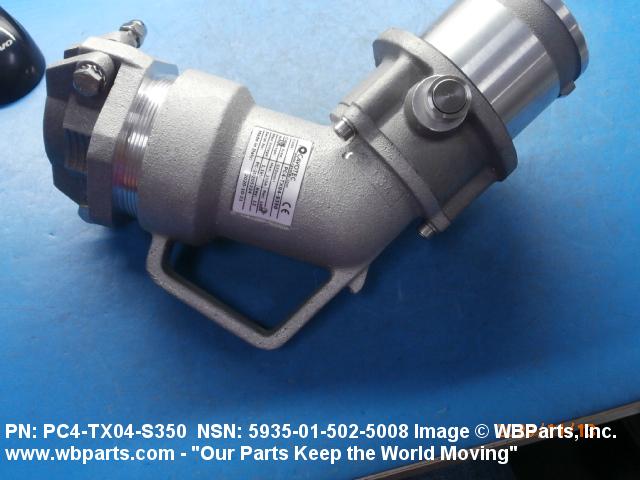

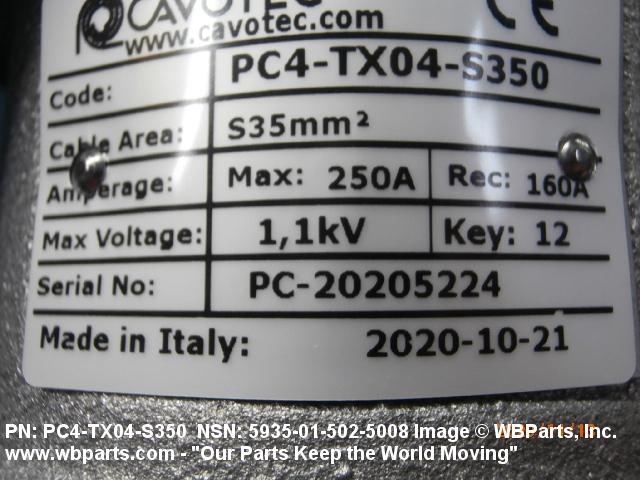

Drawings & Photos | NSN 5935-01-502-5008
Demand History | NSN 5935-01-502-5008
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-502-5008 | 2025-03-77 | 3 | US |
| PC4TX04S350 | 2024-06-156 | 1 | US |
| 5935-01-502-5008 | 2020-09-246 | 1 | United States |
| 5935-01-502-5008 | 2019-10-296 | 1 | United States |
| 5935-01-502-5008 | 2019-04-91 | 2 | US |
| 5935-01-502-5008 | 2016-02-41 | 1 | United States |
Cross Reference | NSN 5935-01-502-5008
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PC4-TX04-S350 | 1WP76 | CAVOTEC USA INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-502-5008
Technical Data | NSN 5935-01-502-5008
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | PLUG USED FOR SHORE TIE CABLE FOR 87 FT COASTAL PATROL BOAT; TYPE SIZE 4; 4 POINS; MAXIMUM CURRENT 160 AMPS; WEIGHT 1, 9 KG; CROSS SECTION 35 MILLIMETERS; PLUG: PINS, PRODUCT CODE: PC4-SX04-S350; INV. PLUG: FEMALE, PRODUCT CODE PC4-TX04-S350; NSN 0000-01-LG8-4996 |
| III END ITEM IDENTIFICATION | PLUG/INVERTED PLUG; P/N PC4-TX04-5350; NSN 0000-01-LG8-4996; USED ONBOARD 87 FT WPB COAST GUARD VESSELS |
| MANUFACTURERS CODE | 1WP76 |
| DESIGN CONTROL REFERENCE | PC4-TX04-S350 |
Restrictions/Controls & Freight Information | NSN 5935-01-502-5008
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5935-01-502-5008
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
