NSN 5935-01-521-3380 KJA7T25W8PNL, 01-521-3380, 015213380
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-521-3380 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: KJA7T25W8PNL, 5935-01-521-3380, 01-521-3380, 5935015213380, 015213380
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JUN 2004 | 01-521-3380 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-521-3380

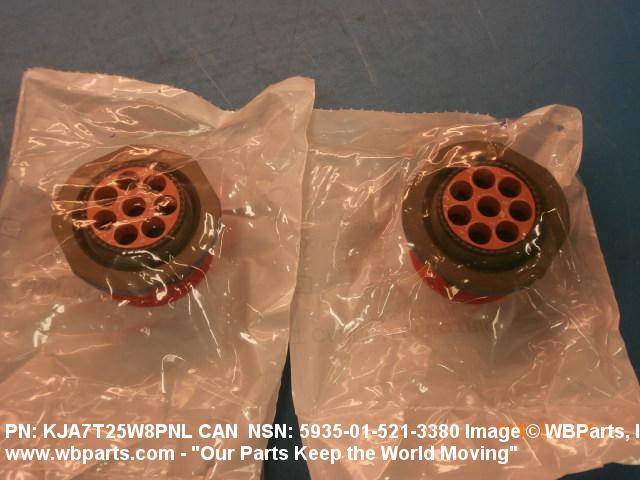

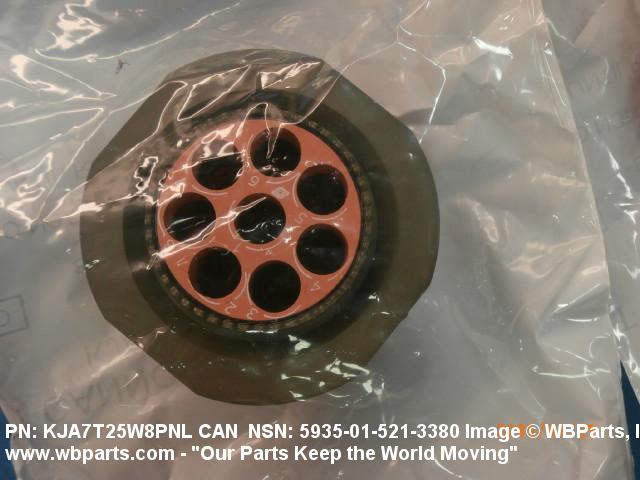

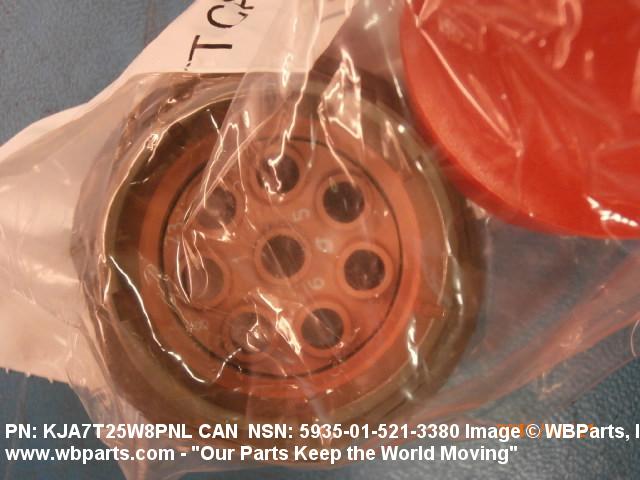

Demand History | NSN 5935-01-521-3380
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KJA7T25W8PNL | 2024-08-218 | 15 | DIBBS |
| KJA7T25W8PNL | 2024-07-207 | 15 | DIBBS |
| KJA7T25W8PNL | 2024-06-179 | 12 | DIBBS |
| KJA7T25W8PNL | 2024-02-39 | 3 | DIBBS |
| KJA7T25W8PNL | 2023-10-295 | 1 | DIBBS |
| 5935-01-521-3380 | 2018-10-301 | 1 | DIBBS |
| 5935-01-521-3380 | 2017-02-53 | 2 | DIBBS |
| 5935-01-521-3380 | 2016-12-357 | 1 | DIBBS |
| 5935-01-521-3380 | 2016-11-306 | 1 | DIBBS |
| 5935-01-521-3380 | 2015-07-187 | 2 | us |
Cross Reference | NSN 5935-01-521-3380
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KJA7T25W8PNL | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-521-3380
Technical Data | NSN 5935-01-521-3380
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 21G STRAIGHT SHAPE, EXTERNAL COUPLING |

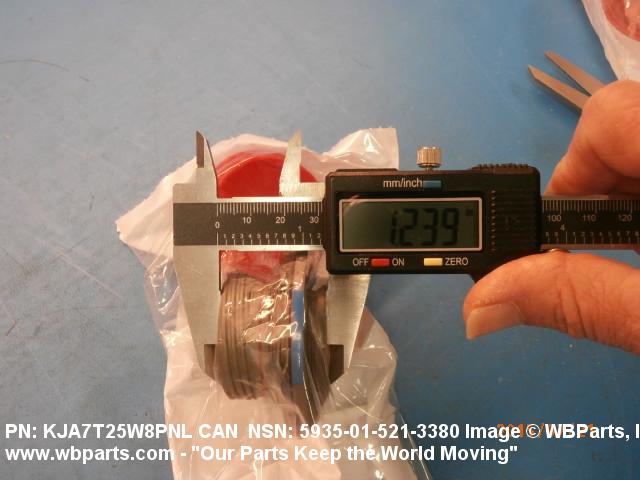

| OVERALL LENGTH | 1.243 INCHES NOMINAL |

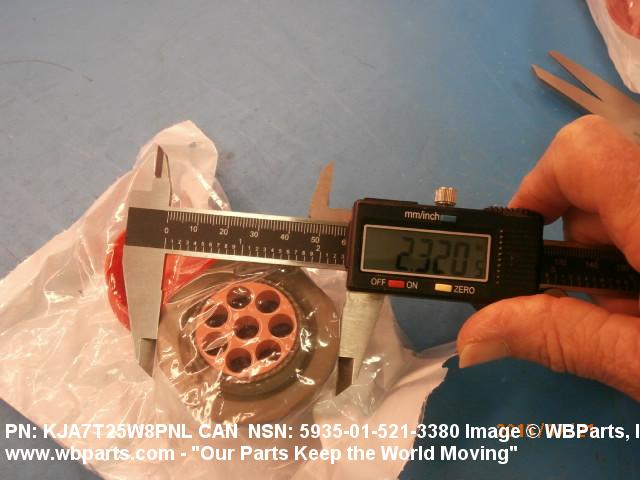

| OVERALL DIAMETER | 2.188 INCHES NOMINAL |

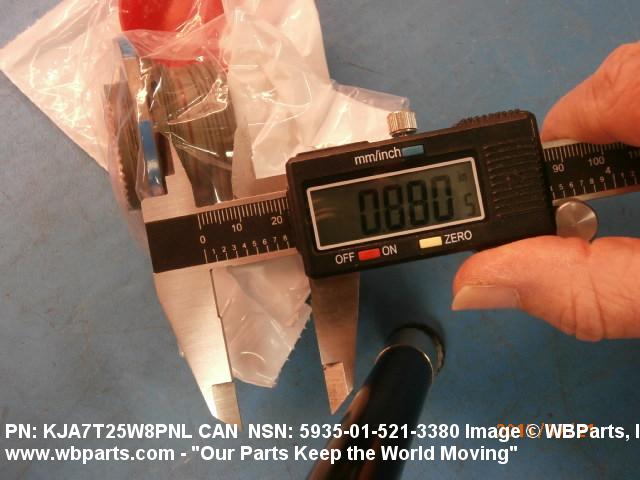

| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.878 INCHES NOMINAL |

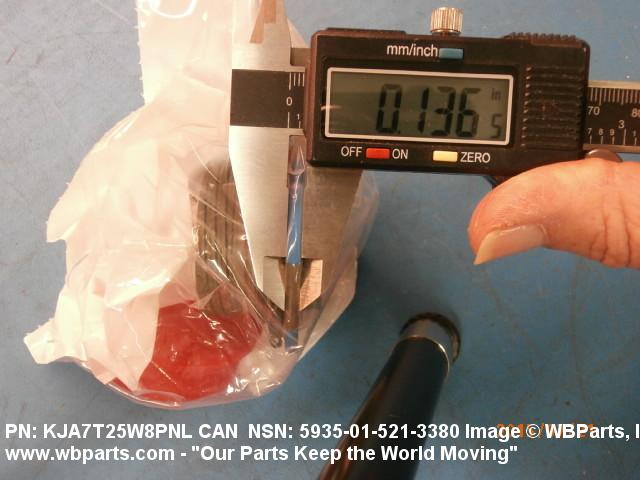

| MOUNTING FACILITY THICKNESS | 0.135 INCHES NOMINAL |
