NSN 5935-01-529-5021 R37904001, R379040-01, 01-529-5021
Product Details | ELECTRICAL CONNECTOR RETAINER
5935-01-529-5021 An item specifically designed to restrain the movement of an electrical connector, when the latter is mounted in another item. Includes clamps, clips, and similar restraining devices specifically designed for this function. Excludes CLIP, ELECTRICAL and CLAMP, LOOP.
Part Alternates: R37904001, R379040-01, 5935-01-529-5021, 01-529-5021, 5935015295021, 015295021
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 APR 2005 | 01-529-5021 | 02892 ( RETAINER, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-529-5021
Cross Reference | NSN 5935-01-529-5021
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R379040-01 | 04071 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-529-5021
Technical Data | NSN 5935-01-529-5021
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/8 FED SPEC SINGLE MATERIAL RESPONSE |

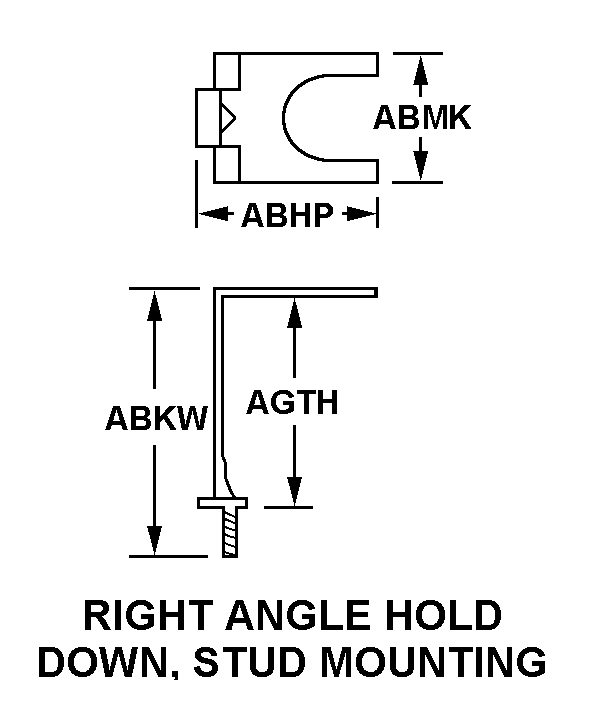

| STYLE DESIGNATOR | 15B RIGHT ANGLE HOLD DOWN, STUD MOUNTING |
| OVERALL LENGTH | 1.620 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.880 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SURFACE TO LOCKING DEVICE | 0.690 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOT FIRST MOUNTING FACILITY 2 UNTHREADED HOLE SECOND MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.172 INCHES NOMINAL SECOND MOUNTING FACILITY |
| MOUNTING SLOT WIDTH | 0.090 INCHES NOMINAL FIRST MOUNTING FACILITY |
| MOUNTING SLOT LENGTH | 0.090 INCHES NOMINAL FIRST MOUNTING FACILITY |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.430 INCHES NOMINAL FIRST MOUNTING FACILITY SINGLE CENTER GROUP 0.940 INCHES NOMINAL SECOND MOUNTING FACILITY SINGLE CENTER GROUP |
Restrictions/Controls & Freight Information | NSN 5935-01-529-5021
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
