NSN 5935-01-539-0878 C88E301000, 01-539-0878, 015390878
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-539-0878 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: C88E301000, 5935-01-539-0878, 01-539-0878, 5935015390878, 015390878
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 APR 2006 | 01-539-0878 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |

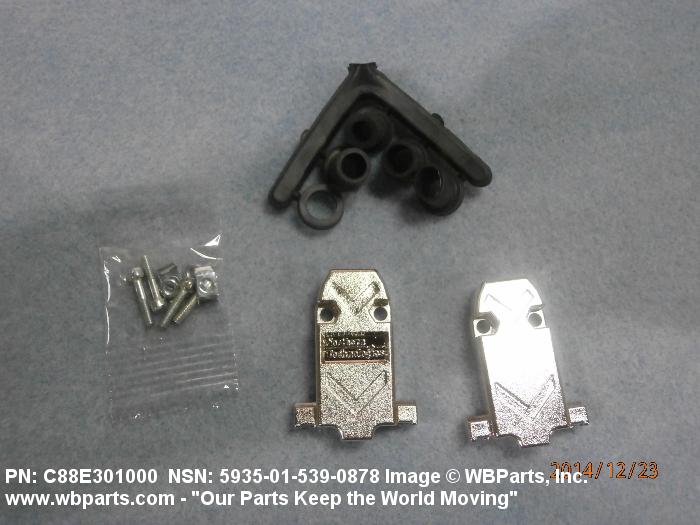

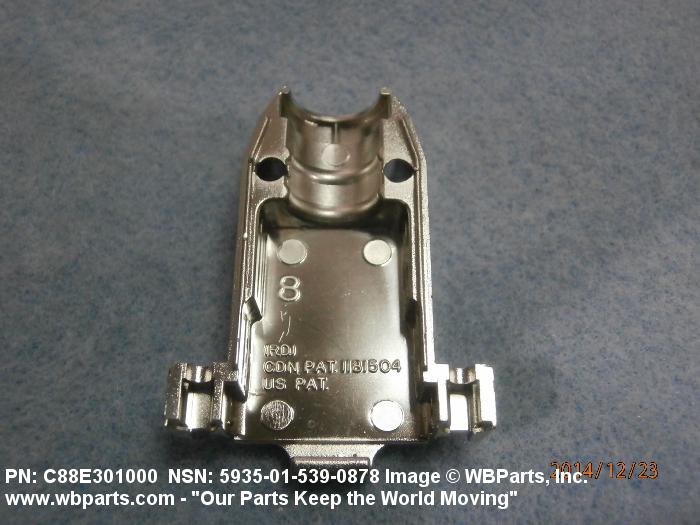

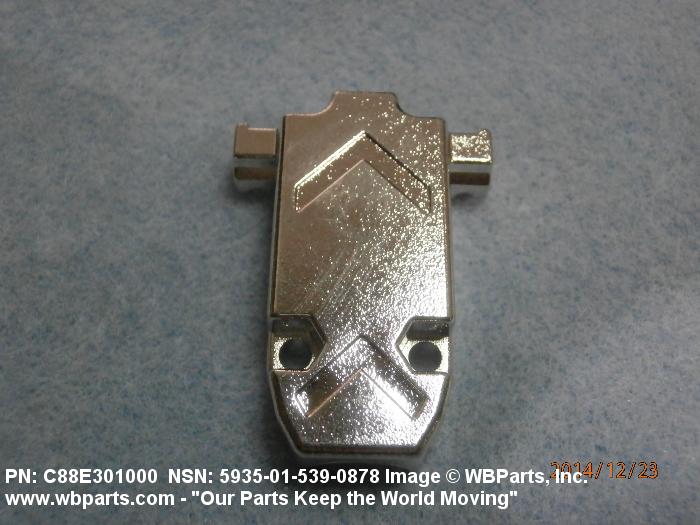

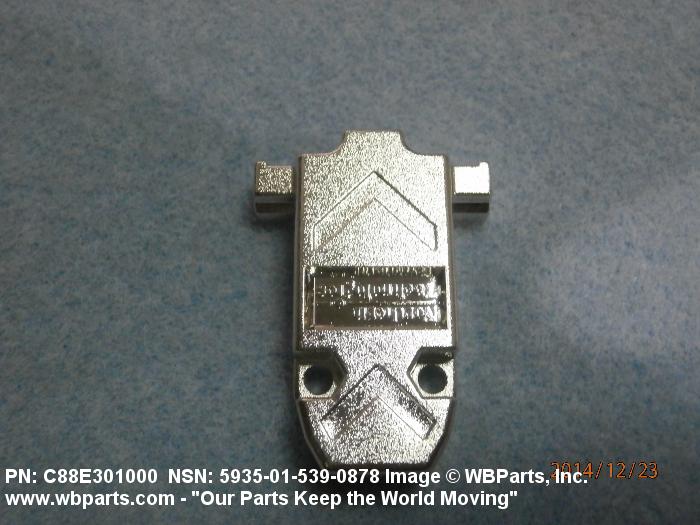

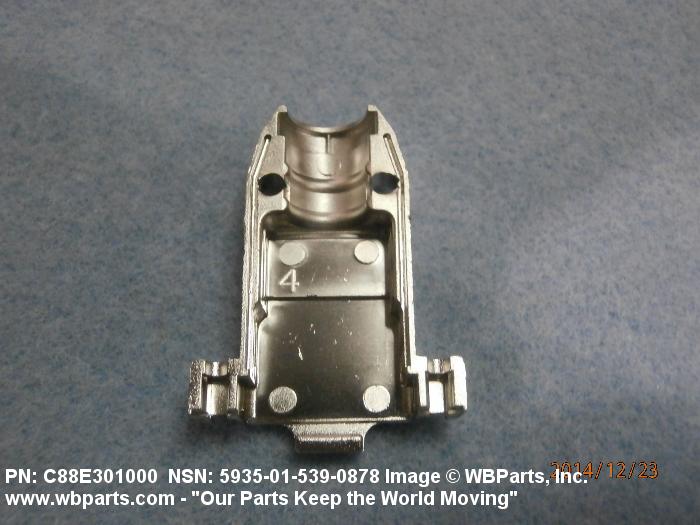

Drawings & Photos | NSN 5935-01-539-0878
Demand History | NSN 5935-01-539-0878
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-539-0878 | 2016-07-213 | 241 | DIBBS |
| 5935-01-539-0878 | 2013-04-91 | 49 | DIBBS |
| 5935-01-539-0878 | 2012-10-290 | 49 | DIBBS |
| C88E301000 | 2011-07-189 | 9 | United States |
| 5935-01-539-0878 | 2011-07-186 | 9 | United States |
| 5935-01-539-0878 | 2011-07-182 | 9 | United States |
| 5935-01-539-0878 | 2007-01-24 | 49 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-539-0878
Technical Data | NSN 5935-01-539-0878
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 31G HOOD, TOP OPENING |
| OVERALL LENGTH | 1.217 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.984 INCHES NOMINAL |
| OVERALL HEIGHT | 1.692 INCHES NOMINAL |
| OVERALL WIDTH | 0.640 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| SURFACE TREATMENT | NICKEL PLATED |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.315 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.400 INCHES NOMINAL |

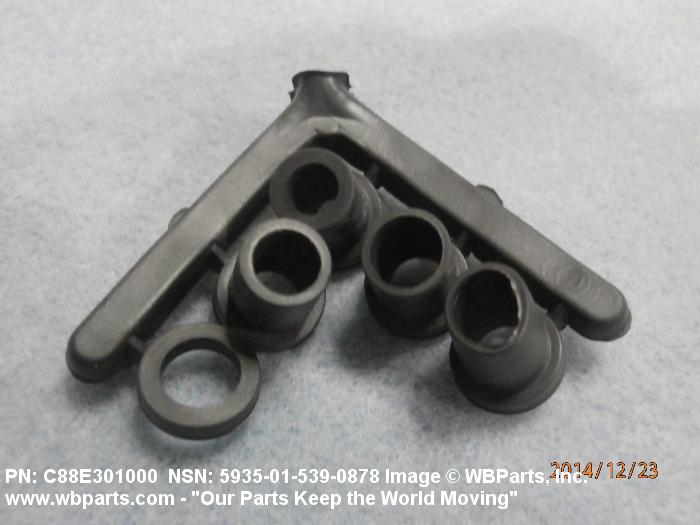

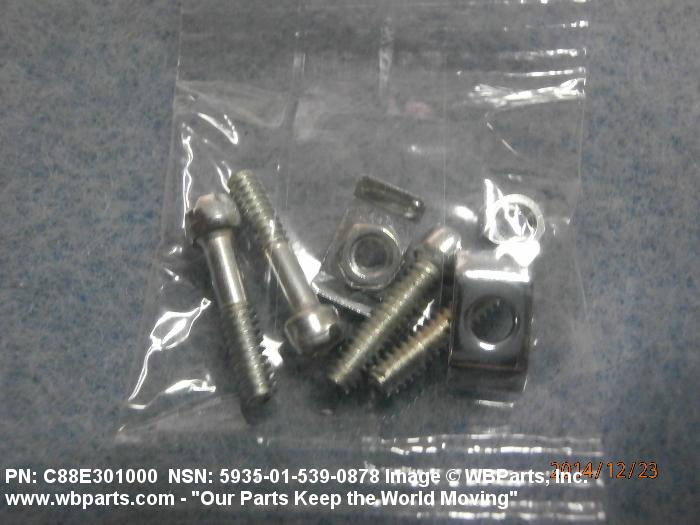

| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL; PROVIDED ITEMS: COMPRESSION INSERT, 5; MACHINE SCREW, 2; CAPTIVE SCREW, 2; HEX NUT, 2; SADDLE WASHER, 2; RESTRICTION ON CERTAIN HAZARDOUS SUBSTANCES (ROHS) COMPLIANT |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | PC-1 CYCLONE CLASS PATROL COSTAL BOAT |
Restrictions/Controls & Freight Information | NSN 5935-01-539-0878
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-539-0878
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
