NSN 5935-01-561-7056 45309137, 4530-9-137, 01-561-7056
Product Details | PLUG DUMMY CONNECTOR
5935-01-561-7056 An item specifically designed to mate with another connector to perform one or more special functions, such as to act as a cover or shield, to short contacts, or to open or close electrical circuits, in or on another connector. It is not designed for direct attachment to a cable, conduit, or wire, and cannot be used as a CONNECTOR, PLUG, ELECTRICAL. Excludes DUMMY PLUG, TELEPHONE.
Part Alternates: 45309137, 4530-9-137, 5935-01-561-7056, 01-561-7056, 5935015617056, 015617056
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 MAR 2008 | 01-561-7056 | 15094 ( DUMMY CONNECTOR, PLUG ) |
Drawings & Photos | NSN 5935-01-561-7056
Cross Reference | NSN 5935-01-561-7056
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4530-9-137 | 0W5E3 | STIDD SYSTEMS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-561-7056
Technical Data | NSN 5935-01-561-7056
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL |
| COLOR | BLACK AND YELLOW |
| CONNECTOR LOCKING METHOD | LOCK RING |
| SHELL TYPE | HOOD, SIDE OPENING |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 2 |

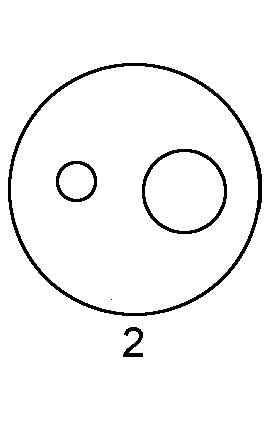

| CONTACT POSITION ARRANGEMENT STYLE | ACFU 2 SINGLE MATING END |
| SPECIAL FEATURES | MOLDED PLUG PROTECTS EXTENDED RANGE PORT ON MUSCLES LI-LON BATTERY WHENNOT IN USE |
| III END ITEM IDENTIFICATION | DIVERS PROPULSION DEVICE 4500-100 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | DPD LI-LON EXTEDNED RANGE PORT DUMMY PLUG |
Restrictions/Controls & Freight Information | NSN 5935-01-561-7056
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
