NSN 5935-01-562-7231 FS923, FS9-23, 01-562-7231
Product Details | ELECTRICAL CONNECTOR RETAINING PLATE

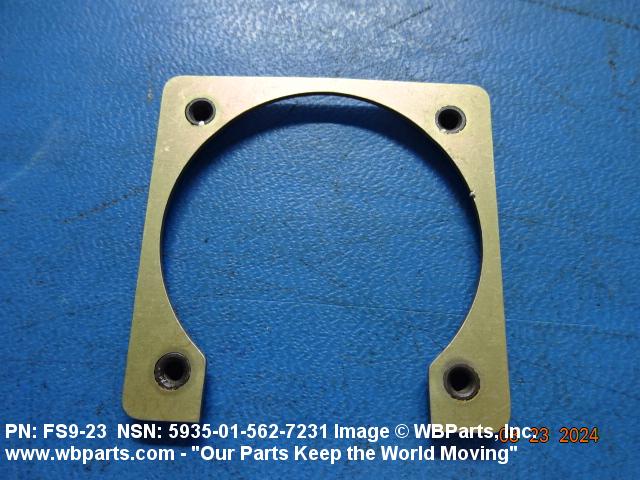

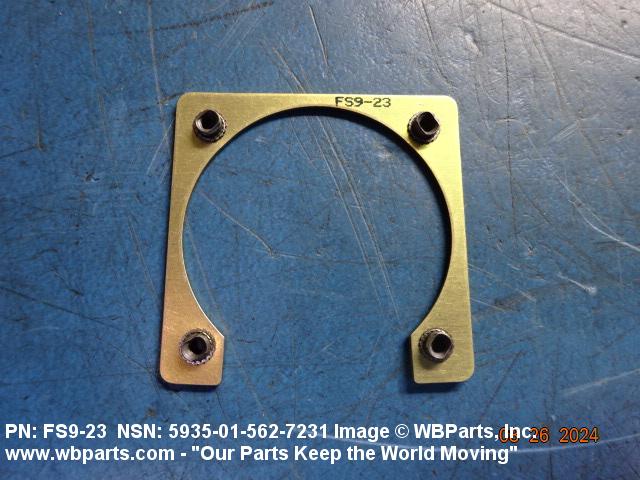

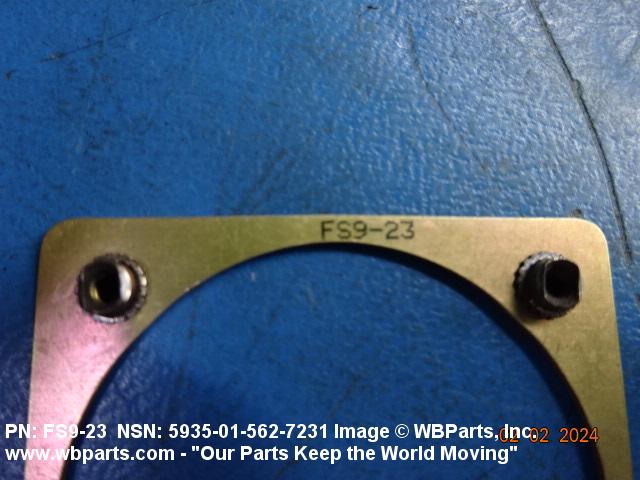

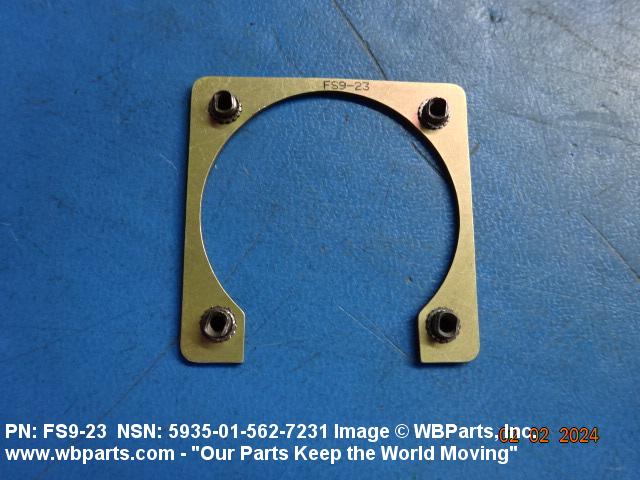

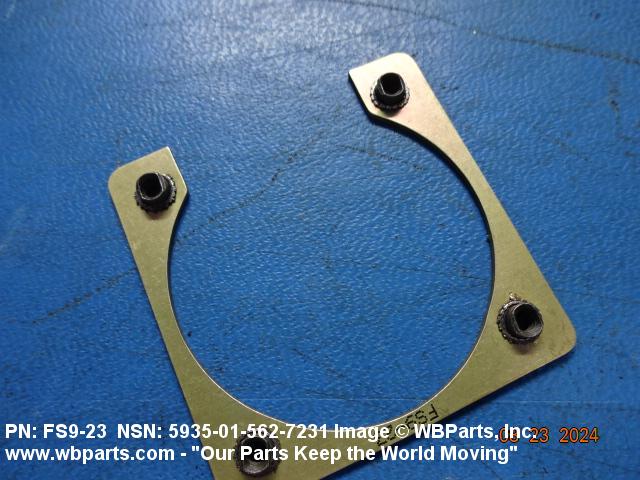

5935-01-562-7231 A flat metallic item varied in shape with an opening(s) to accommodate an electrical connector(s). It must have facilities for mounting. Used to position an electrical connector. See also PLATE, MOUNTING (as modified). Excludes PLATE, WALL, ELECTRICAL and ESCUTCHEON PLATE.
Part Alternates: FS923, FS9-23, 5935-01-562-7231, 01-562-7231, 5935015627231, 015627231
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 APR 2008 | 01-562-7231 | 21538 ( PLATE, RETAINING, ELECTRICAL CONNECTOR ) |

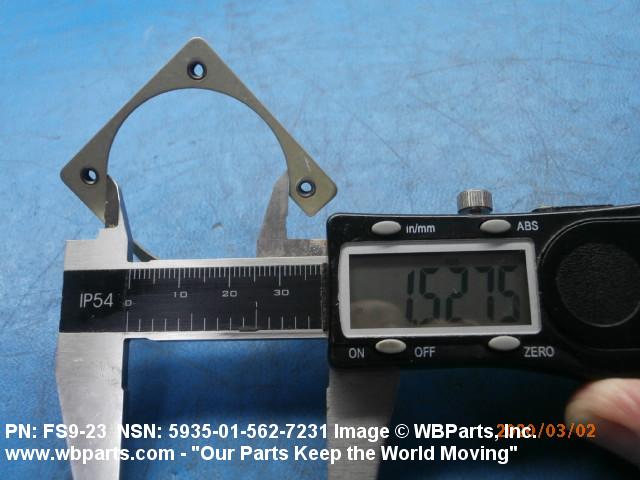

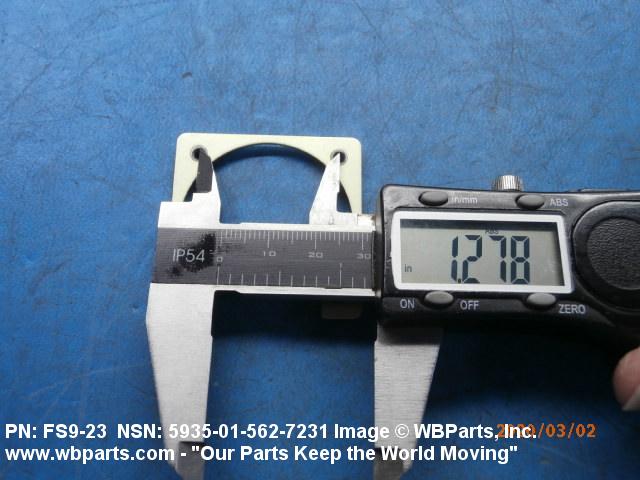

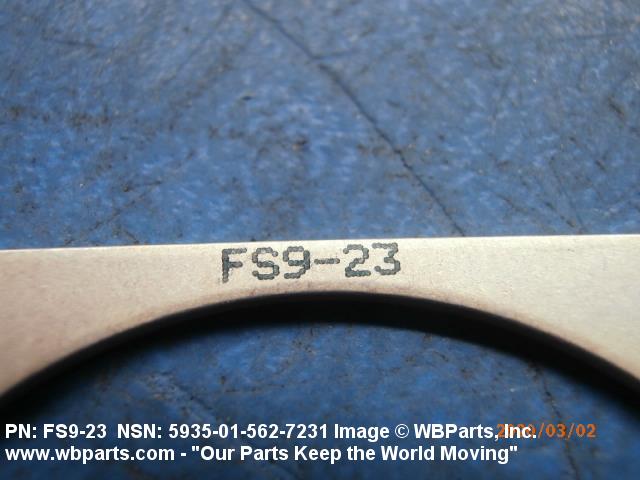

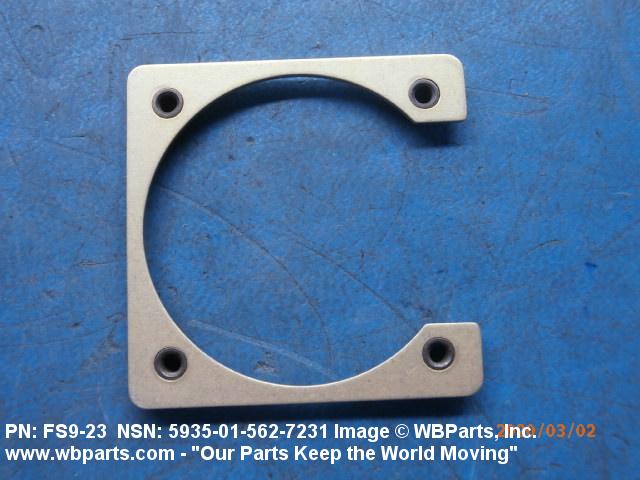

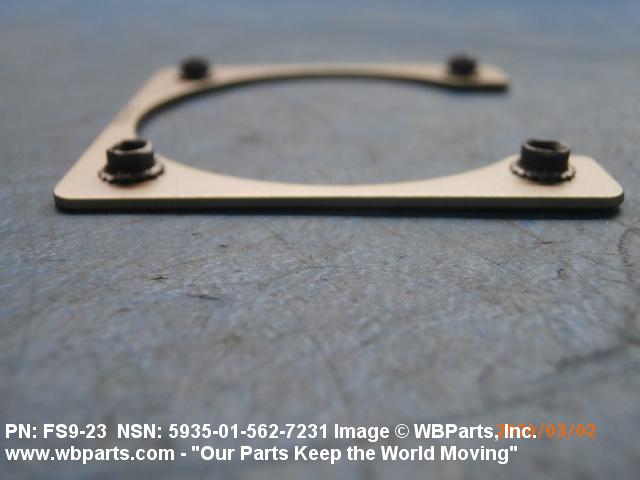

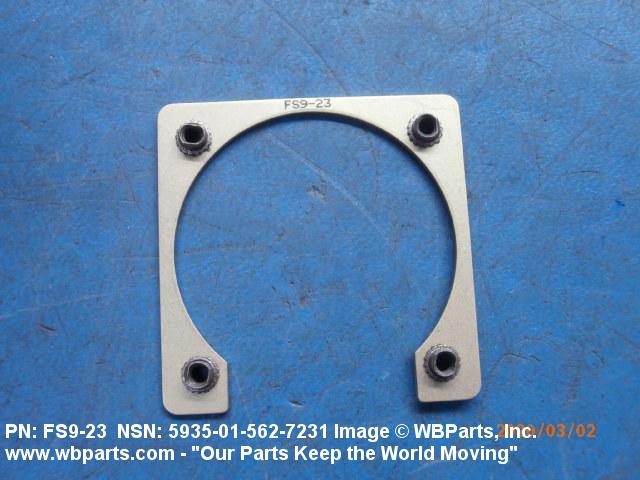

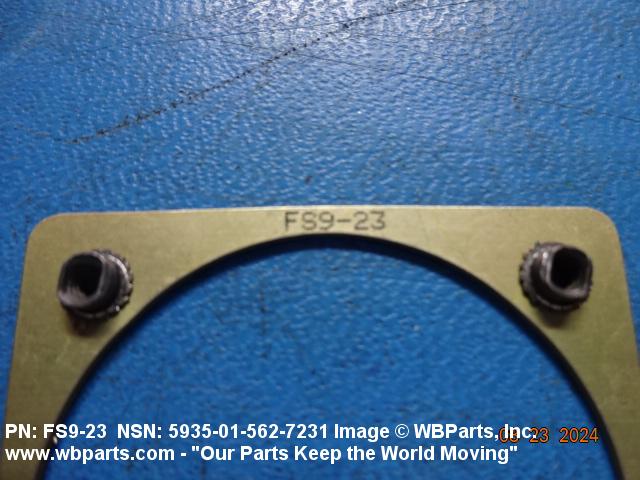

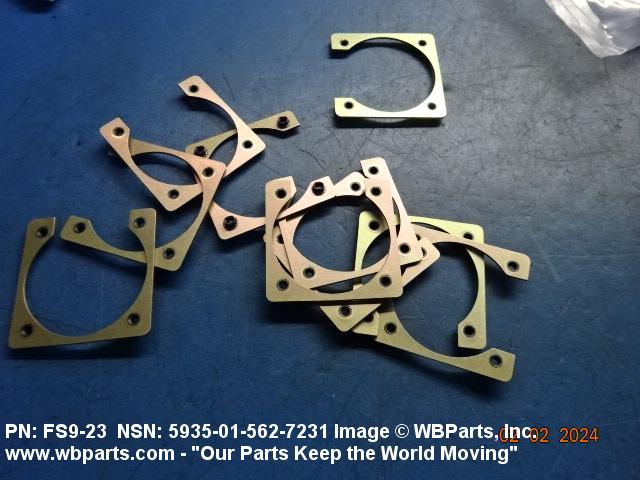

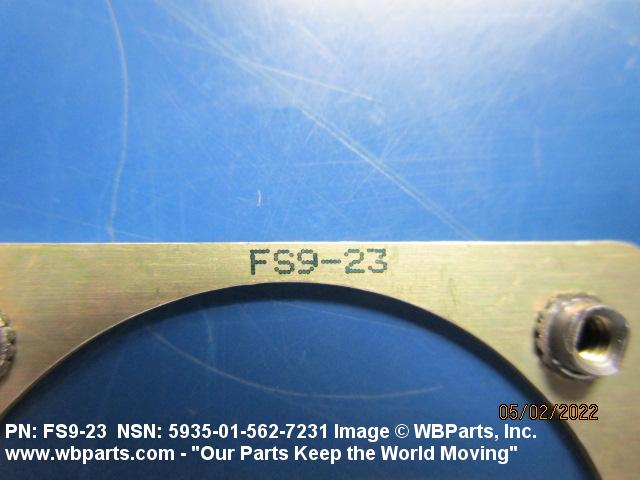

Drawings & Photos | NSN 5935-01-562-7231
Demand History | NSN 5935-01-562-7231
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-562-7231 | 2024-08-228 | 50 | United States |
| 5935-01-562-7231 | 2024-01-22 | 10 | United States |
| 5935-01-562-7231 | 2022-12-341 | 5 | United States |
| 5935-01-562-7231 | 2022-04-101 | 5 | United States |
| 5935-01-562-7231 | 2020-01-14 | 10 | United States |
Cross Reference | NSN 5935-01-562-7231
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FS9-23 | 04967 | FASTENER SPECIALTY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-562-7231
Related Products | NSN 5935-01-562-7231

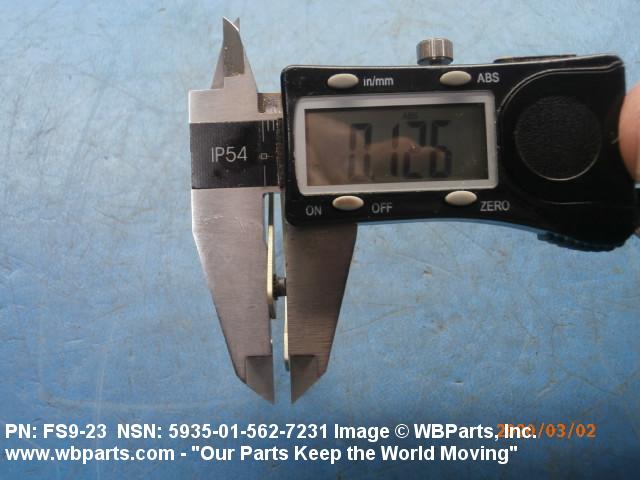

Technical Data | NSN 5935-01-562-7231
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10J SQUARE SHAPE |

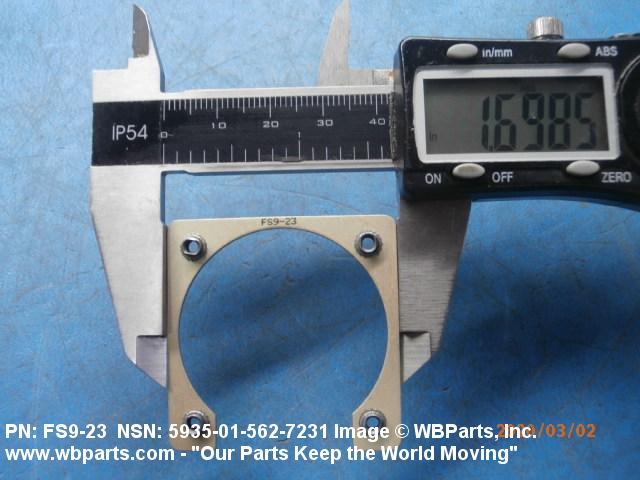

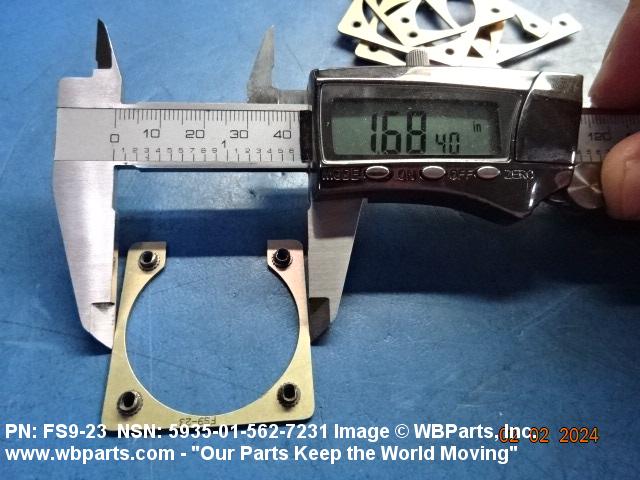

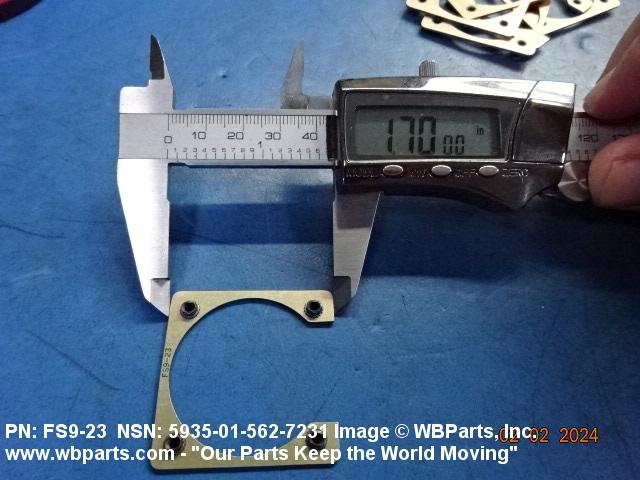

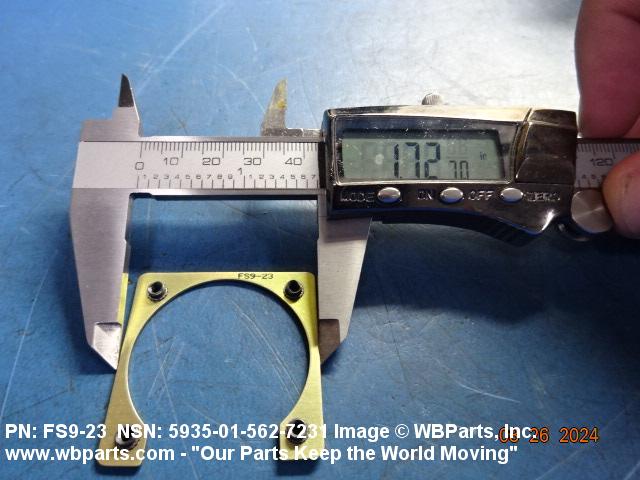

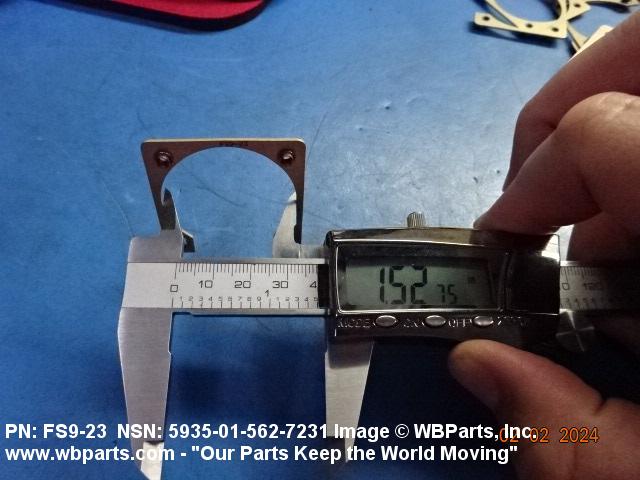

| OVERALL LENGTH | 1.690 INCHES MINIMUM AND 1.810 INCHES MAXIMUM |
