NSN 5935-01-581-5149 1A500034, 1A5000-34, 6278871
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-581-5149 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 1A500034, 1A5000-34, 6278871, 627887-1, 5935-01-581-5149, 01-581-5149, 5935015815149, 015815149
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JAN 2010 | 01-581-5149 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

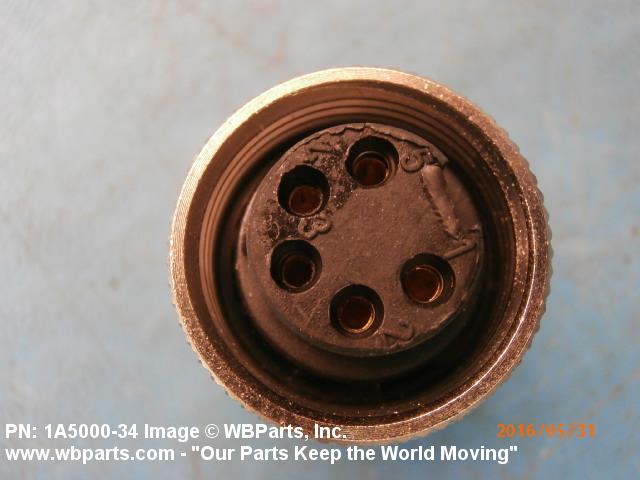

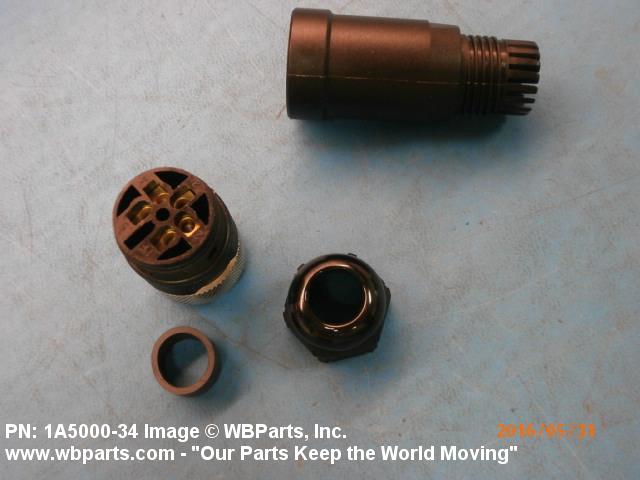

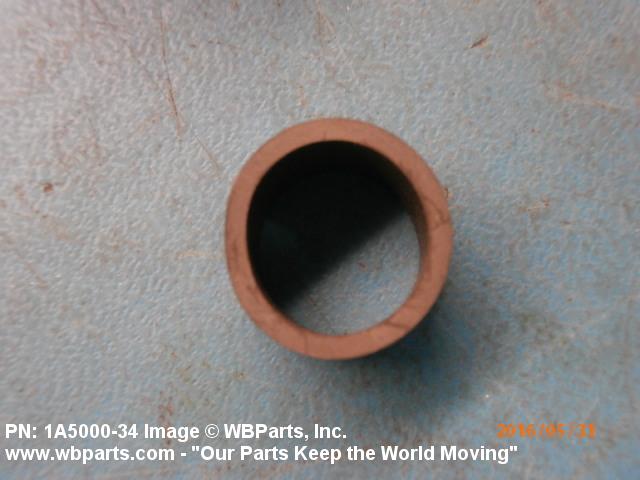

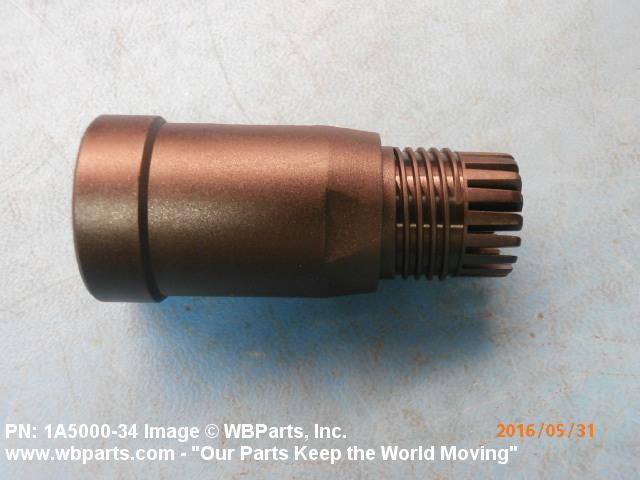

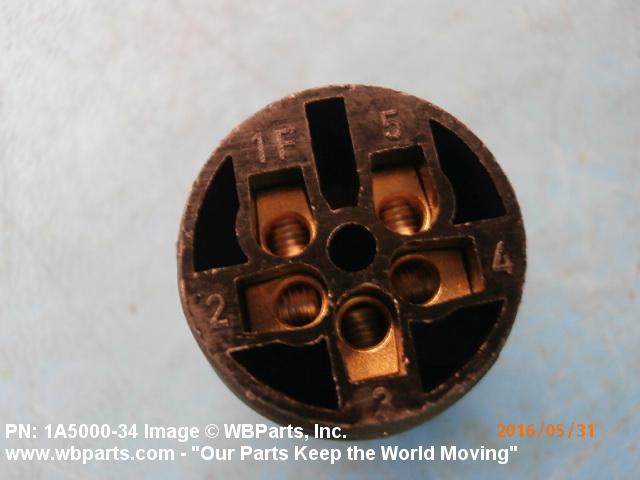

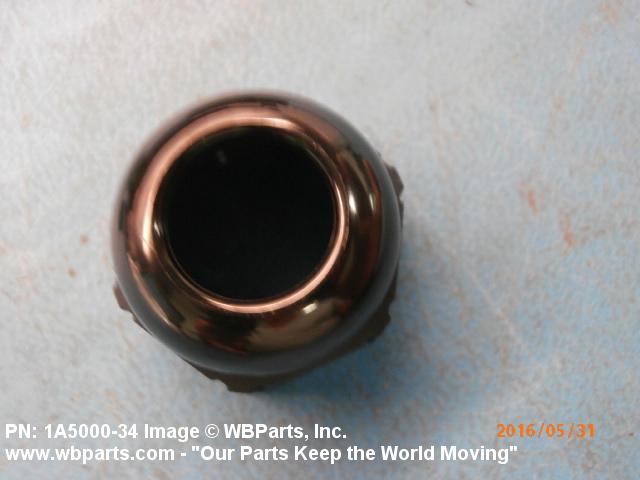

Drawings & Photos | NSN 5935-01-581-5149
Demand History | NSN 5935-01-581-5149
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-581-5149 | 2017-08-239 | 51 | DIBBS |
| 1A500034 | 2016-05-126 | 70 | United States |
| 5935-01-581-5149 | 2014-11-308 | 18 | DIBBS |
| 5935-01-581-5149 | 2012-06-160 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-581-5149
Technical Data | NSN 5935-01-581-5149
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| CONTACT POSITION ARRANGEMENT STYLE | AFEA 5 SINGLE MATING END |
| SHELL SURFACE TREATMENT | NICKEL |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 8.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| THREAD CLASS | 2B |
| MATING END QUANTITY | 1 |
| INCLUDED CONTACT QUANTITY | 5 SINGLE MATING END SINGLE CONTACT GROUPING |
| THREAD QUANTITY PER INCH | 16 |
| PRECIOUS MATERIAL | GOLD |
| OVERALL LENGTH | 3.540 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UN |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 600.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| SHELL MATERIAL | COPPER ALLOY |
| OVERALL DIAMETER | 1.000 INCHES NOMINAL |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 600.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| BODY STYLE | STRAIGHT SHAPE, W/CABLE SEAL |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
Restrictions/Controls & Freight Information | NSN 5935-01-581-5149
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-581-5149
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
