NSN 5935-01-593-0007 1453AS3011, 1453AS301-1, 8855333370S
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-593-0007 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 1453AS3011, 1453AS301-1, 8855333370S, 88-553333-70S , 5935-01-593-0007, 01-593-0007, 5935015930007, 015930007
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 MAR 2011 | 01-593-0007 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

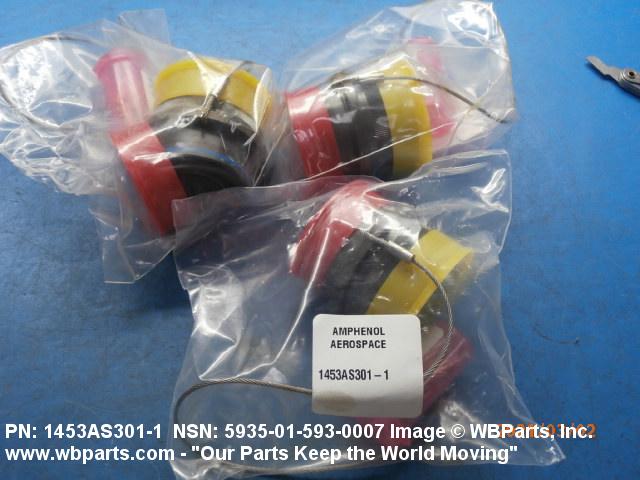

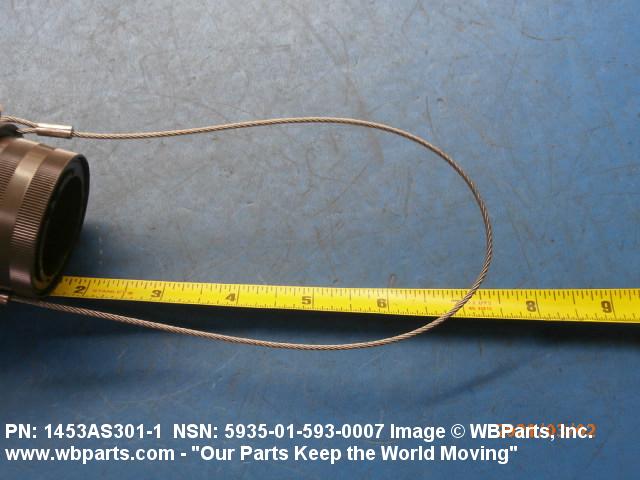

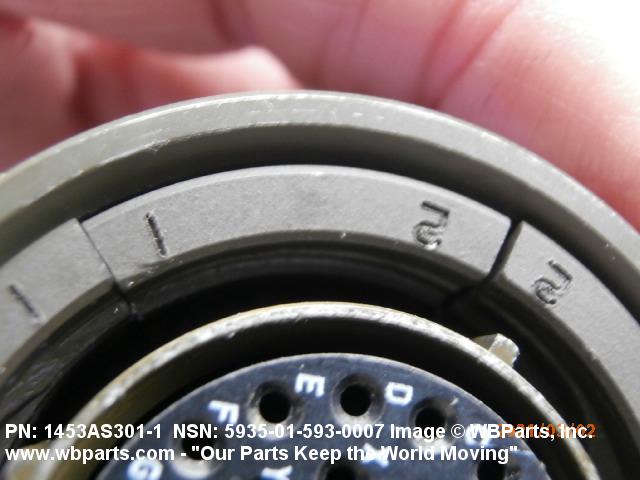

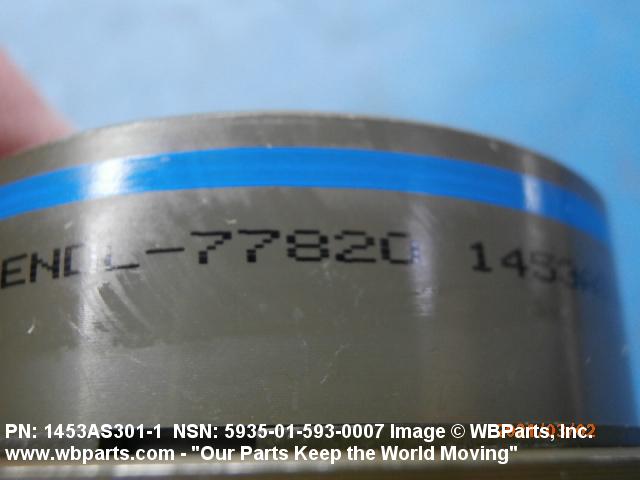

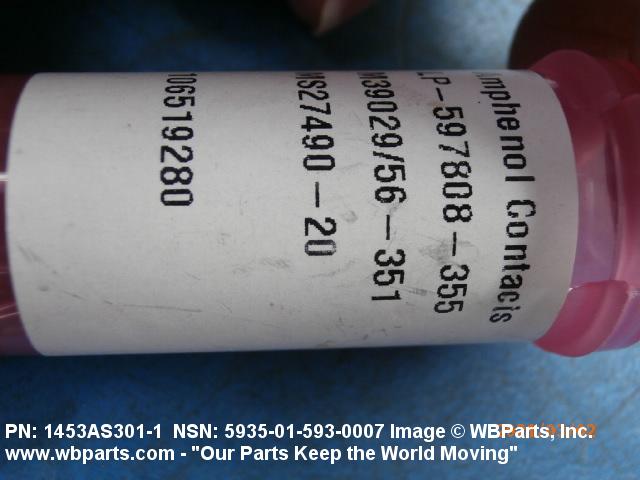

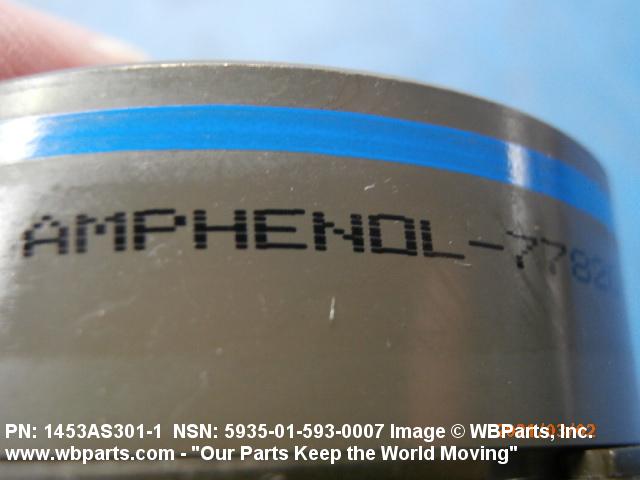

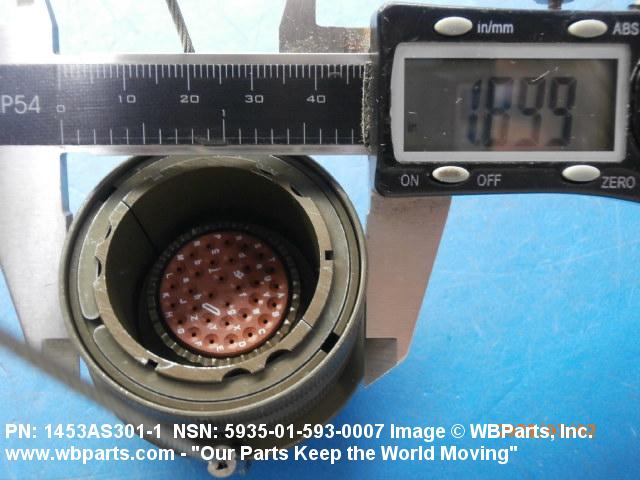

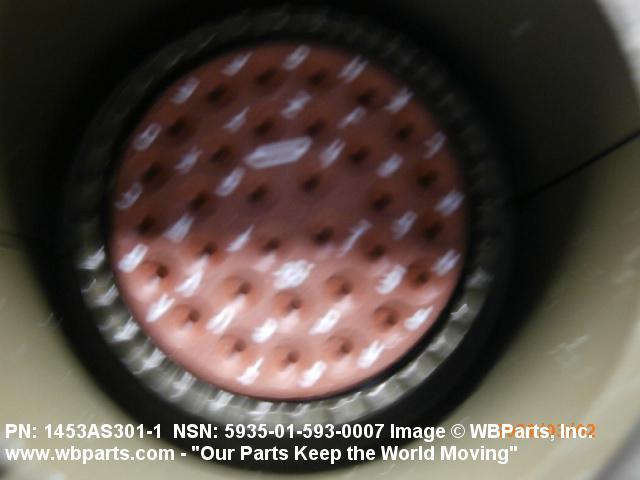

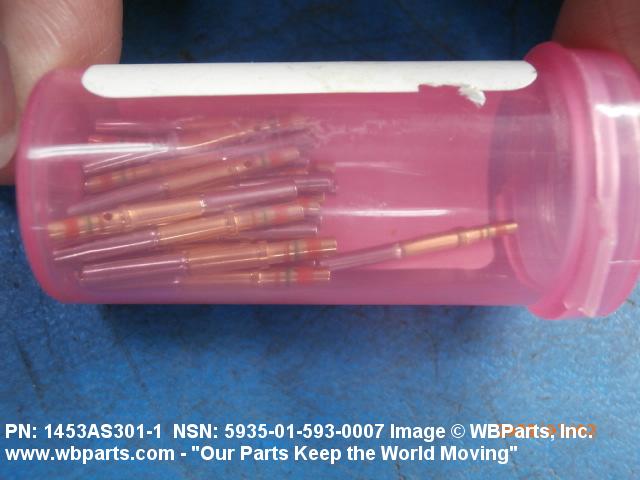

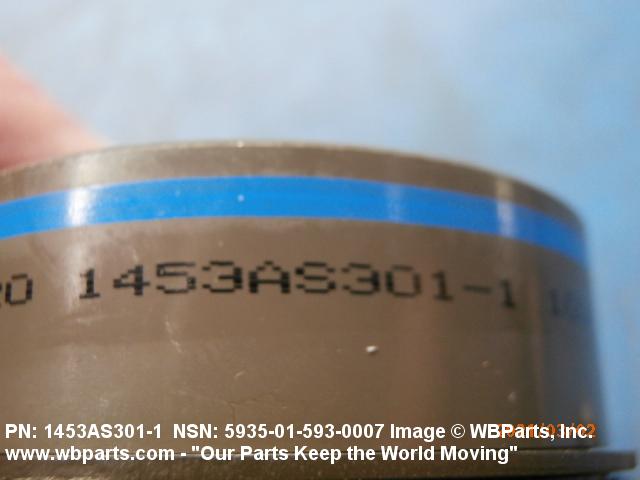

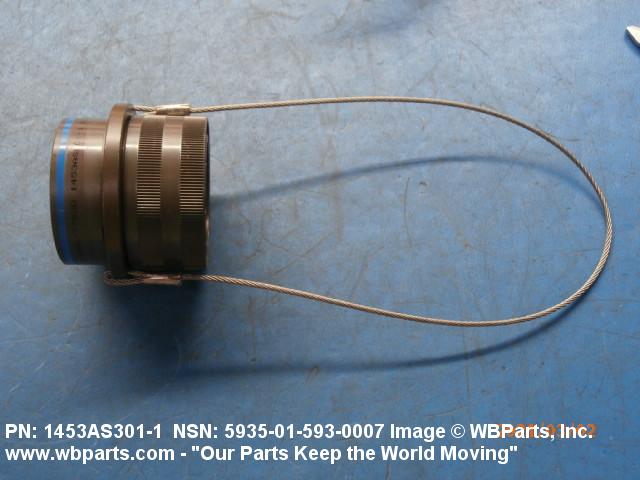

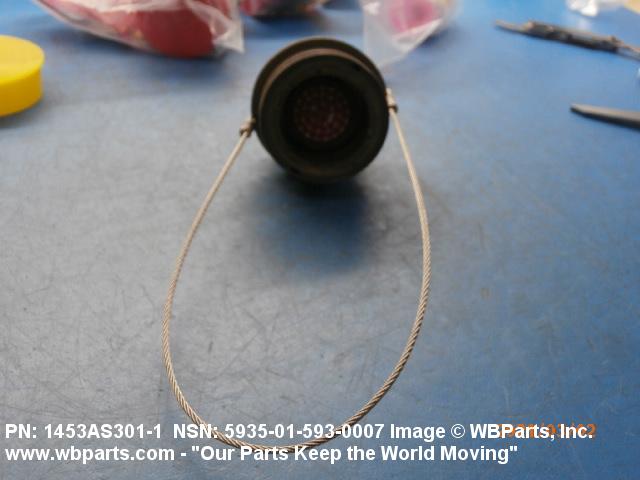

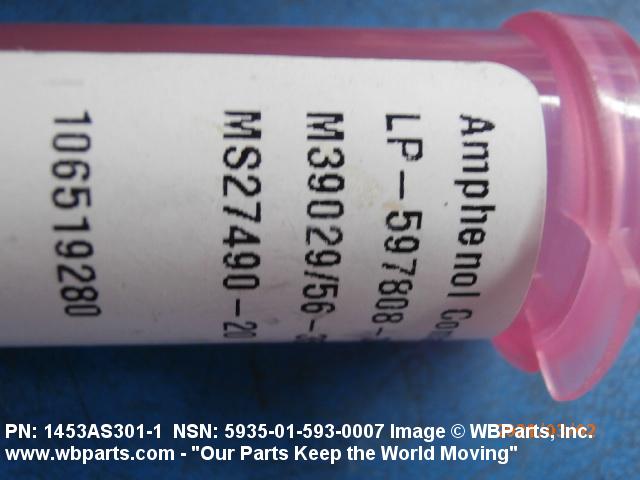

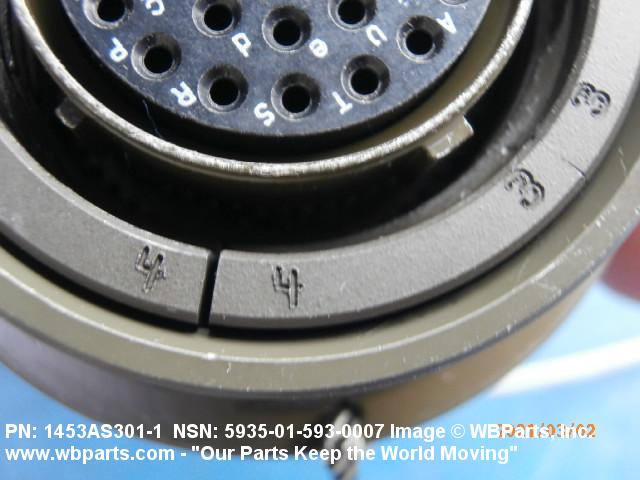

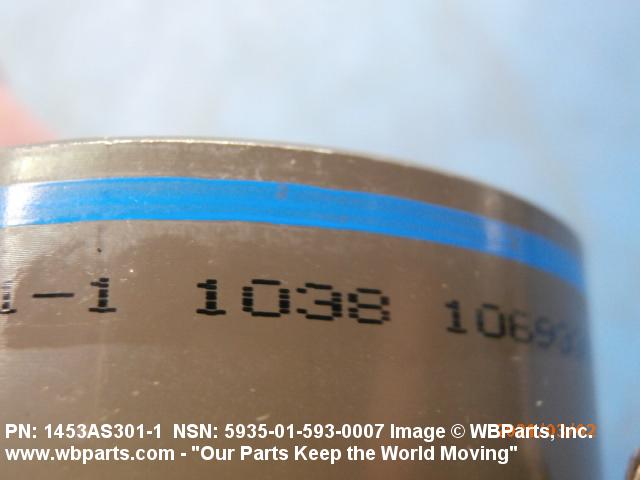

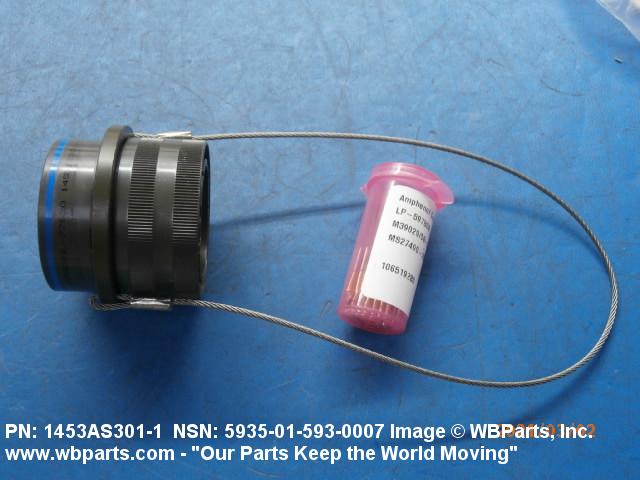

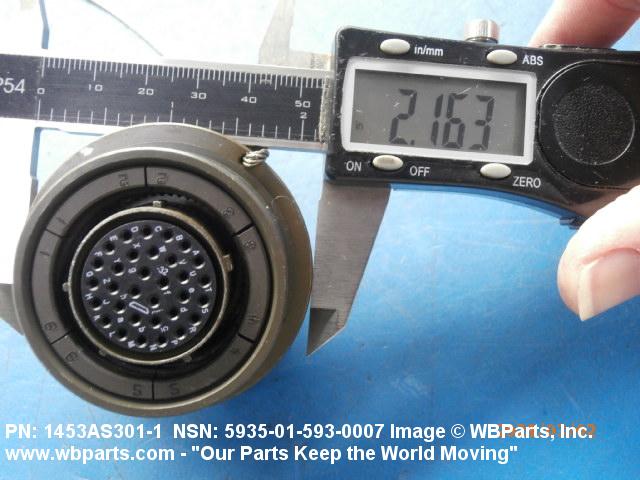

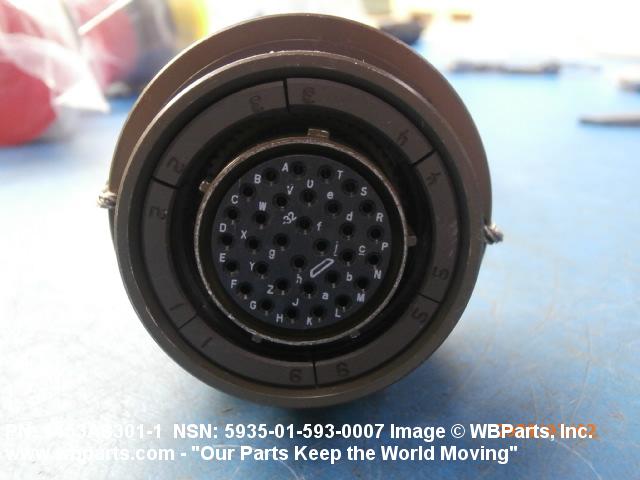

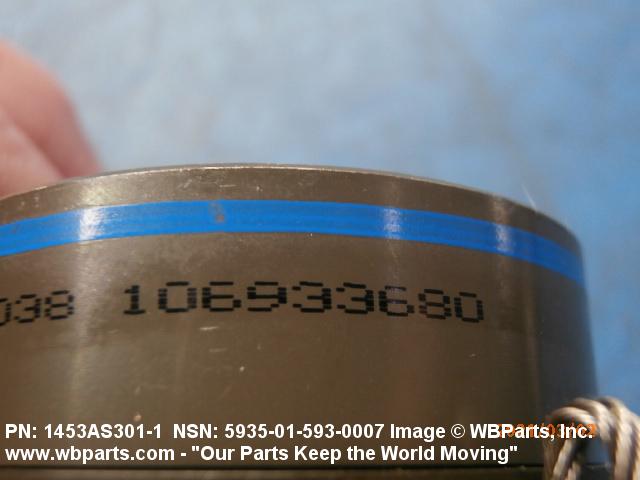

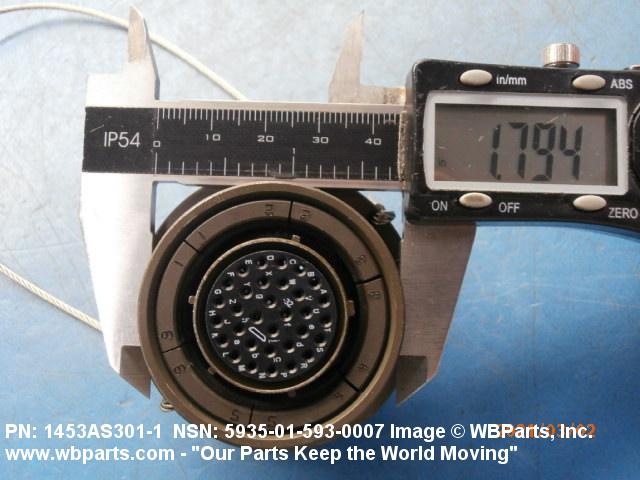

Drawings & Photos | NSN 5935-01-593-0007
Demand History | NSN 5935-01-593-0007
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1453AS301-1 | 2024-06-154 | 71 | DIBBS |
| 1453AS301-1 | 2022-11-326 | 123 | DIBBS |
| 5935-01-593-0007 | 2021-02-48 | 3 | United States |
| 88-553333-70S | 2020-10-287 | 77 | DIBBS |
| 88-553333-70S | 2020-07-212 | 43 | DIBBS |
| 88-553333-70S | 2020-03-83 | 20 | DIBBS |
| 88-553333-70S | 2020-01-07 | 65 | DIBBS |
| 5935-01-593-0007 | 2016-09-264 | 102 | DIBBS |
| 5935-01-593-0007 | 2015-04-97 | 250 | DIBBS |
| 5935-01-593-0007 | 2013-08-220 | 220 | DIBBS |
| 5935-01-593-0007 | 2012-02-59 | 30 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-593-0007
Technical Data | NSN 5935-01-593-0007
| Characteristic | Specifications |
|---|---|
| OVERALL DIAMETER | 2.531 INCHES NOMINAL |
| MATING END QUANTITY | 1 |
| OVERALL LENGTH | 1.851 INCHES NOMINAL |
| SPECIAL FEATURES | ELECTRICAL SERIES II LANYARD RELEASE |
| BODY STYLE | STRAIGHT SHAPE, INTERNAL COUPLING |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | CONNECTOR, FALE SAFE |
Restrictions/Controls & Freight Information | NSN 5935-01-593-0007
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-593-0007
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
