NSN 5935-01-604-0120 D38999/26FA35PN, D3899926FA35PN, 01-604-0120
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-604-0120 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D38999/26FA35PN, D3899926FA35PN, 5935-01-604-0120, 01-604-0120, 5935016040120, 016040120
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAR 2012 | 01-604-0120 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

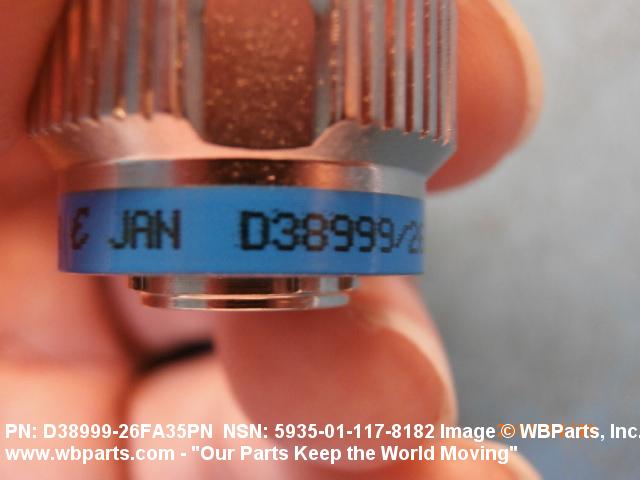

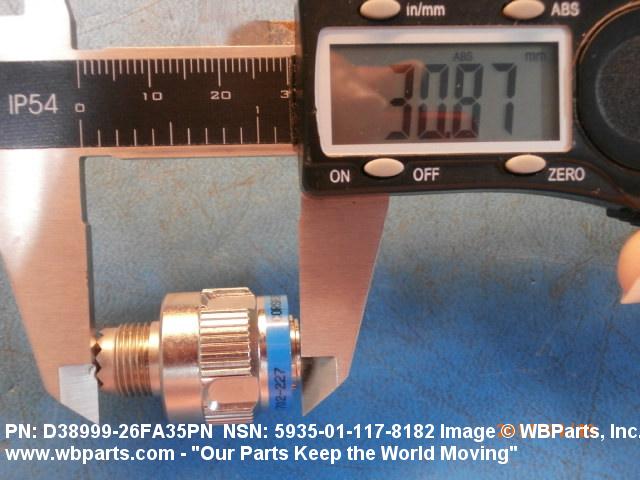

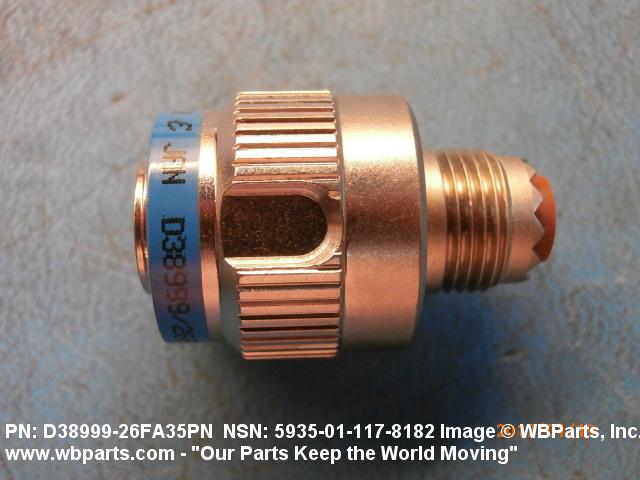

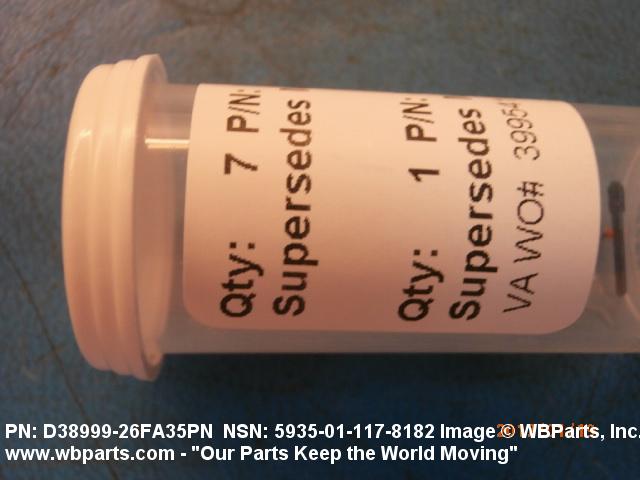

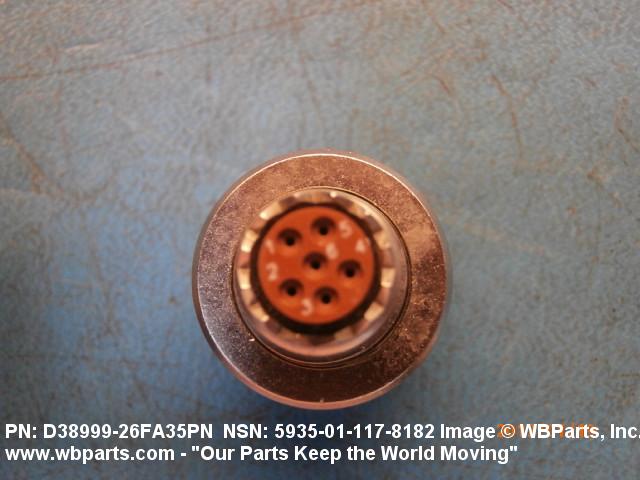

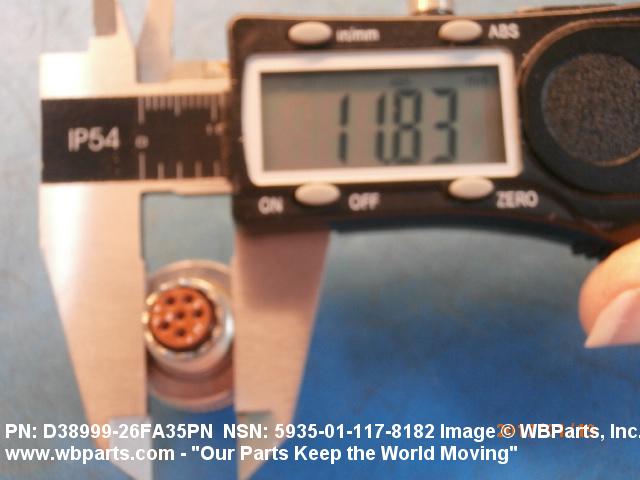

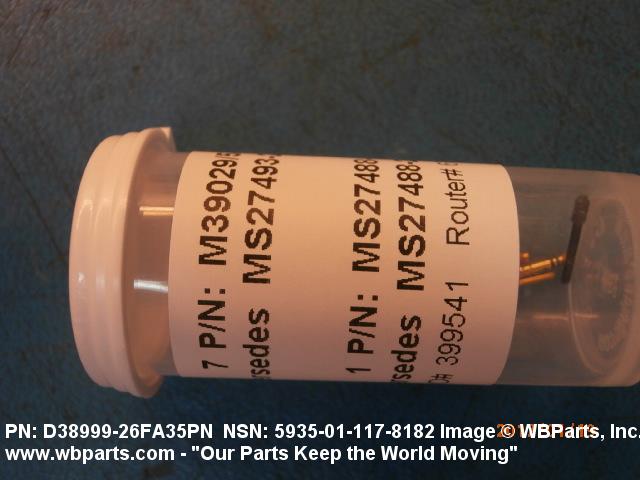

Drawings & Photos | NSN 5935-01-604-0120
Demand History | NSN 5935-01-604-0120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| D3899926FA35PN | 2025-04-91 | 1 | United States |
| D3899926FA35PN | 2016-12-340 | 2 | US |
| D3899926FA35PN | 2015-09-260 | 4 | Brazil |
| D38999/26FA35PN | 2014-11-314 | 2 | IN |
Cross Reference | NSN 5935-01-604-0120
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D38999/26FA35PN | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-604-0120
Technical Data | NSN 5935-01-604-0120
| Characteristic | Specifications |
|---|---|
| SUPPLEMENTARY FEATURES | SHJELL SIZE: 9; HARDWARE FINISH: ELECTROLESS NICKEL |
| INCLUDED CONTACT QUANTITY | 35 1ST MATING END ALL CONTACT GROUPINGS |
| DIAMETER | 21.82 MILLIMETERS NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | STRAIGHT PLUG, GROUNDED |
| OVERALL LENGTH | 31.34 MILLIMETERS NOMINAL |
| OPERATING TEMP RATING | 200.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL HEIGHT | 18.40 MILLIMETERS NOMINAL |
Restrictions/Controls & Freight Information | NSN 5935-01-604-0120
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
