NSN 5935-01-605-7466 M28748/3-E1AL3A, M287483E1AL3A, MIL-DTL-28748/3
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-605-7466 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M28748/3-E1AL3A, M287483E1AL3A, MIL-DTL-28748/3, MILDTL287483, 5935-01-605-7466, 01-605-7466, 5935016057466, 016057466
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 APR 2012 | 01-605-7466 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

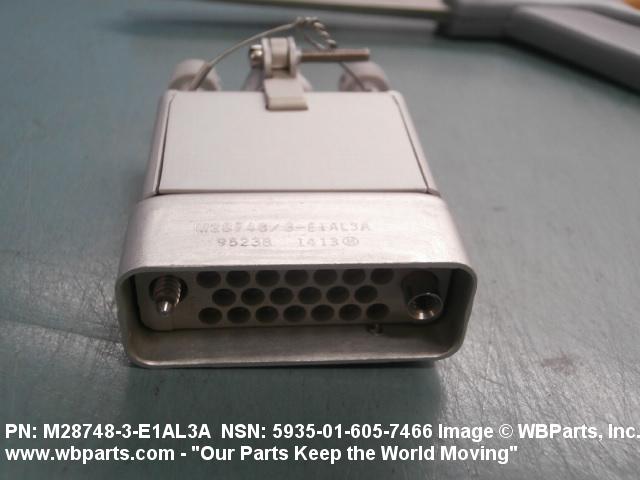

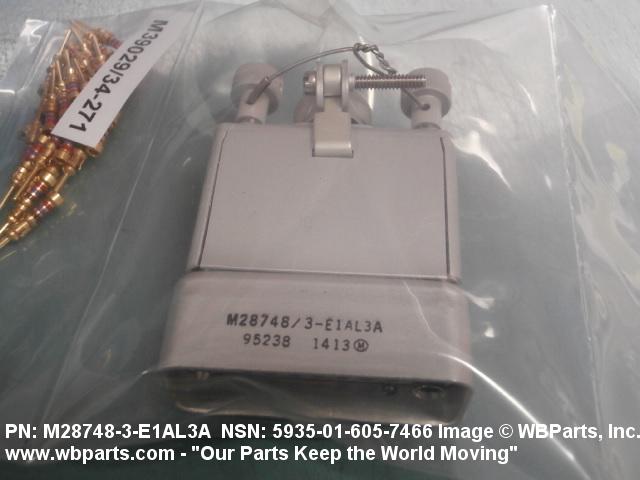

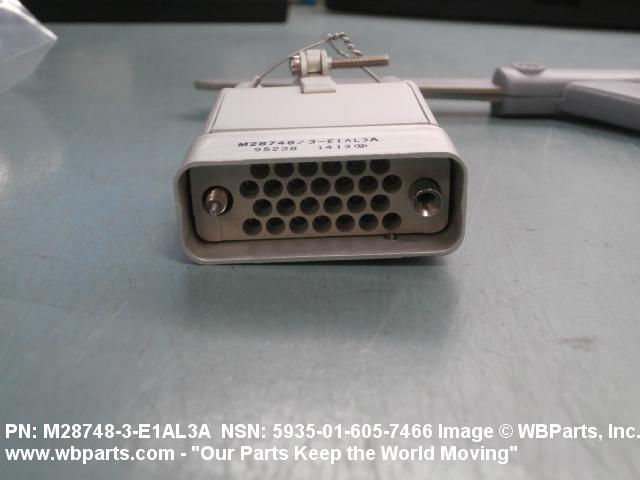

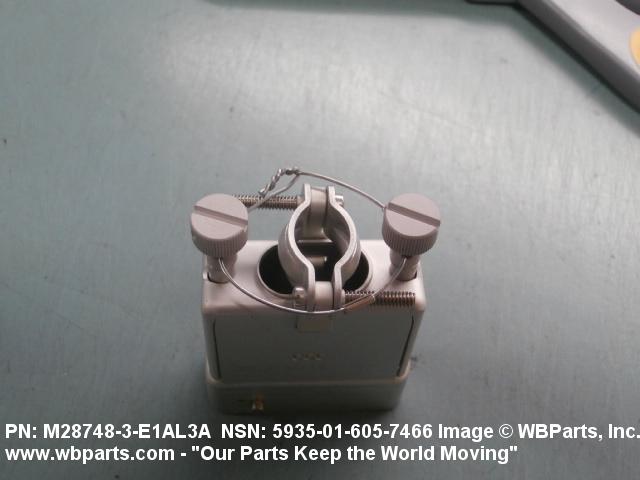

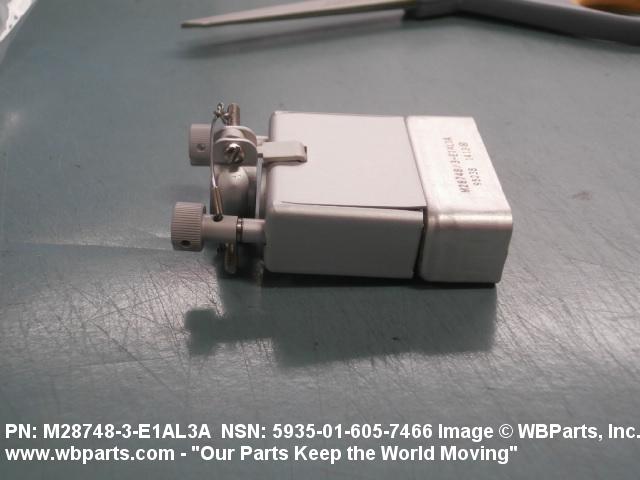

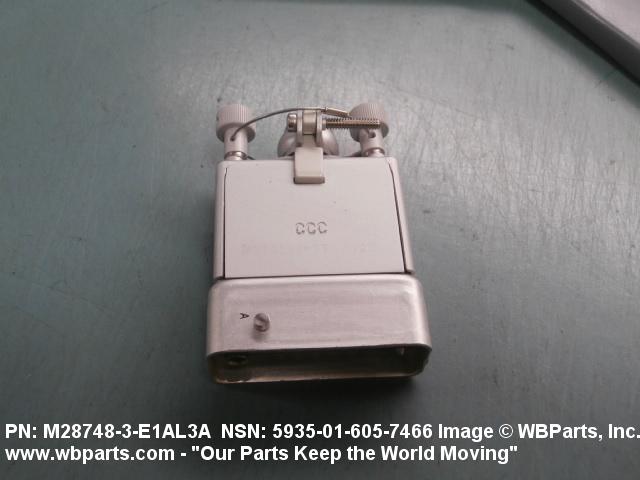

Drawings & Photos | NSN 5935-01-605-7466
Demand History | NSN 5935-01-605-7466
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-605-7466 | 2022-01-13 | 8 | DIBBS |
| 5935-01-605-7466 | 2014-03-77 | 4 | United States |
| 5935-01-605-7466 | 2014-03-74 | 4 | US |
| 5935-01-605-7466 | 2012-08-243 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-605-7466
Technical Data | NSN 5935-01-605-7466
| Characteristic | Specifications |
|---|---|
| INCLUDED CONTACT QUANTITY | 26 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT POSITION ARRANGEMENT STYLE | 26 SINGLE MATING END |
| OVERALL HEIGHT | 2.519 INCHES NOMINAL |
| OVERALL LENGTH | 0.688 INCHES NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| MATING END QUANTITY | 1 |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL GUIDE TYPE AND LOCATION DESIGNATOR | POSITION A PIN |
| TEST DATA DOCUMENT | 81349-MIL-DTL-28748 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| BODY STYLE | HOOD, TOP OPENING W/CLAMP |
| CABLE OPENING WIDTH | 0.220 INCHES NOMINAL |
| PRECIOUS MATERIAL | GOLD |
| POLARIZATION METHOD | SHELL |

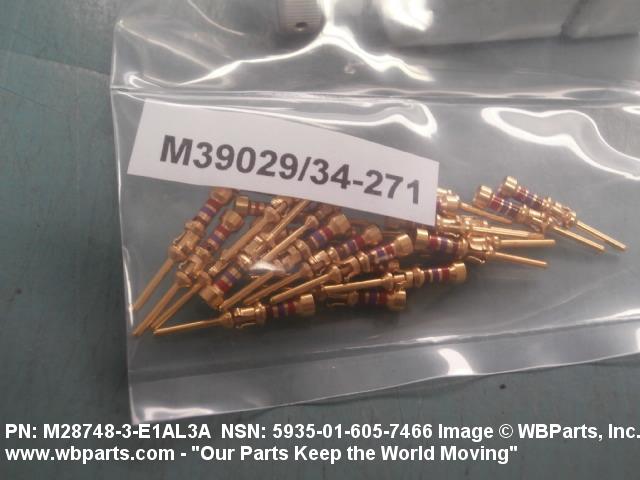

| SPECIAL FEATURES | CONTACTS PER M39029/34-271 |
| SHELL SURFACE TREATMENT | ANODIZE |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| CABLE OPENING LENGTH | 0.220 INCHES NOMINAL |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
| CONNECTOR LOCKING METHOD | JACKSCREW |
| SPECIFICATION/STANDARD DATA | 81349-MIL-DTL-28748/3 GOVERNMENT SPECIFICATION |
| END ITEM IDENTIFICATION | NUC EQUIPMENT |
| OVERALL WIDTH | 0.688 INCHES NOMINAL |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
