NSN 5935-01-613-7568 PE4002 , 01-613-7568, 016137568
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-613-7568 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: PE4002 , 5935-01-613-7568, 01-613-7568, 5935016137568, 016137568
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 2012320 | 01-613-7568 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

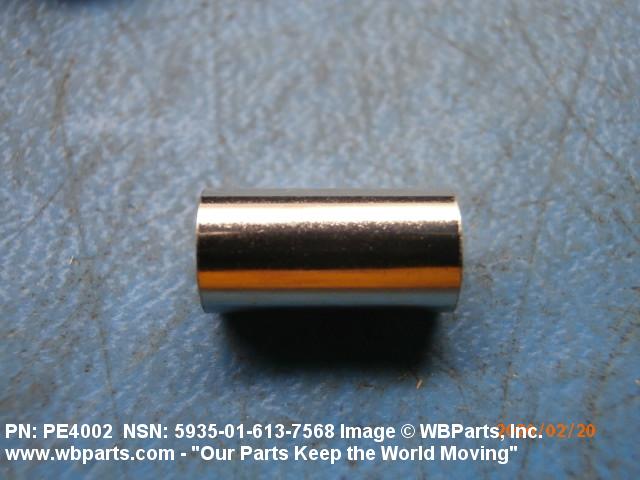

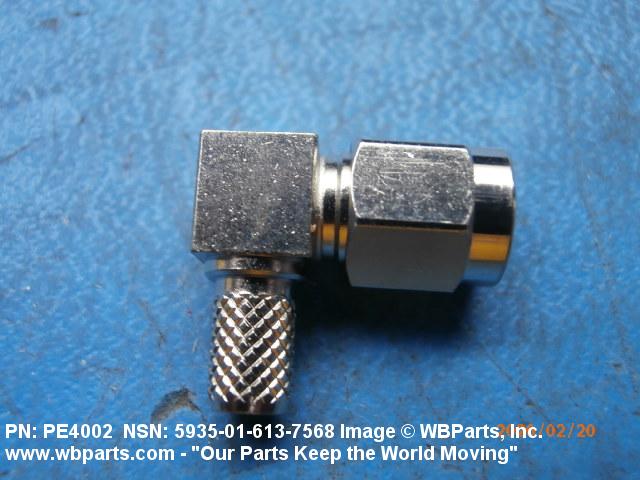

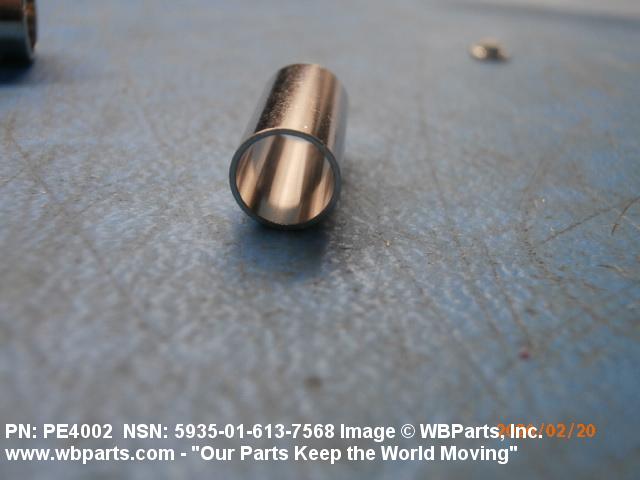

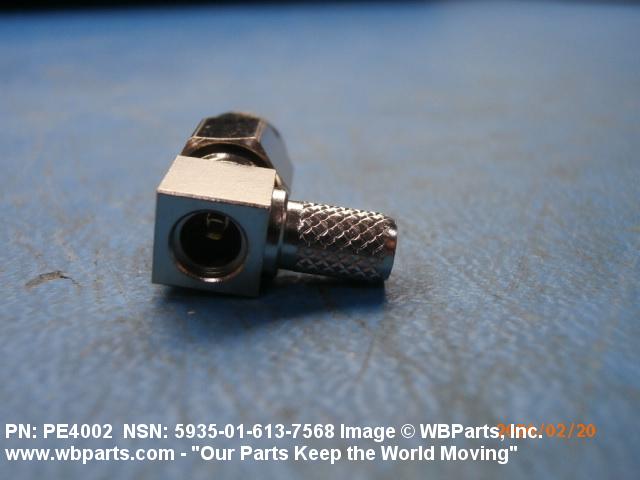

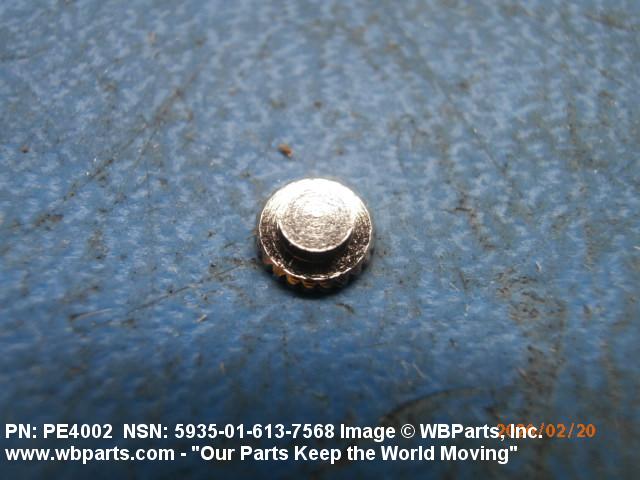

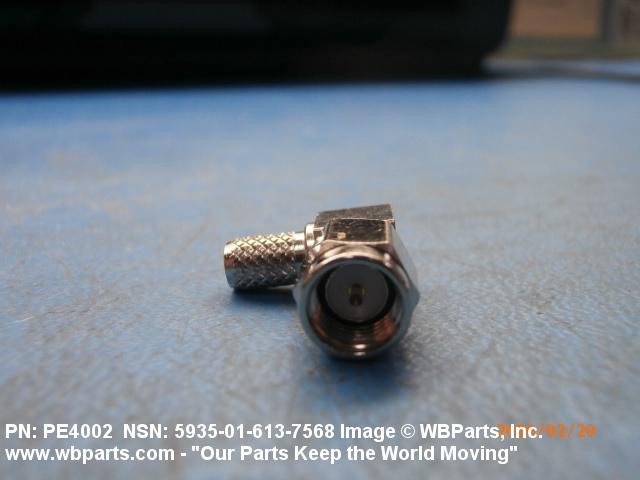

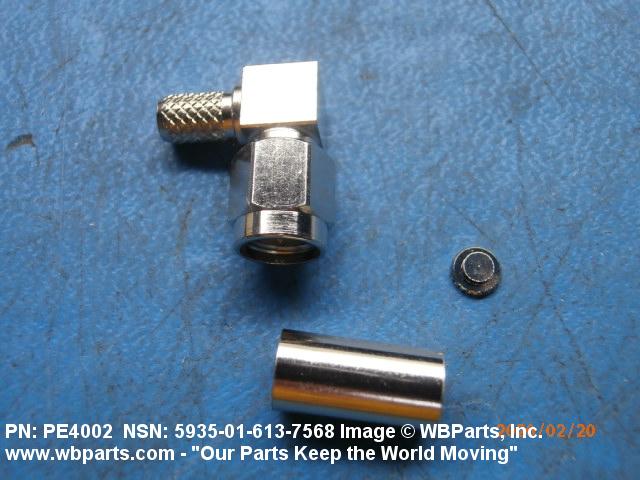

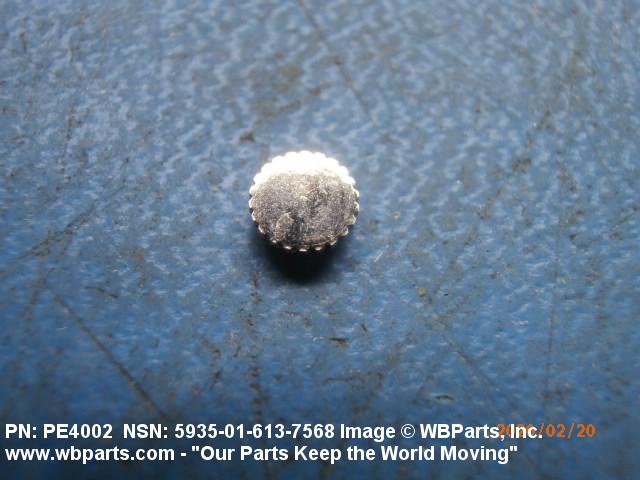

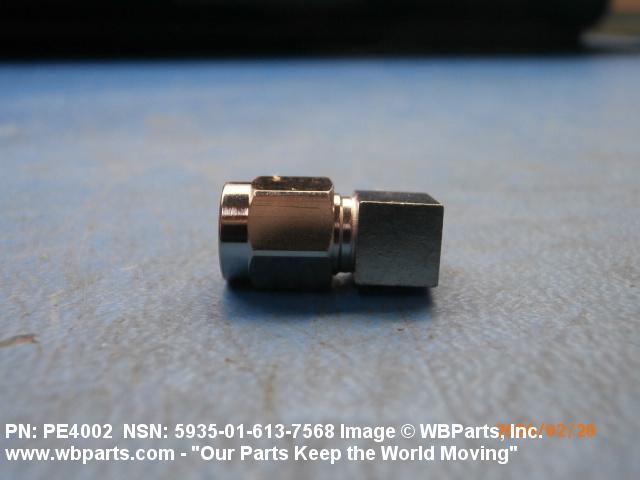

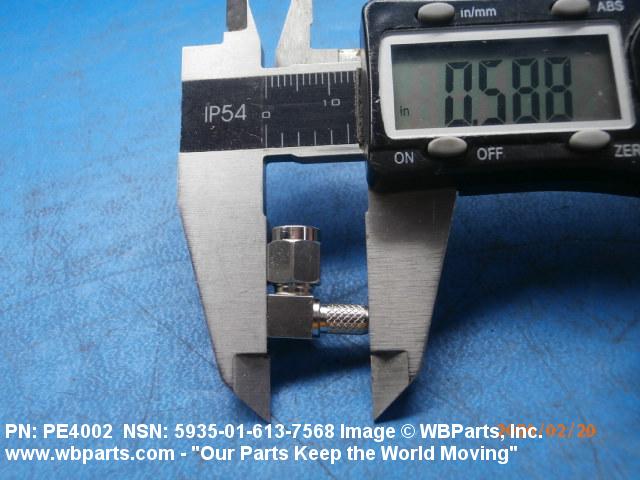

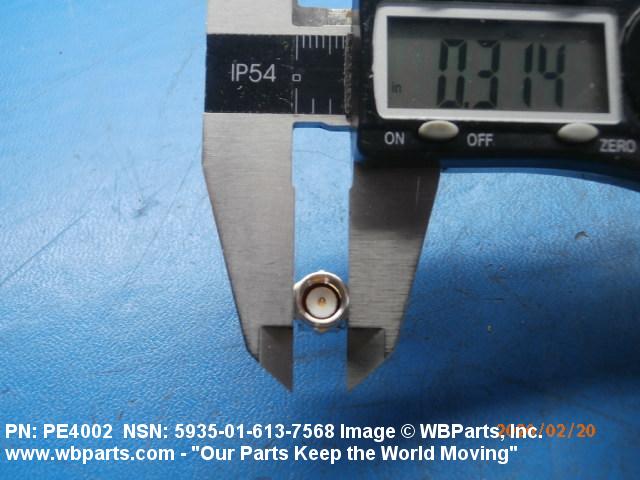

Drawings & Photos | NSN 5935-01-613-7568
Demand History | NSN 5935-01-613-7568
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PE4002 | 2022-09-254 | 456 | DIBBS |
| 5935-01-613-7568 | 2020-02-34 | 10 | United States |
| PE4002 | 2019-12-346 | 176 | DIBBS |
| PE4002 | 2019-07-192 | 82 | DIBBS |
| PE4002 | 2019-04-94 | 88 | DIBBS |
| PE4002 | 2019-01-17 | 81 | DIBBS |
| 5935-01-613-7568 | 2018-05-126 | 28 | DIBBS |
| 5935-01-613-7568 | 2018-04-91 | 6 | DIBBS |
| 5935-01-613-7568 | 2018-02-53 | 4 | DIBBS |
| 5935-01-613-7568 | 2018-02-42 | 4 | DIBBS |
| 5935-01-613-7568 | 2017-08-220 | 4 | DIBBS |
| 5935-01-613-7568 | 2017-02-53 | 10 | DIBBS |
| 5935-01-613-7568 | 2016-07-188 | 7 | DIBBS |
| 5935-01-613-7568 | 2014-10-289 | 10 | DIBBS |
Cross Reference | NSN 5935-01-613-7568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PE4002 | 53919 | PASTERNACK ENTERPRISES, INC. DBA PASTERNACK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-613-7568
Technical Data | NSN 5935-01-613-7568
| Characteristic | Specifications |
|---|---|
| III BODY STYLE | ANGLE SHAPE |
| OVERALL LENGTH | 0.79 INCHES NOMINAL |

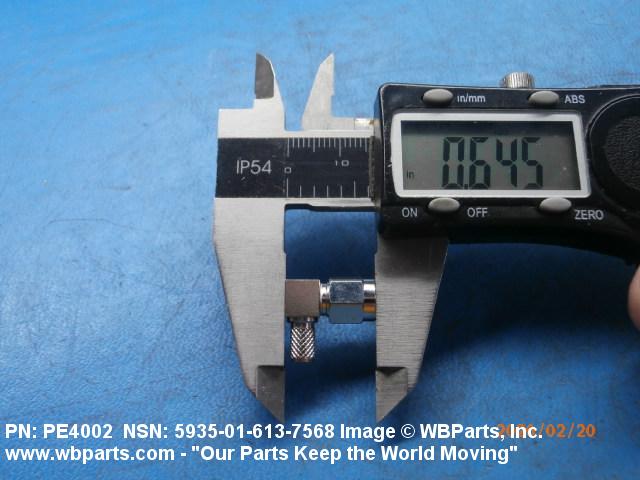

| OVERALL HEIGHT | 0.64 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.312 INCHES NOMINAL |
| MATING END QUANTITY | 2 |
| INCLUDED CONTACT TYPE | COAXIAL PIN ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD ALL MATING ENDS SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP ALL MATING ENDS SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | BODY MATERIAL:BRASS NICKEL PLATED, INSULATOR MATERIAL: PTFE, ATTACHMENT FOR RG55,RG142,RG223 AND RG400. |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT GOLD |
| III END ITEM IDENTIFICATION | 6625-01-513-6372,PROGRAM SET,APPLICATION |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SMA MALE RIGHT ANGLE, CRIMP |
Restrictions/Controls & Freight Information | NSN 5935-01-613-7568
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-613-7568
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
