NSN 5940-00-060-8408 2249558, 530495, 53-0495
Product Details | QUICK DISCONNECT TERMINAL
5940-00-060-8408 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Part Alternates: 2249558, 530495, 53-0495, 5940-00-060-8408, 00-060-8408, 5940000608408, 000608408
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JUN 1967 | 00-060-8408 | 61180 ( TERMINAL, QUICK DISCONNECT ) |

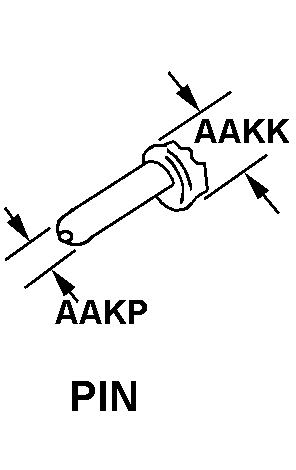

Drawings & Photos | NSN 5940-00-060-8408
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-060-8408
Related Products | NSN 5940-00-060-8408
Technical Data | NSN 5940-00-060-8408
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A36 EXTERNAL |
| OVERALL LENGTH | 0.900 INCHES |
| MATERIAL THICKNESS | 0.030 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | THREADED INTERNAL SINGLE END |
| LARGEST DIAMETER | 0.125 INCHES SINGLE END |
| QUICK DISCONNECT STYLE | G15 PIN |
| MAJOR PLUG DIAMETER | 0.125 INCHES |
| MINOR PLUG DIAMETER | 0.062 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | SILVER OVERALL FIRST LAYER GOLD OVERALL SECOND LAYER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE OVERALL FIRST LAYER MIL-G-14548 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL SECOND LAYER |
| III PRECIOUS MATERIAL | SILVER AND GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.040 SILVER GRAINS, TROY AND 0.040 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | 1ST LAYER FINISH SILVER AND 2ND LAYER FINISH GOLD |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2249558 |
Restrictions/Controls & Freight Information | NSN 5940-00-060-8408
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
