NSN 5940-00-064-9763 MCT-1, S09004, 80000188
Product Details | QUICK DISCONNECT TERMINAL
5940-00-064-9763 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Part Alternates: MCT-1, S09004, 80000188, 8000-0188, MCT1, 18301, 3401, 5940-00-064-9763, 00-064-9763, 5940000649763, 000649763
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-064-9763 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
Drawings & Photos | NSN 5940-00-064-9763
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-064-9763
Technical Data | NSN 5940-00-064-9763
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A36 EXTERNAL |
| OVERALL LENGTH | 0.656 INCHES |
| MATERIAL THICKNESS | 0.020 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 14 AWG |

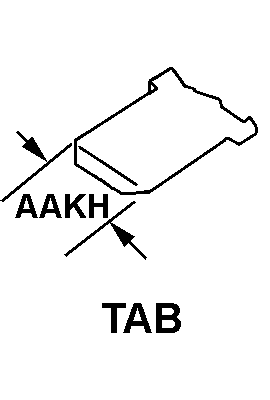

| QUICK DISCONNECT STYLE | G11 TAB |
| TAB WIDTH | 0.250 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER OVERALL |
| SURFACE TREATMENT | TIN OVERALL SINGLE LAYER |
