NSN 5940-00-081-6055 MS250365, MS25036-5, AP131510
Product Details | LUG TERMINAL
5940-00-081-6055 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: MS250365, MS25036-5, AP131510, AP1315-10, GT805D186A, GT805D18-6A, GT805H186, GT805H18-6, R1896S, R1896SN, YAE18N15, 7245159014, 724-515-9014, 731896, 7-31896, 9265019, 92650-19, 31896, 31897, 320573, 52A3B2125, 52A3B212-5, 58A816, 58A8-16, 5940-00-081-6055, 00-081-6055, 5940000816055, 000816055
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-081-6055 | 00746 ( TERMINAL, LUG ) |

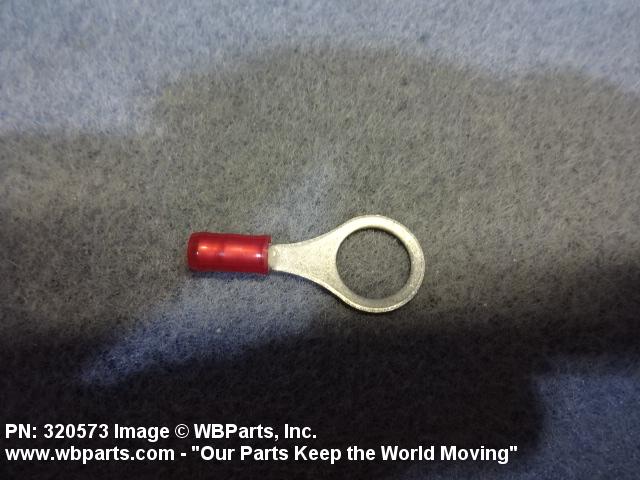

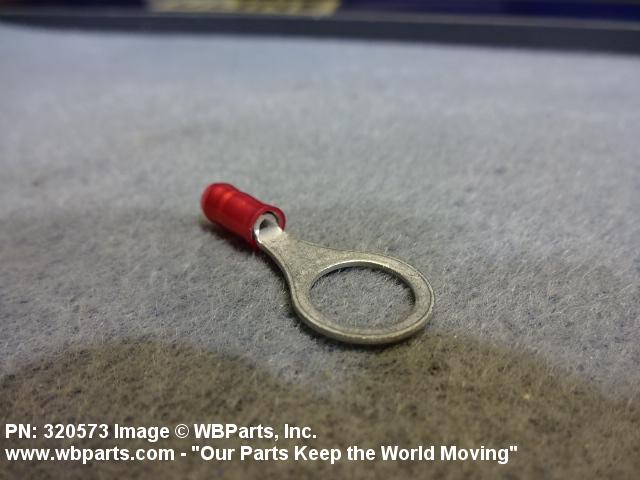

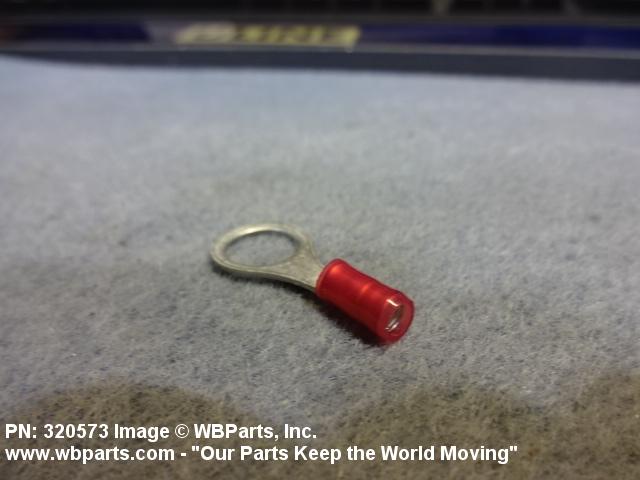

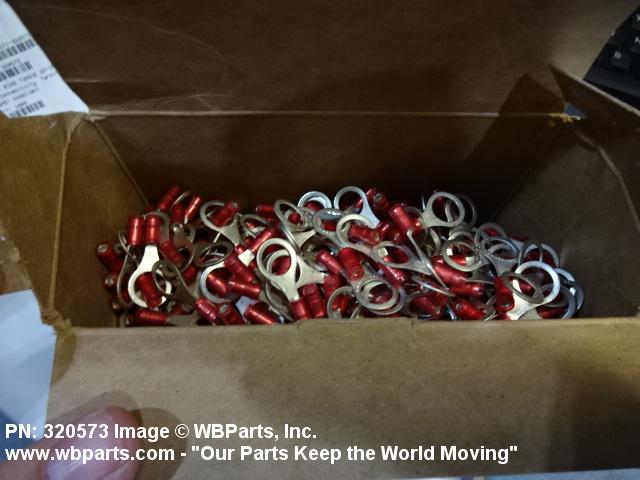

Drawings & Photos | NSN 5940-00-081-6055
Demand History | NSN 5940-00-081-6055
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 31896 | 2023-01-05 | 50 | United States |
| 320573 | 2016-06-166 | 12 | US |
Cross Reference | NSN 5940-00-081-6055
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 31896 | 03040 | POWER CONTROL DEVICES, INC. DBA AMERICAN TIME PRODUCTS |
| 31896 | 28726 | BULOVA TECHNOLOGIES L.L.C. DBA ENVIRONMENTAL SYSTEMS & SVCS |
| 31897 | D8348 | KUKA WEHRTECHNIK GMBH |
| 31897 | D8512 | TYCO ELECTRONICS AMP GMBH |
| 31897 | D9448 | RHEINMETALL LANDSYSTEME GMBH DBA RHEINMETALL LAND- UN |
| 320573 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 320573 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 52A3B212-5 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 58A8-16 | 04939 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 58A8-16 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 7-31896 | 00779 | TYCO ELECTRONICS CORPORATION |
| 724-515-9014 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 92650-19 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 92650-19 | 64547 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 92650-19 | 83298 | ALLIED SIGNAL INC AEROSPACE EQUIPMENT SYSTEMS |
| AP1315-10 | 81848 | ROYAL ELECTRIC INC |
| GT805D18-6A | 11809 | THOMPSON AEROSPACE INC |
| GT805H18-6 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MS25036-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| R1896S | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| R1896SN | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| YAE18N15 | 09922 | SOURIAU USA, INC. |
| YAE18N15 | 1NJK8 | BURNDY LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-081-6055
Technical Data | NSN 5940-00-081-6055
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |

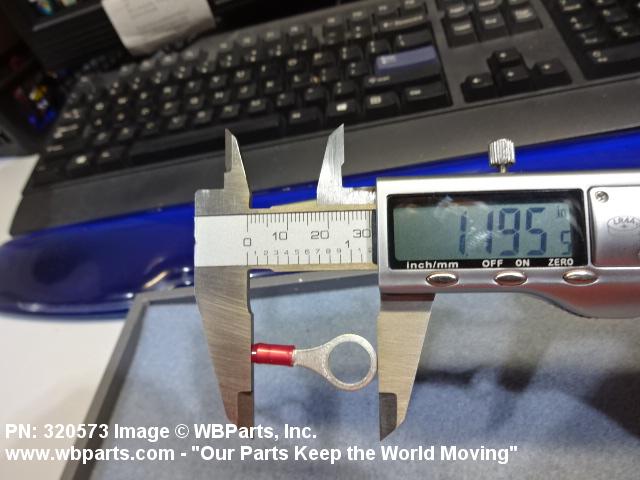

| OVERALL LENGTH | 1.320 INCHES |

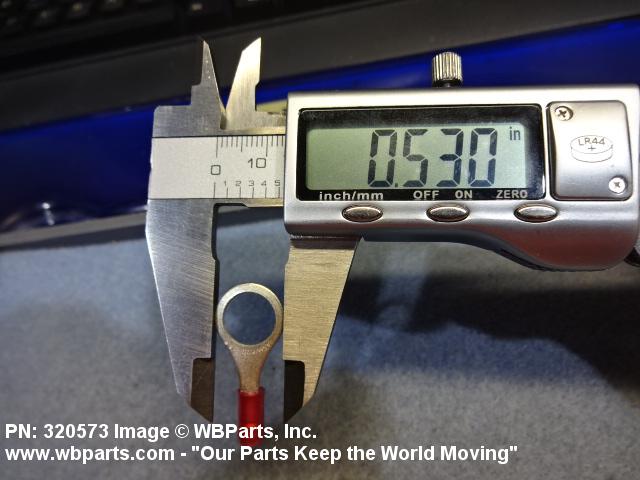

| OVERALL WIDTH | 0.540 INCHES |

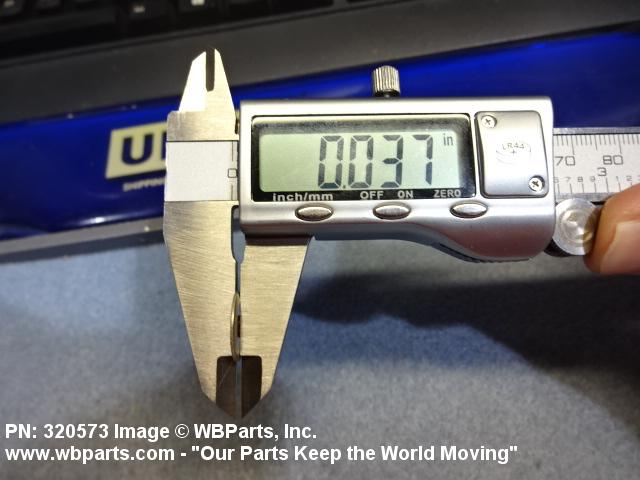

| MATERIAL THICKNESS | 0.035 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 18 AWG |
| MOUNTING METHOD STYLE | D14 RING |
| MOUNTING HOLE DIAMETER | 0.328 INCHES |
| MOUNTING TONGUE WIDTH | 0.540 INCHES |
| MOUNTING FACILITY THICKNESS | 0.035 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | RED |
| MATERIAL | PLASTIC POLYAMIDE OR PLASTIC VINYL INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN OVERALL EXCEPT INSULATION SINGLE LAYER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25036-5 |
Restrictions/Controls & Freight Information | NSN 5940-00-081-6055
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-081-6055
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
