NSN 5940-00-132-2761 MS27212110, MS27212-1-10, TAS8720110

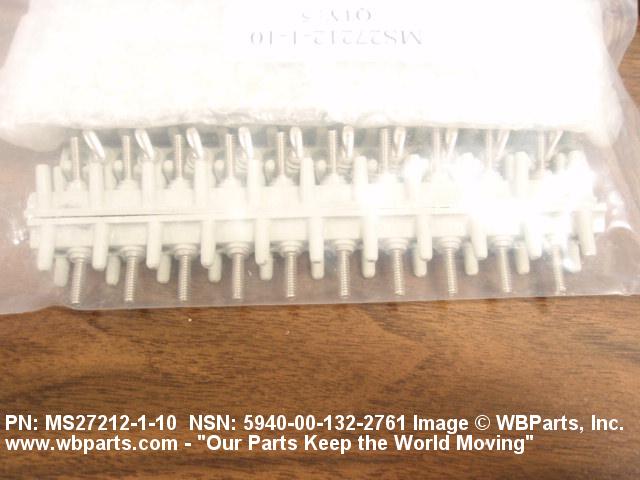

Product Details | TERMINAL BOARD

5940-00-132-2761 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.

Part Alternates: MS27212110, MS27212-1-10, TAS8720110, TAS8720-1-10, 5940-00-132-2761, 00-132-2761, 5940001322761, 001322761

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	13 DEC 1968	00-132-2761	00404 ( TERMINAL BOARD )

Drawings & Photos | NSN 5940-00-132-2761

Part Number	Request Date	QTY	Origin
5940-00-132-2761	2025-03-82	42	DIBBS
5940-00-132-2761	2024-09-267	42	DIBBS
5940-00-132-2761	2024-09-259	42	DIBBS
5940-00-132-2761	2024-06-171	15	United States
5940-00-132-2761	2023-11-305	57	DIBBS
5940-00-132-2761	2023-10-291	57	DIBBS
5940-00-132-2761	2023-01-24	57	DIBBS
5940-00-132-2761	2023-01-16	57	DIBBS
5940-00-132-2761	2022-08-217	73	DIBBS
5940-00-132-2761	2022-07-202	73	DIBBS
5940-00-132-2761	2022-07-187	73	DIBBS
5940-00-132-2761	2022-06-173	57	DIBBS
5940-00-132-2761	2021-11-322	57	DIBBS
5940-00-132-2761	2021-08-213	88	DIBBS
TAS8720-1-10	2020-07-203	57	DIBBS
TAS8720-1-10	2020-03-86	123	DIBBS
TAS8720-1-10	2019-04-93	201	DIBBS
5940-00-132-2761	2017-06-166	80	DIBBS
5940-00-132-2761	2016-08-238	75	DIBBS
5940-00-132-2761	2015-11-308	90	DIBBS
5940-00-132-2761	2014-09-259	33	DIBBS
MS27212110	2014-08-240	3	TH
5940-00-132-2761	2014-07-190	1	DIBBS
5940-00-132-2761	2014-05-142	1	DIBBS
5940-00-132-2761	2014-05-126	1	DIBBS
5940-00-132-2761	2014-05-125	1	DIBBS
5940-00-132-2761	2014-04-113	1	DIBBS
5940-00-132-2761	2014-01-18	6	DIBBS
5940-00-132-2761	2014-01-09	6	DIBBS
5940-00-132-2761	2013-04-111	1	DIBBS
5940-00-132-2761	2012-10-303	2	DIBBS
5940-00-132-2761	2012-09-261	1	DIBBS
5940-00-132-2761	2012-08-229	1	DIBBS
MS27212110	2010-09-250	8	United States
MS27212110	2010-08-223	8	United States

Cross Reference | NSN 5940-00-132-2761

Part Number	Cage Code	Manufacturer
MS27212-1-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
TAS8720-1-10	05395	L-3 COMMUNICATIONS CORPORATION DBA MISSION INTEGRATION DIVISION
