NSN 5940-00-204-6858 NAS704S3, X1797C, 103053
Product Details | STUD TERMINAL
5940-00-204-6858 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: NAS704S3, X1797C, 103053, 10-305-3, 1142C, 1392C1, 1392C-1, 1519C, 1519-C, 160-1797-03-01-00, 1601797304, 160-1797-3-04, 17973, 1797-3, 2S635C, 2S6-35C, 3530C1, 3530-C-1, 3531C, 353C1, 353-C-1, 36253, 3625-3, 52285, 5228-5, 571781, 5940-00-204-6858, 00-204-6858, 1601797030100, 5940002046858, 002046858
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-204-6858 | 00887 ( TERMINAL, STUD ) |

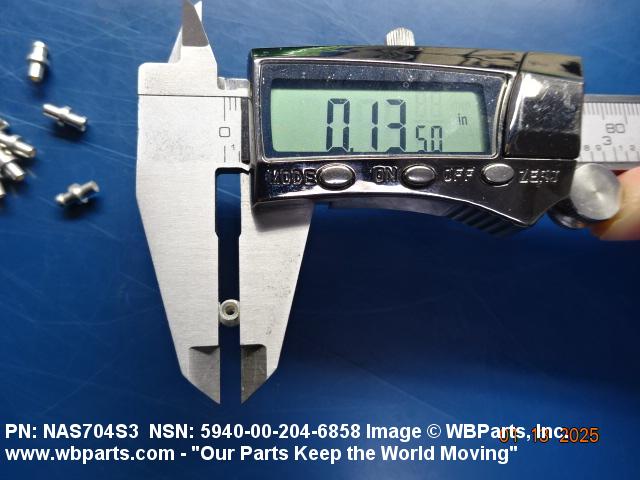

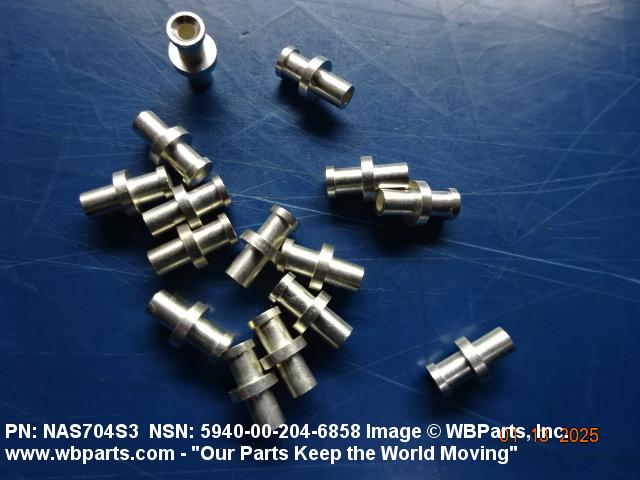

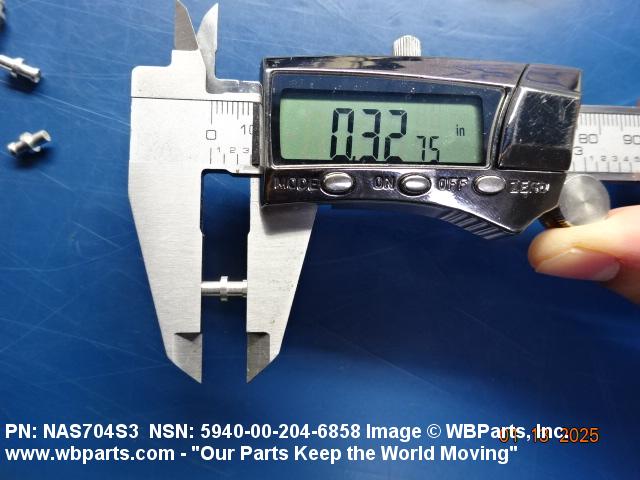

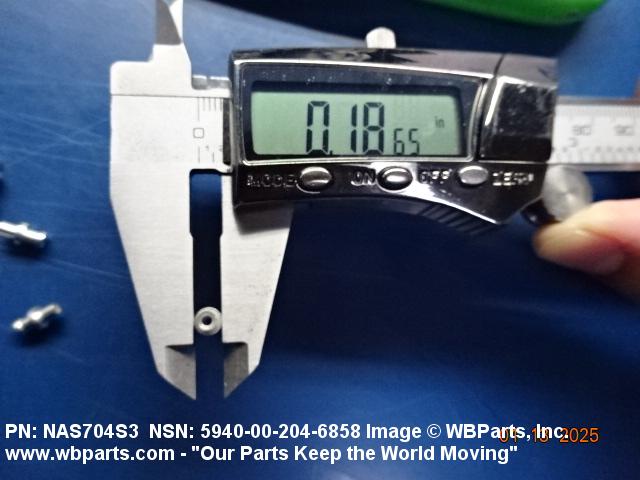

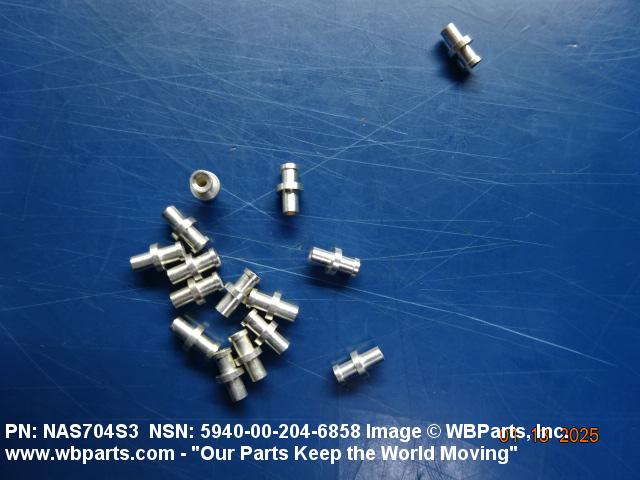

Drawings & Photos | NSN 5940-00-204-6858
Demand History | NSN 5940-00-204-6858
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-204-6858 | 2025-08-217 | 5000 | DIBBS |
| 5940-00-204-6858 | 2025-01-20 | 5000 | DIBBS |
| 5940-00-204-6858 | 2024-11-312 | 25 | us |
| 5940-00-204-6858 | 2007-04-102 | 1000 | DIBBS |
Cross Reference | NSN 5940-00-204-6858
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-305-3 | 18310 | CONCORD ELECTRONICS, INC. |
| 1142C | 00866 | GOE ENGINEERING CO INC |
| 1392C-1 | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| 1519-C | 91833 | KEYSTONE ELECTRONICS CORP. |
| 160-1797-03-01-00 | 71279 | INTERCONNECTION PRODUCTS INC |
| 160-1797-3-04 | 71279 | INTERCONNECTION PRODUCTS INC |
| 1797-3 | 71279 | INTERCONNECTION PRODUCTS INC |
| 2S6-35C | 86577 | PRECISION METAL PRODUCTS CO |
| 353-C-1 | 21355 | LTA/D-CEMCO INC DBA D-CEMCO |
| 3530-C-1 | 52525 | LERCO DIV SPACE-LOK INC |
| 3531C | 98278 | TYCO ELECTRONICS CORPORATION |
| 3625-3 | 05791 | LYN-TRON INC |
| 5228-5 | 06540 | NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV |
| 571781 | 57733 | STEWART-WARNER CORPORATION |
| NAS704S3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| X1797C | 71279 | INTERCONNECTION PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-204-6858
Technical Data | NSN 5940-00-204-6858
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A5 TUBULAR, ROUND |
| TERMINAL LENGTH | 0.141 INCHES |
| OVERALL HEIGHT | 0.329 INCHES |
| OVERALL DIAMETER | 0.188 INCHES |
| THRU-HOLE DIAMETER | 0.067 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SINGLE TURRET SINGLE END |
| LARGEST DIAMETER | 0.138 INCHES SINGLE END |
| TURRET MINOR DIAMETER | 0.110 INCHES SINGLE END |
| MOUNTING METHOD STYLE | D33 SWAGE |
| MINOR BUSHING LENGTH | 0.141 INCHES |
| SWAGE DEPTH | 0.141 INCHES |
| SWAGE OUTSIDE DIAMETER | 0.110 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | SILVER OVERALL SINGLE LAYER |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.040 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | FINISH O/A SILVER |
Restrictions/Controls & Freight Information | NSN 5940-00-204-6858
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-204-6858
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
