NSN 5940-00-215-5963 M24558/6-433.1, M24558/6-433-1, M2455864331
Product Details | TERMINAL BOX
5940-00-215-5963 An enclosure which includes, mounts and protects one or more terminals and/or terminal boards. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, and conduit fittings. For boxes which include combinations of different electrical devices such as terminals and/or terminal boards, fuseholders, switches, jacks, circuit breakers, connectors and the like, see DISTRIBUTION BOX. For boxes which are designed to mount, but which do not include terminals and/or terminal boards, see JUNCTION BOX. Excludes TERMINAL BOARD ASSEMBLY. See also CHAMBER, CABLE TERMINAL; and INTERCONNECTING CABINET.
Part Alternates: M24558/6-433.1, M24558/6-433-1, M2455864331, SYM433.1, SYM4331, SYMBOL 433.1, SYMBOL4331, MIL-T-24558/6, MILT245586, 24TB202, 2-4TB20-2, 24TB20M2, 2-4TB20M2, 776842006RR01PC3, 77684-20-06RR01PC3, 9000S620274133, 9000S6202-74133, 9000S620274133REV0, 9000S6202-74133REV0, 5940-00-215-5963, 00-215-5963, 5940002155963, 002155963
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-215-5963 | 00452 ( TERMINAL BOX ) |

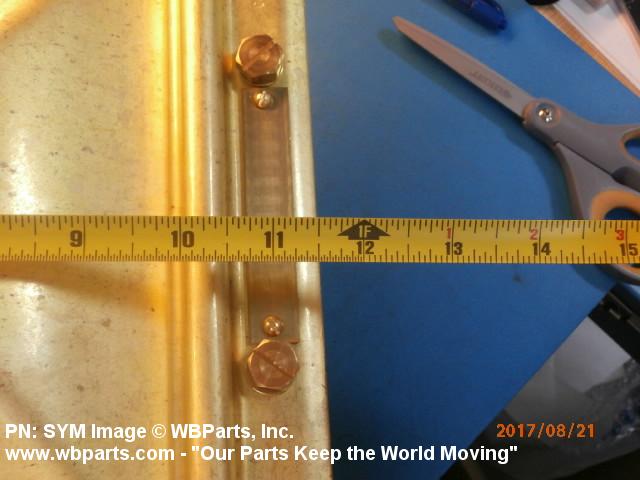

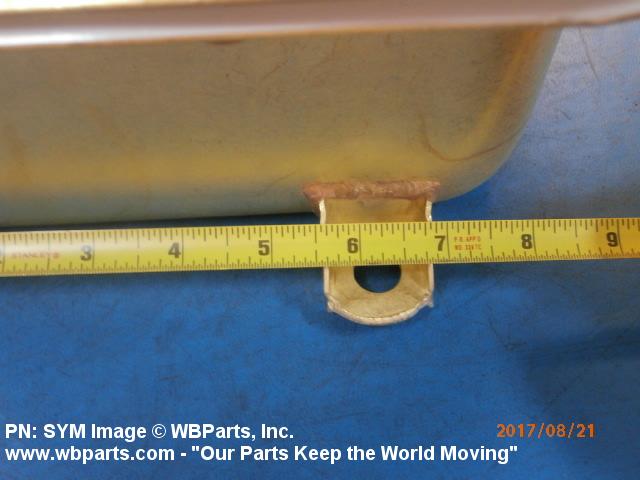

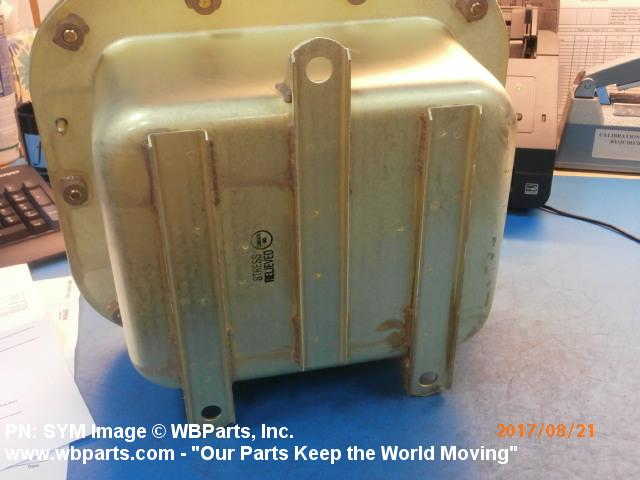

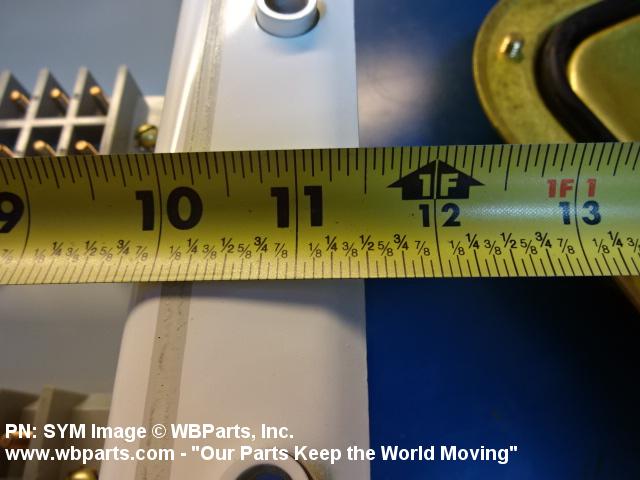

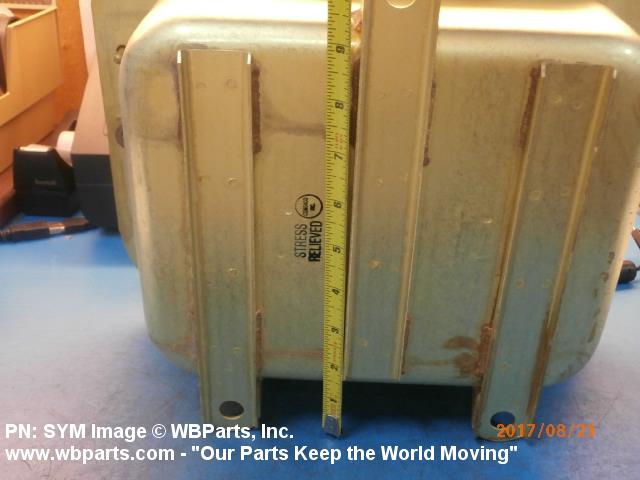

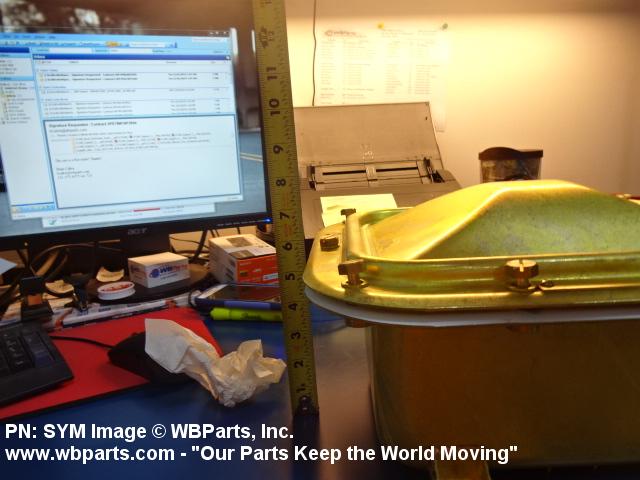

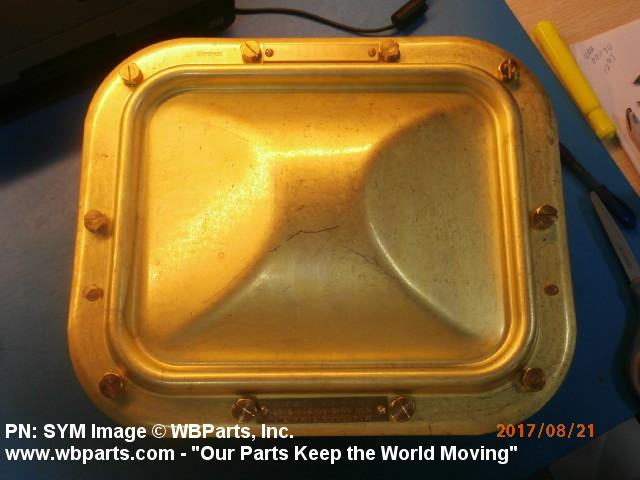

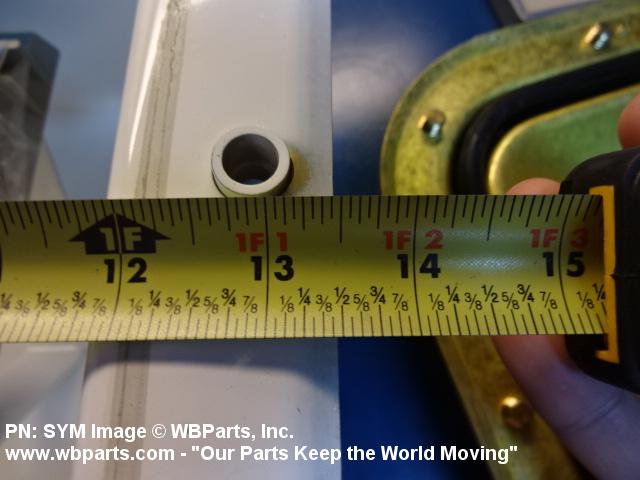

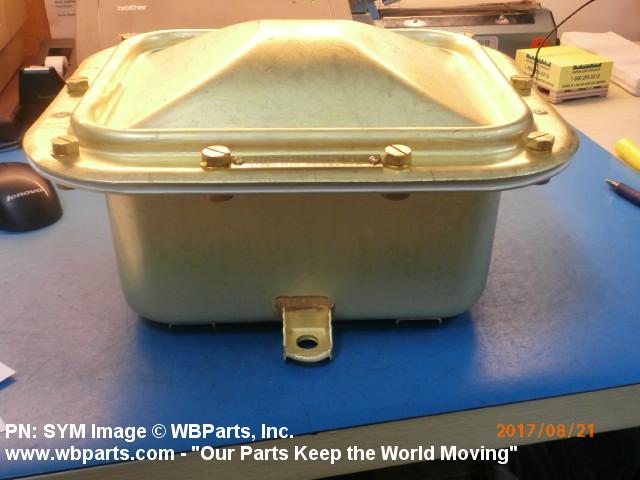

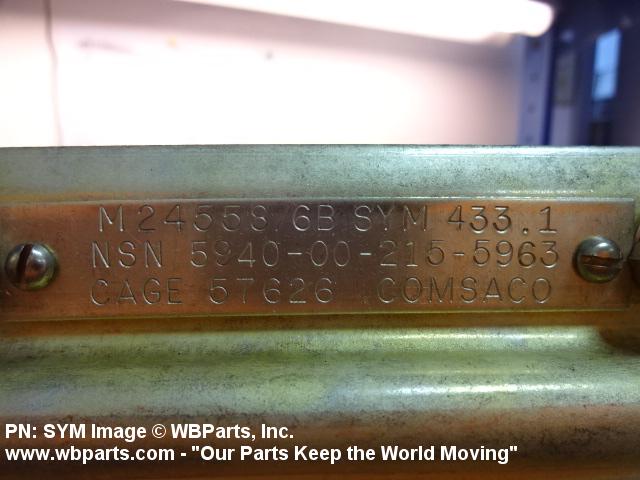

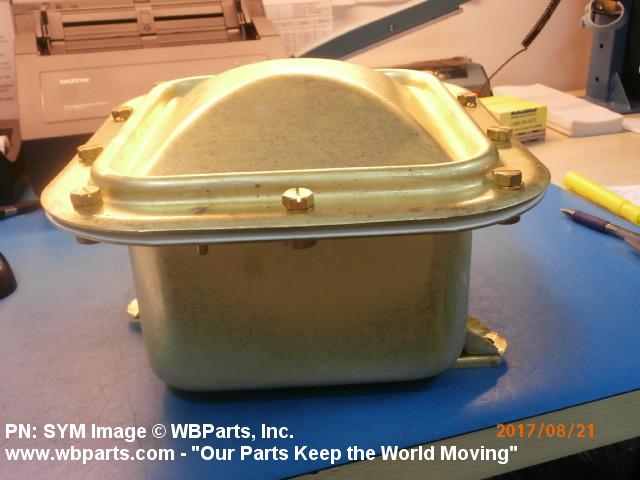

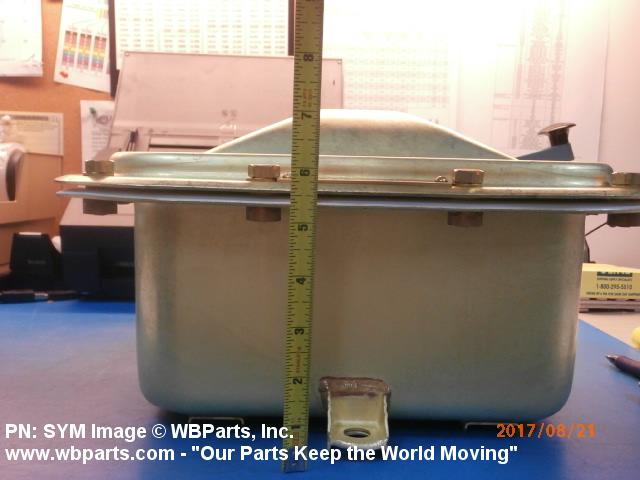

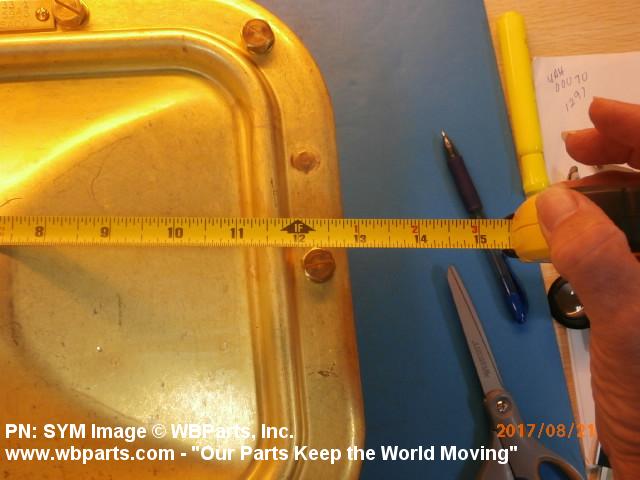

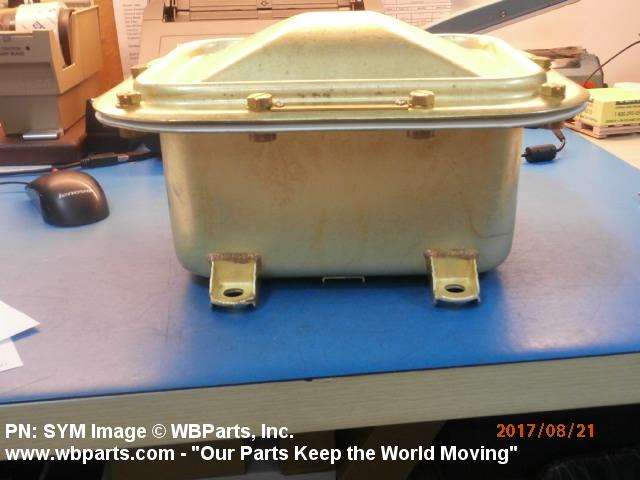

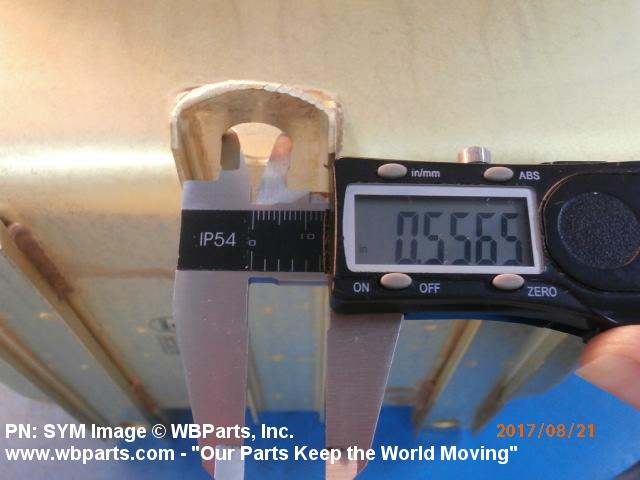

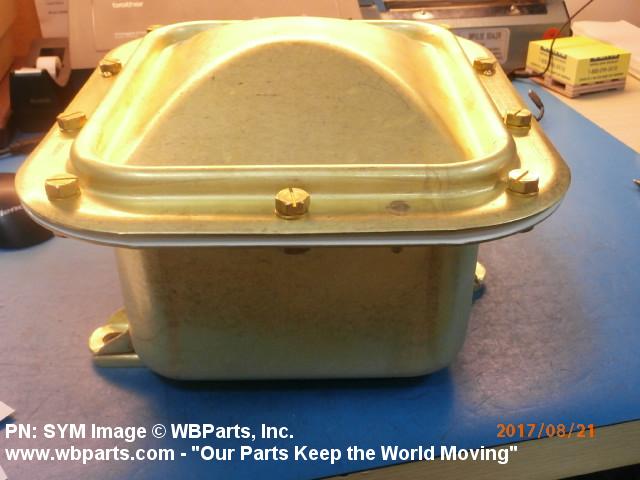

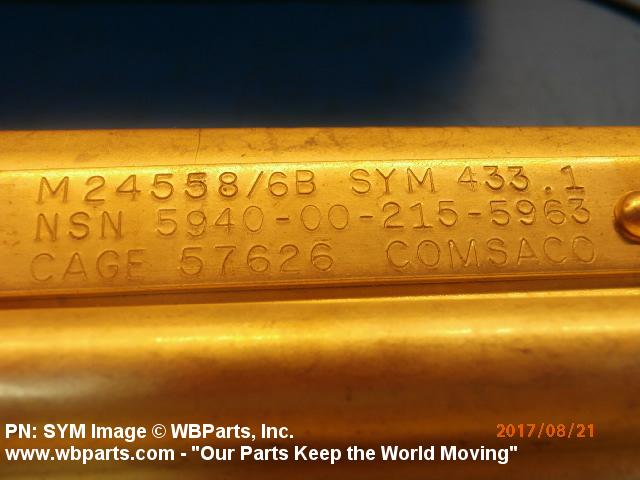

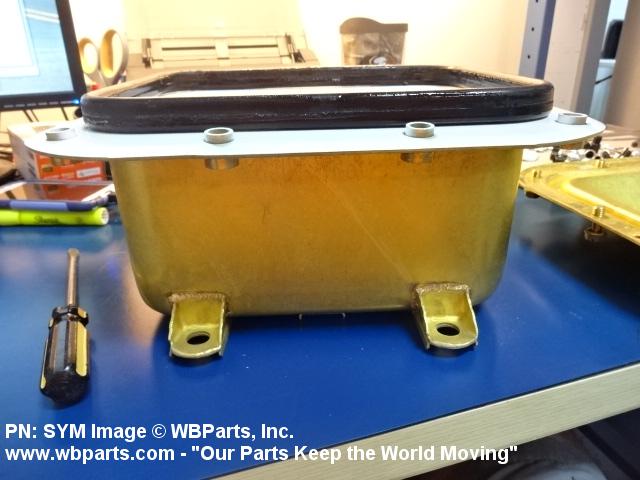

Drawings & Photos | NSN 5940-00-215-5963
Demand History | NSN 5940-00-215-5963
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-215-5963 | 2025-12-337 | 3 | United States |
| 5940-00-215-5963 | 2025-11-322 | 64 | DIBBS |
| 5940-00-215-5963 | 2025-08-218 | 2 | US |
| SYM4331 | 2025-07-204 | 25 | CA |
| M2455864331 | 2025-07-203 | 25 | United States |
| 5940-00-215-5963 | 2025-05-141 | 13 | DIBBS |
| 5940-00-215-5963 | 2025-05-127 | 4 | us |
| 5940-00-215-5963 | 2025-04-111 | 2 | us |
| 5940-00-215-5963 | 2025-03-71 | 3 | CA |
| 5940-00-215-5963 | 2025-03-70 | 31 | DIBBS |
| 5940-00-215-5963 | 2024-10-304 | 18 | DIBBS |
| 5940-00-215-5963 | 2024-10-297 | 1 | AU |
| 5940-00-215-5963 | 2024-08-217 | 20 | DIBBS |
| 5940-00-215-5963 | 2024-07-199 | 18 | DIBBS |
| 5940-00-215-5963 | 2024-06-178 | 1 | US |
| 5940-00-215-5963 | 2024-05-149 | 2 | KR |
| 5940-00-215-5963 | 2024-05-126 | 24 | DIBBS |
| 5940-00-215-5963 | 2024-05-122 | 24 | DIBBS |
| 5940-00-215-5963 | 2024-04-118 | 1 | US |
| 5940-00-215-5963 | 2023-11-333 | 18 | DIBBS |
| SYMBOL4331 | 2023-11-321 | 1 | Taiwan |
| MILT245586 | 2023-02-58 | 16 | US |
| MILT245586 | 2023-01-12 | 2 | US |
| MILT245586 | 2023-01-12 | 12 | US |
| 5940-00-215-5963 | 2022-06-159 | 2 | United States |
| 5940-00-215-5963 | 2022-06-158 | 1500 | DIBBS |
| MILT245586 | 2022-01-25 | 1 | United States |
| MILT245586 | 2022-01-07 | 6 | United States |
| MILT245586 | 2021-11-314 | 1 | United States |
| 5940-00-215-5963 | 2021-03-75 | 2 | KP |
| 5940-00-215-5963 | 2019-12-344 | 2 | US |
| 5940-00-215-5963 | 2019-07-204 | 3 | US |
| 5940-00-215-5963 | 2019-02-49 | 1 | United States |
| 5940-00-215-5963 | 2018-12-340 | 1 | US |
| 5940-00-215-5963 | 2018-11-310 | 11 | GU |
| 5940-00-215-5963 | 2017-10-276 | 2 | US |
| 5940-00-215-5963 | 2017-07-206 | 1 | United States |
| 5940-00-215-5963 | 2017-03-66 | 23 | DIBBS |
| 5940-00-215-5963 | 2017-02-32 | 1 | DIBBS-RFPs |
| 5940-00-215-5963 | 2017-01-04 | 14 | DIBBS |
| 5940-00-215-5963 | 2015-10-291 | 42 | DIBBS |
| 5940-00-215-5963 | 2015-09-273 | 40 | DIBBS |
| M2455864331 | 2015-06-162 | 4 | us |
| 5940-00-215-5963 | 2015-03-72 | 2 | US |
| 5940-00-215-5963 | 2014-07-199 | 3 | US |
| 5940-00-215-5963 | 2012-09-269 | 7 | US |
| 5940-00-215-5963 | 2009-10-289 | 11 | DIBBS |
| 5940-00-215-5963 | 2009-10-286 | 11 | DIBBS |
Cross Reference | NSN 5940-00-215-5963
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-4TB20-2 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 2-4TB20M2 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 77684-20-06RR01PC3 | 96169 | ELECTRIC BOAT CORPORATION |
| 9000S6202-74133 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9000S6202-74133REV0 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| M24558/6-433-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24558/6-433.1 | 30086 | SPD ELECTRICAL SYSTEMS, INC |
| M24558/6-433.1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-T-24558/6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SYM433.1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| SYMBOL 433.1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-215-5963
Related Products | NSN 5940-00-215-5963
Technical Data | NSN 5940-00-215-5963
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6A RECTANGULAR, SURFACE MOUNTING |
| OVERALL DEPTH | 7.625 INCHES NOMINAL |
| OVERALL HEIGHT | 13.375 INCHES NOMINAL |
| OVERALL WIDTH | 11.375 INCHES NOMINAL |
| MATERIAL | BRASS |
| MOUNTING METHOD | BRACKET WITH HOLE |
| STANDARD MOUNTING PATTERN DESIGNATOR | 5C 3 POINT-TRIANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 6.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 9.438 INCHES NOMINAL |

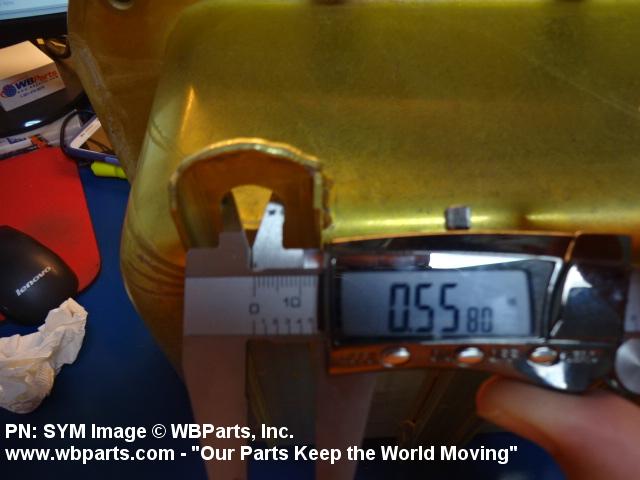

| UNTHREADED MOUNTING HOLE DIAMETER | 0.500 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 40 SCREW |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | GENERAL PURPOSE-NEMA TYPE 1 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-T-24558/6 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24558/6-433.1 |
Restrictions/Controls & Freight Information | NSN 5940-00-215-5963
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-215-5963
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | R4 | Interior communications |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
