NSN 5940-00-231-1594 MS2065933, MS20659-33, AN233
Product Details | LUG TERMINAL
5940-00-231-1594 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: MS2065933, MS20659-33, AN233, AN2-33, BLM2S33, S2-33, YAV2CL4, G37412, G374-12, G575SB, G975, 321602, S233, 5940-00-231-1594, 00-231-1594, 5940002311594, 002311594
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-231-1594 | 00746 ( TERMINAL, LUG ) |
Drawings & Photos | NSN 5940-00-231-1594
Cross Reference | NSN 5940-00-231-1594
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 321602 | 00779 | TYCO ELECTRONICS CORPORATION |
| AN2-33 | 74829 | ILSCO CORP |
| BLM2S33 | 74159 | PENN-UNION CORP DIV PENN-UNION CORP |
| G374-12 | 98410 | MOLEX-ETC INC SUB OF MOLEX INC |
| G575SB | 56501 | THOMAS & BETTS CORPORATION |
| G975 | 56501 | THOMAS & BETTS CORPORATION |
| MS20659-33 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| S2-33 | 77860 | SHERMAN H B MFG CO DIV OF DAYTON-WALTHER CORP |
| YAV2CL4 | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-231-1594
Technical Data | NSN 5940-00-231-1594
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |
| OVERALL LENGTH | 1.906 INCHES |
| OVERALL WIDTH | 0.874 INCHES |
| MATERIAL THICKNESS | 0.114 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 2 AWG |

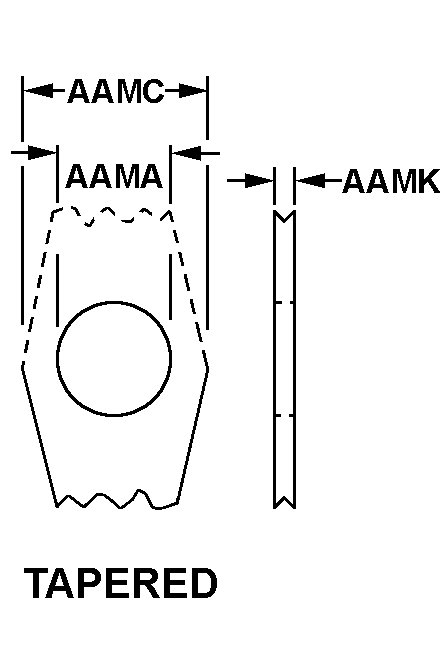

| MOUNTING METHOD STYLE | D18 TAPERED |
| MOUNTING HOLE DIAMETER | 0.535 INCHES |
| MOUNTING TONGUE WIDTH | 0.874 INCHES |
| MOUNTING FACILITY THICKNESS | 0.114 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER OVERALL |
| SURFACE TREATMENT | TIN CONDUCTOR ACCOMMODATION SINGLE LAYER TIN MOUNTING FACILITY SINGLE LAYER |
| FEATURES PROVIDED | NONREMOVABLE SOLDER LUG |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20659-33 |
Restrictions/Controls & Freight Information | NSN 5940-00-231-1594
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5940-00-231-1594
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
