NSN 5940-00-272-1477 B031050, BA31050, SCC136011
Product Details | ELECTRICAL BINDING POST
5940-00-272-1477 A metallic postlike terminal, insulated or uninsulated, which is mounted on a board, chassis, panel, or other similar supporting surface. It is designed for frequent manual connections and disconnections of at least one electrical conductor, such as a wire, alligator clip, or spade lug. It may have additional tip jack features for the acceptance of banana plugs, phone tips, and the like. It may also have provisions for permanently attaching an electrical conductor(s). For items which require all electrical conductors to be permanently attached (soldered, crimped, and the like), see TERMINAL, STUD. See also JACK, TIP.
Part Alternates: B031050, BA31050, SCC136011, SCC1360116P1, SCC136011GP1, MIL-P-55149/9, MILP551499, PB09NC01, 8027346, 97660860001, 9766-086-00-01, 5940-00-272-1477, 00-272-1477, 5940002721477, 002721477
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-272-1477 | 00883 ( POST, BINDING, ELECTRICAL ) |

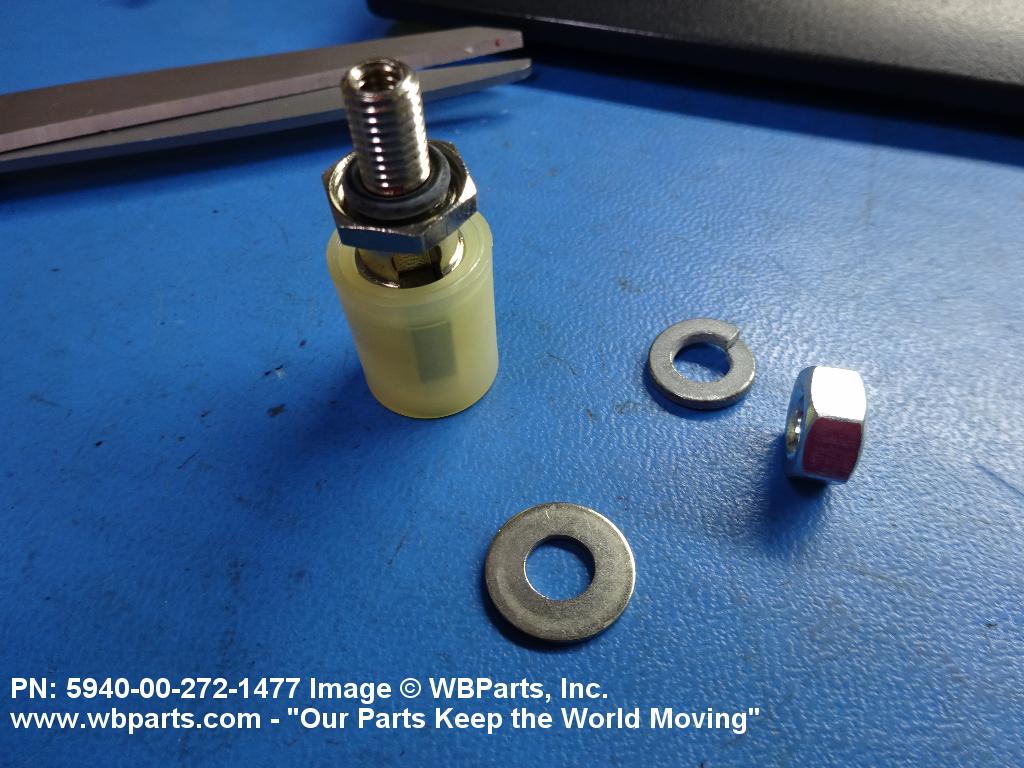

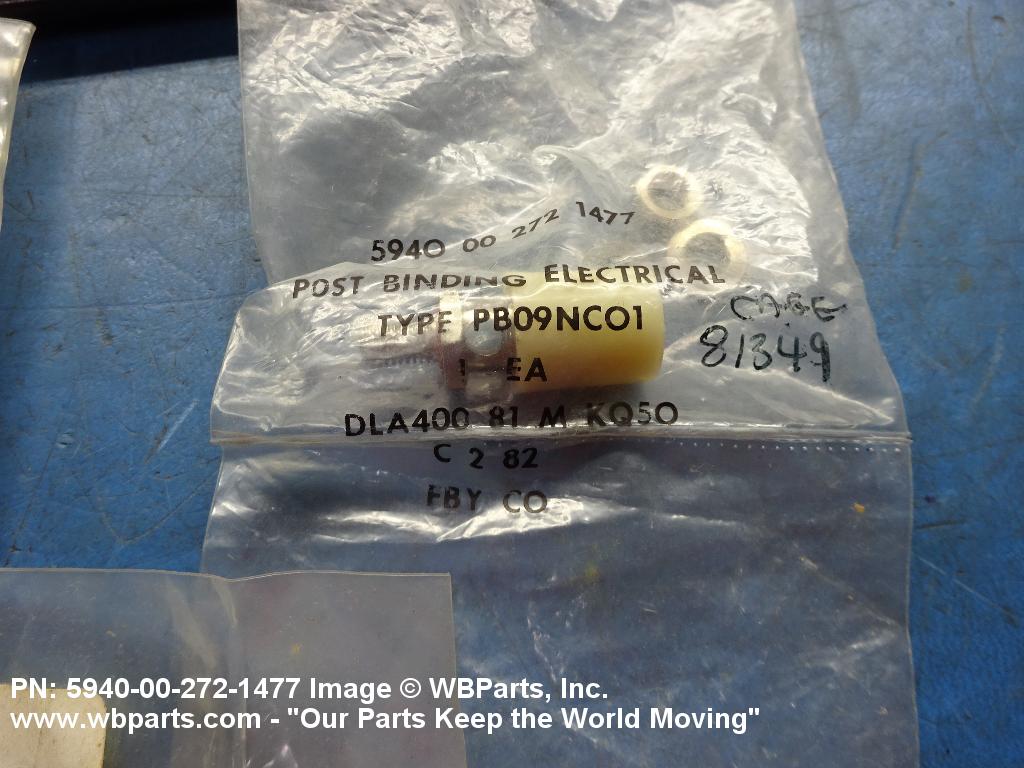

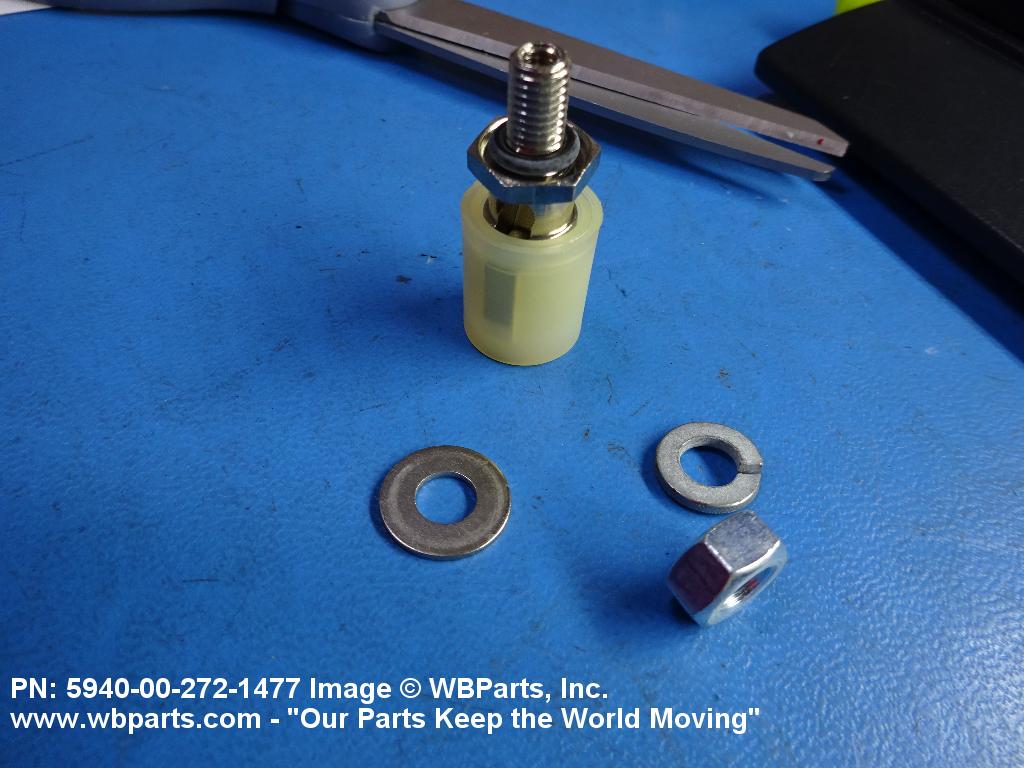

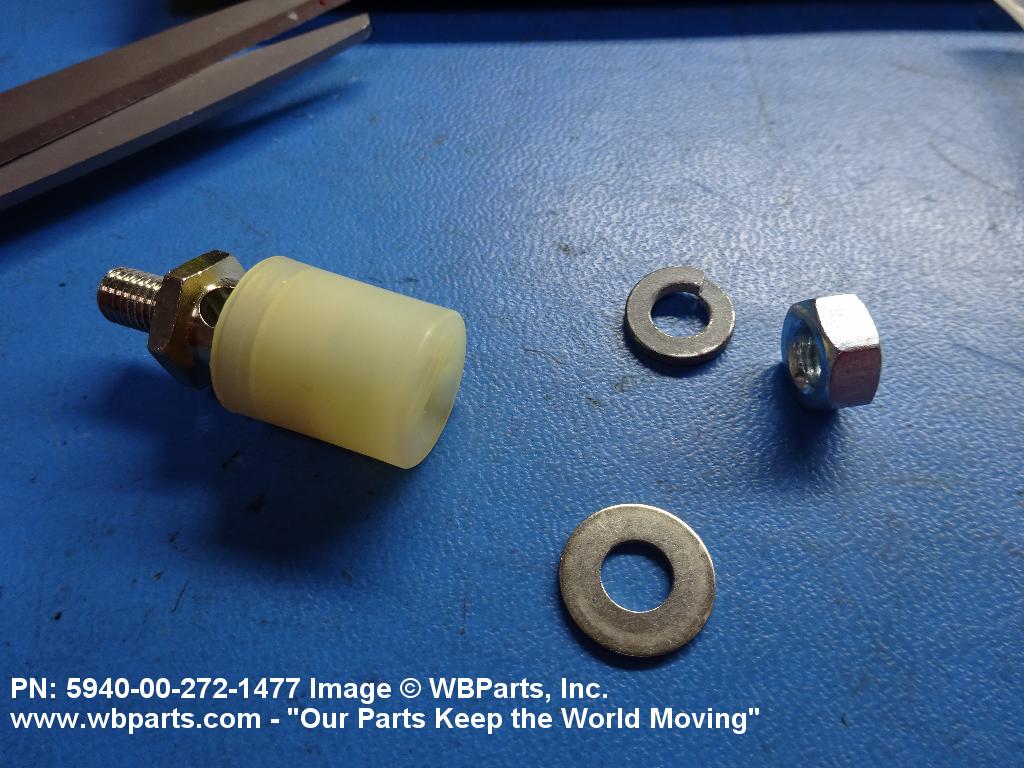

Drawings & Photos | NSN 5940-00-272-1477
Demand History | NSN 5940-00-272-1477
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-272-1477 | 2025-03-63 | 100 | ES |
| 5940-00-272-1477 | 2023-09-270 | 5 | US |
| 5940-00-272-1477 | 2022-07-195 | 20 | United States |
| 5940-00-272-1477 | 2022-07-195 | 20 | United States |
| 5940-00-272-1477 | 2021-08-230 | 14 | United States |
| 5940-00-272-1477 | 2021-02-39 | 140 | Netherlands |
| 5940-00-272-1477 | 2020-07-203 | 50 | United States |
| 5940-00-272-1477 | 2018-10-283 | 100 | United States |
| 5940-00-272-1477 | 2017-07-191 | 100 | United States |
| 5940-00-272-1477 | 2017-01-18 | 60 | United States |
| 5940-00-272-1477 | 2014-11-330 | 50 | US |
| 5940-00-272-1477 | 2008-03-91 | 7925 | United States |
Cross Reference | NSN 5940-00-272-1477
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8027346 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 9766-086-00-01 | 72825 | EBY HOLDING COMPANY, INC. DBA EBY COMPANY |
| B031050 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| B031050 | 3B4M0 | LUCENT TECHNOLOGIES INC CORPORATE HEADQUARTERS |
| B031050 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| BA31050 | 28528 | ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS |
| BA31050 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
| BA31050 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| MIL-P-55149/9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PB09NC01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SCC136011 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SCC1360116P1 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SCC136011GP1 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-272-1477
Technical Data | NSN 5940-00-272-1477
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A1 SINGLE POST, ROUND |

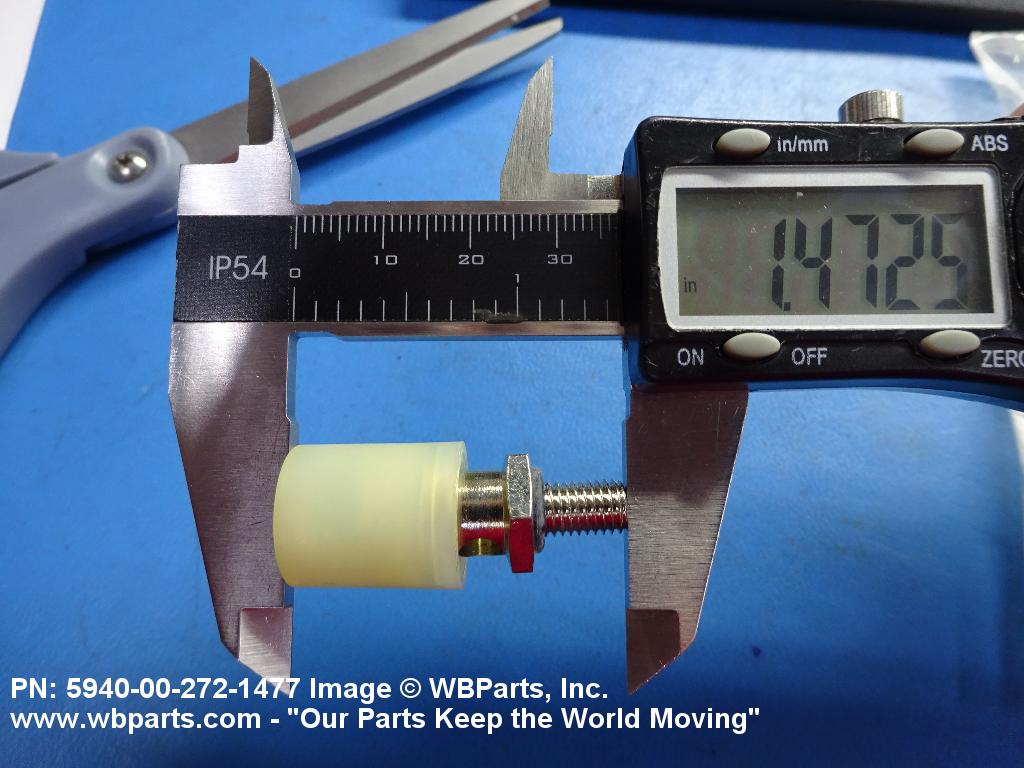

| OVERALL HEIGHT | 1.471 INCHES |

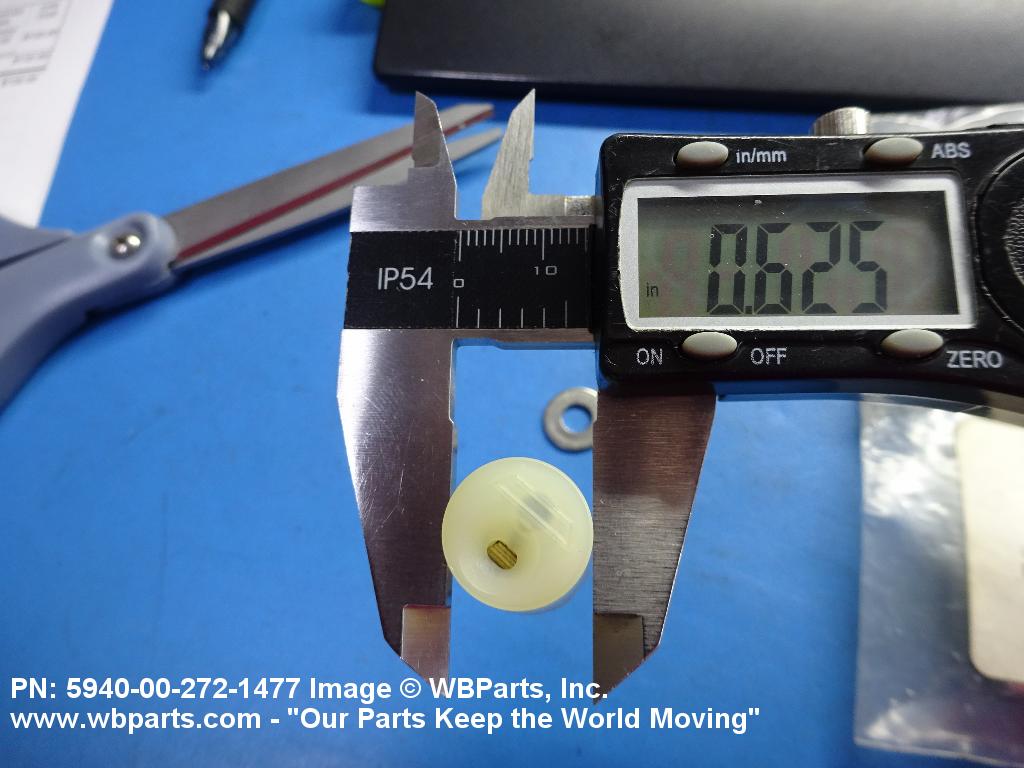

| OVERALL DIAMETER | 0.625 INCHES |
| MAXIMUM HEIGHT ABOVE MOUNTING SURFACE | 1.065 INCHES |
| CAP OUTSIDE DIAMETER | 0.625 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SPRING CAP W/HOLE SINGLE END |

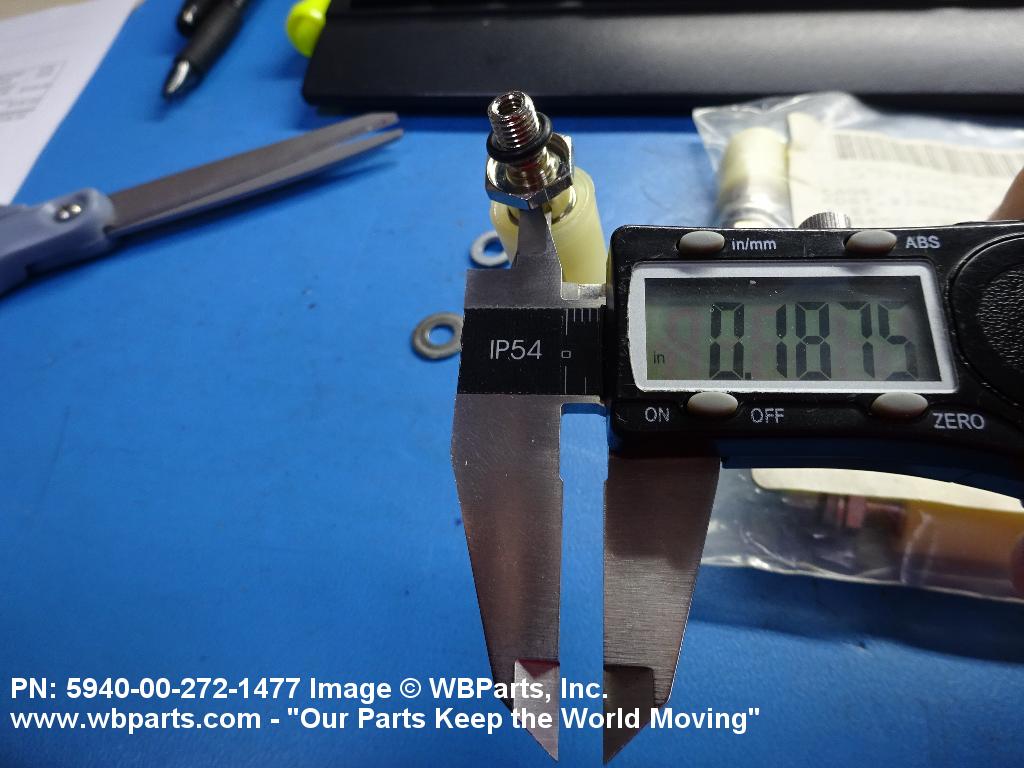

| WIRE HOLE DIAMETER | 0.189 INCHES SINGLE END |
