NSN 5940-00-280-4147 SK46030017, SK460300-17, VD104
Product Details | CONDUCTOR SPLICE
5940-00-280-4147 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Part Alternates: SK46030017, SK460300-17, VD104, YSV10, 33189, 4603075, 460307-5, 8195674, CC, CC2, 5940-00-280-4147, 00-280-4147, 5940002804147, 002804147
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-280-4147 | 00137 ( SPLICE, CONDUCTOR ) |

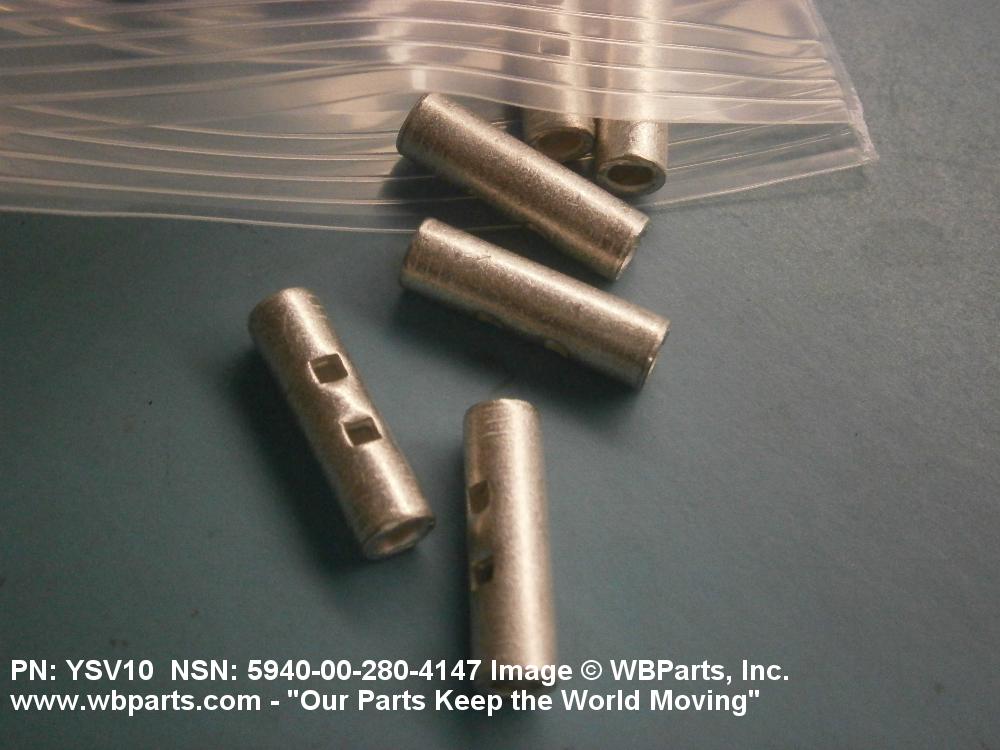

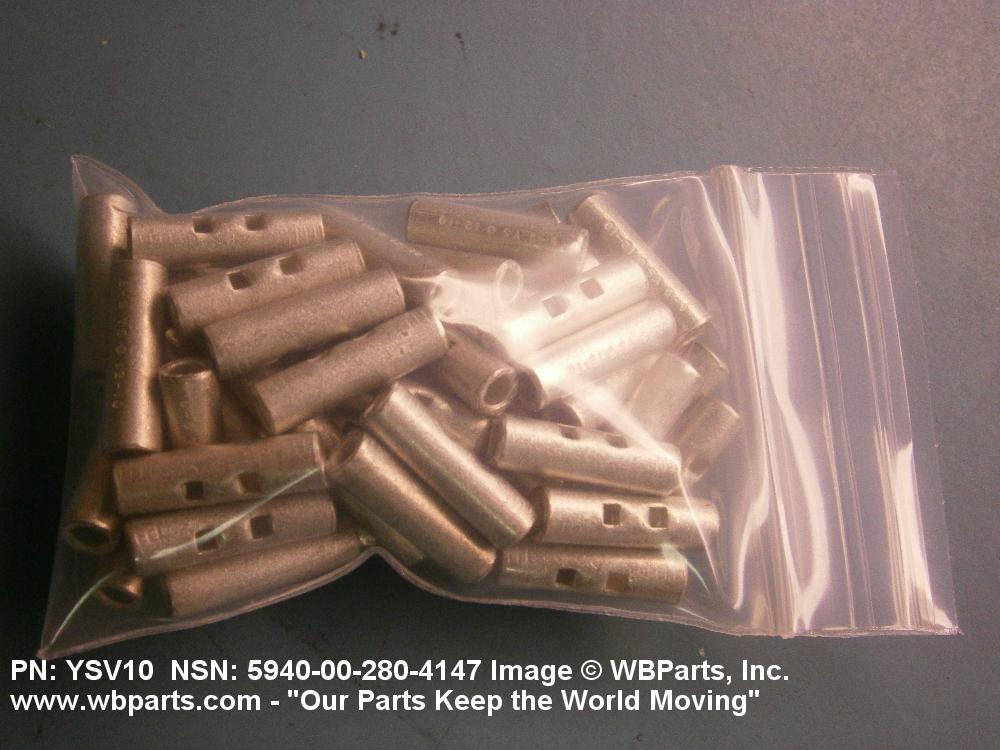

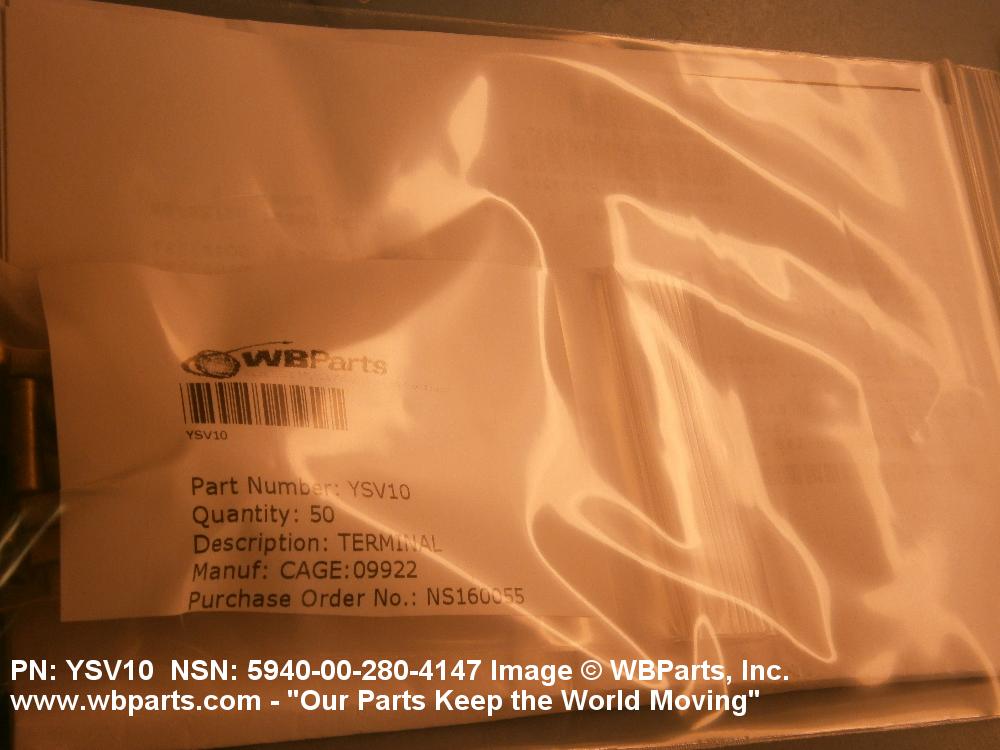

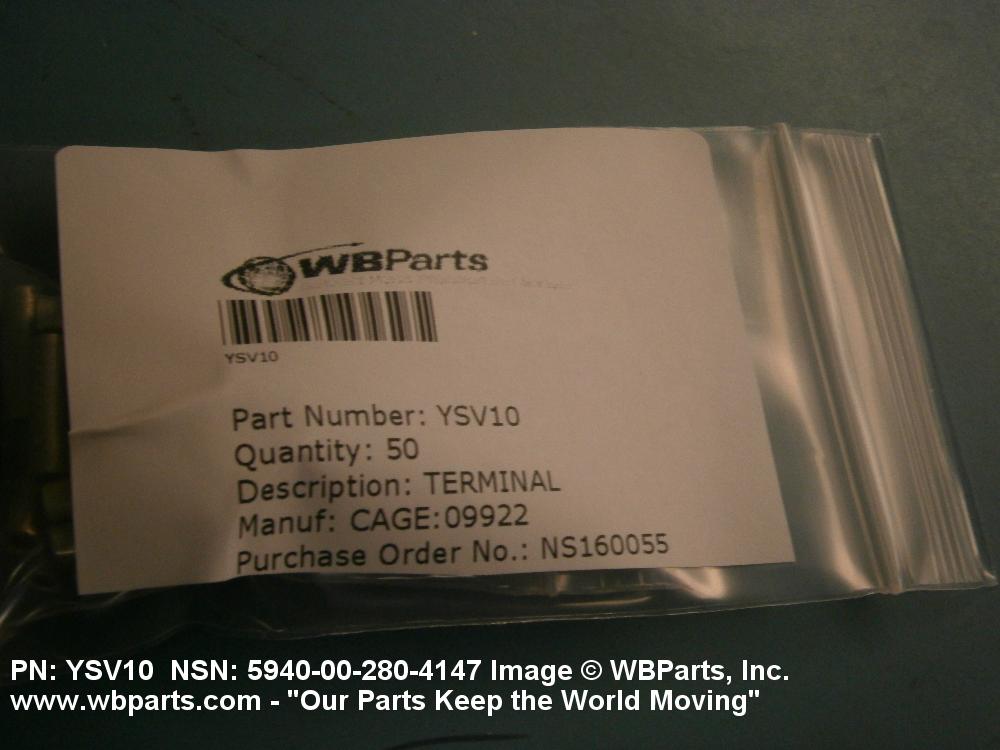

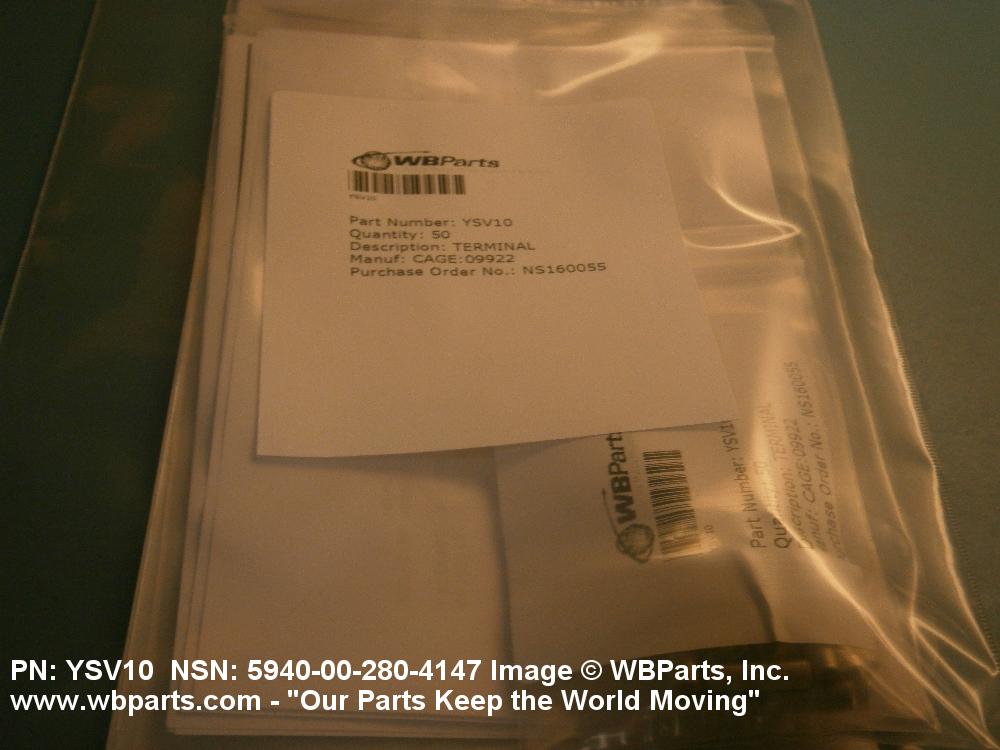

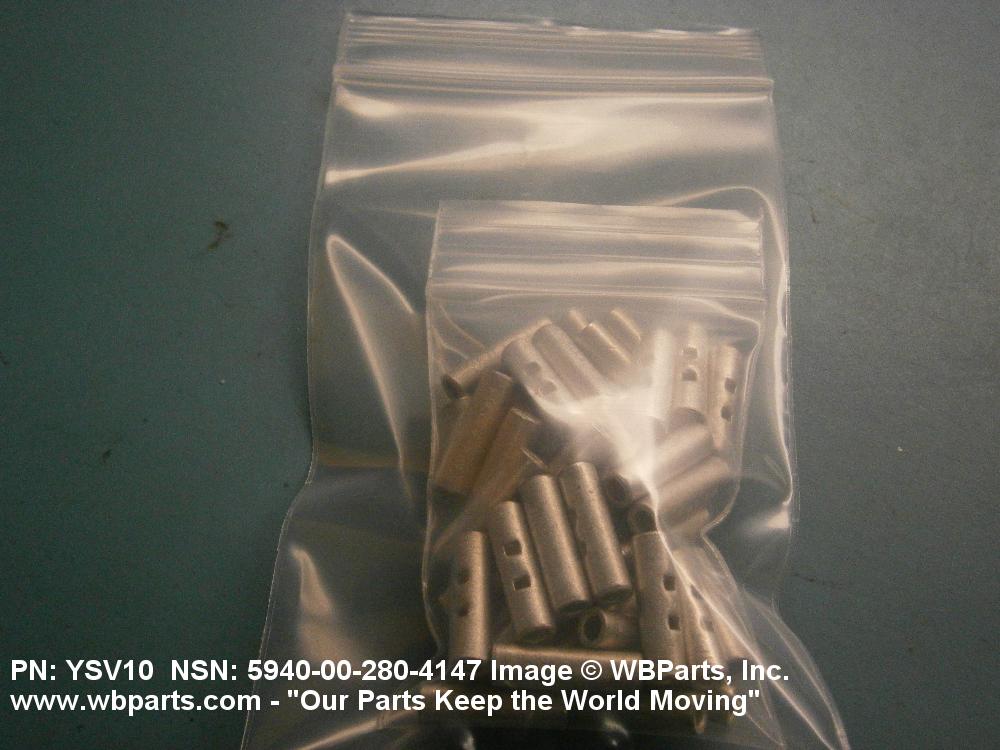

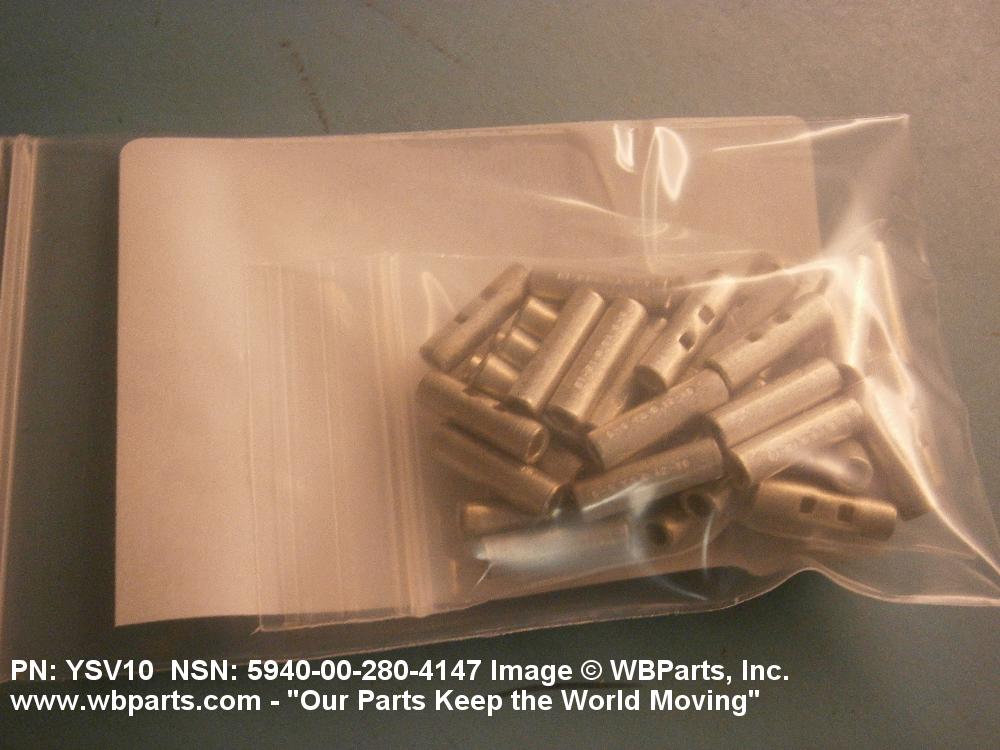

Drawings & Photos | NSN 5940-00-280-4147
Demand History | NSN 5940-00-280-4147
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CC | 2018-11-332 | 1 | US |
Cross Reference | NSN 5940-00-280-4147
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 33189 | 00779 | TYCO ELECTRONICS CORPORATION |
| 460307-5 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 8195674 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| CC | 56501 | THOMAS & BETTS CORPORATION |
| CC2 | 56501 | THOMAS & BETTS CORPORATION |
| SK460300-17 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| VD104 | 50792 | TYLER MACHINERY CO INC |
| VD104 | 90129 | COOPER CROUSE- HINDS, LLC DBA MOLDED PRODUCTS DIVISION |
| YSV10 | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-280-4147
Technical Data | NSN 5940-00-280-4147
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A30 CRIMP |
| OVERALL LENGTH | 0.812 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL ALL ENDS |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 10 AWG |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY CONDUCTOR ACCOMMODATION |
| SURFACE TREATMENT | TIN CONDUCTOR ACCOMMODATION SINGLE LAYER |
Restrictions/Controls & Freight Information | NSN 5940-00-280-4147
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
