NSN 5940-00-284-4979 9S4428LALT8, 00-284-4979, 002844979
Product Details | TERMINAL BOX
5940-00-284-4979 An enclosure which includes, mounts and protects one or more terminals and/or terminal boards. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, and conduit fittings. For boxes which include combinations of different electrical devices such as terminals and/or terminal boards, fuseholders, switches, jacks, circuit breakers, connectors and the like, see DISTRIBUTION BOX. For boxes which are designed to mount, but which do not include terminals and/or terminal boards, see JUNCTION BOX. Excludes TERMINAL BOARD ASSEMBLY. See also CHAMBER, CABLE TERMINAL; and INTERCONNECTING CABINET.
Part Alternates: 9S4428LALT8, 5940-00-284-4979, 00-284-4979, 5940002844979, 002844979
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-284-4979 | 00452 ( TERMINAL BOX ) |
Drawings & Photos | NSN 5940-00-284-4979
Cross Reference | NSN 5940-00-284-4979
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9S4428LALT8 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-284-4979
Technical Data | NSN 5940-00-284-4979
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6A RECTANGULAR, SURFACE MOUNTING |
| OVERALL DEPTH | 3.625 INCHES NOMINAL |
| OVERALL HEIGHT | 23.000 INCHES NOMINAL |
| OVERALL WIDTH | 9.500 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | ENAMEL |
| ENTRANCE TYPE AND QUANTITY | ANY ACCEPTABLE |
| MOUNTING METHOD | UNTHREADED HOLE |

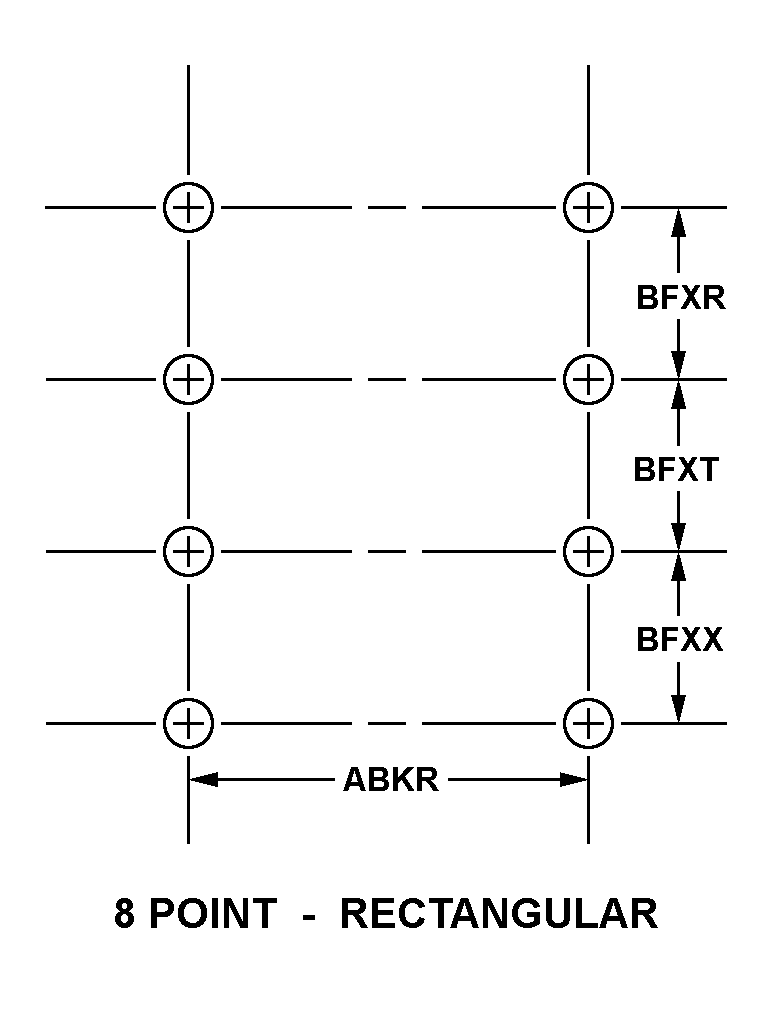

| STANDARD MOUNTING PATTERN DESIGNATOR | 11C 8 POINT-RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 8.250 INCHES NOMINAL |
| FIRST CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE HEIGHT | 5.750 INCHES NOMINAL |
| SECOND CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE HEIGHT | 5.750 INCHES NOMINAL |
| THIRD CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 5.750 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 120 SCREW |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT-NEMA TYPE 4 |
| FEATURES PROVIDED | COVER |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY MATERIAL REQUIREMENT |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 9S4428LALT8 |
