NSN 5940-00-303-1373 MS210049, MS21004-9, MS210049MOD
Product Details | LUG TERMINAL
5940-00-303-1373 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: MS210049, MS21004-9, MS210049MOD, AS7928, B483, 9704341, 0B483, 5940-00-303-1373, 00-303-1373, 5940003031373, 003031373
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 OCT 1973 | 00-303-1373 | 00746 ( TERMINAL, LUG ) |

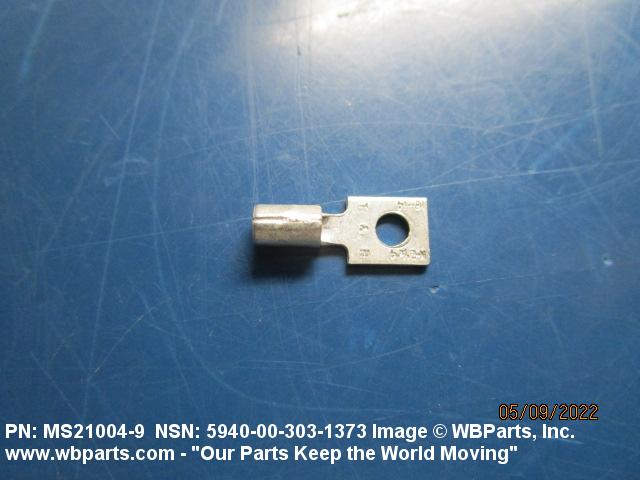

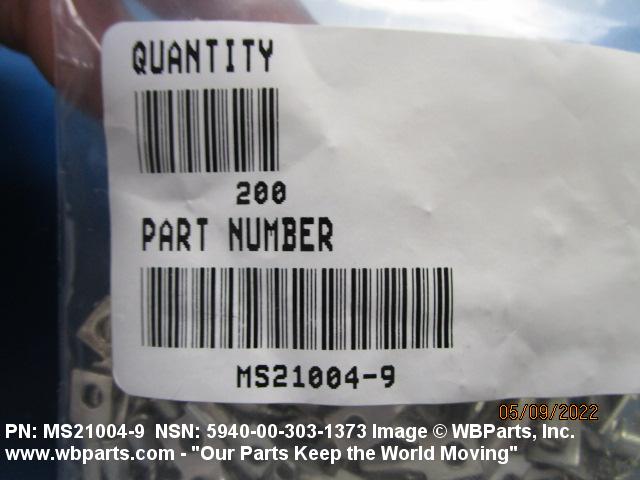

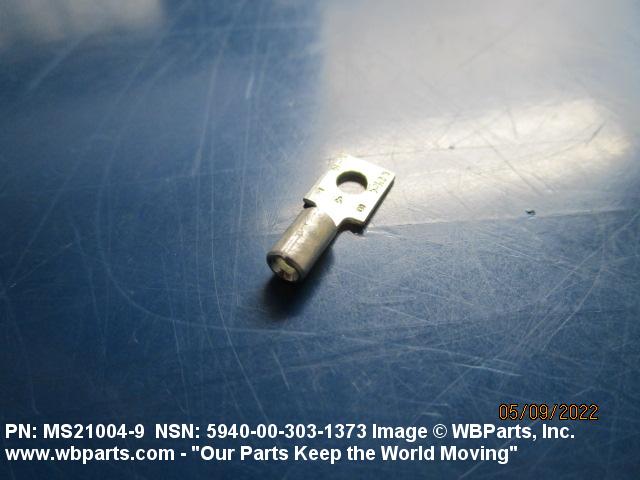

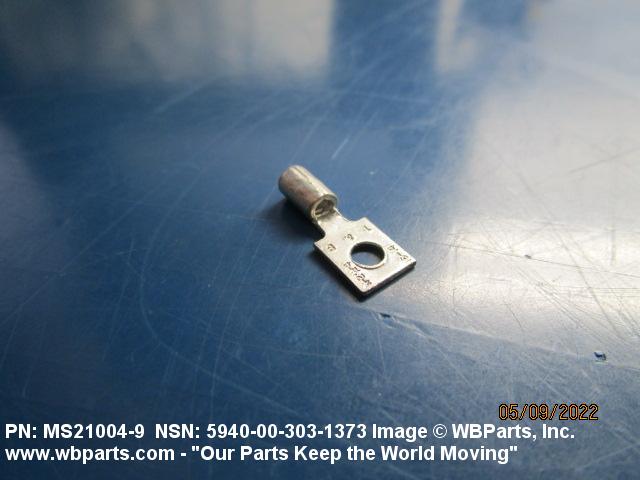

Drawings & Photos | NSN 5940-00-303-1373
Demand History | NSN 5940-00-303-1373
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-303-1373 | 2025-03-65 | 3592 | DIBBS |
| 5940-00-303-1373 | 2025-01-16 | 1563 | DIBBS |
| 5940-00-303-1373 | 2024-11-312 | 1581 | DIBBS |
| 5940-00-303-1373 | 2024-10-295 | 1581 | DIBBS |
| 5940-00-303-1373 | 2024-04-105 | 2942 | DIBBS |
| 5940-00-303-1373 | 2022-07-198 | 3572 | DIBBS |
| 5940-00-303-1373 | 2022-03-80 | 200 | United States |
| 5940-00-303-1373 | 2021-12-353 | 3572 | DIBBS |
| 5940-00-303-1373 | 2020-02-48 | 2000 | United States |
| 5940-00-303-1373 | 2019-05-141 | 5635 | DIBBS |
| 5940-00-303-1373 | 2018-01-21 | 3755 | DIBBS |
| 5940-00-303-1373 | 2015-08-228 | 5841 | DIBBS |
| 5940-00-303-1373 | 2014-06-177 | 100 | Taiwan |
| AS7928 | 2014-05-140 | 4 | United States |
| 5940-00-303-1373 | 2012-05-129 | 9701 | DIBBS |
| 5940-00-303-1373 | 2010-09-252 | 34306 | DIBBS |
| 5940-00-303-1373 | 2010-06-169 | 15000 | DIBBS |
| 5940-00-303-1373 | 2010-06-156 | 15000 | DIBBS |
| 5940-00-303-1373 | 2010-05-126 | 2465 | DIBBS |
| 5940-00-303-1373 | 2010-04-117 | 734 | DIBBS |
| 5940-00-303-1373 | 2007-08-215 | 11827 | DIBBS |
Cross Reference | NSN 5940-00-303-1373
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0B483 | 56501 | THOMAS & BETTS CORPORATION |
| 9704341 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| AS7928 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| B483 | 56501 | THOMAS & BETTS CORPORATION |
| MS21004-9 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21004-9 (MOD) | 96169 | ELECTRIC BOAT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-303-1373
Related Products | NSN 5940-00-303-1373
Technical Data | NSN 5940-00-303-1373
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |

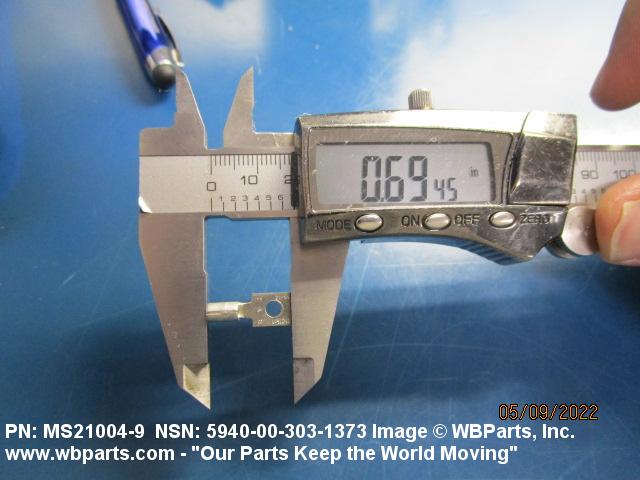

| OVERALL LENGTH | 0.700 INCHES |

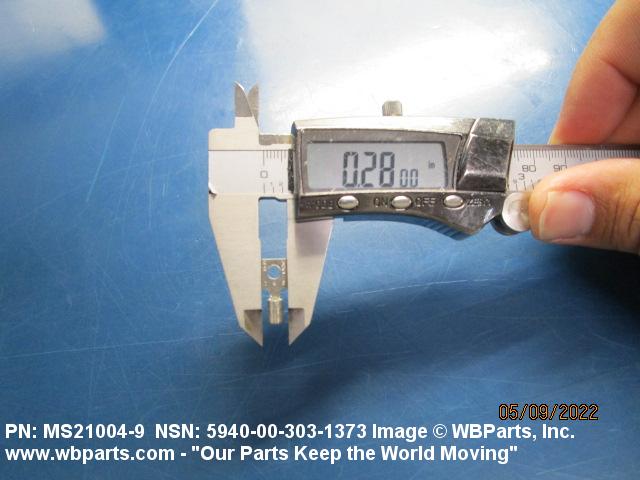

| OVERALL WIDTH | 0.277 INCHES |

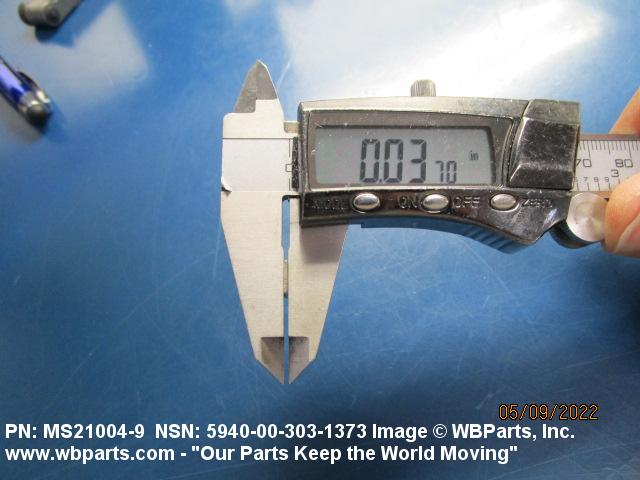

| MATERIAL THICKNESS | 0.030 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 14 AWG |
| MOUNTING METHOD STYLE | D11 STRAIGHT ONE HOLE |
| MOUNTING HOLE DIAMETER | 0.136 INCHES |
| MOUNTING TONGUE WIDTH | 0.277 INCHES |
| MOUNTING FACILITY THICKNESS | 0.030 INCHES |
| DISTANCE FROM MOUNTING HOLE CENTER TO MOUNTING END | 0.143 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER OVERALL |
| SURFACE TREATMENT | TIN OVERALL SINGLE LAYER |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TERMINAL, LUG,UNINSULATED, RECTANGULAR CRIMP STYLE, COPPER, TYPE 1, CLASS 1 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21004-9 |
Restrictions/Controls & Freight Information | NSN 5940-00-303-1373
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-303-1373
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
