NSN 5940-00-500-5378 A-A-59125/10, AA59125/10-4TB8, AA5912510
Product Details | TERMINAL BOARD
5940-00-500-5378 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: A-A-59125/10, AA59125/10-4TB8, AA5912510, AA59125104TB8, MIL-T-55164/10, MILT5516410, 9000S650573214PC28, 9000S6505-73214PC28, 1298-20-D FIND 16, 129820DFIND16, 303-6078896 REV, 3036078896REV, 43020503, 43-020-503, 4TB08F, 4TB8, 4TB8F, 56410128, 564101-28, 5940-00-500-5378, 00-500-5378, 5940005005378, 005005378
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-500-5378 | 00404 ( TERMINAL BOARD ) |

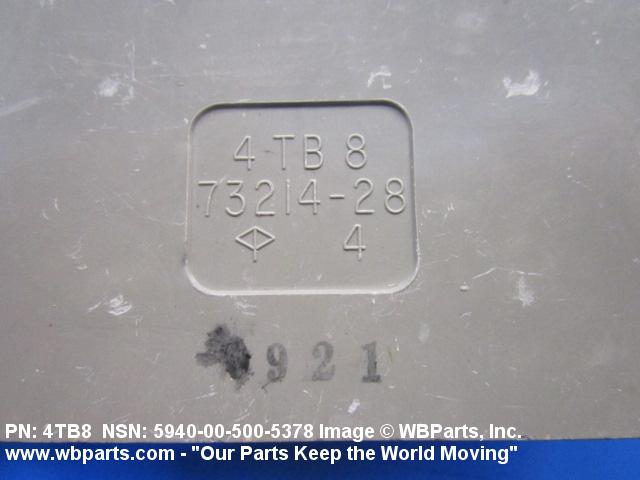

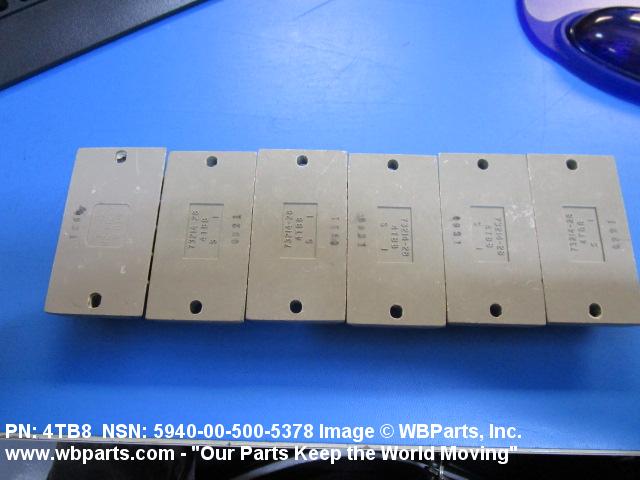

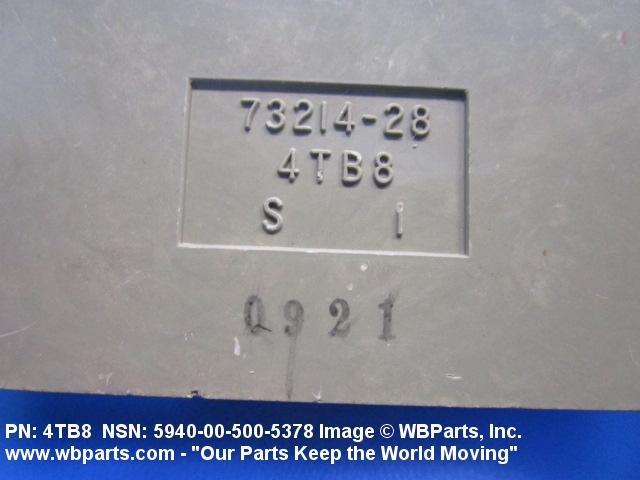

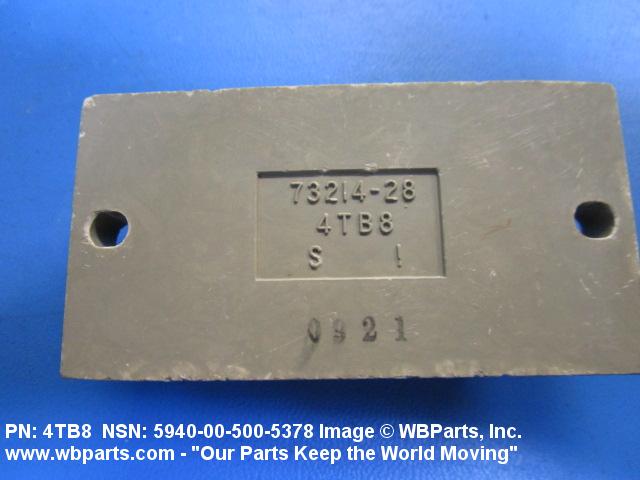

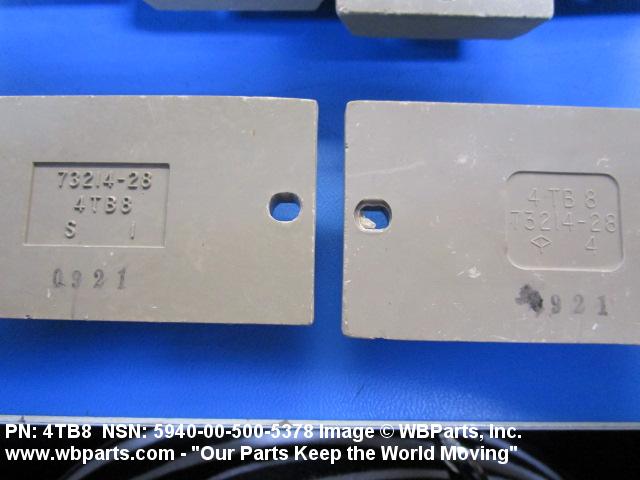

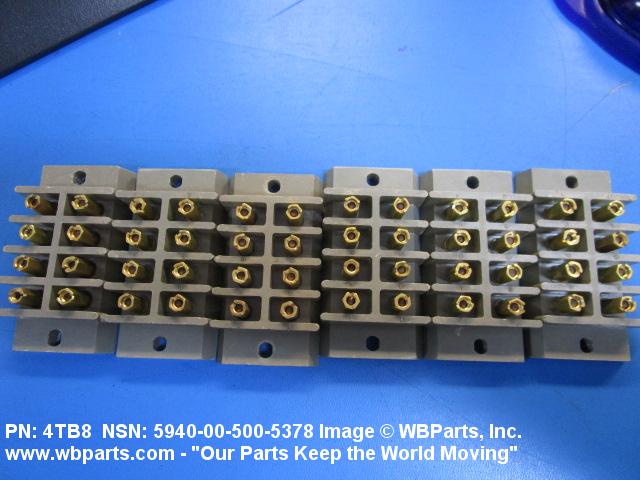

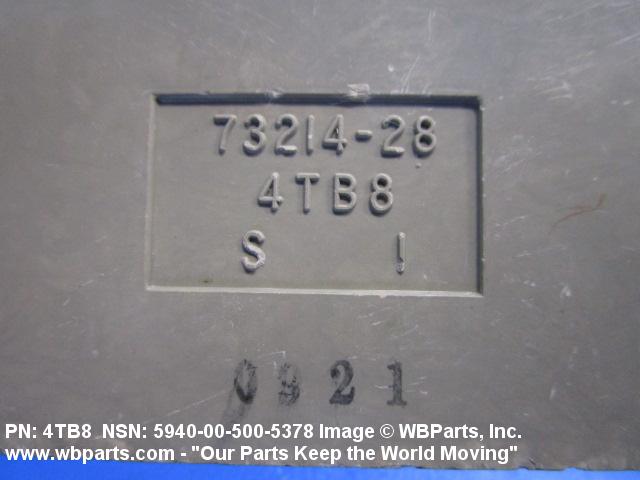

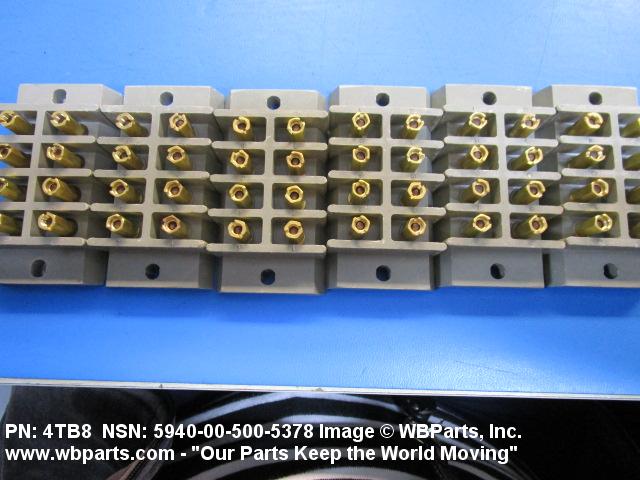

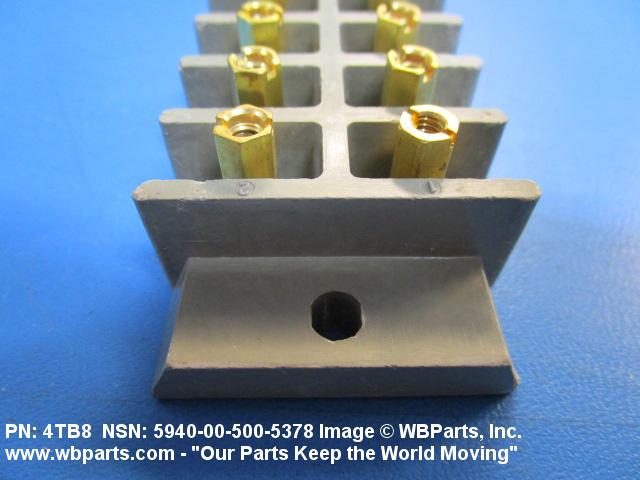

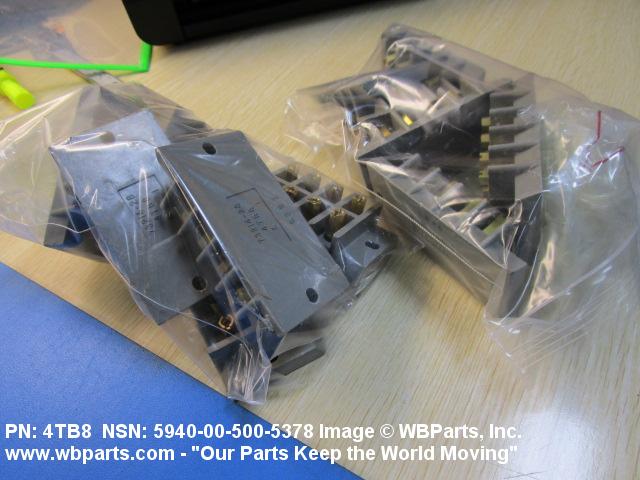

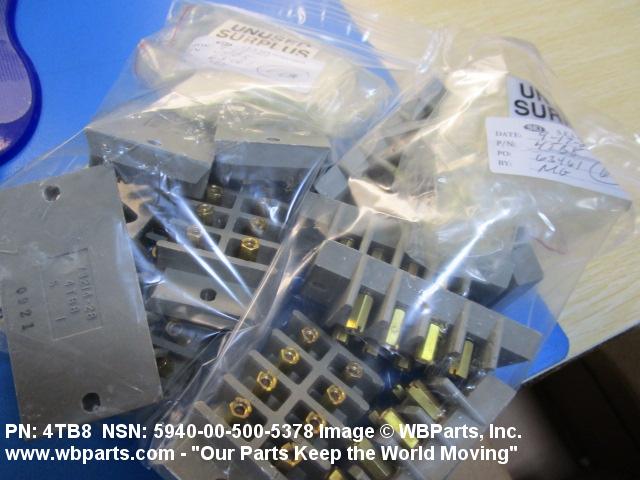

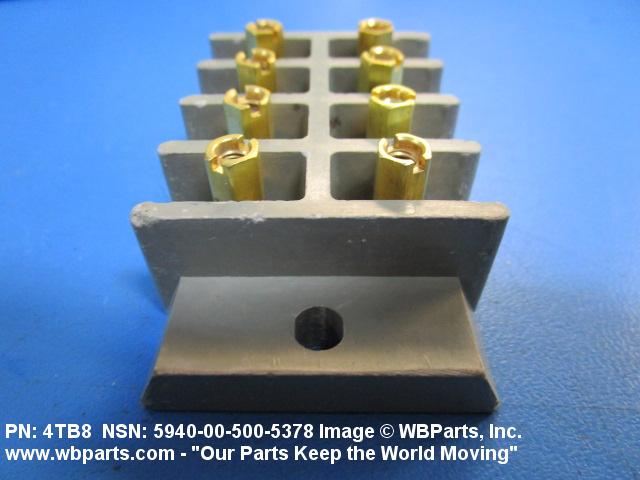

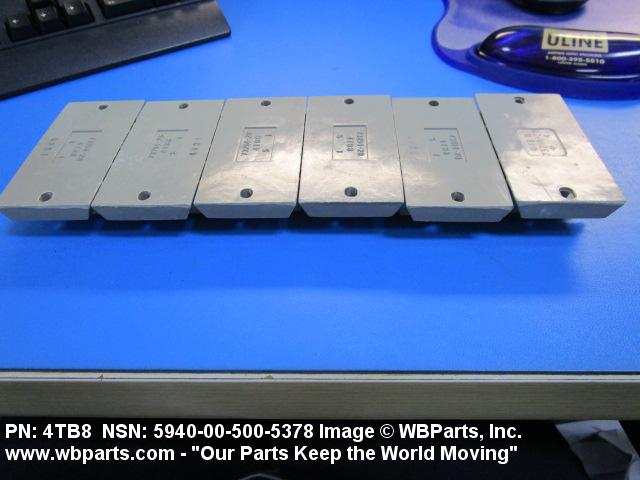

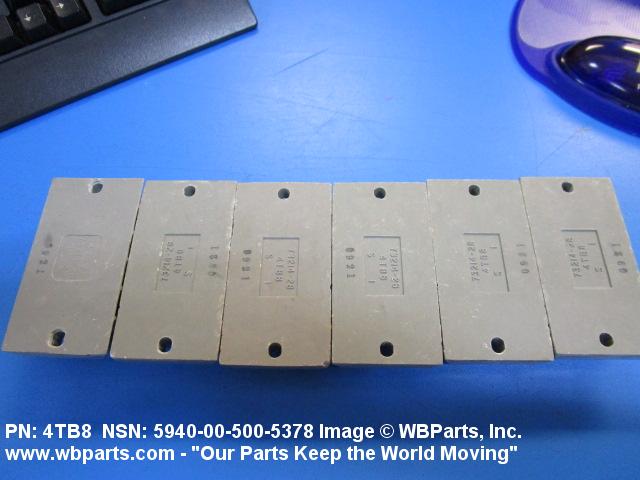

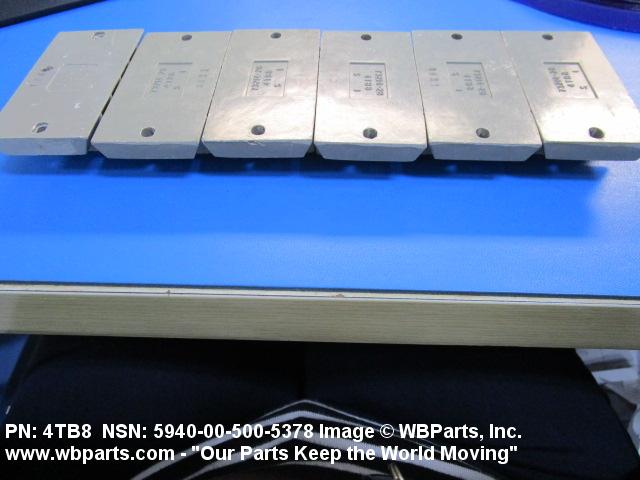

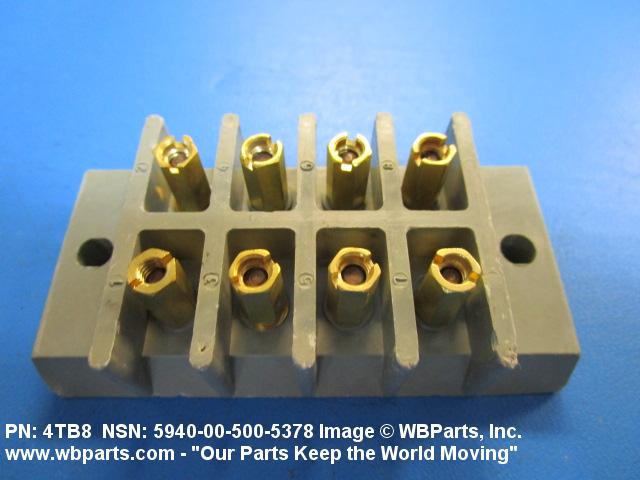

Drawings & Photos | NSN 5940-00-500-5378
Demand History | NSN 5940-00-500-5378
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-500-5378 | 2025-03-90 | 130 | DIBBS |
| 5940-00-500-5378 | 2025-03-79 | 130 | DIBBS |
| MILT5516410 | 2025-03-71 | 2 | United States |
| MILT5516410 | 2024-12-338 | 2 | United States |
| 5940-00-500-5378 | 2024-06-176 | 52 | DIBBS |
| 5940-00-500-5378 | 2024-06-168 | 52 | DIBBS |
| 4TB8 | 2023-07-193 | 10 | US |
| 5940-00-500-5378 | 2021-08-235 | 12 | United States |
| 5940-00-500-5378 | 2021-08-229 | 6 | United States |
| 5940-00-500-5378 | 2021-05-132 | 59 | DIBBS |
| 4TB8 | 2020-10-282 | 8 | United States |
| 5940-00-500-5378 | 2017-09-263 | 57 | DIBBS |
| 5940-00-500-5378 | 2014-06-153 | 53 | DIBBS |
| 5940-00-500-5378 | 2012-06-176 | 37 | DIBBS |
| 5940-00-500-5378 | 2011-07-193 | 29 | DIBBS |
| AA59125104TB8 | 2011-02-35 | 15 | United States |
| 5940-00-500-5378 | 2007-05-135 | 75 | DIBBS |
Cross Reference | NSN 5940-00-500-5378
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1298-20-D FIND 16 | 38450 | ENGINEERED COIL COMPANY DBA DRS MARLO COIL |
| 303-6078896 REV | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 43-020-503 | 38450 | ENGINEERED COIL COMPANY DBA DRS MARLO COIL |
| 4TB08F | 26405 | MARATHON SPECIAL PRODUCTS CORPORATION |
| 4TB8 | 83330 | DIALIGHT CORPORATION |
| 4TB8F | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 564101-28 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 9000S6505-73214PC28 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| A-A-59125/10 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59125/10-4TB8 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| MIL-T-55164/10 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-500-5378
Related Products | NSN 5940-00-500-5378
Technical Data | NSN 5940-00-500-5378
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYESTER AND GLASS FIBER BOARD COPPER ALLOY 670 TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MAI-60 MIL SPEC SINGLE MATERIAL RESPONSE BOARD QQ-B728,CLASS B FED SPEC SINGLE MATERIAL RESPONSE TERMINALS |
| BODY STYLE | A3 BARRIER TYPE |
| BOARD OVERALL LENGTH | 3.375 INCHES |
| BOARD OVERALL WIDTH | 1.812 INCHES |
| BOARD OVERALL HEIGHT | 0.844 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 0.781 INCHES |
| BASE THICKNESS | 0.375 INCHES |
| TERMINAL PATTERN ARRANGEMENT | MULTI-ROW |
| TERMINAL ROW QUANTITY | 2 |
| DISTANCE BETWEEN TERMINAL ROW CENTERS | 0.812 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.531 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 599 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 8 SINGLE |
| BOARD CONSTRUCTION | HOLLOW CONSTRUCTION WITHOUT INSULATED STRIP |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.875 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.906 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.250 INCHES |
| MOUNTING SLOT WIDTH | 0.198 INCHES |
| CURRENT RATING IN AMPS | 40.0 |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 2200.0 |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59125/10 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA59125/10-4TB8 |
Restrictions/Controls & Freight Information | NSN 5940-00-500-5378
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-500-5378
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
