NSN 5940-00-502-8473 A-A-59125/13, AA59125/13-7TB12, AA5912513
Product Details | TERMINAL BOARD
5940-00-502-8473 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: A-A-59125/13, AA59125/13-7TB12, AA5912513, AA59125137TB12, DX5193491, DX519349-1, MIL-T-55164/13, MILT5516413, TLB1520, 10156982, 1015698-2, 1668794-12, 56410133, 564101-33, 76511112, 765111-12, 7TB12, 7TB12S, 9000S650573214REVKPC33, 9000S6505-73214REVKPC33, 5940-00-502-8473, 00-502-8473, 5940005028473, 005028473, 166879412
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-502-8473 | 00404 ( TERMINAL BOARD ) |

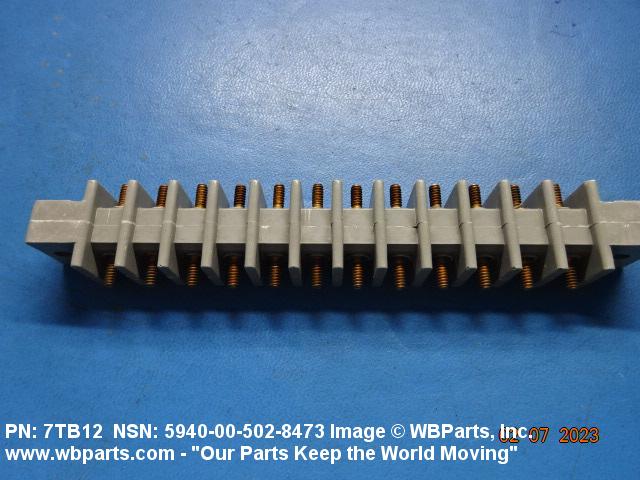

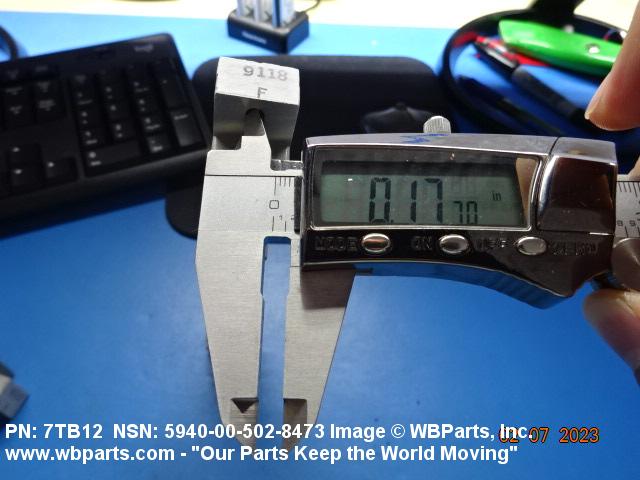

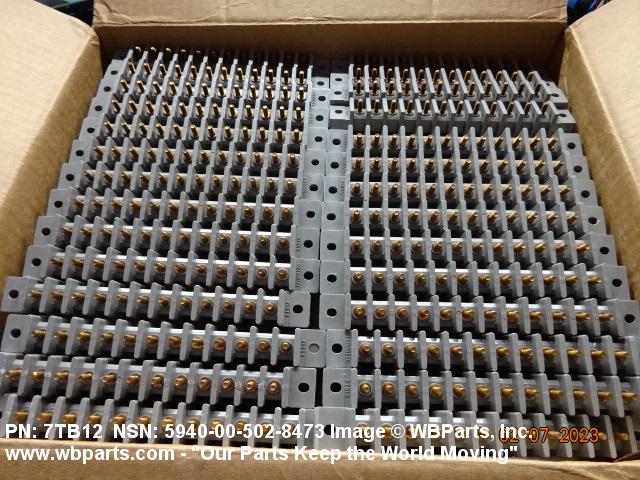

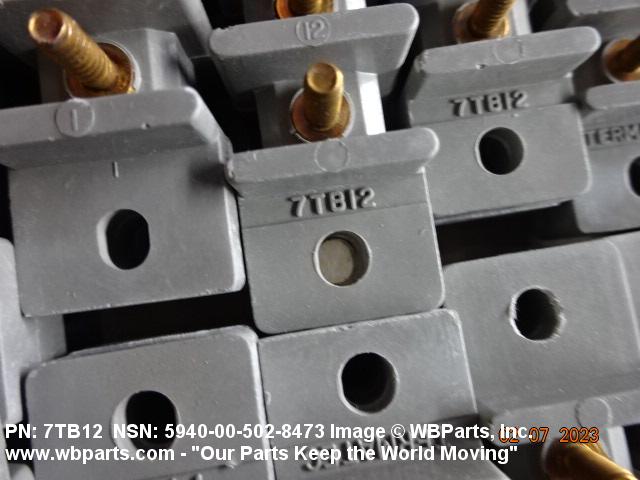

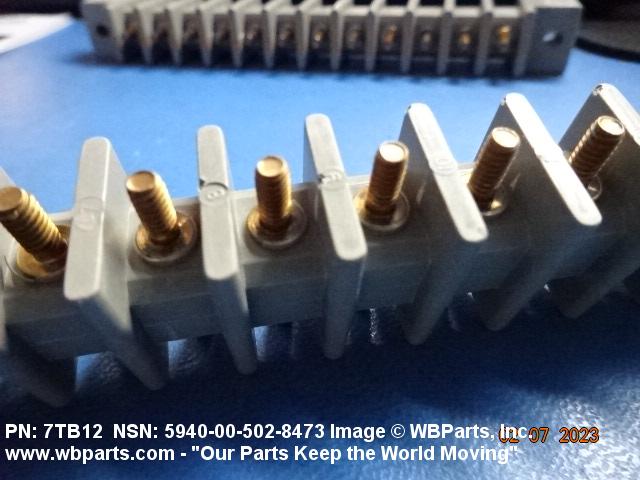

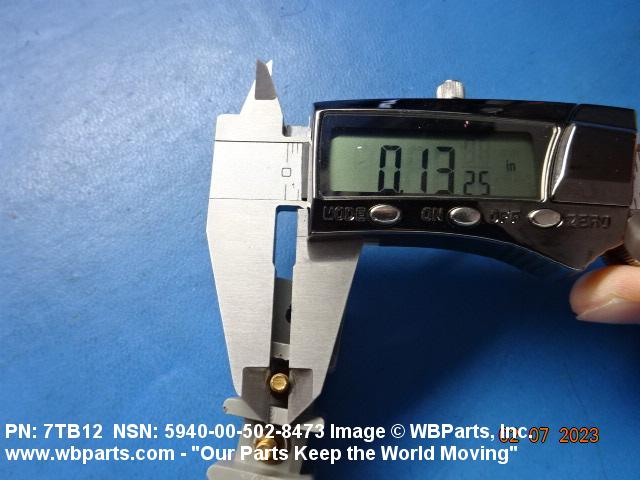

Drawings & Photos | NSN 5940-00-502-8473
Demand History | NSN 5940-00-502-8473
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-502-8473 | 2023-02-32 | 50 | United States |
Cross Reference | NSN 5940-00-502-8473
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1015698-2 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 1668794-12 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 564101-33 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 564101-33 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 765111-12 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 7TB12 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 7TB12S | 88223 | WICKES MFG CO ELECTRICAL DIV |
| 9000S6505-73214REVKPC33 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| A-A-59125/13 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59125/13-7TB12 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| DX519349-1 | 14418 | UNISYS CORP DEFENSE SYSTEMS |
| MIL-T-55164/13 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| TLB1520 | 89914 | I-T-E IMPERIAL CORP SUBSIDIARY OF GOULD INC ATLANTA MARINE DEPT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-502-8473
Technical Data | NSN 5940-00-502-8473
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYESTER AND GLASS FIBER BOARD COPPER ALLOY 670 TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MAI-60 MIL SPEC SINGLE MATERIAL RESPONSE BOARD QQ-B728,CLASS B FED SPEC SINGLE MATERIAL RESPONSE TERMINALS |
| BODY STYLE | A6 BARRIER TYPE |

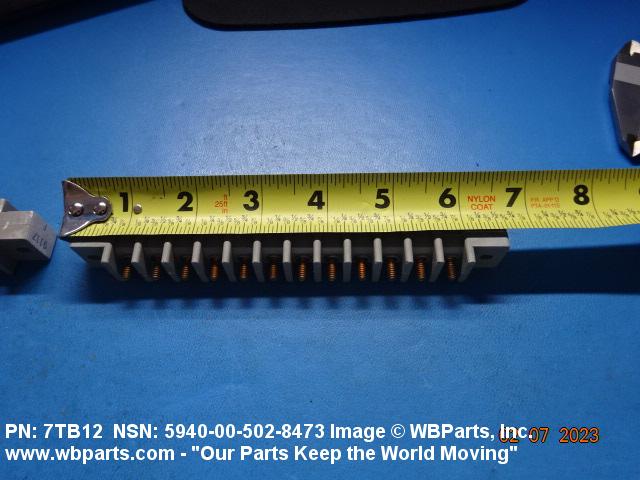

| BOARD OVERALL LENGTH | 6.500 INCHES |

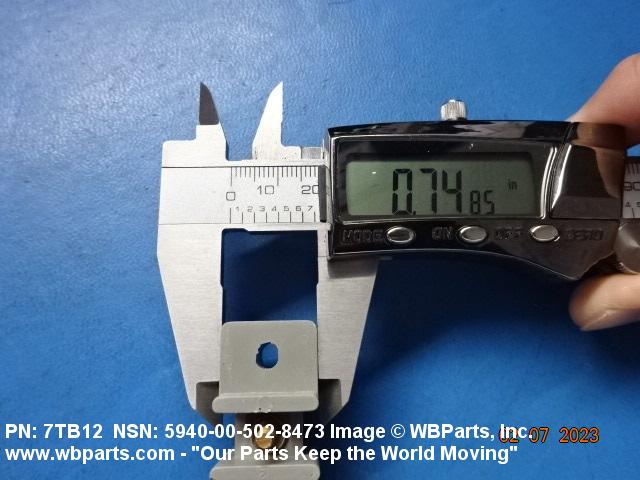

| BOARD OVERALL WIDTH | 0.750 INCHES |
| BOARD OVERALL HEIGHT | 1.125 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 1.000 INCHES |
| BASE THICKNESS | 0.500 INCHES |
| TERMINAL PATTERN ARRANGEMENT | SINGLE ROW |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.443 INCHES |
| TERMINAL DESIGN | VERTICAL FEEDTHRU |
| FEEDTHRU CONNECTION END TYPE | 600 BOTH ENDS SINGLE COMBINATION |
| FEEDTHRU TERMINAL QUANTITY | 12 SINGLE COMBINATION |
| BOARD CONSTRUCTION | HOLLOW CONSTRUCTION WITHOUT INSULATED STRIP |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 6.000 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 1.186 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.250 INCHES |
| MOUNTING SLOT WIDTH | 0.188 INCHES |
| MOUNTING SLOT LENGTH | 0.219 INCHES |
| CURRENT RATING IN AMPS | 40.0 |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 2200.0 |
| SPECIAL MARKINGS | 1 THRU 12 |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59125/13 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA59125/13-7TB12 |
Restrictions/Controls & Freight Information | NSN 5940-00-502-8473
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-502-8473
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
