NSN 5940-00-518-9611 MS25010C11B, M55164/14-10, M551641410

Product Details | TERMINAL BOARD

5940-00-518-9611 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.

Part Alternates: MS25010C11B, M55164/14-10, M551641410, NGX193484, NGX19348-4, A10476144, A1047614-4, A21330634, A2133063-4, AA59125/14, AA59125/14-8TB10, AA5912514, AA59125148TB10, B4083991, B408399-1, B6733004AY114, B673-3004-AY-1-14, H83272013, H832-7201-3, DAT3969, TYPE 8TB10, TYPE8TB10, MIL-A-7021 1-16, MILA7021116, MILT16784, MIL-T-16784, MIL-T-55164/14, MIL-T-55164/14A, MILT5516414, MILT5516414A, 0038.0046.T, 00380046T, 10-2937 PC35, 102937PC35, 1080H38H17, 1080H53REVCPC15, 1080H64REVMPC23, 1080H95H140, 115A905275, 14791205 ITEM 5, 14791205ITEM5, 21410-0028, 21410-0060-A3 ITEM 7, 214100060A3ITEM7, 263508838ITEM12441491, 32508010, 325-08-010, 3458PC8, 37TB10, 401-5278308 ITE, 4015278308ITE, 401-6896895 ITE, 4016896895ITE, 4058-64 ITEM 12, 405864ITEM12, 4233467, 423346-7, 4377410430AY114, 437-7410430-AY-1-14, 4869, 518-4454329 ITEM 12, 5184454329ITEM12, 5641019, 564101-9, 70370692363, 703-7069236-3, 7524802, 752-4802, 7742837P004, 8TB10, 8TB10C, 8TB10F, 8TB10MS555164, 8TB10-MS555164-, 8TBJ7, 8TBJ-7, 9000S650573214REVGPC9, 9000S6505-73214REVGPC9, 904J626 PIECE 6, 904J626PIECE6, 904J725 PIECE 1, 904J725PIECE1, 9708108, 5940-00-518-9611, 00-518-9611, 5940005189611, 005189611, 214100028

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-518-9611	00404 ( TERMINAL BOARD )

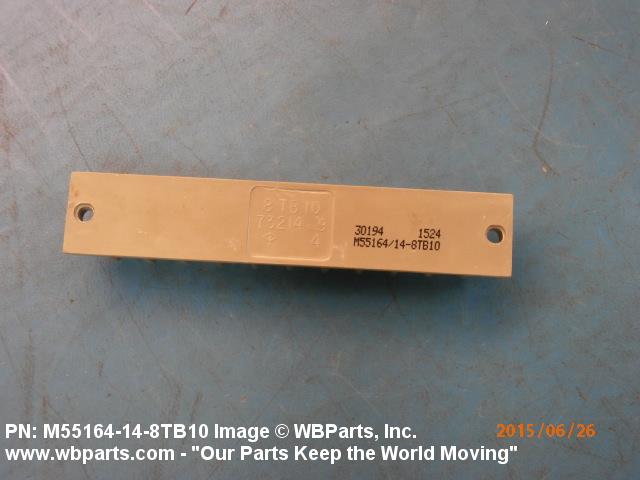

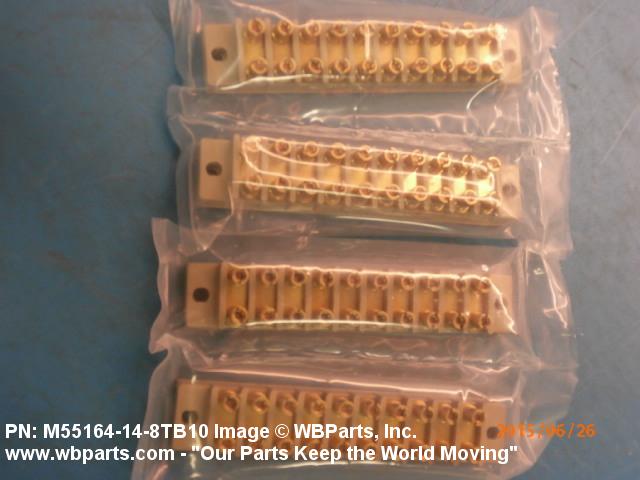

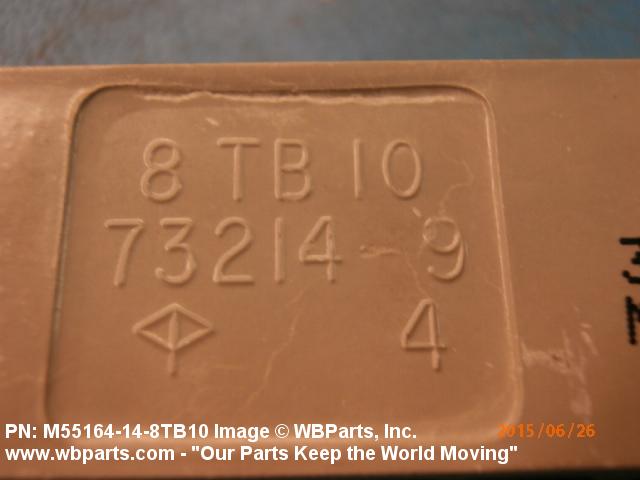

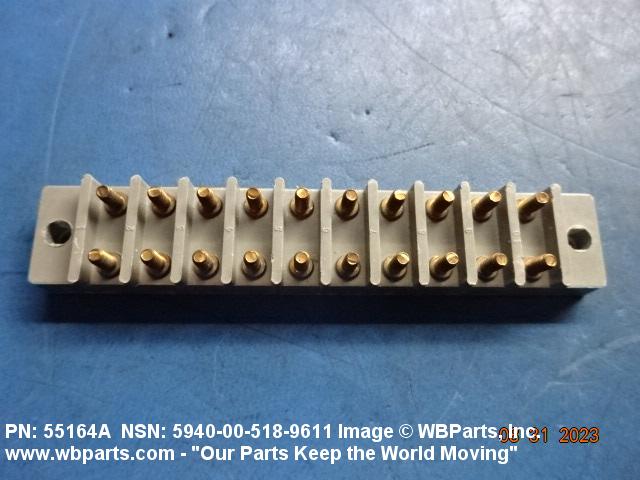

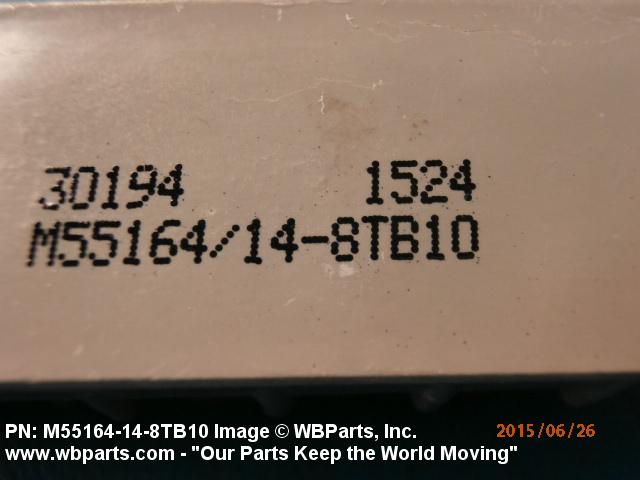

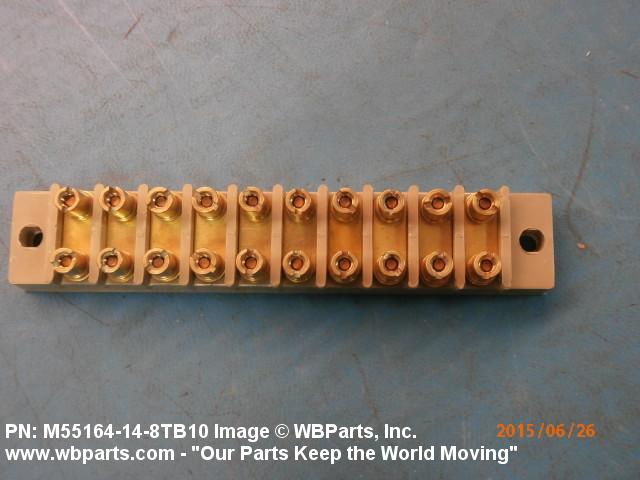

Drawings & Photos | NSN 5940-00-518-9611

Part Number	Request Date	QTY	Origin
5940-00-518-9611	2025-07-183	2	United States
AA59125148TB10	2023-12-355	3	United States
5940-00-518-9611	2023-08-236	100	United States
5940-00-518-9611	2023-06-160	150	United States
5940-00-518-9611	2023-04-108	9	US
AA5912514	2022-10-285	50	us
5940-00-518-9611	2022-03-77	510	US
5940-00-518-9611	2022-03-77	510	US
5940-00-518-9611	2020-04-111	1	United States
8TB10	2019-09-254	400	United States
8TB10F	2018-04-120	2	US
5940-00-518-9611	2016-06-172	93	US
5940-00-518-9611	2016-06-172	372	US
5940-00-518-9611	2011-02-33	2334	DIBBS
5940-00-518-9611	2010-05-123	117	DIBBS
5940-00-518-9611	2010-03-85	92	DIBBS
5940-00-518-9611	2010-02-53	36	DIBBS
5940-00-518-9611	2009-12-348	30	DIBBS
5940-00-518-9611	2009-10-301	29	DIBBS
5940-00-518-9611	2008-12-366	244	DIBBS
5940-00-518-9611	2008-05-134	321	DIBBS

Cross Reference | NSN 5940-00-518-9611

Part Number	Cage Code	Manufacturer
0038.0046.T	05991	CAMERON TECHNOLOGIES US, INC. DBA CAMERON'S MEASUREMENT SYSTEMS
10-2937 PC35	28199	L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL
1080H38H17	04804	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS
1080H53REVCPC15	04804	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS
1080H64REVMPC23	04804	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS
1080H95H140	04804	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS
115A905275	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
14791205 ITEM 5	0DHG4	GULF COAST HOLDINGS INC DBA UNIDYNAMICS
21410-0028	7T076	SUBURBAN MANUFACTURING, INC.
21410-0060-A3 ITEM 7	7T076	SUBURBAN MANUFACTURING, INC.
2635-088-38 ITEM 1-24, 4-14, 9-1	53711	NAVAL SEA SYSTEMS COMMAND
325-08-010	58475	WESTWOOD CORPORATION DBA NMP DIVISION
3458PC8	97536	WING CORP
37TB10	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
401-5278308 ITE	53711	NAVAL SEA SYSTEMS COMMAND
401-6896895 ITE	53711	NAVAL SEA SYSTEMS COMMAND
4058-64 ITEM 12	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
423346-7	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
437-7410430-AY-1-14	53711	NAVAL SEA SYSTEMS COMMAND
4869	73274	HOSE-MCCANN TELEPHONE CO., INC. DBA HOSE MCCANN COMMUNICATIONS
518-4454329 ITEM 12	80064	NAVAL SHIP SYSTEMS COMMAND
564101-9	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
703-7069236-3	53711	NAVAL SEA SYSTEMS COMMAND
752-4802	62143	NORTHERN TELECOM INC TELECOM DISTRIBUTION DIV
7742837P004	03538	LOCKHEED MARTIN CORPORATION DIV MST
8TB10	01255	LITTON INDUSTRIES INC
8TB10	19623	GE AVIATION SYSTEMS LLC DBA GE AVIATION
8TB10	26405	MARATHON SPECIAL PRODUCTS CORPORATION
8TB10	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
8TB10	34293	HUNTINGTON INGALLS INCORPORATED DIV INGALLS SHIPBUILDING
8TB10	55164	AQUA-CHEM INC INDUSTRIAL COMBUSTION DIV
8TB10	73274	HOSE-MCCANN TELEPHONE CO., INC. DBA HOSE MCCANN COMMUNICATIONS
8TB10	75328	CUMBERLAND INDUSTRIES CUMBERLAND STEEL PRODUCTS DIV
8TB10	80048	VICKERS INC ELECTRIC PRODUCTS DIVISION
8TB10	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
8TB10	83330	DIALIGHT CORPORATION
8TB10	92755	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM
8TB10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
8TB10-MS555164-	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
8TB10C	26405	MARATHON SPECIAL PRODUCTS CORPORATION
8TB10C	80064	NAVAL SHIP SYSTEMS COMMAND
8TB10C	83330	DIALIGHT CORPORATION
8TB10F	26405	MARATHON SPECIAL PRODUCTS CORPORATION
8TB10F	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
8TB10M	83330	DIALIGHT CORPORATION
8TBJ-7	83330	DIALIGHT CORPORATION
9000S6505-73214REVGPC9	80064	NAVAL SHIP SYSTEMS COMMAND
904J626 PIECE 6	65054	WESTINGHOUSE ELECTRIC CORP POWER GENERATION-GENERATOR DIV
904J725 PIECE 1	65054	WESTINGHOUSE ELECTRIC CORP POWER GENERATION-GENERATOR DIV
9708108	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
A1047614-4	28527	EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED
A2133063-4	28528	ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS
A2133063-4	31550	EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS
AA59125/14	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59125/14-8TB10	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
B408399-1	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
B673-3004-AY-1-14	96169	ELECTRIC BOAT CORPORATION
DAT3969	09975	UNISYS CORPORATION
H832-7201-3	96169	ELECTRIC BOAT CORPORATION
M55164/14-10	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-A-7021 1-16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-T-16784	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-T-55164/14	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-T-55164/14A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25010C11B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NGX19348-4	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
TYPE 8TB10	58880	MEGGITT (NEW HAMPSHIRE), INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5940-00-518-9611

Compare

Related Products | NSN 5940-00-518-9611

5940-00-518-9627, 5940-00-518-9634, 5940-00-518-9636, 5940-00-518-9640, 5940-00-518-9652

Technical Data | NSN 5940-00-518-9611

Characteristic	Specifications
MATERIAL	PLASTIC POLYESTER AND GLASS FIBER BOARD COPPER ALLOY 670 TERMINALS
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-M-14,TYPE MAI-60 MIL SPEC SINGLE MATERIAL RESPONSE BOARD QQ-B728,CLASS B FED SPEC SINGLE MATERIAL RESPONSE TERMINALS
BODY STYLE	A2 BARRIER TYPE

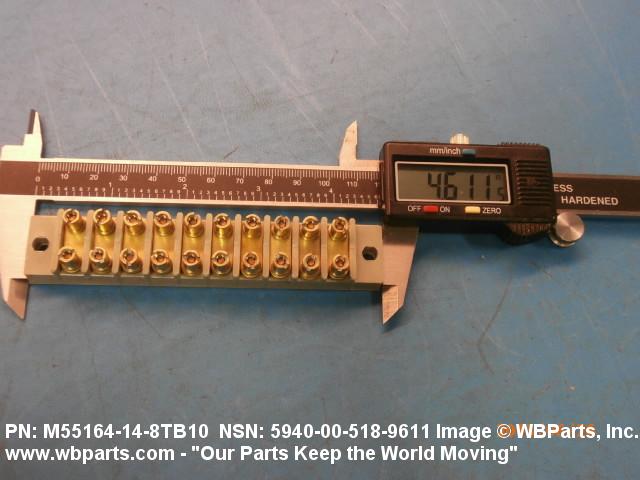

BOARD OVERALL LENGTH	4.625 INCHES

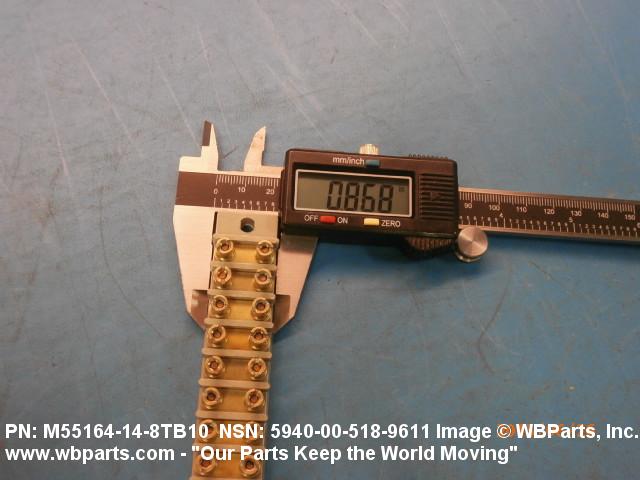

BOARD OVERALL WIDTH	0.875 INCHES

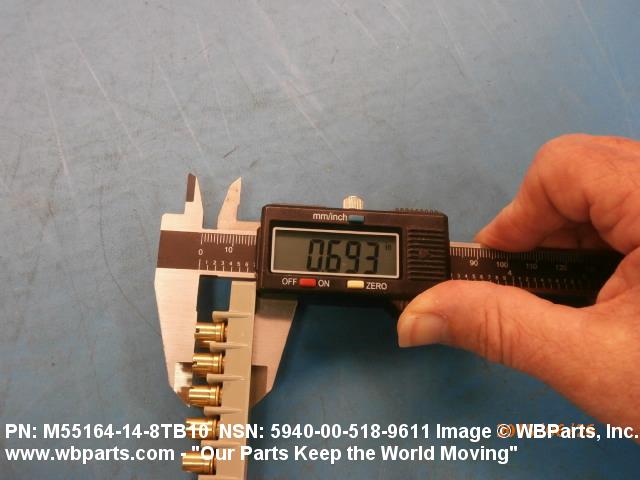

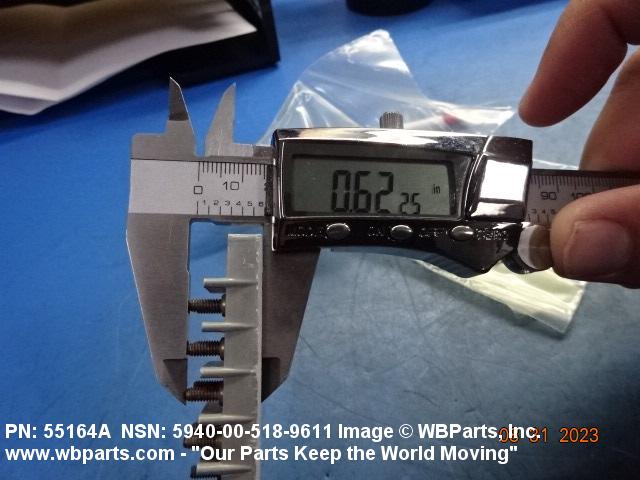

BOARD OVERALL HEIGHT	0.624 INCHES

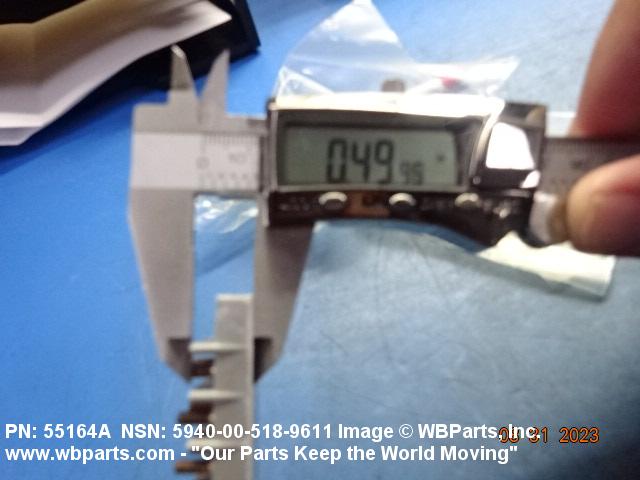

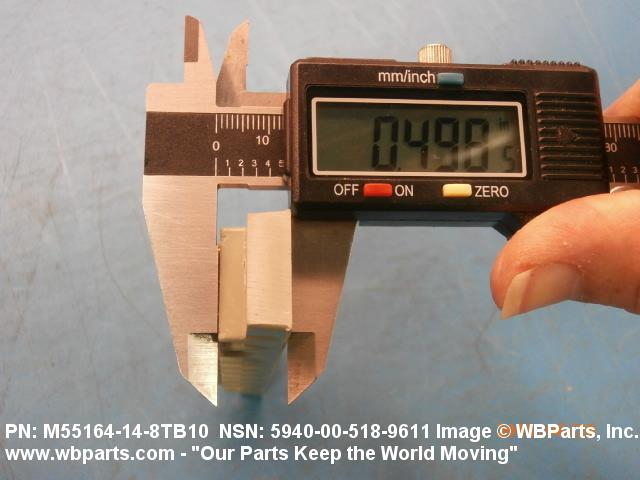

BOARD HEIGHT EXCLUDING TERMINALS	0.500 INCHES

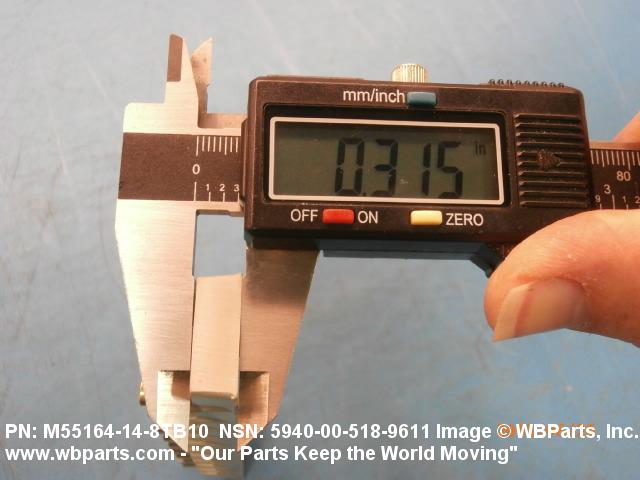

BASE THICKNESS	0.312 INCHES
TERMINAL PATTERN ARRANGEMENT	MULTI-ROW
TERMINAL ROW QUANTITY	2

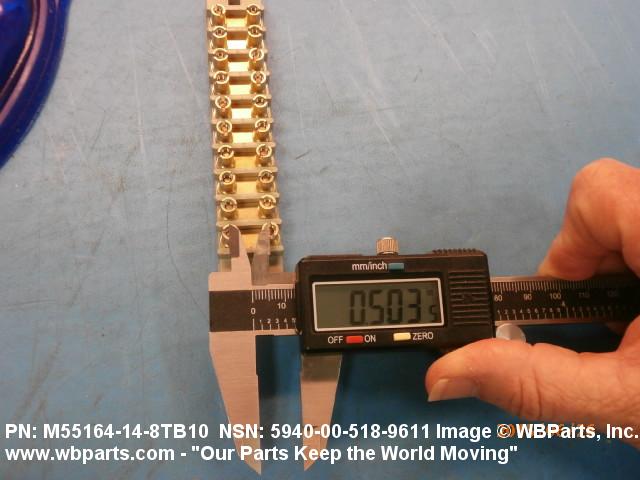

DISTANCE BETWEEN TERMINAL ROW CENTERS	0.500 INCHES

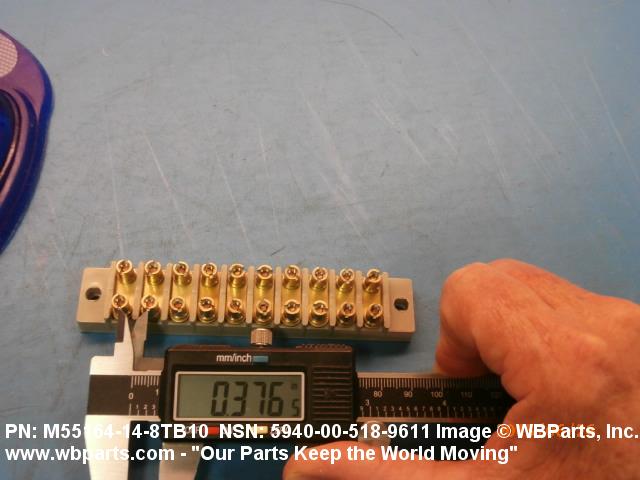

CENTER TO CENTER DISTANCE BETWEEN TERMINALS	0.375 INCHES
TERMINAL DESIGN	LINKED NONFEEDTHRU
NONFEEDTHRU TERMINAL TYPE	600 SINGLE
NONFEEDTHRU TERMINAL QUANTITY	10 SINGLE
TERMINAL CONNECTING LINK TYPE	1 SINGLE
TERMINAL CONNECTING LINK QUANTITY	10 SINGLE
BOARD CONSTRUCTION	HOLLOW CONSTRUCTION WITHOUT INSULATED STRIP
MOUNTING FACILITY TYPE AND QUANTITY	2 SLOT

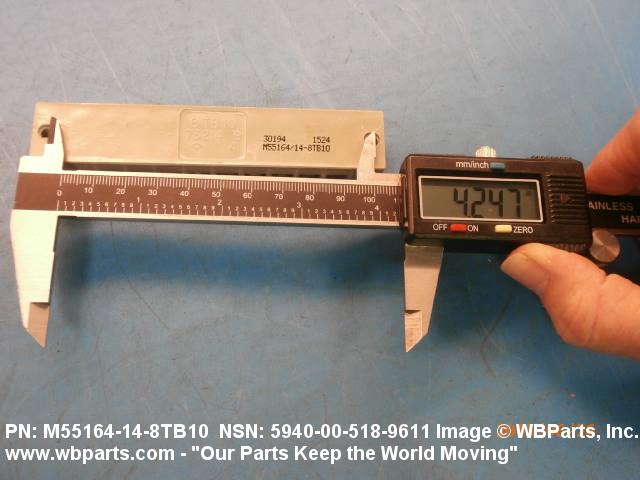

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	4.250 INCHES

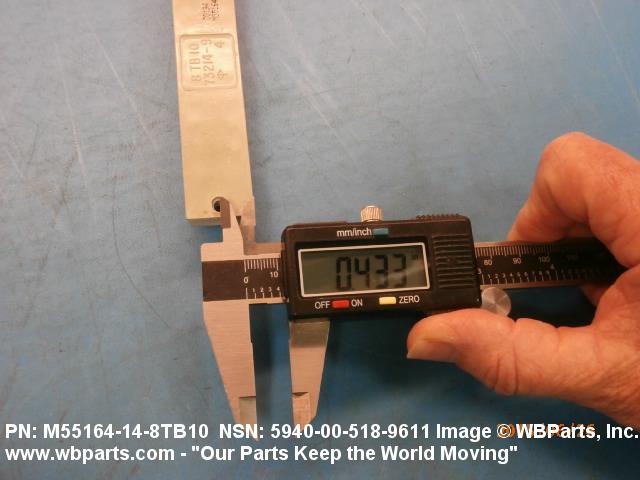

DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE	0.438 INCHES
DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY	0.188 INCHES

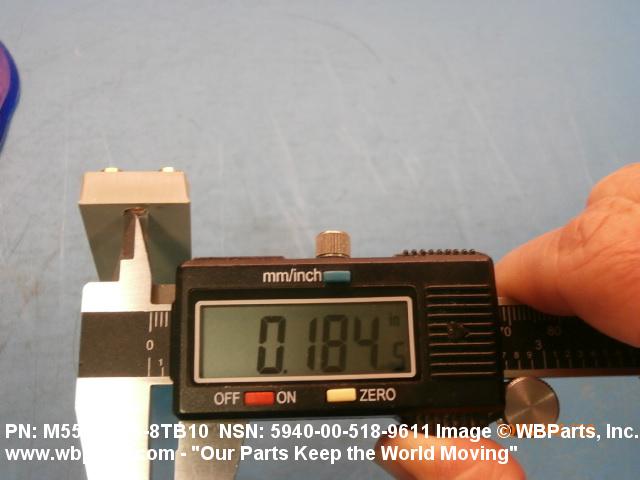

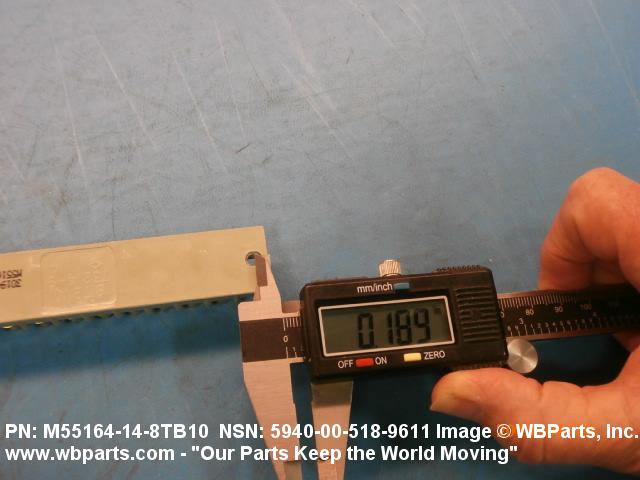

MOUNTING SLOT WIDTH	0.180 INCHES
MOUNTING SLOT LENGTH	0.210 INCHES
CURRENT RATING IN AMPS	30.0
DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS	1500.0
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AA59125/14
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AA59125/14-8TB10

Restrictions/Controls & Freight Information | NSN 5940-00-518-9611

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	593	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5940-00-518-9611

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SU	SU:AF SICA RESIDUAL MMAC-OO-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
