NSN 5940-00-558-9190 MS2721265, MS27212-6-5, 00-558-9190
Product Details | TERMINAL BOARD
5940-00-558-9190 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: MS2721265, MS27212-6-5, 5940-00-558-9190, 00-558-9190, 5940005589190, 005589190
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 NOV 1974 | 00-558-9190 | 00404 ( TERMINAL BOARD ) |

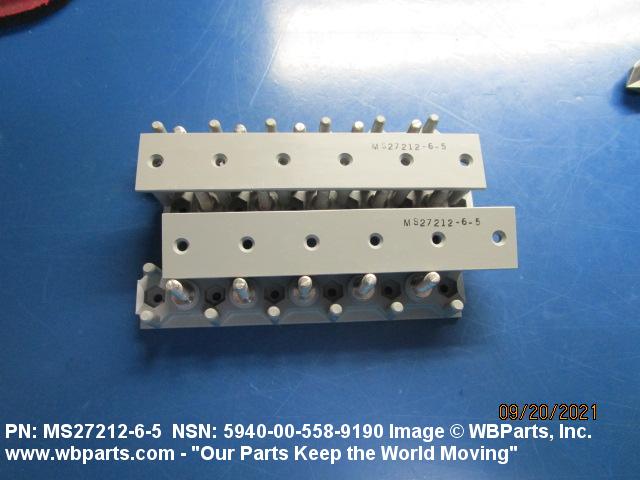

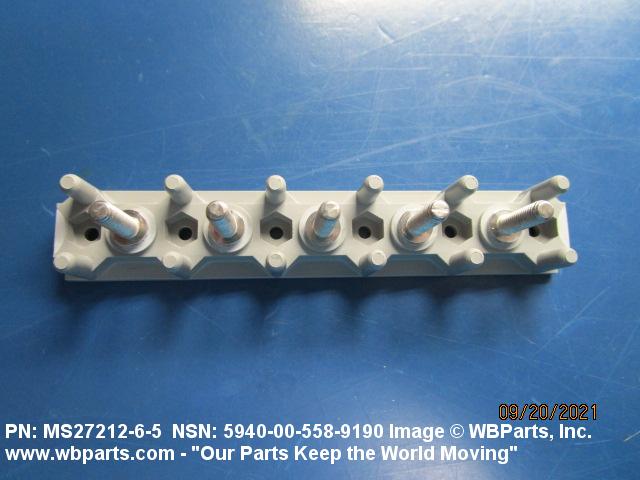

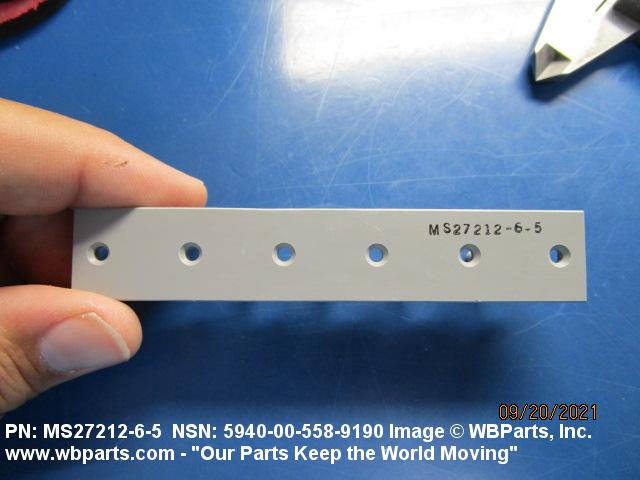

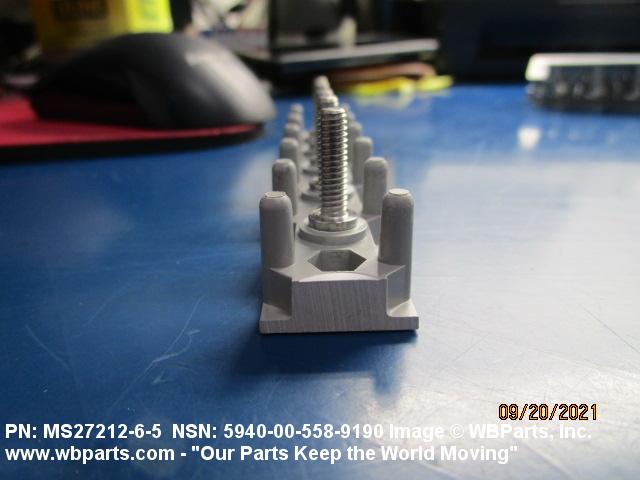

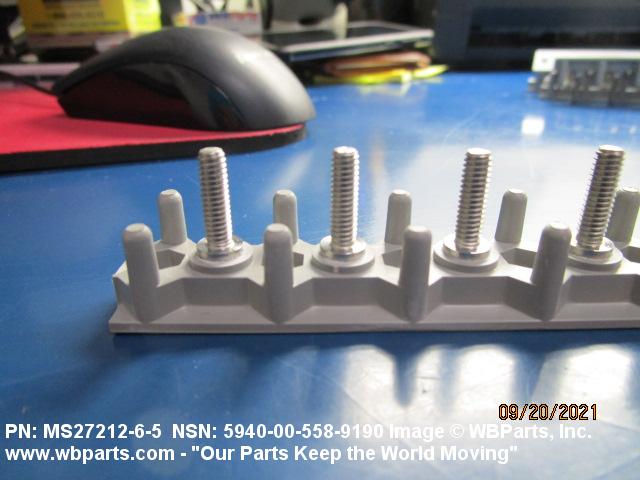

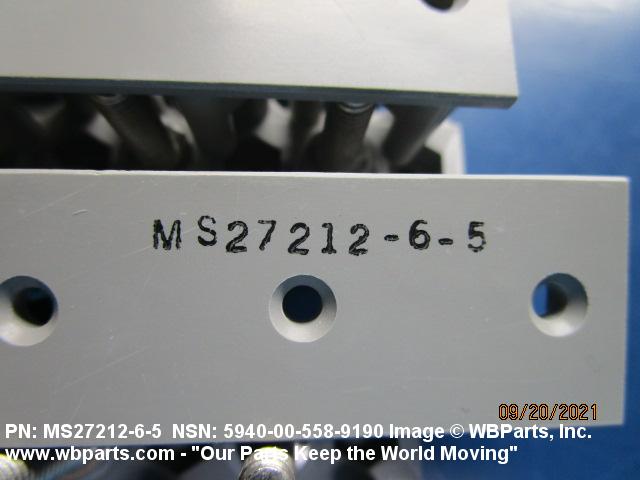

Drawings & Photos | NSN 5940-00-558-9190
Demand History | NSN 5940-00-558-9190
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-558-9190 | 2021-09-244 | 1 | United States |
| MS2721265 | 2009-02-55 | 100 | US |
Cross Reference | NSN 5940-00-558-9190
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27212-6-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-558-9190
Technical Data | NSN 5940-00-558-9190
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE TERMINALS |
| BODY STYLE | A14 BARRIER STANDOFF |

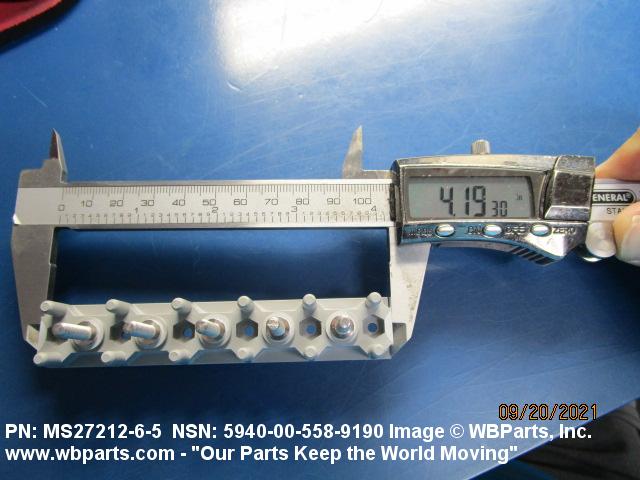

| BOARD OVERALL LENGTH | 4.170 INCHES |

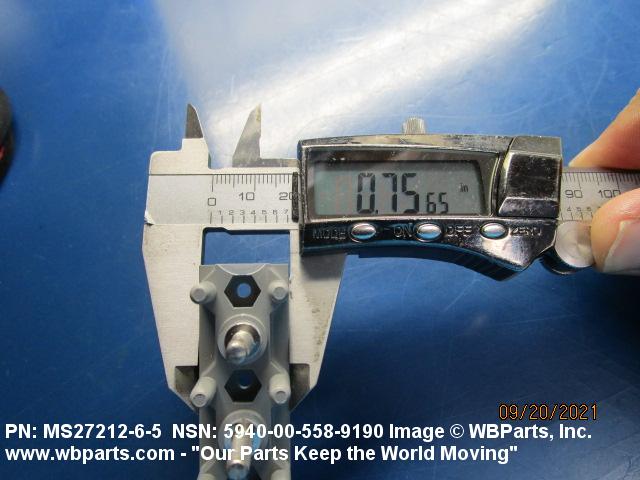

| BOARD OVERALL WIDTH | 0.750 INCHES |
| BOARD OVERALL HEIGHT | 1.005 INCHES |

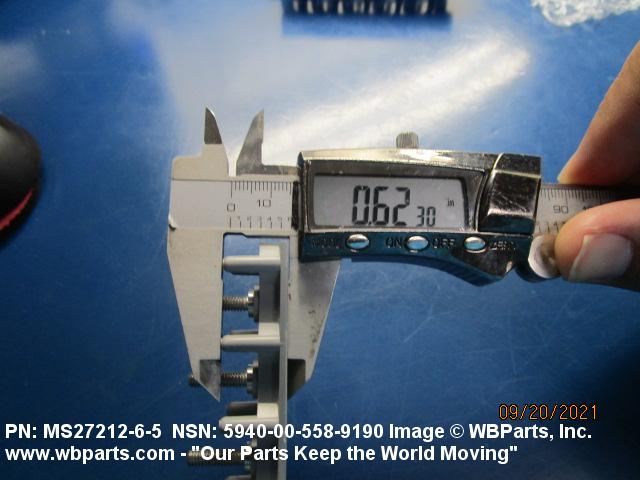

| BOARD HEIGHT EXCLUDING TERMINALS | 0.625 INCHES |

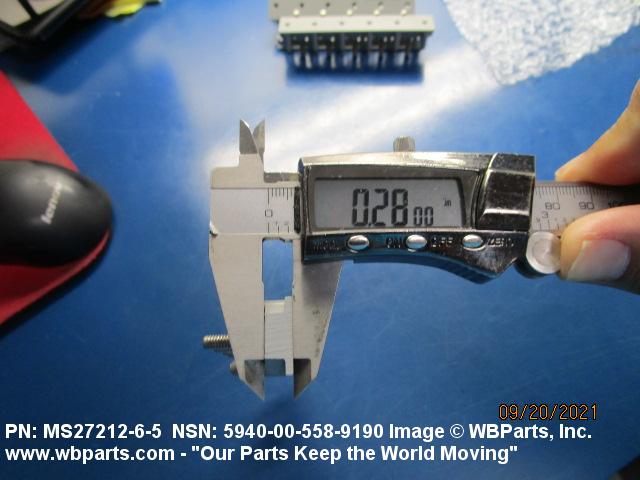

| BASE THICKNESS | 0.281 INCHES |
| TERMINAL PATTERN ARRANGEMENT | SINGLE ROW |
| TERMINAL ROW QUANTITY | 1 |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.750 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 597 SINGLE |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.750 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.375 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.210 INCHES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27212-6-5 |
