NSN 5940-00-665-0884 00-665-0884, 006650884
Product Details | TERMINAL BOX
5940-00-665-0884 An enclosure which includes, mounts and protects one or more terminals and/or terminal boards. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, and conduit fittings. For boxes which include combinations of different electrical devices such as terminals and/or terminal boards, fuseholders, switches, jacks, circuit breakers, connectors and the like, see DISTRIBUTION BOX. For boxes which are designed to mount, but which do not include terminals and/or terminal boards, see JUNCTION BOX. Excludes TERMINAL BOARD ASSEMBLY. See also CHAMBER, CABLE TERMINAL; and INTERCONNECTING CABINET.
Part Alternates: 5940-00-665-0884, 00-665-0884, 5940006650884, 006650884
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-665-0884 | 00452 ( TERMINAL BOX ) |

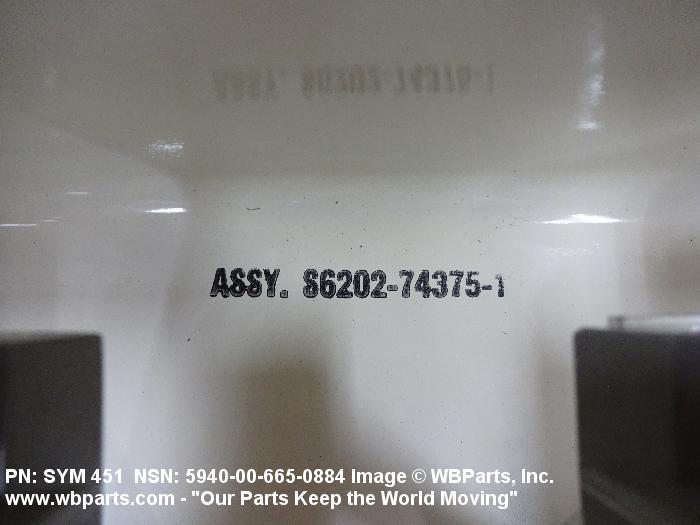

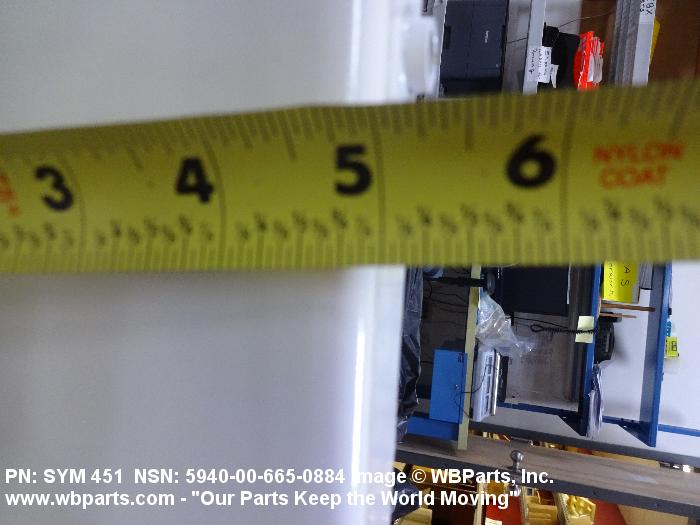

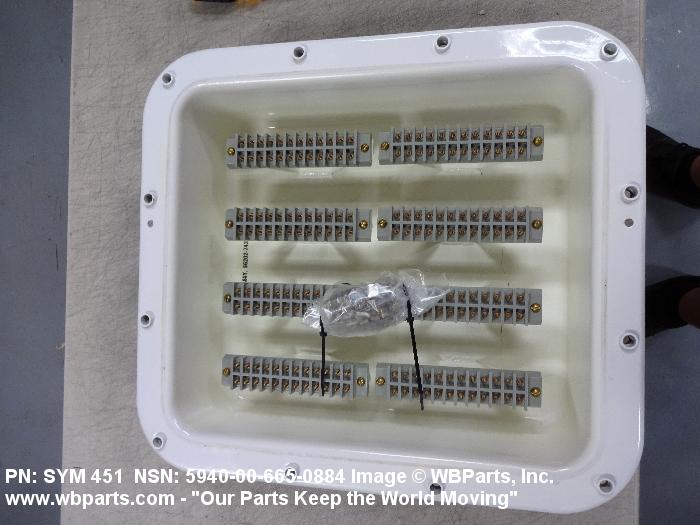

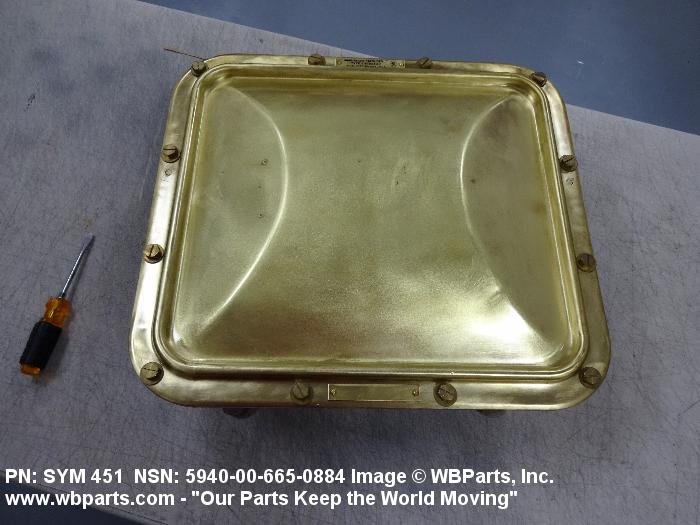

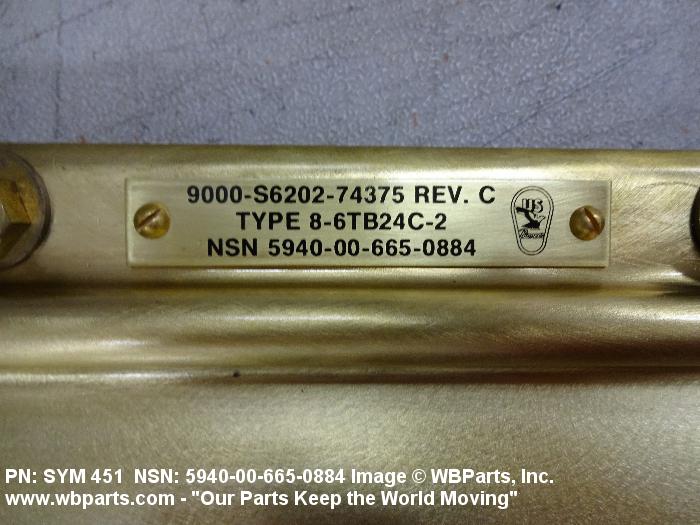

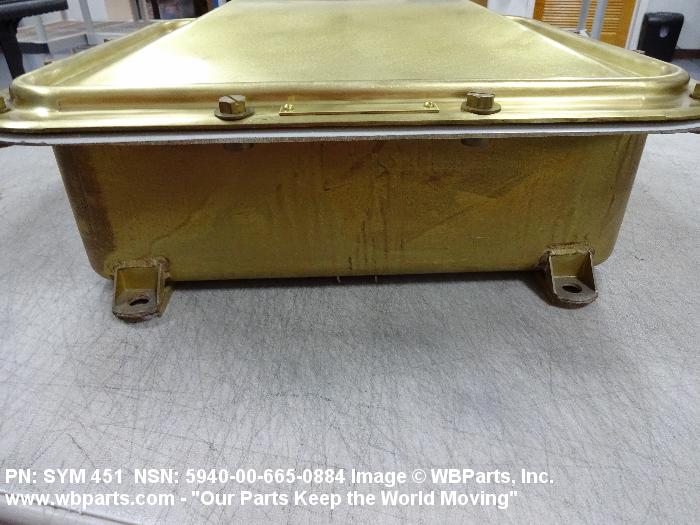

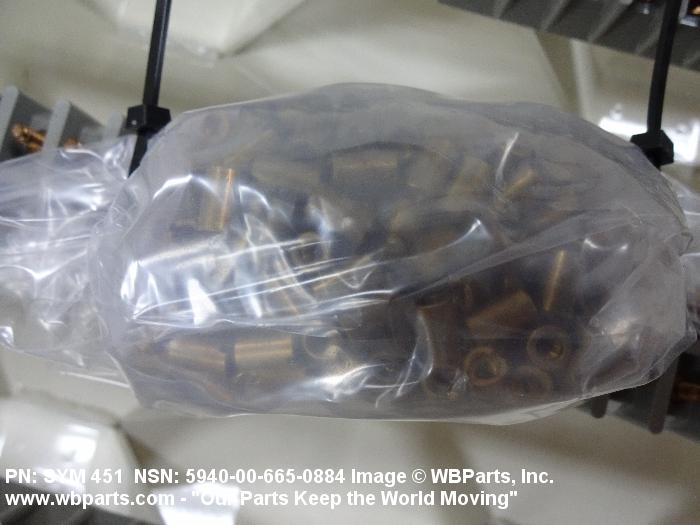

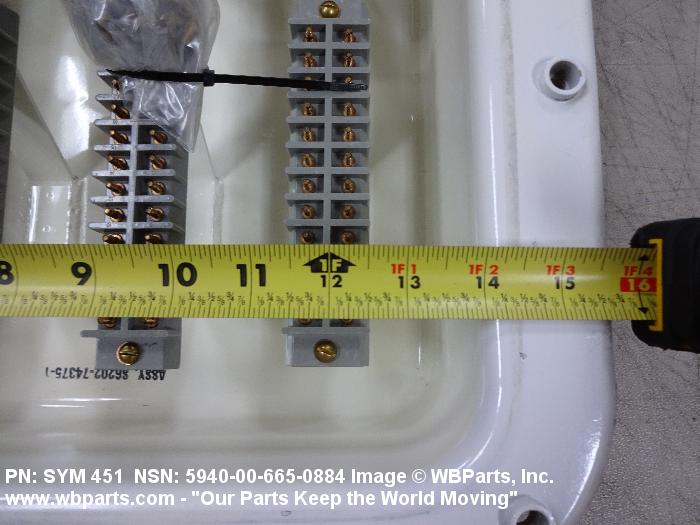

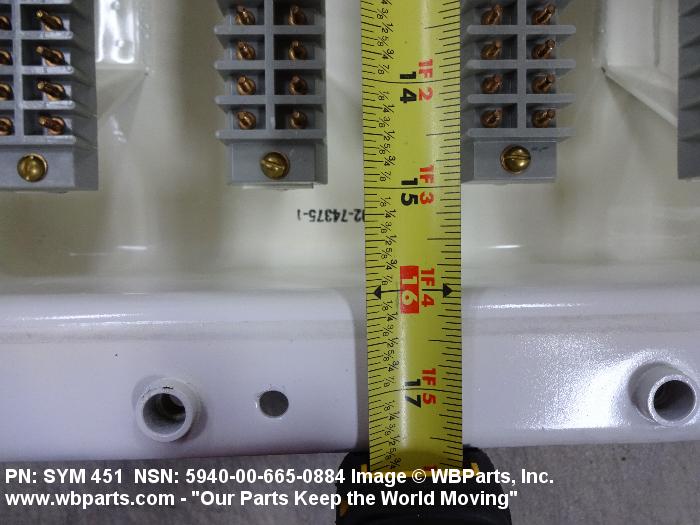

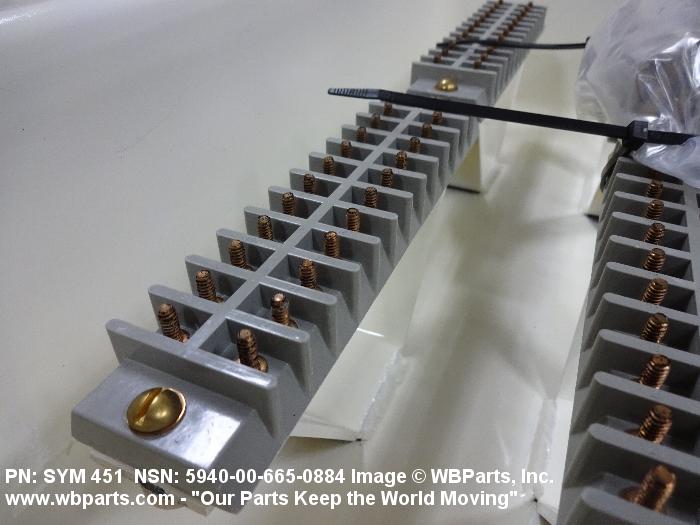

Drawings & Photos | NSN 5940-00-665-0884
Demand History | NSN 5940-00-665-0884
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-665-0884 | 2017-06-152 | 1 | United States |
| 5940-00-665-0884 | 2017-05-137 | 1 | United States |
Cross Reference | NSN 5940-00-665-0884
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24558/14-451 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-665-0884
Technical Data | NSN 5940-00-665-0884
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6A RECTANGULAR, SURFACE MOUNTING |
| OVERALL DEPTH | 7.188 INCHES NOMINAL |
| OVERALL HEIGHT | 19.375 INCHES NOMINAL |
| OVERALL WIDTH | 17.375 INCHES NOMINAL |
| MATERIAL | BRASS |
| SURFACE TREATMENT | ENAMEL |
| MOUNTING METHOD | BRACKET WITH HOLE |
| STANDARD MOUNTING PATTERN DESIGNATOR | 5C 3 POINT-TRIANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 12.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 15.438 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.500 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 192 SCREW |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT-NEMA TYPE 4 |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 8-6TB24-2 |
Restrictions/Controls & Freight Information | NSN 5940-00-665-0884
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
