NSN 5940-00-665-4783 M322016HTC1, M3220-16HTC1, TT17H
Product Details | STUD TERMINAL
5940-00-665-4783 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: M322016HTC1, M3220-16HTC1, TT17H, 7000161P004, 763, 1JA2379H01, 3B1DE4, 5940-00-665-4783, 00-665-4783, 5940006654783, 006654783
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-665-4783 | 00887 ( TERMINAL, STUD ) |

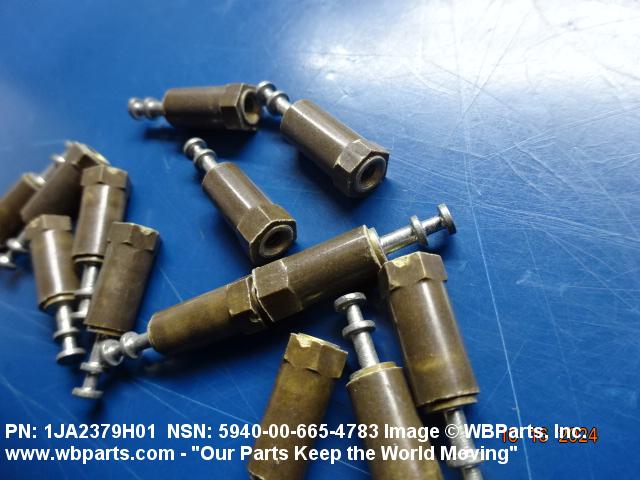

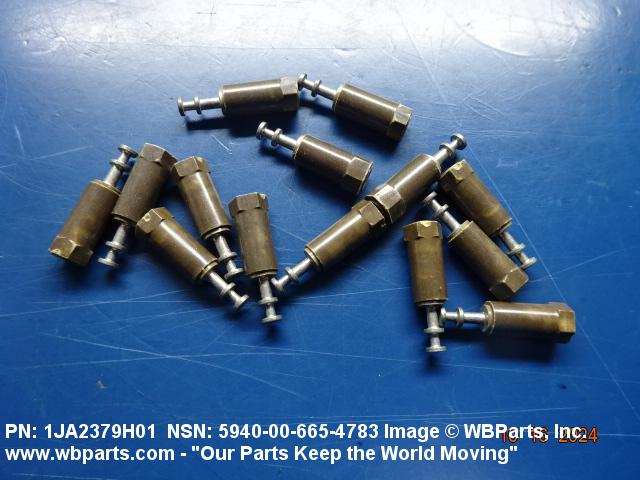

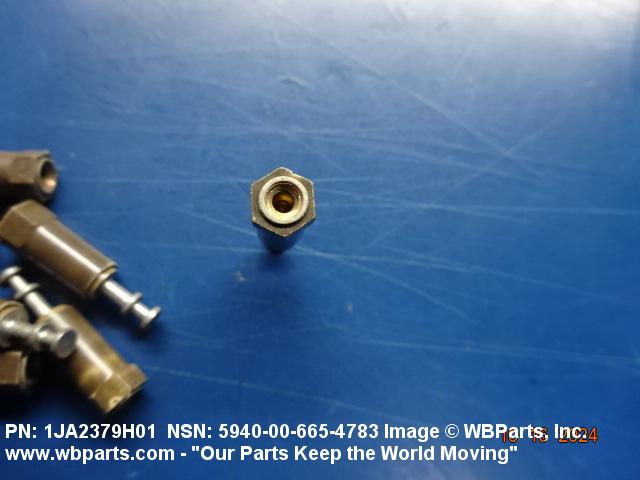

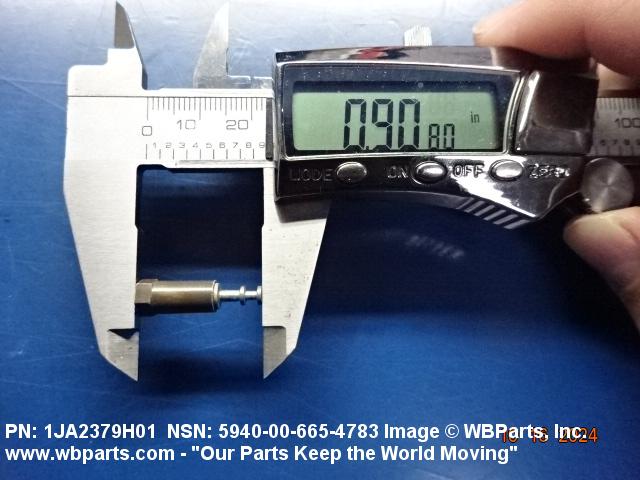

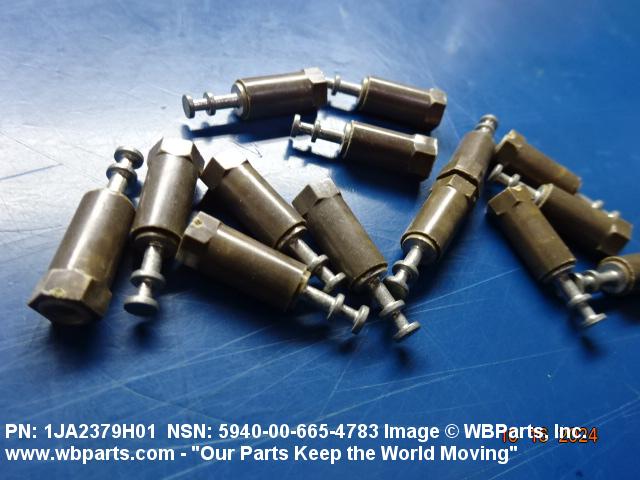

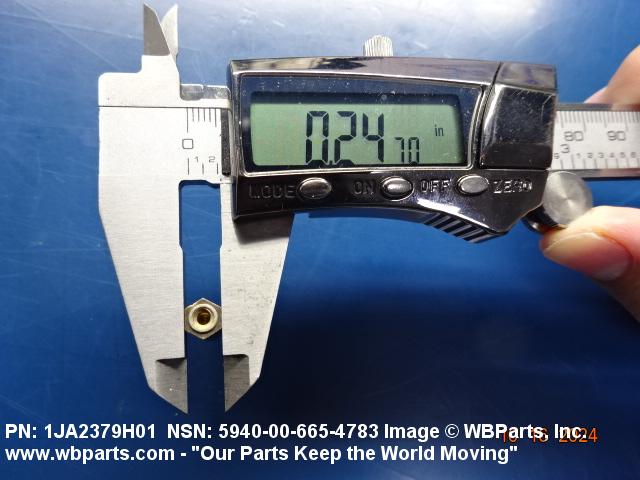

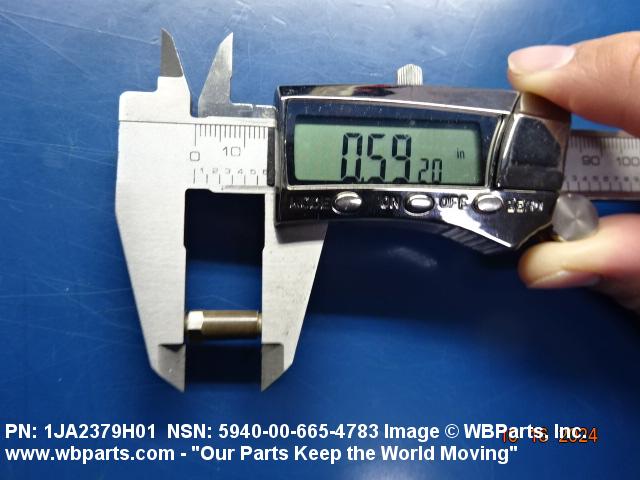

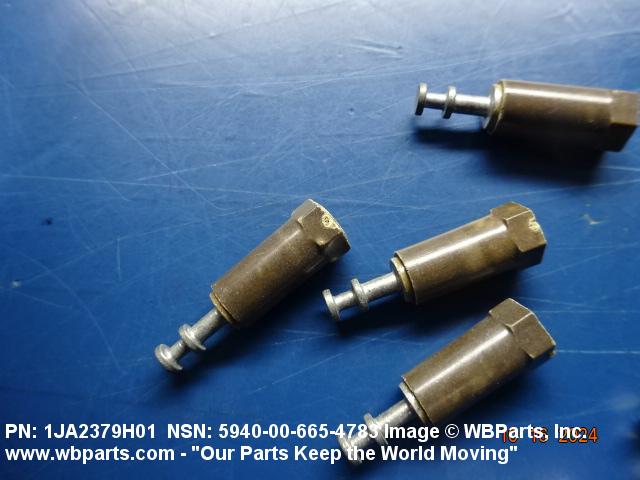

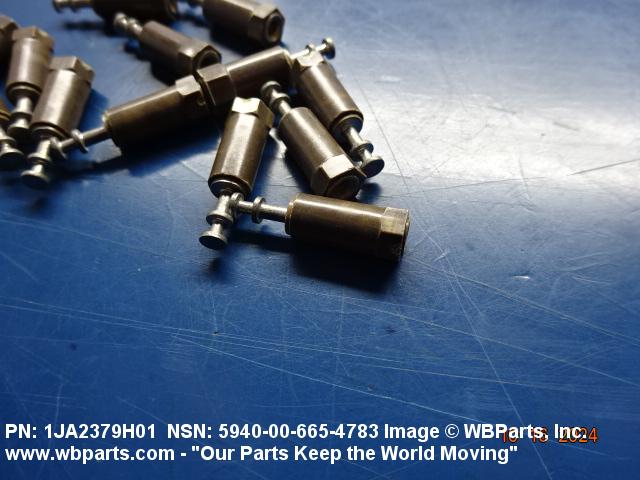

Drawings & Photos | NSN 5940-00-665-4783
Demand History | NSN 5940-00-665-4783
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-665-4783 | 2025-11-308 | 36 | US |
| 5940-00-665-4783 | 2025-11-307 | 36 | US |
| 1JA2379H01 | 2025-06-167 | 4 | United States |
| 1JA2379H01 | 2025-02-57 | 1 | United States |
| 1JA2379H01 | 2024-12-352 | 1 | United States |
| 1JA2379H01 | 2024-10-277 | 14 | United States |
| 1JA2379H01 | 2024-09-254 | 2 | United States |
| 5940-00-665-4783 | 2021-04-112 | 392 | US |
Cross Reference | NSN 5940-00-665-4783
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1JA2379H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 3B1DE4 | 92825 | WHITSO INC |
| 7000161P004 | 24446 | GENERAL ELECTRIC CO |
| 763 | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| M3220-16HTC1 | 99378 | ATLEE OF DELAWARE, INCORPORATED |
| TT17H | 91663 | ARMEL ELECTRONICS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-665-4783
Technical Data | NSN 5940-00-665-4783
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A6 NONTUBULAR, HEX |
| TERMINAL LENGTH | 0.344 INCHES |
| WIDTH ACROSS FLATS | 0.250 INCHES |
| OVERALL HEIGHT | 0.875 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | DOUBLE TURRET SINGLE END |
| LARGEST DIAMETER | 0.141 INCHES SINGLE END |
| TURRET MINOR DIAMETER | 0.080 INCHES SINGLE END |
| MOUNTING METHOD STYLE | D28 TAPPED HOLE |
| THREAD LENGTH | 0.156 INCHES |
| MOUNTING THREAD SERIES | UNC |
| MOUNTING THREAD DIAMETER | 0.112 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING MOUNTING BUSHING |
| IDENTIFICATION CODE COLOR | GREEN |
| MATERIAL | PLASTIC MELAMINE INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN OVERALL EXCEPT INSULATION SINGLE LAYER |
| MANUFACTURERS CODE | 81312 |
| DESIGN CONTROL REFERENCE | 763 |
Restrictions/Controls & Freight Information | NSN 5940-00-665-4783
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061260 | CABLE TERMINALS/BOXES/HOUSINGS ETC |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-665-4783
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
