Product Details | TERMINAL BOARD
5940-00-818-8903 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: A-A-59125/24, AA59125/24-26TB12B, AA5912524, AA591252426TB12B, H67394017, H673-9401-7, MILT5516424, MILT55164-24, PL9001A1000-3 ITEM NO 28, PL9001A10003ITEMNO28, PS167953-13.5.2, PS1679531352, 10-5200 ITEM 83, 105200ITEM83, 26TB12, 4188500046, 4188500-046, 4188500-46, 43770677207, 437-7067720-7, 49504900-1 ITEM, 495049001ITEM, 5381257-47, 564101-123, 9000S650573214PC123, 9000S6505-73214PC123, 9708125, 5940-00-818-8903, 00-818-8903, 5940008188903, 008188903, 564101123, 538125747, 418850046
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-818-8903 | 00404 ( TERMINAL BOARD ) |

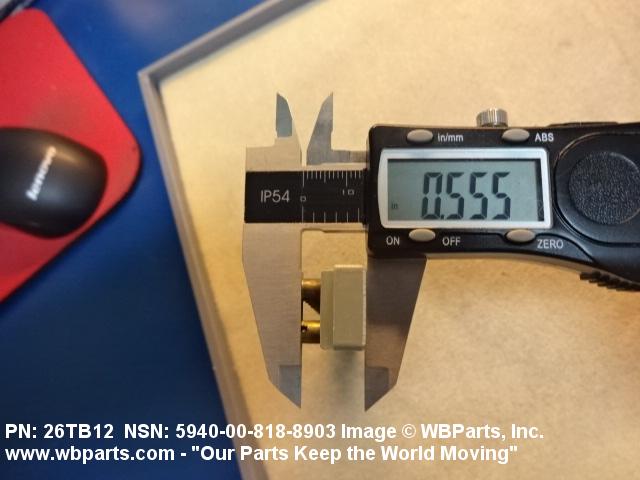

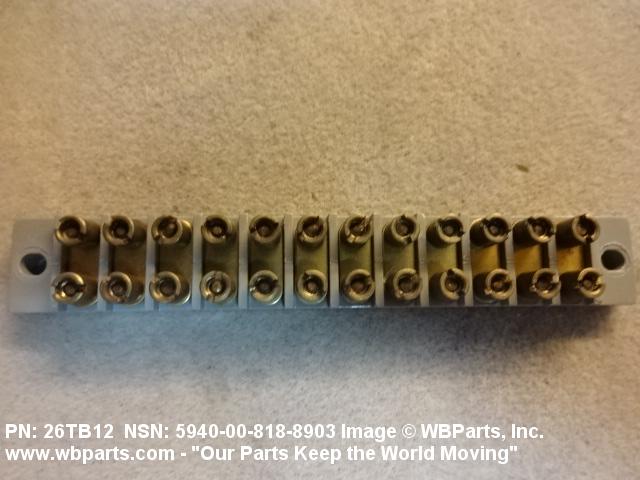

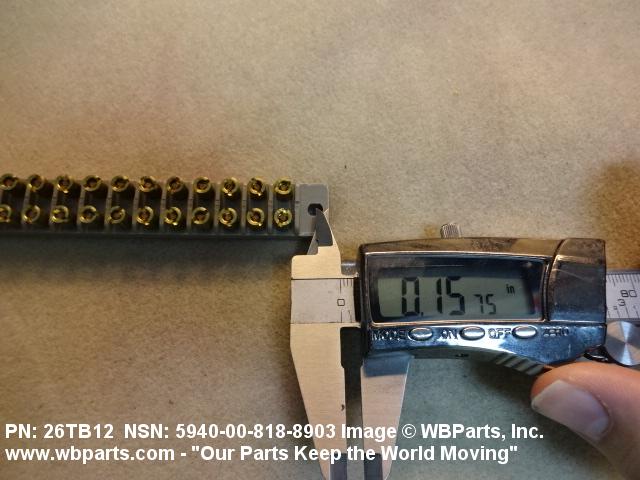

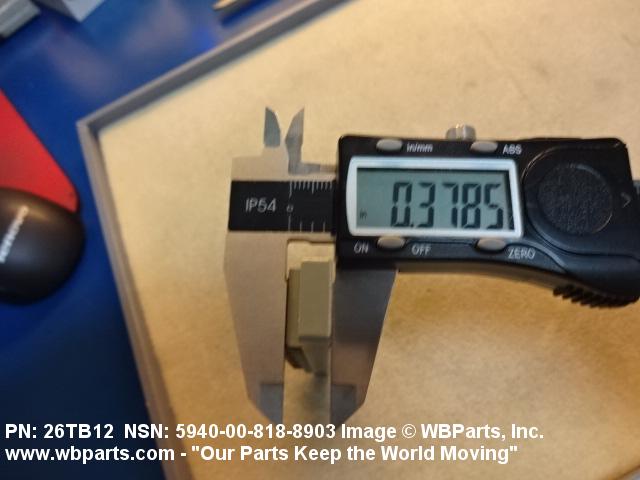

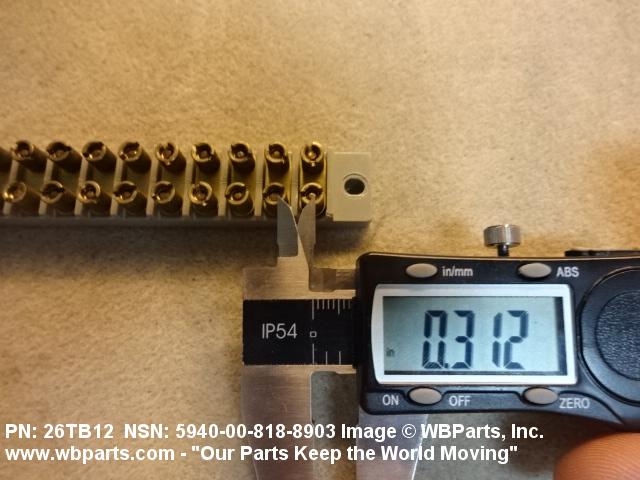

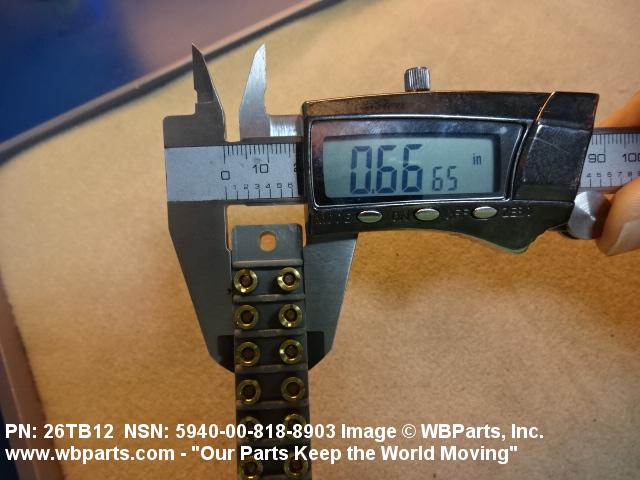

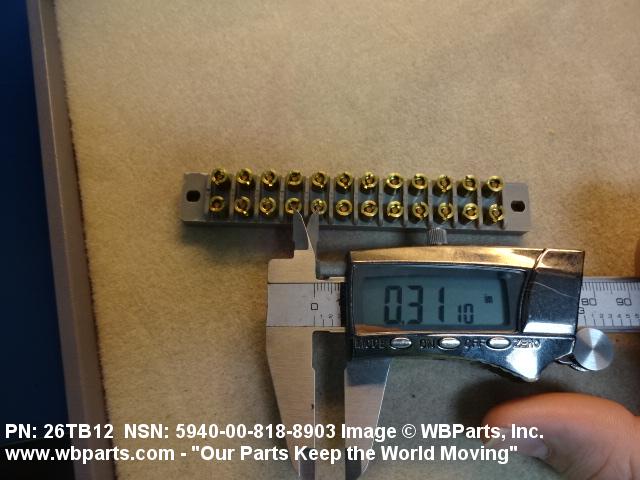

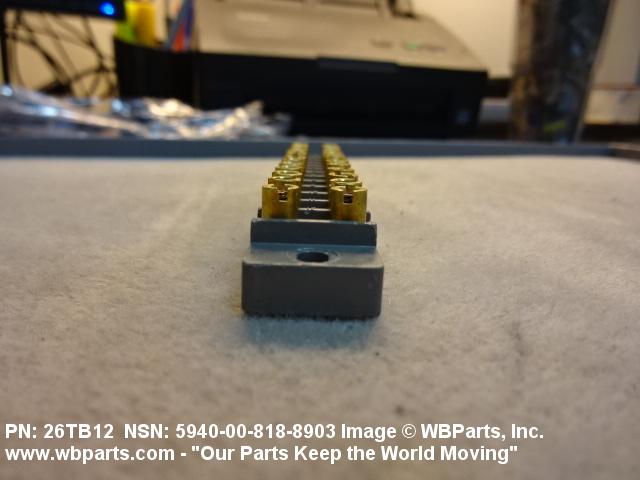

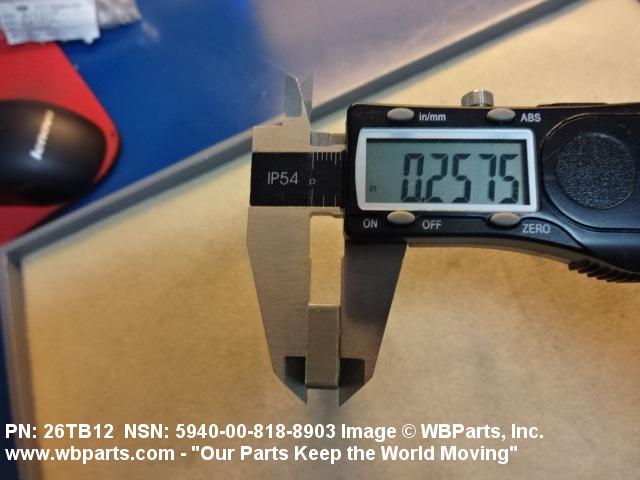

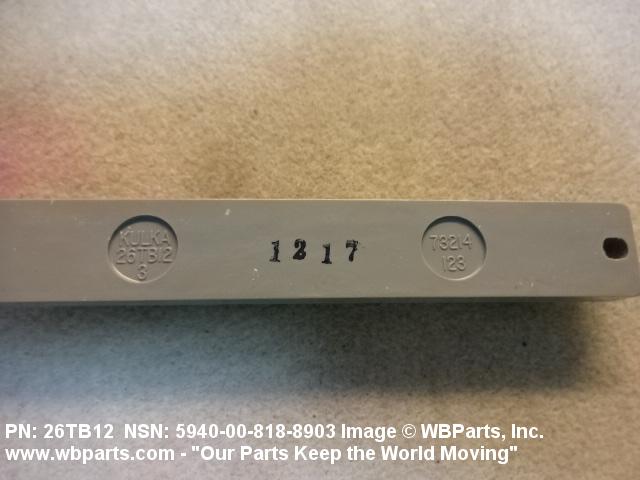

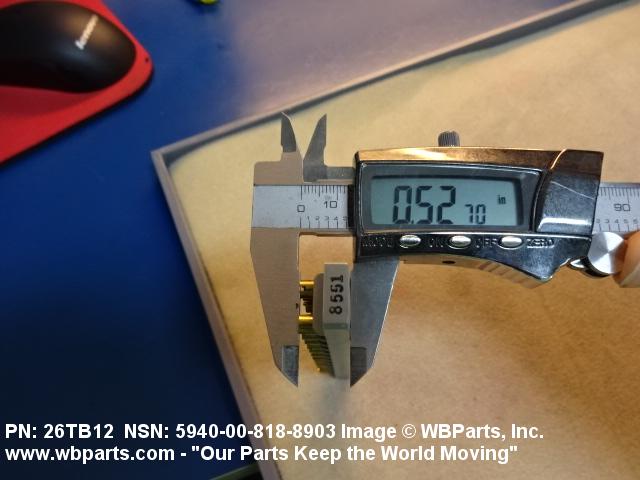

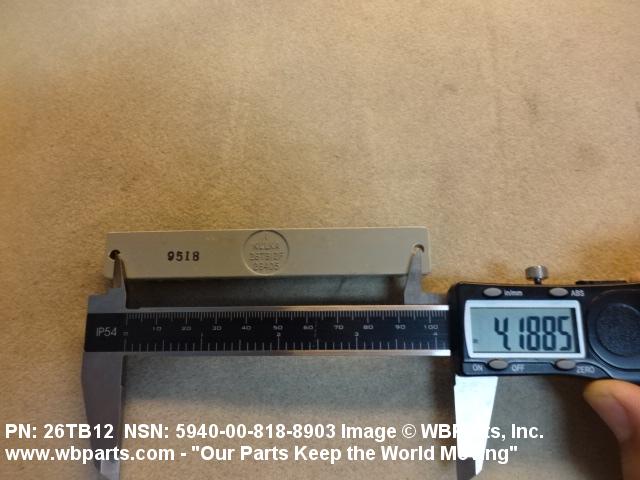

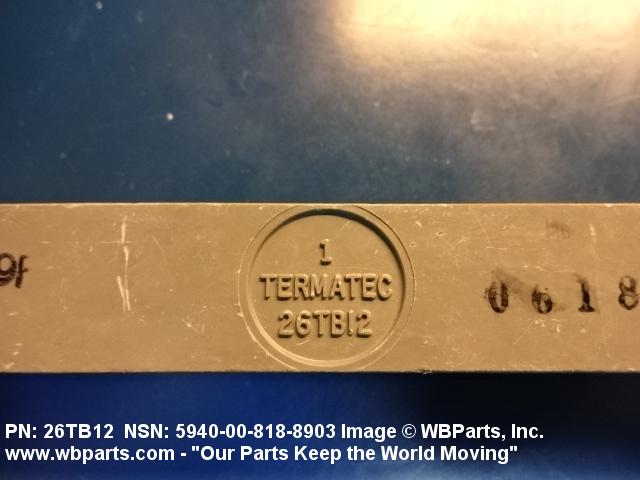

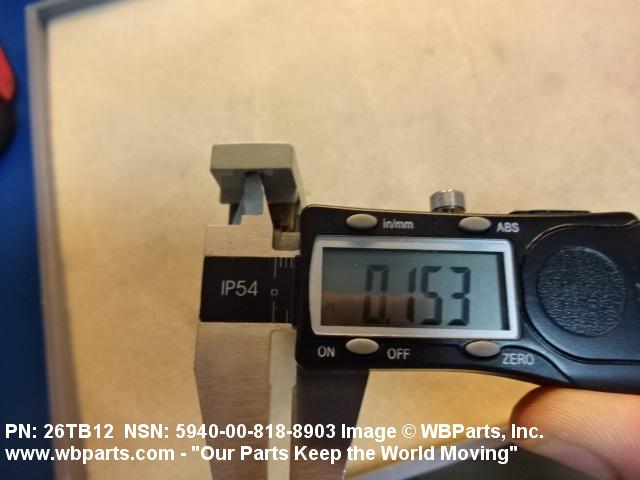

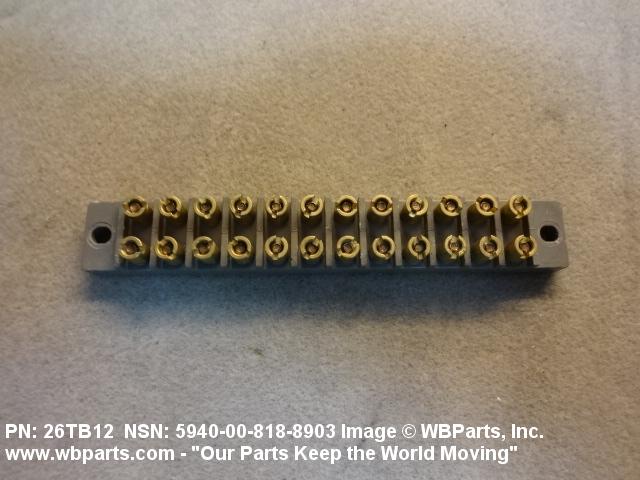

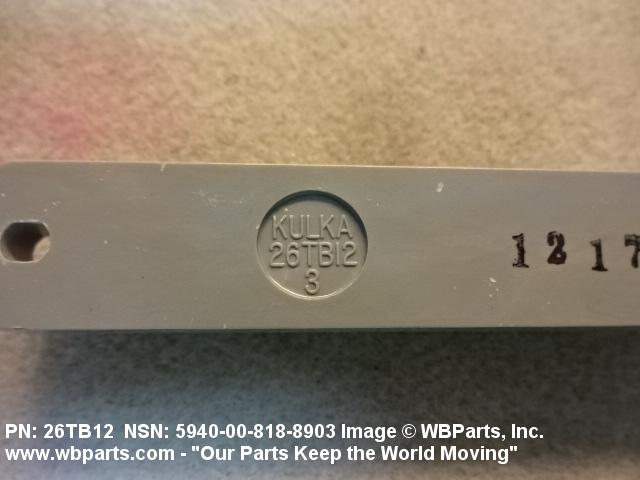

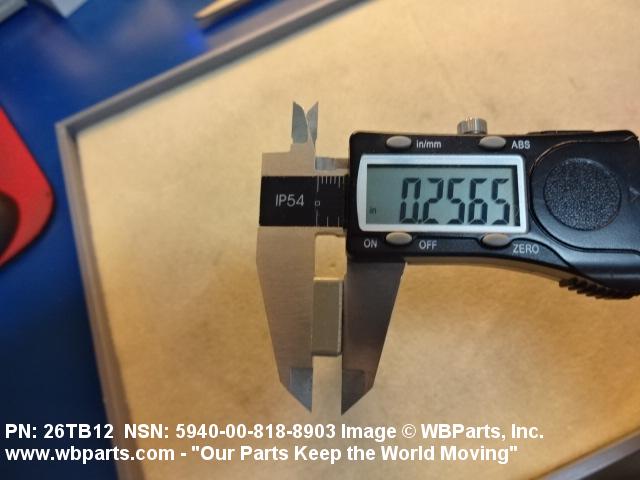

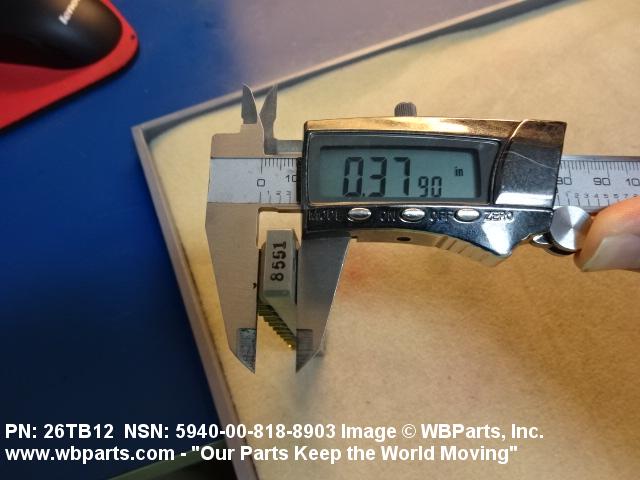

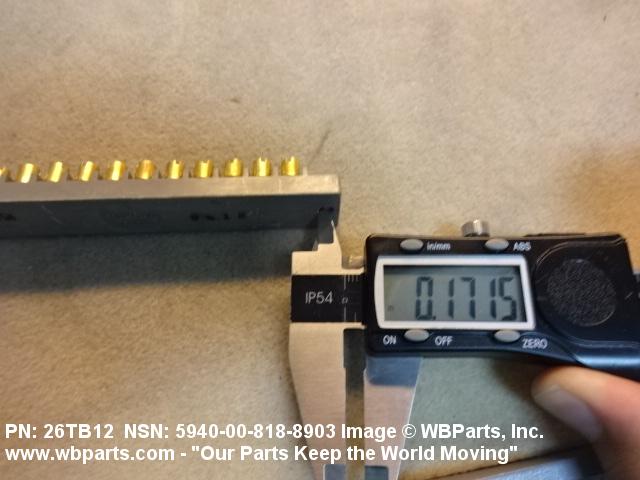

Drawings & Photos | NSN 5940-00-818-8903
Demand History | NSN 5940-00-818-8903
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-818-8903 | 2025-11-310 | 35 | DIBBS |
| AA5912524 | 2025-07-196 | 7 | United States |
| 5940-00-818-8903 | 2025-05-135 | 37 | DIBBS |
| 5940-00-818-8903 | 2024-07-200 | 51 | DIBBS |
| 5940-00-818-8903 | 2023-01-12 | 58 | DIBBS |
| 5940-00-818-8903 | 2022-12-362 | 58 | DIBBS |
| 5940-00-818-8903 | 2020-07-206 | 700 | United States |
| 5940-00-818-8903 | 2019-04-98 | 314 | DIBBS |
| 5940-00-818-8903 | 2019-03-86 | 314 | DIBBS |
| 26TB12 | 2018-08-226 | 1 | us |
| 26TB12 | 2018-06-173 | 1 | United States |
| MILT5516424 | 2018-06-173 | 1 | United States |
| 26TB12 | 2018-03-67 | 350 | United States |
| 5940-00-818-8903 | 2017-12-352 | 1 | us |
| 5940-00-818-8903 | 2017-12-352 | 1 | United States |
| 5940-00-818-8903 | 2011-02-35 | 30 | United States |
Cross Reference | NSN 5940-00-818-8903
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-5200 ITEM 83 | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
| 26TB12 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 4188500-046 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4188500-46 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 437-7067720-7 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 49504900-1 ITEM | 8Z495 | L-3 COMMUNICATIONS WESTWOOD CORPORATION |
| 5381257-47 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 564101-123 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 564101-123 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 9000S6505-73214PC123 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9708125 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| A-A-59125/24 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59125/24-26TB12B | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| H673-9401-7 | 96169 | ELECTRIC BOAT CORPORATION |
| MILT55164-24 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PL9001A1000-3 ITEM NO 28 | 8Z945 | WIT-SON CARBIDE TOOL INC |
| PS167953-13.5.2 | 35181 | CAE INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-818-8903
Related Products | NSN 5940-00-818-8903
Technical Data | NSN 5940-00-818-8903
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYESTER AND GLASS FIBER BOARD COPPER ALLOY 670 TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MAI-60 MIL SPEC SINGLE MATERIAL RESPONSE BOARD QQ-B728,CLASS B FED SPEC SINGLE MATERIAL RESPONSE TERMINALS |

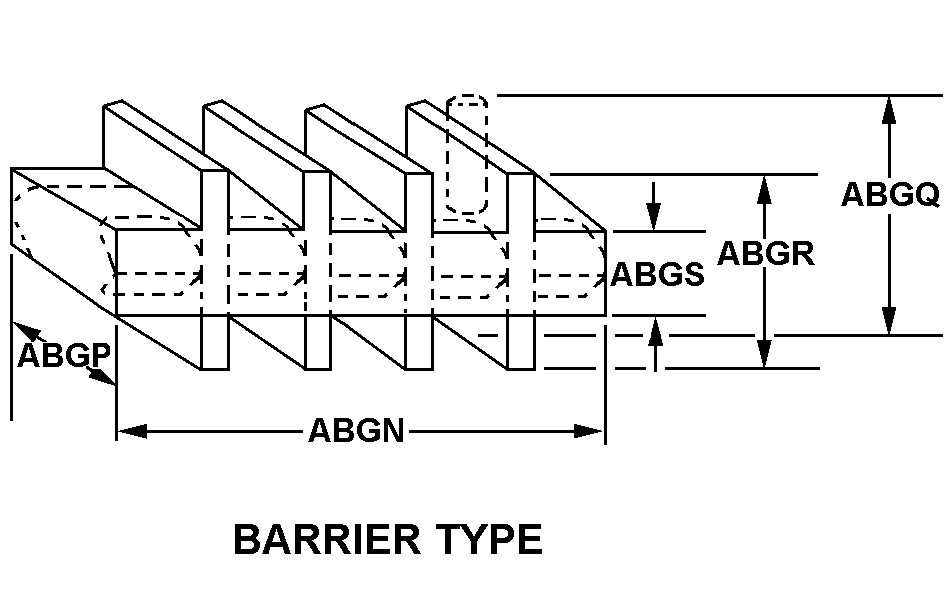

| BODY STYLE | A5 BARRIER TYPE |
