NSN 5940-00-825-3699 MS1714310, MS17143-10, AA5831
Product Details | LUG TERMINAL
5940-00-825-3699 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: MS1714310, MS17143-10, AA5831, AA583-1, AA8831, AA-883-1, AS17143, AS1714310, AS17143-10, SYMZ-70276 ITEM 21, SYMZ70276ITEM21, YAES18L83, RA483, 327950, 4160506001, 416-0506-001, 85050210, 5940-00-825-3699, 00-825-3699, 5940008253699, 008253699
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-825-3699 | 00746 ( TERMINAL, LUG ) |

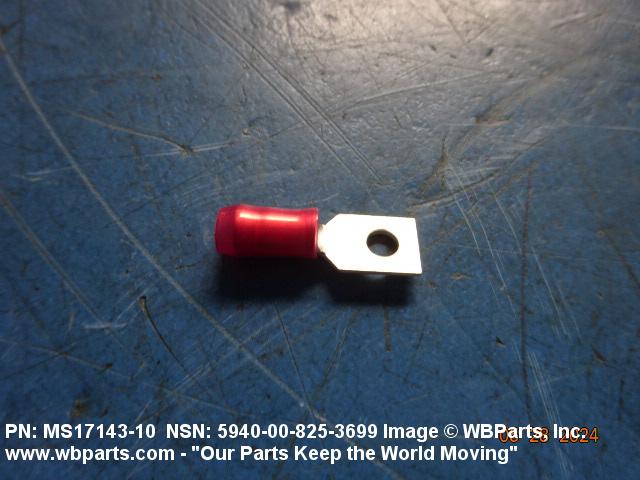

Drawings & Photos | NSN 5940-00-825-3699
Demand History | NSN 5940-00-825-3699
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-825-3699 | 2025-02-56 | 206 | DIBBS |
| 5940-00-825-3699 | 2025-02-41 | 206 | DIBBS |
| 5940-00-825-3699 | 2024-05-137 | 12 | United States |
| AS1714310 | 2023-12-354 | 2 | United States |
| MS1714310 | 2023-03-86 | 30 | United States |
| AS1714310 | 2019-12-340 | 144 | United States |
| 5940-00-825-3699 | 2019-08-228 | 1 | DIBBS-RFPs |
| 5940-00-825-3699 | 2014-10-303 | 1 | DIBBS-RFPs |
| 5940-00-825-3699 | 2014-01-10 | 421 | DIBBS |
| 5940-00-825-3699 | 2013-04-93 | 22 | DIBBS |
| 5940-00-825-3699 | 2013-03-70 | 1 | US |
| MS1714310 | 2013-01-24 | 20 | United States |
| 5940-00-825-3699 | 2012-08-214 | 2769 | DIBBS |
| 5940-00-825-3699 | 2012-03-74 | 2772 | DIBBS |
| 5940-00-825-3699 | 2011-12-341 | 1705 | DIBBS |
| 5940-00-825-3699 | 2011-07-199 | 637 | DIBBS |
| 5940-00-825-3699 | 2010-06-153 | 1 | US |
| 5940-00-825-3699 | 2010-04-120 | 358 | DIBBS |
| 5940-00-825-3699 | 2010-02-36 | 55 | DIBBS |
| 5940-00-825-3699 | 2009-12-356 | 45 | DIBBS |
| 5940-00-825-3699 | 2009-08-238 | 45 | DIBBS |
Cross Reference | NSN 5940-00-825-3699
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 327950 | 00779 | TYCO ELECTRONICS CORPORATION |
| 416-0506-001 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 850502&10 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| AA-883-1 | 98410 | MOLEX-ETC INC SUB OF MOLEX INC |
| AA583-1 | 98410 | MOLEX-ETC INC SUB OF MOLEX INC |
| AS17143 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS17143-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS17143-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS17143-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RA483 | 56501 | THOMAS & BETTS CORPORATION |
| SYMZ-70276 ITEM 21 | 05624 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
| YAES18L83 | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-825-3699
Related Products | NSN 5940-00-825-3699
Technical Data | NSN 5940-00-825-3699
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |

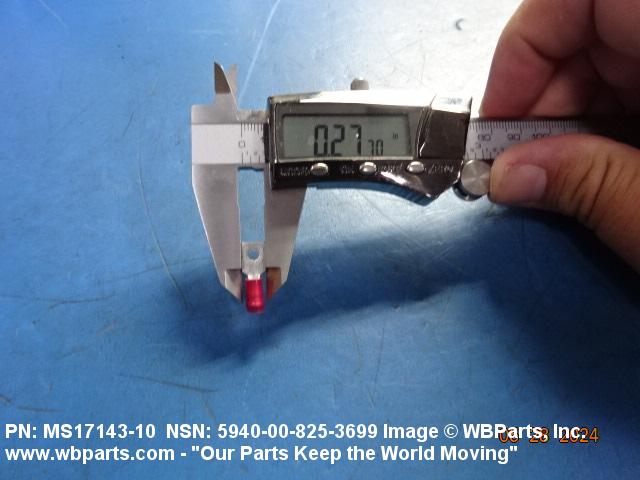

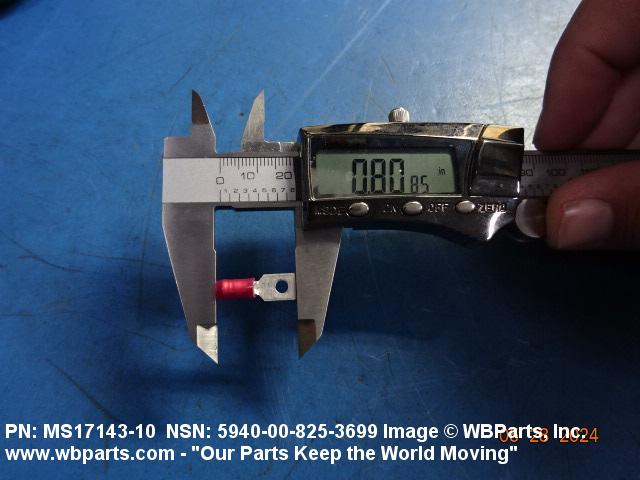

| OVERALL LENGTH | 0.855 INCHES |
| OVERALL WIDTH | 0.277 INCHES |

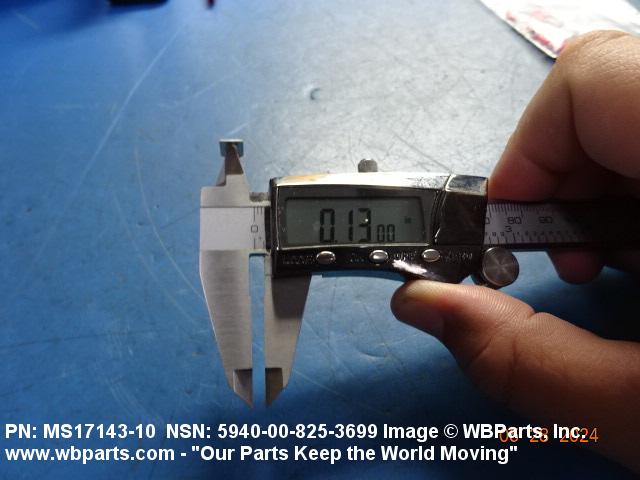

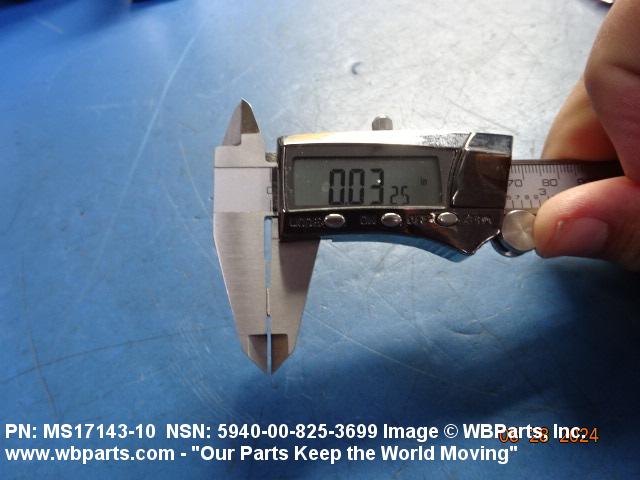

| MATERIAL THICKNESS | 0.033 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 18 AWG |
| MOUNTING METHOD STYLE | D11 STRAIGHT ONE HOLE |
| MOUNTING HOLE DIAMETER | 0.136 INCHES |
| MOUNTING TONGUE WIDTH | 0.277 INCHES |
| MOUNTING FACILITY THICKNESS | 0.033 INCHES |
| DISTANCE FROM MOUNTING HOLE CENTER TO MOUNTING END | 0.143 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | RED |
| MATERIAL | PLASTIC INSULATION COPPER OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN OVERALL EXCEPT INSULATION SINGLE LAYER |
