Product Details | LUG TERMINAL

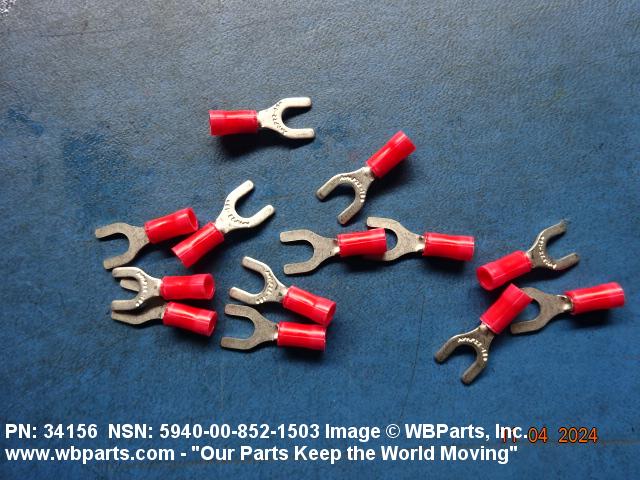

5940-00-852-1503 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: 2766, 34156, 4837, 5940-00-852-1503, 00-852-1503, 5940008521503, 008521503
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-852-1503 | 00746 ( TERMINAL, LUG ) |
Drawings & Photos | NSN 5940-00-852-1503
Demand History | NSN 5940-00-852-1503
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-852-1503 | 2024-10-284 | 5 | us |
| 2766 | 2021-09-244 | 46 | United States |
