NSN 5940-00-856-0853 503/1/06042/001, 503106042001, 957C1531
Product Details | TERMINAL BOARD
5940-00-856-0853 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 503/1/06042/001, 503106042001, 957C1531, 957C153-1, 957C1532, 957C153-2, 5940-00-856-0853, 00-856-0853, 5940008560853, 008560853
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-856-0853 | 00404 ( TERMINAL BOARD ) |

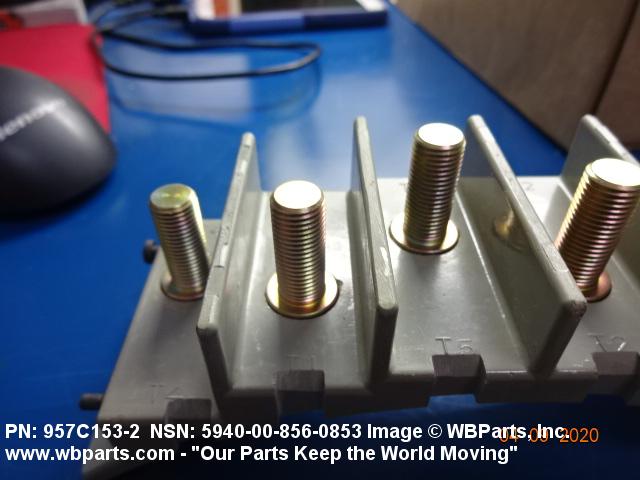

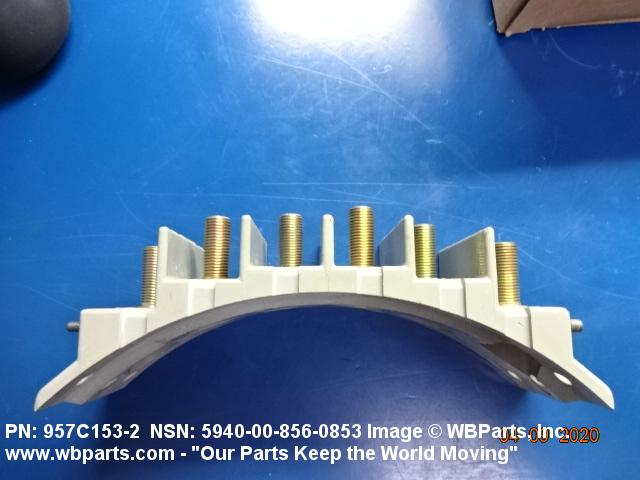

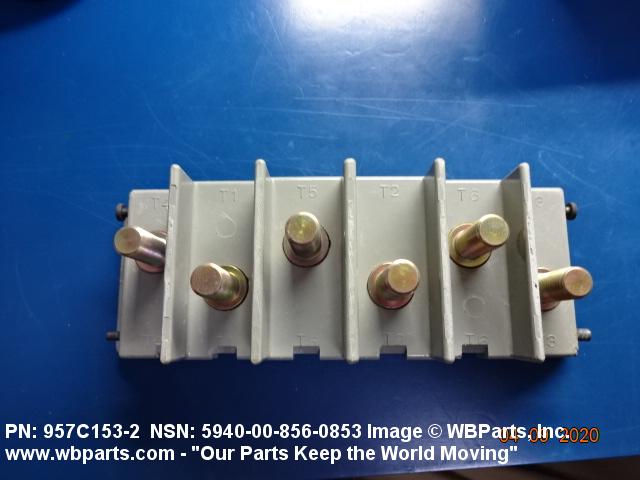

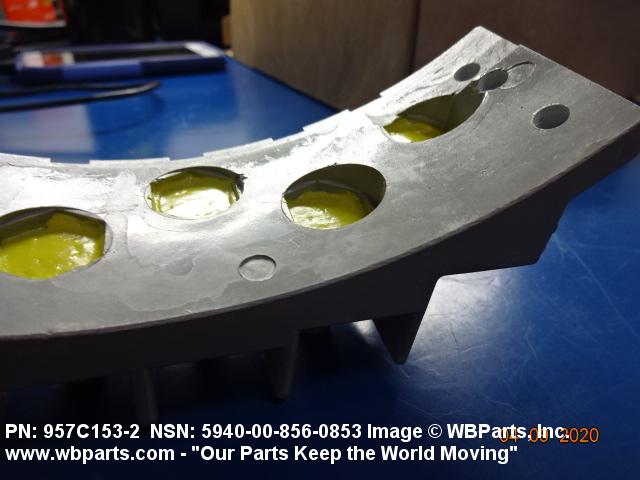

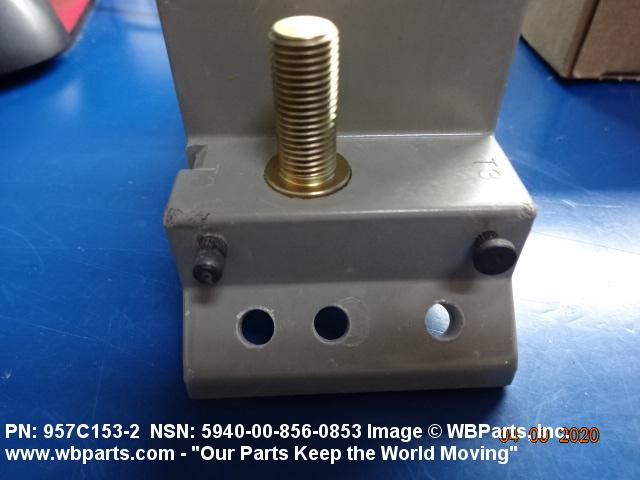

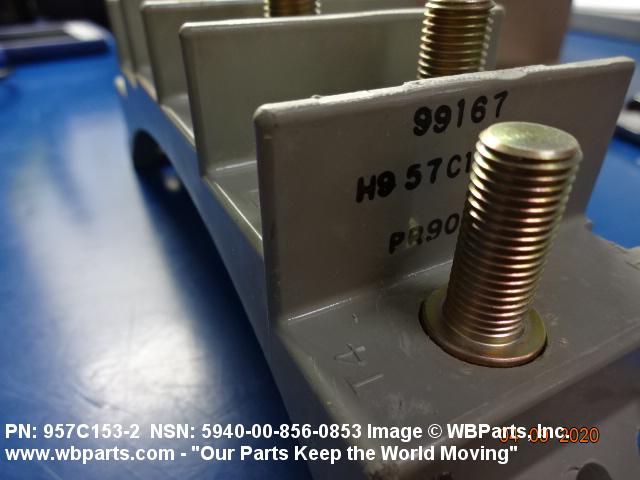

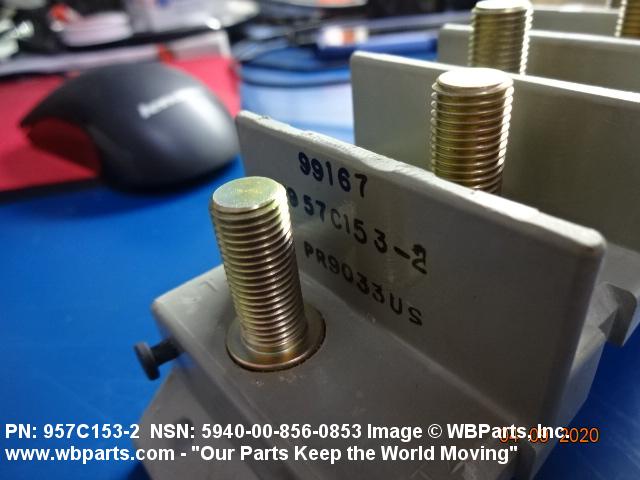

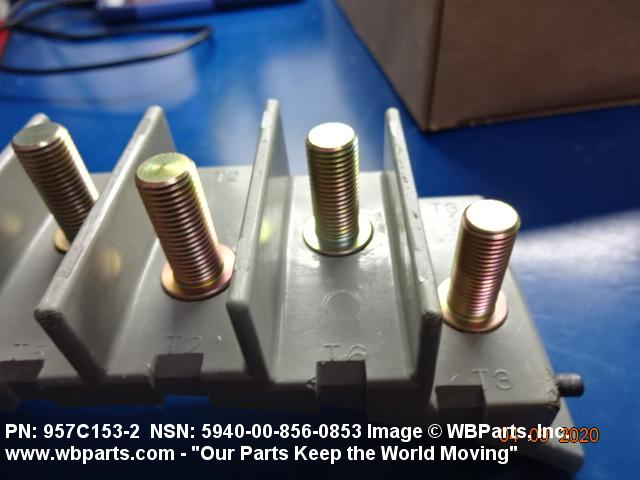

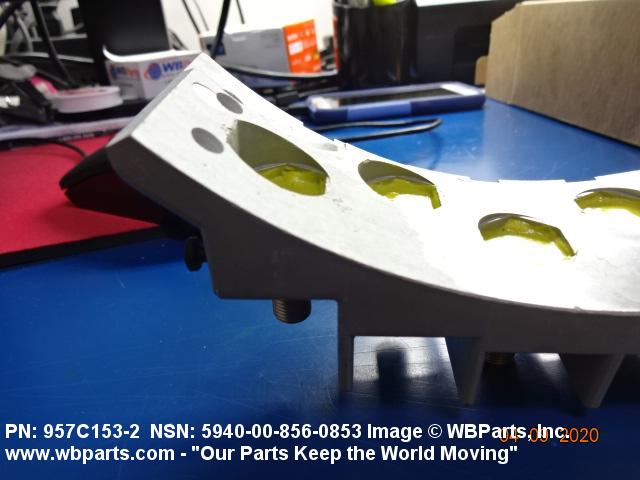

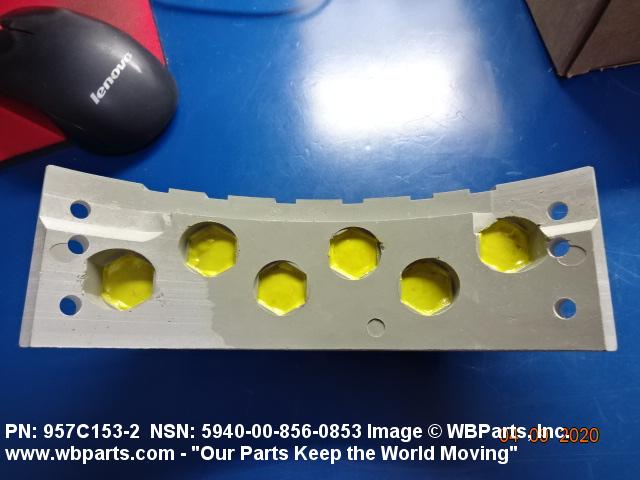

Drawings & Photos | NSN 5940-00-856-0853
Demand History | NSN 5940-00-856-0853
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-856-0853 | 2020-03-90 | 23 | United States |
| 503/1/06042/001 | 2019-01-30 | 23 | DIBBS |
| 957C153-1 | 2019-01-30 | 23 | DIBBS |
| 957C153-2 | 2019-01-30 | 23 | DIBBS |
| 5940-00-856-0853 | 2017-06-166 | 2 | DIBBS |
| 5940-00-856-0853 | 2017-06-156 | 2 | DIBBS |
Cross Reference | NSN 5940-00-856-0853
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 503/1/06042/001 | K0668 | SELEX ES LTD DBA SELEX S & A S |
| 503/1/06042/001 | K1423 | BRITISH AEROSPACE LAND & SEA SYSTEMS POST DESIGN SERVICES |
| 957C153-1 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 957C153-1 | 83843 | SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV |
| 957C153-1 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 957C153-2 | 83843 | SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV |
| 957C153-2 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-856-0853
Technical Data | NSN 5940-00-856-0853
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC BOARD |
| NONFEEDTHRU TERMINAL QUANTITY | 6 SINGLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |

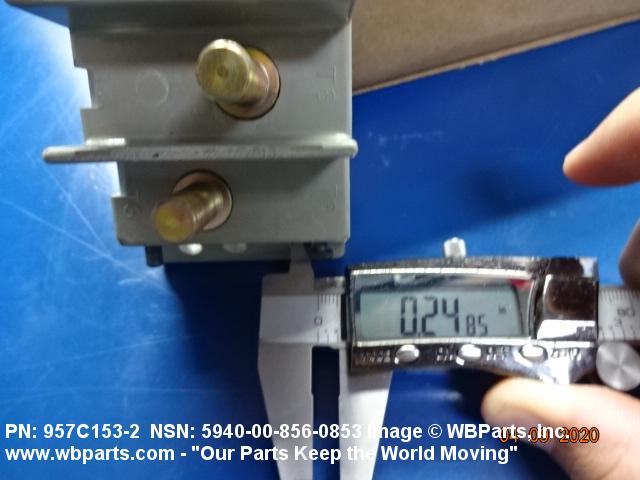

| MOUNTING HOLE DIAMETER | 0.250 INCHES |
| SPECIAL MARKINGS | TERMINALS MARKED T1 THRU T6 |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 957C153-2 |
Restrictions/Controls & Freight Information | NSN 5940-00-856-0853
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-856-0853
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | HY | SX:ELECTRICAL CONTROL & DISTRIBUTION EQUIPMENT AIRBORNE ELECTRICAL GENERATORS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
